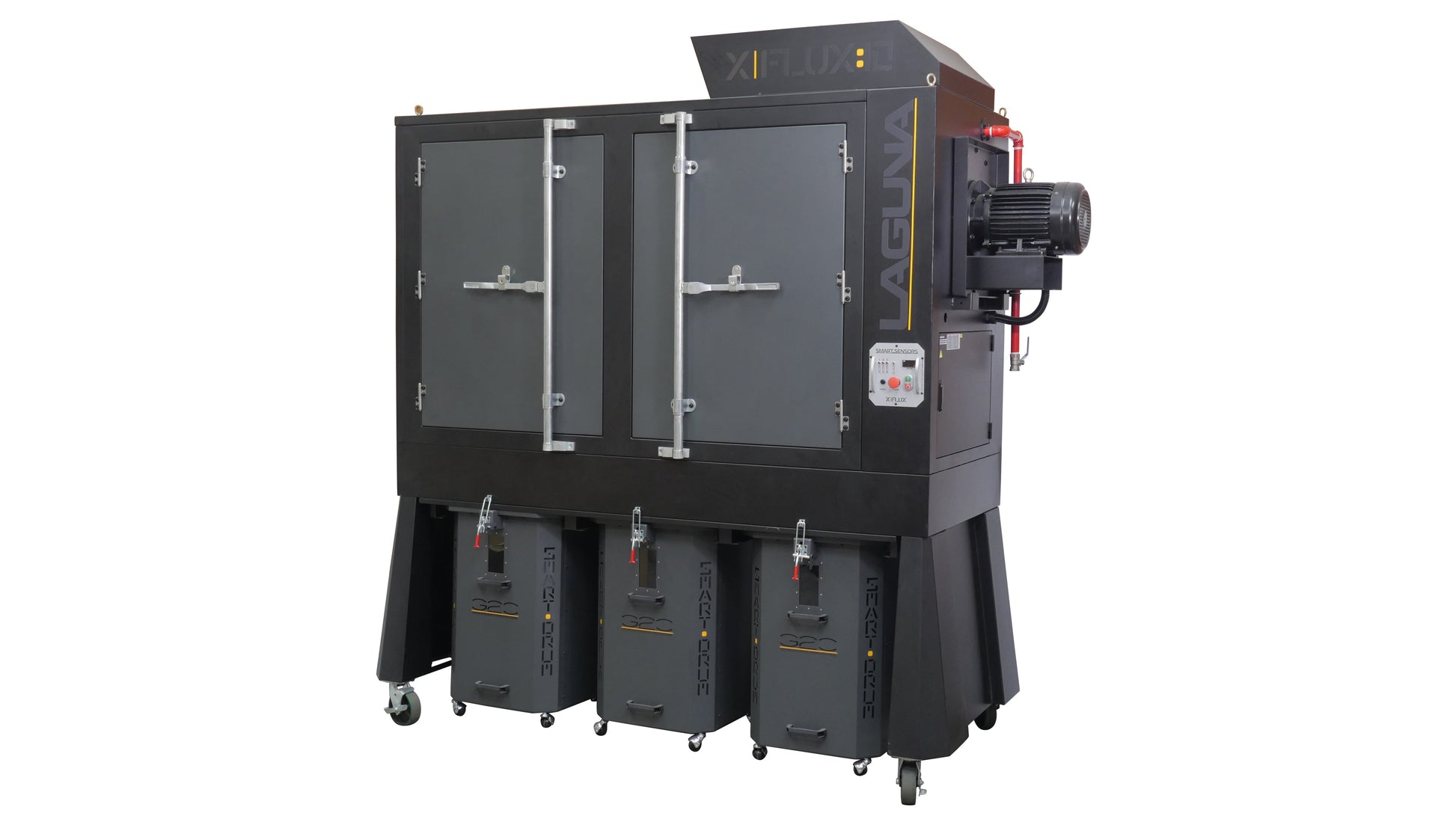

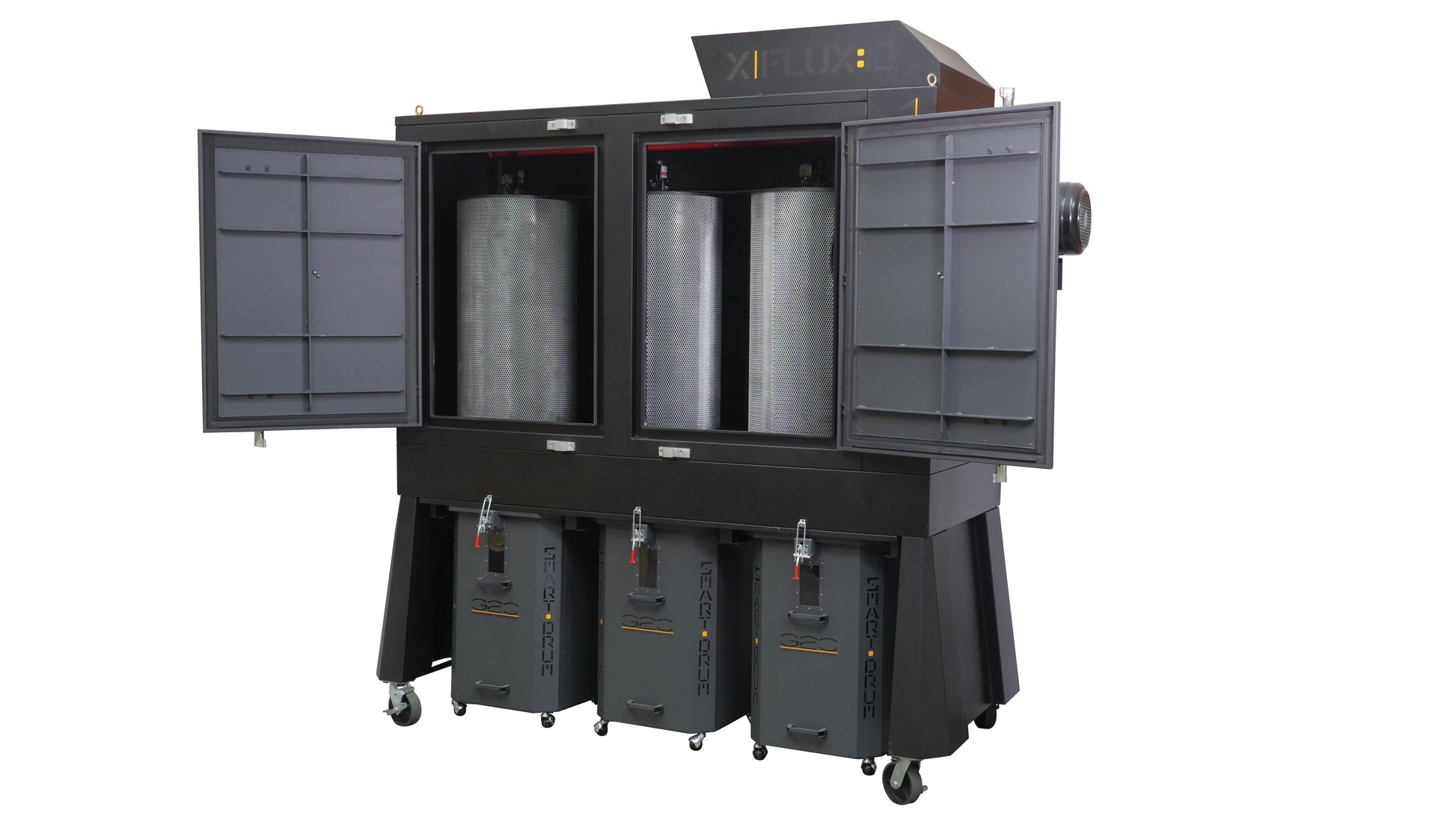

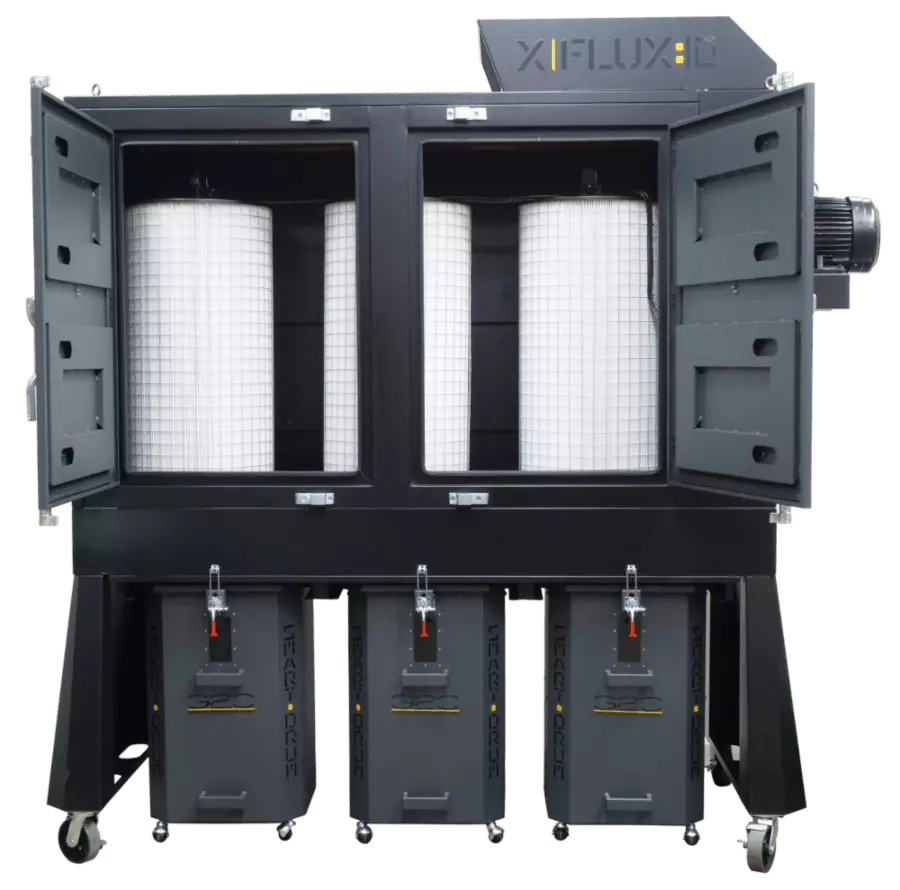

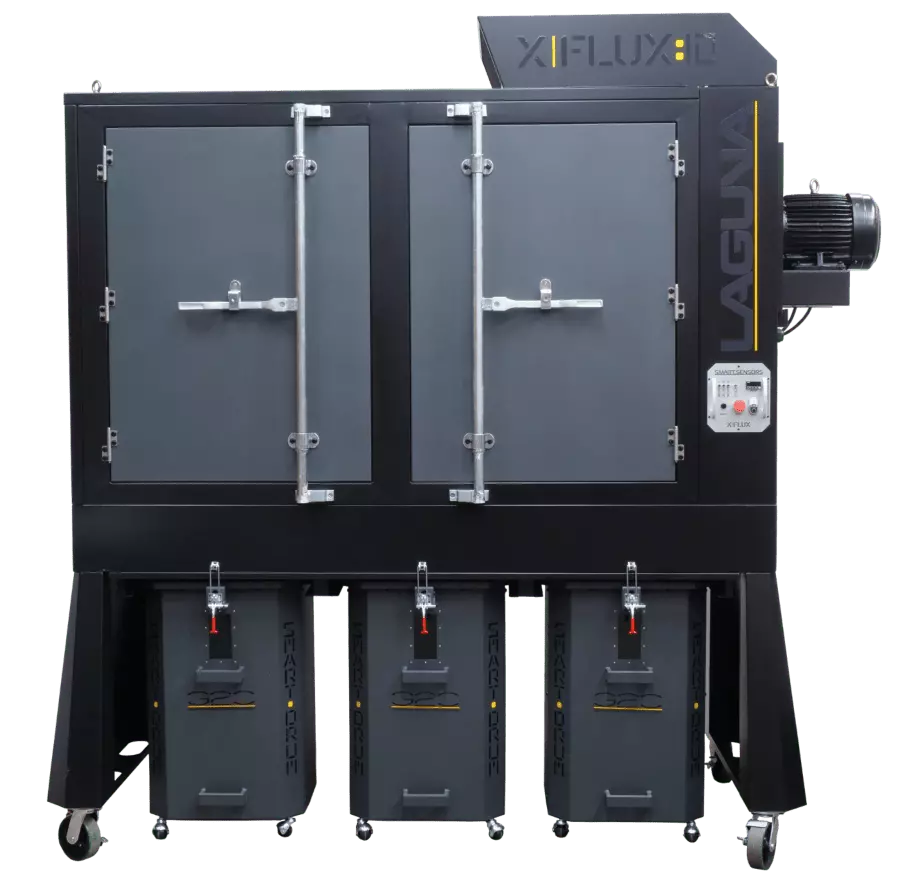

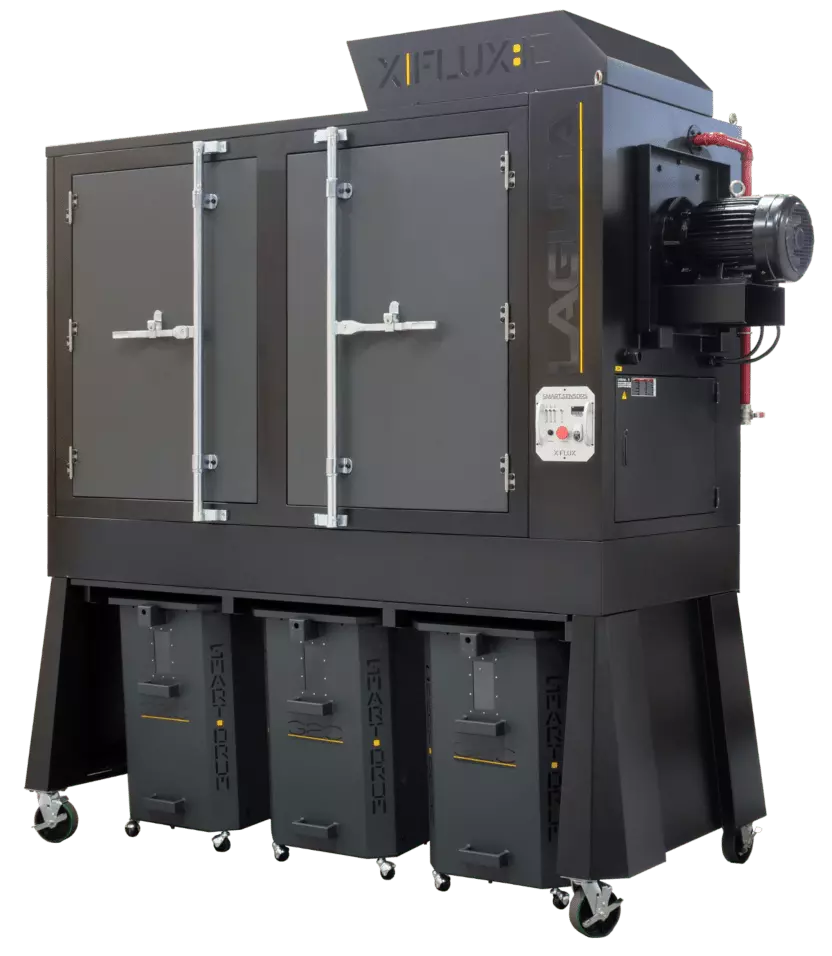

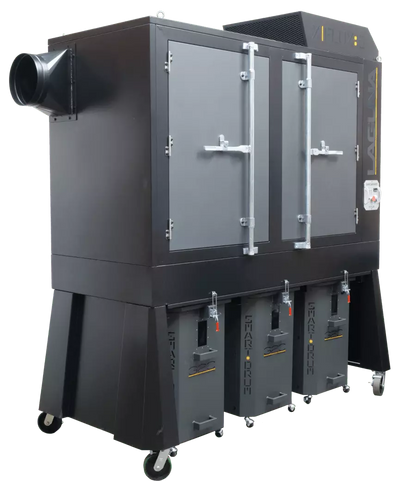

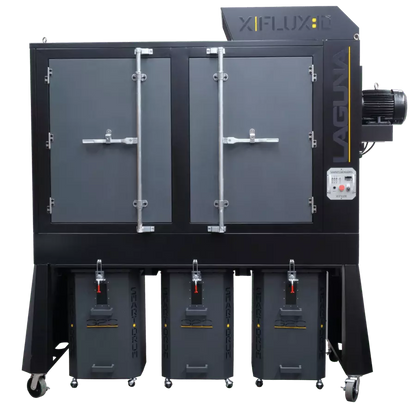

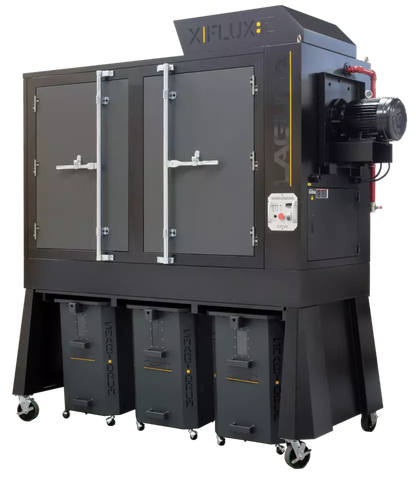

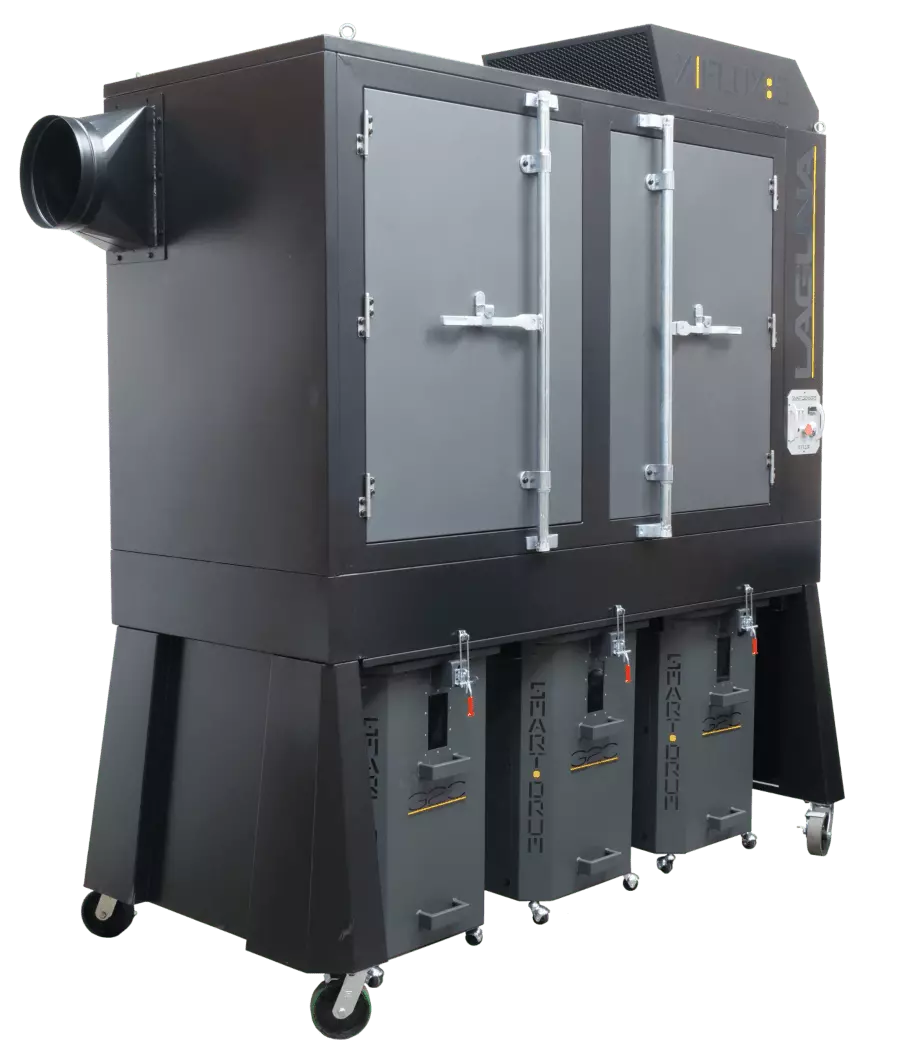

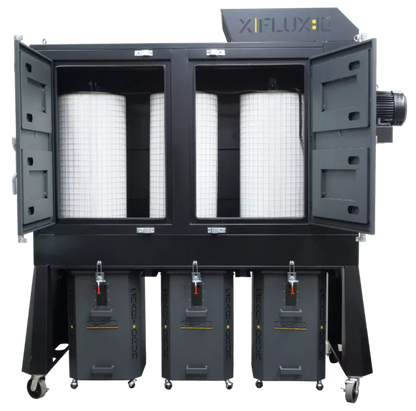

X|flux:10 Industrial Cyclone Dust Collector

The X|Flux dust collector is your solution for high filtration efficiency in large shops and enclosed areas.

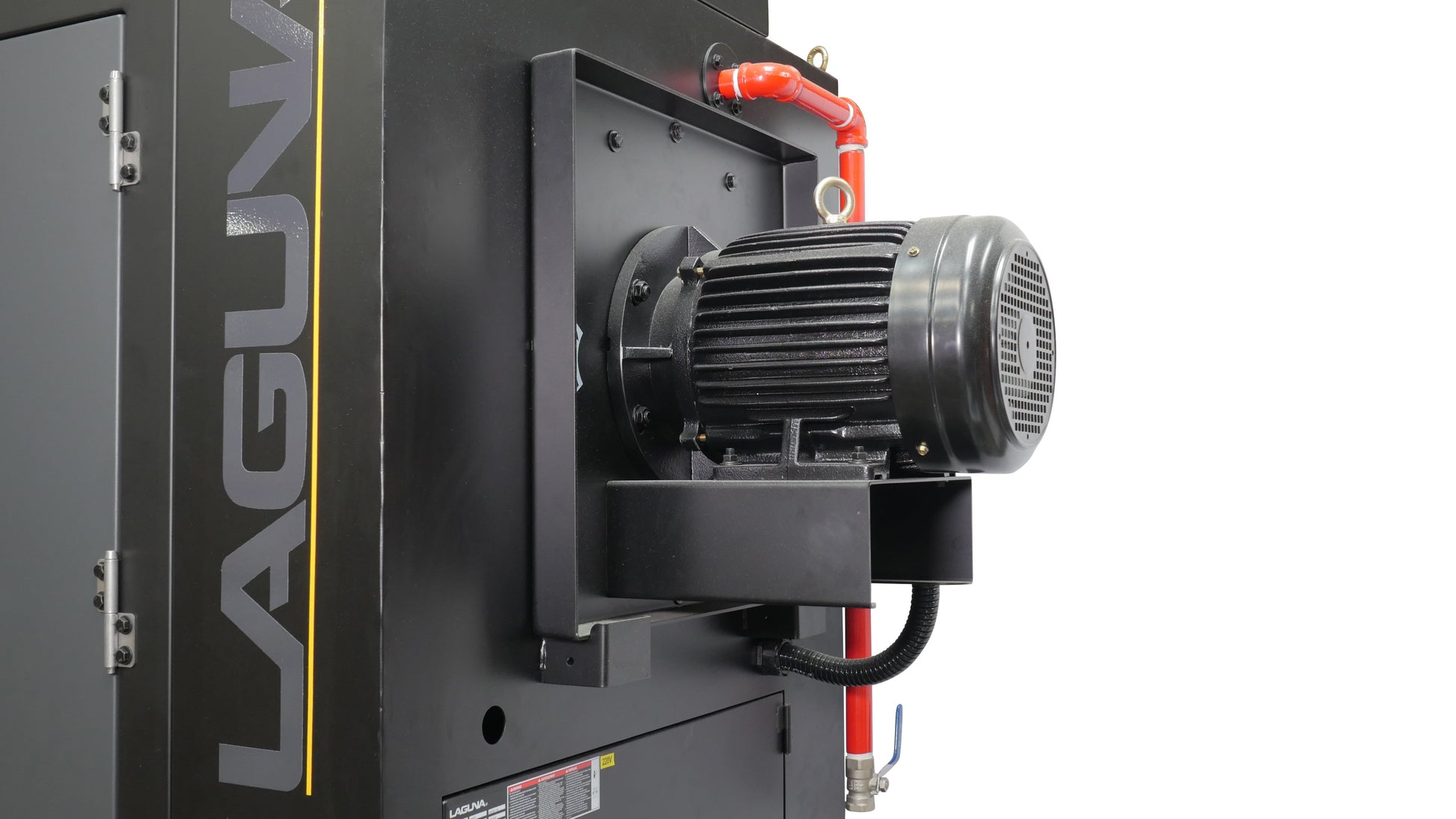

• Motor HP: 10 HP
• Phase: 3
• Voltage: 220V
• Amps: 28 Amps
• Recommended Breaker: 50 AMP
• Hertz: 60
• Plug: No
• RPM: 3450
• Main Motor Switch: Radio Frequency

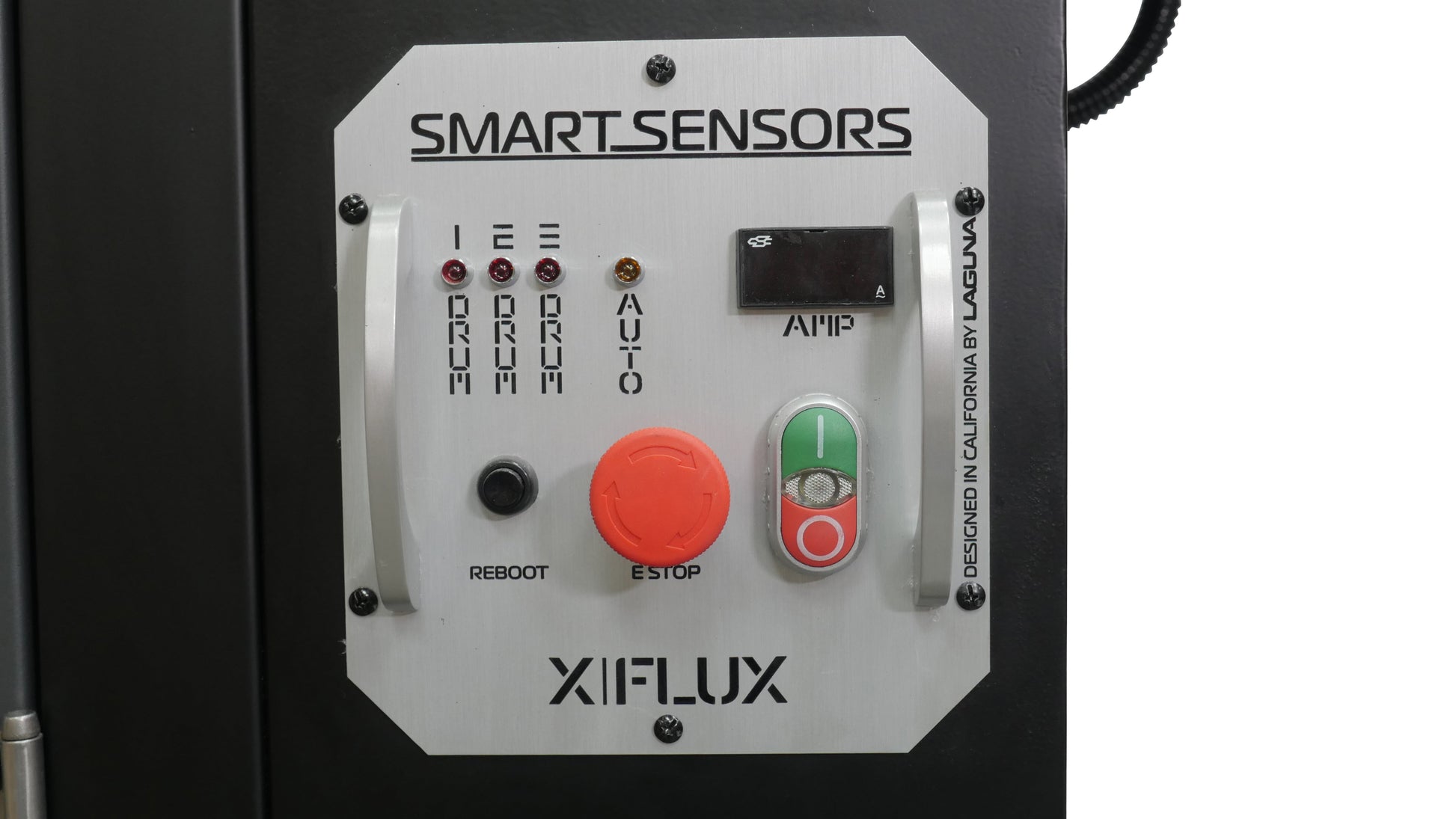

• Control Panel: Anodized Aluminum
• Motor HP: 10 HP
• Phase: 3
• Voltage: 220V
• Amps: 28 Amps
• Recommended Breaker: 50 AMP
• Hertz: 60
• Plug: No
• RPM: 3450
• Main Motor Switch: Radio Frequency
• Control Panel: Anodized Aluminum
• Hand Held Remote Control: HF (High Frequency)
• LED Warning Light Empty Drum: Yes
• Canister Auto Clean Controlled By Timer: Yes
• Shop Setting CFM: 4700
• Inlet CFM: 8070
• Max Static Pressure (Inches of Water): 11″
• Impeller/Fan Size: 15-½″
• Impeller Material: Steel
• Impeller Type: Radial Fin
• Balancing of Fan: ISO 1940

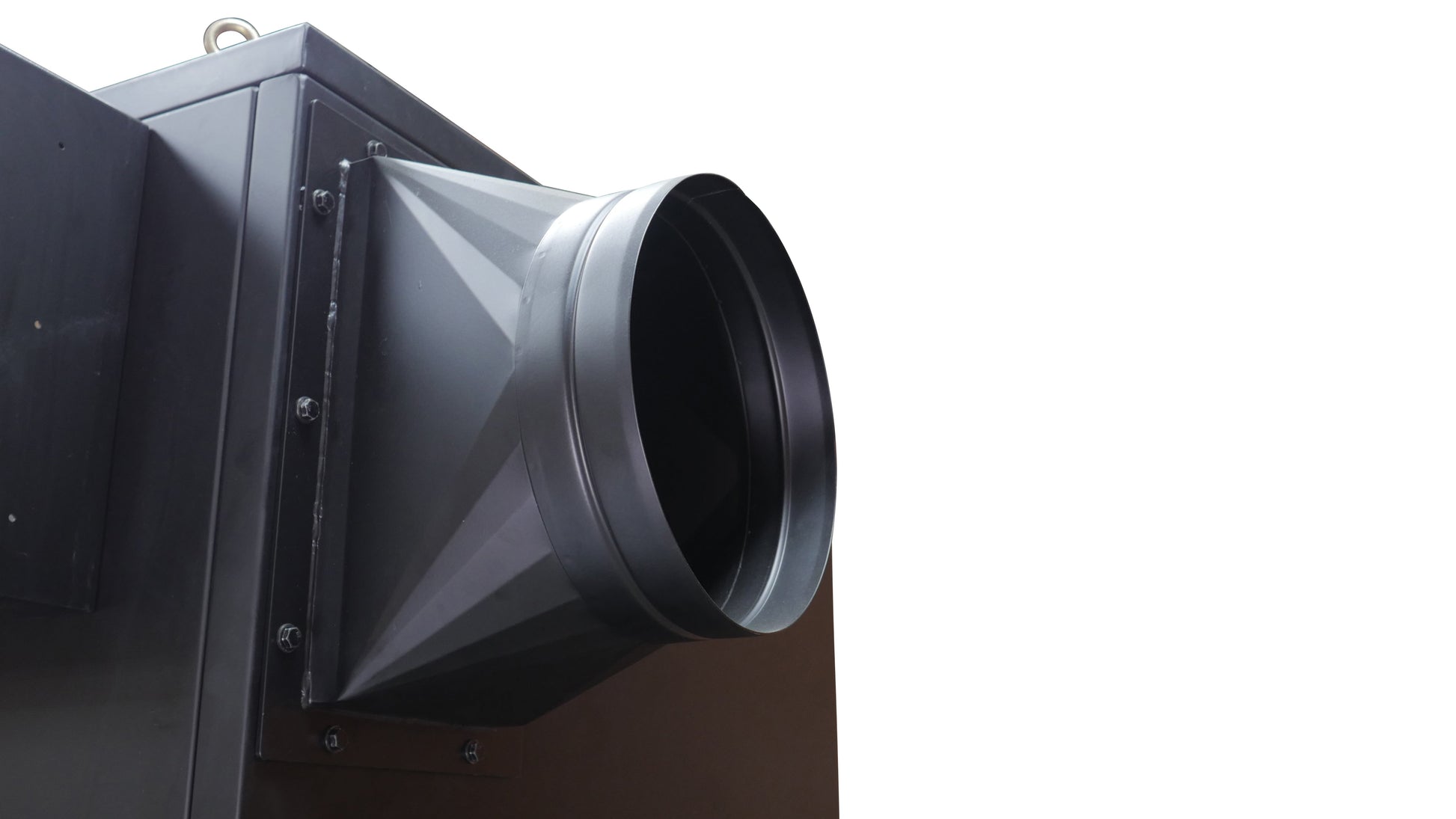

• Inlet Diameter: 12″

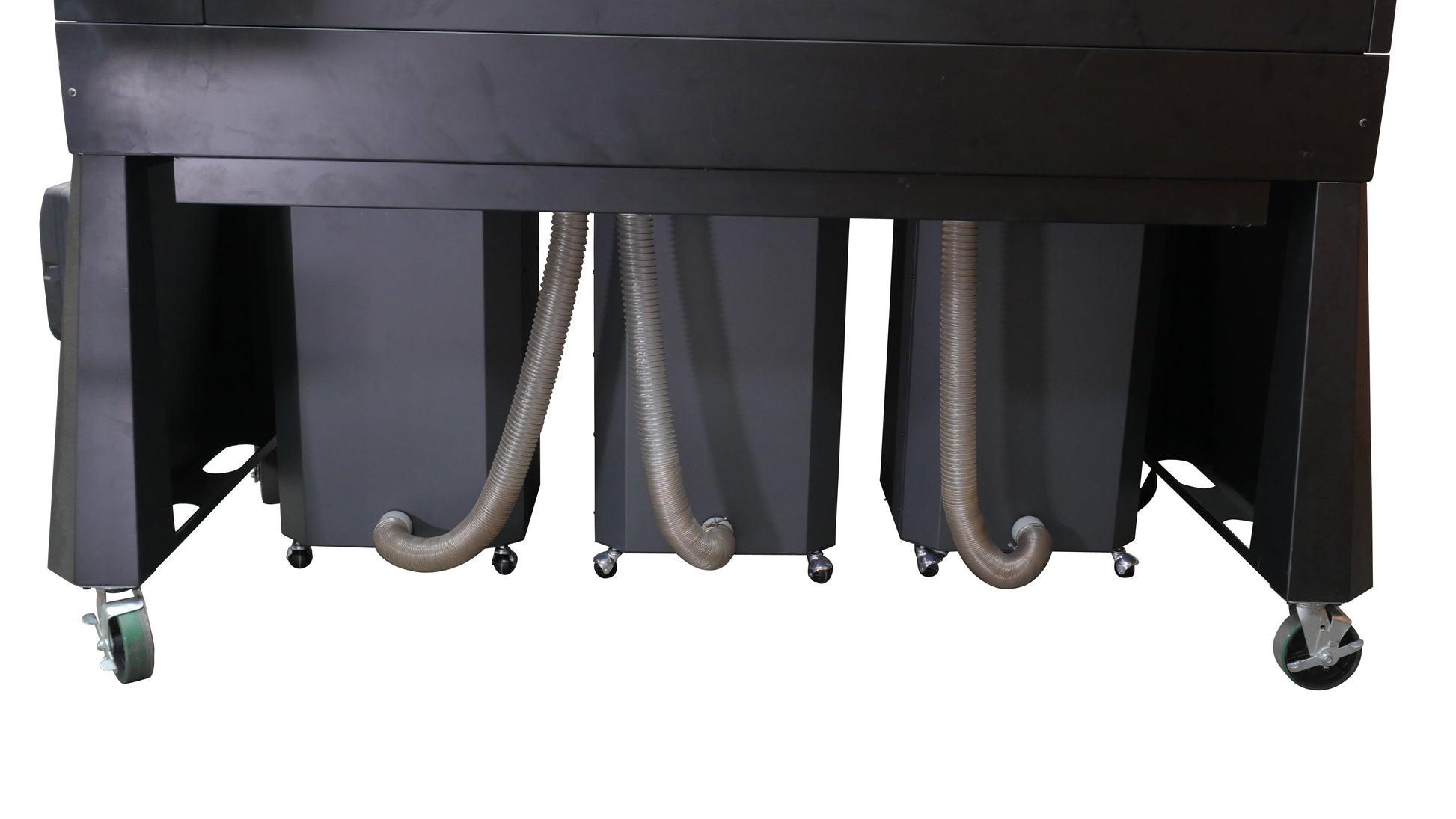

• Drum Capacity: 54 Gal x 3
• Octagon Drum: Low Pressure Suction, Swiveling Casters
• Drum Collection Bag (Dia. x L): Plastic Bag 29″ x 51″
• Canister Filter Type: White 1 Micron
• Filtration Efficiency: 0.2-2 Micron (@99.97%)
• MERV Rating: 12
• Canister Diameter: 500mm (19.69″)
• Canister Length: 900mm (35.43″)
• Canister Cleaning: Timed Auto Clean 2 x 10 Seconds Per Work Hour
• Canister Filter Lower: Plastic Bag 29″ x 24″
• Wheels: 6″ Industrial Swiveling
• US/CSA Approved: Yes
• Decibel Reading: 80dB(A)(@9.8′)
• Assembled Dimensions (L x W x H): 104″ x 49″ x 106″
• Machine Weight: 750 kgs/ 1653 lbs
• Shipping Weight: 830 kgs/ 1829 lbs
