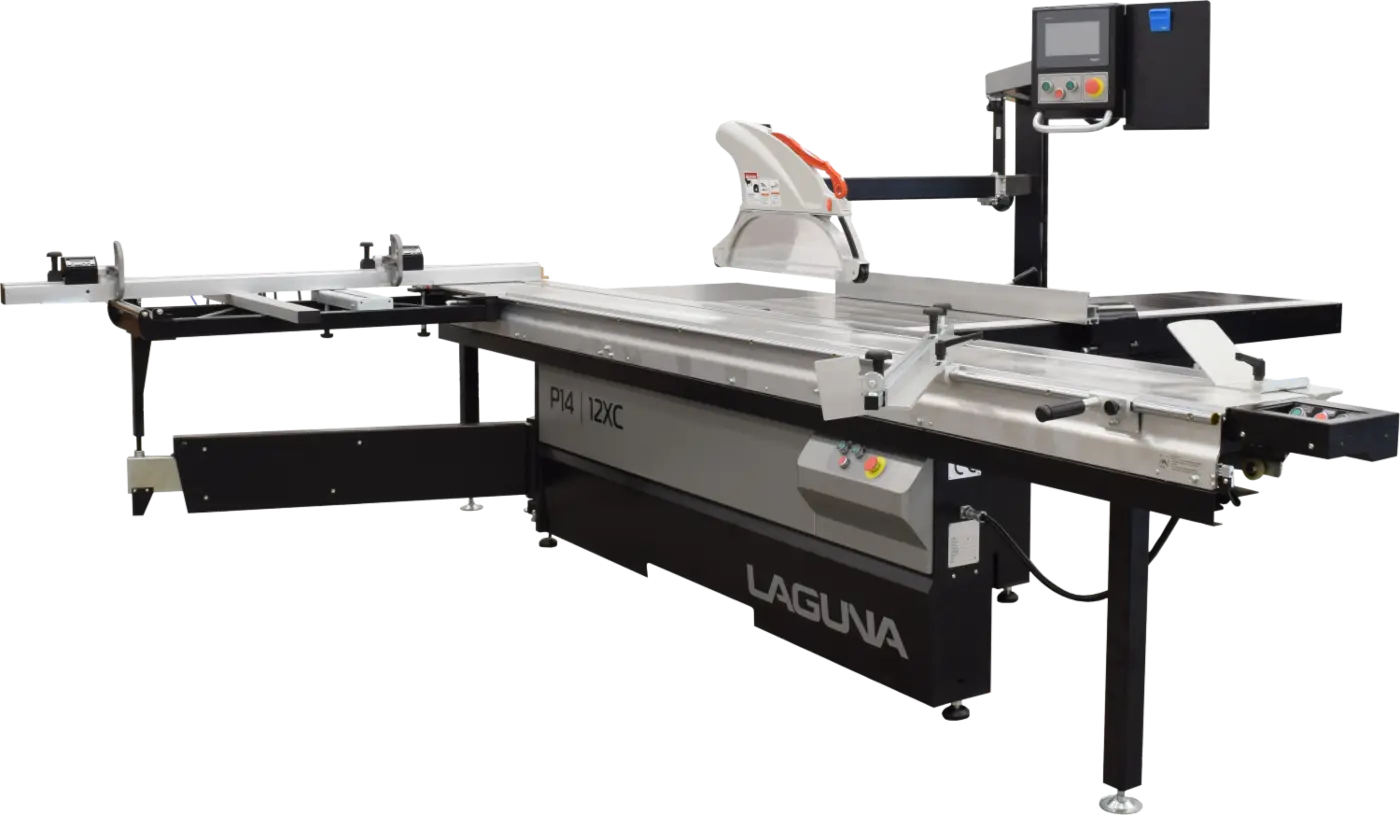

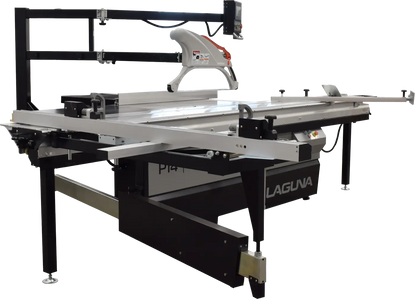

Laguna P14|12XC Panelsaw 220V 3Phase

Laguna P14|12XC Panelsaw 220V 3Phase

Regular price $34,999.00
Regular price $34,999.00 Sale price $34,999.00
Sale Sold out
Shipping calculated at checkout.
Quantity

SKU: MPSP14-12XC-7.5HP-3-220-0148

Laguna

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

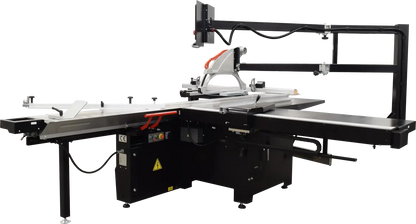

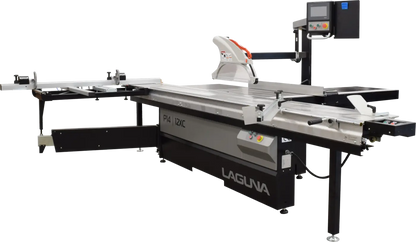

Introducing Laguna’s most industrial panelsaw ever! The new P14|12XC has motorized rip fence adjustment and powered blade tilt, raise and lower all operated with CNC touch-screen control. The P14|12XC also has the largest capacity Laguna has ever offered with a 12’ 4” sliding table. Ideal for cabinet makers, furniture builders and millworkers, the controller allows you to store up to 100 presets making set up a breeze, saving you time and money. The overhead guard comes standard with quick-change 90° and 45° guards. You can switch from one to the other in a matter of seconds. Another nice detail is the swing-away function that allows you to quickly move the guard out of the way.

  • 12′ 4″ Sliding Table Rip Capacity
  • 51″ Rip Width Capacity
  • 14″ Main Blade

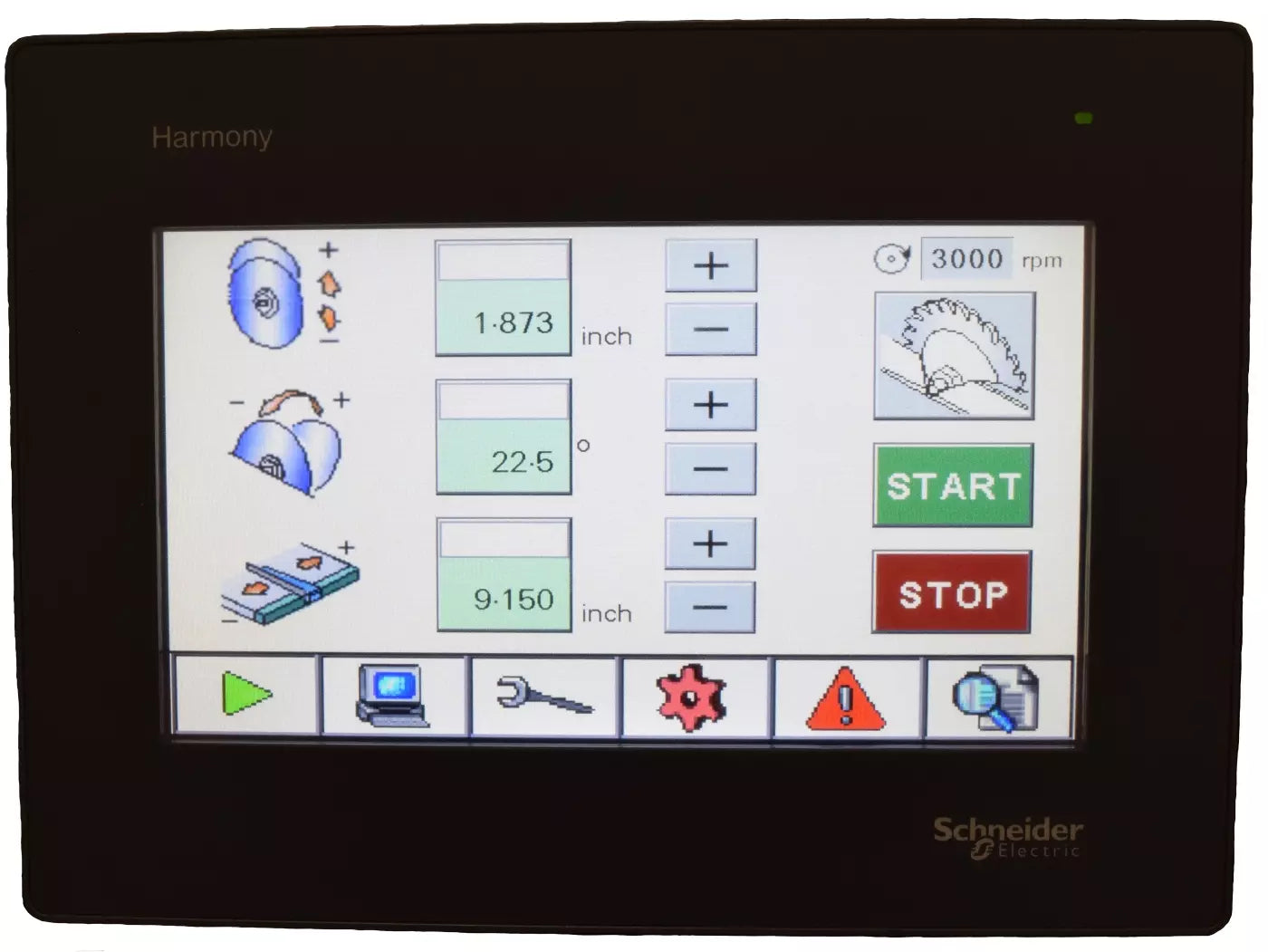

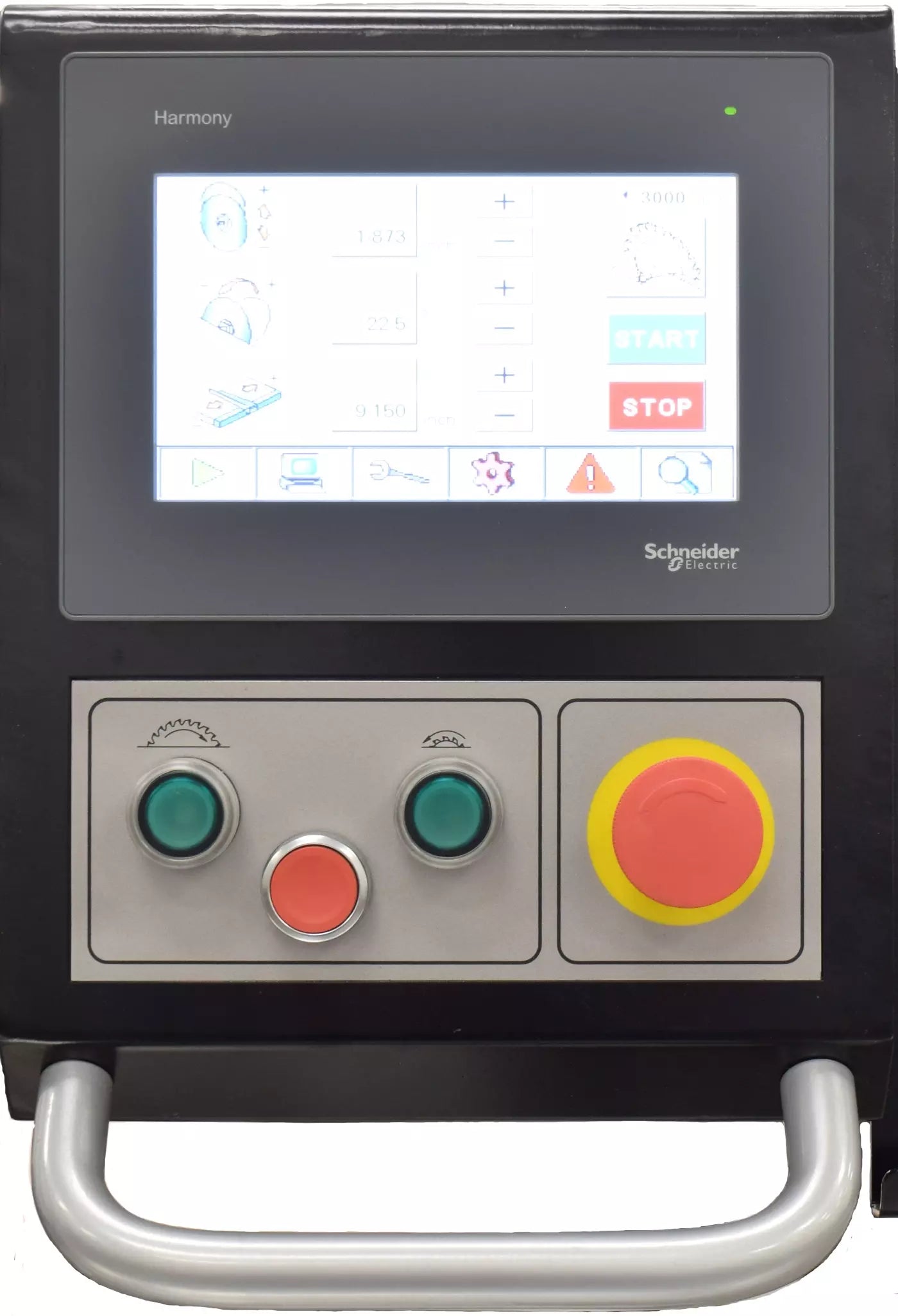

  • CNC Touch Screen For Programming

Sliding Table Rip Capacity: 12′ 4″

Motor: 7.5 HP 220V 3PH Main w/ seperate 1HP Scoring Motor

Rip Width Capacity: 51″ w/ servo driven motor & ball screw

Main Blade Width: 14″

Scoring Blade: 120mm

Memory Set Capability: 100

Optimum Blade Speeds: 3000/4000/5000 RPM

Cutting width compensation with blade tilt

Automatic blade height correction with blade tilt

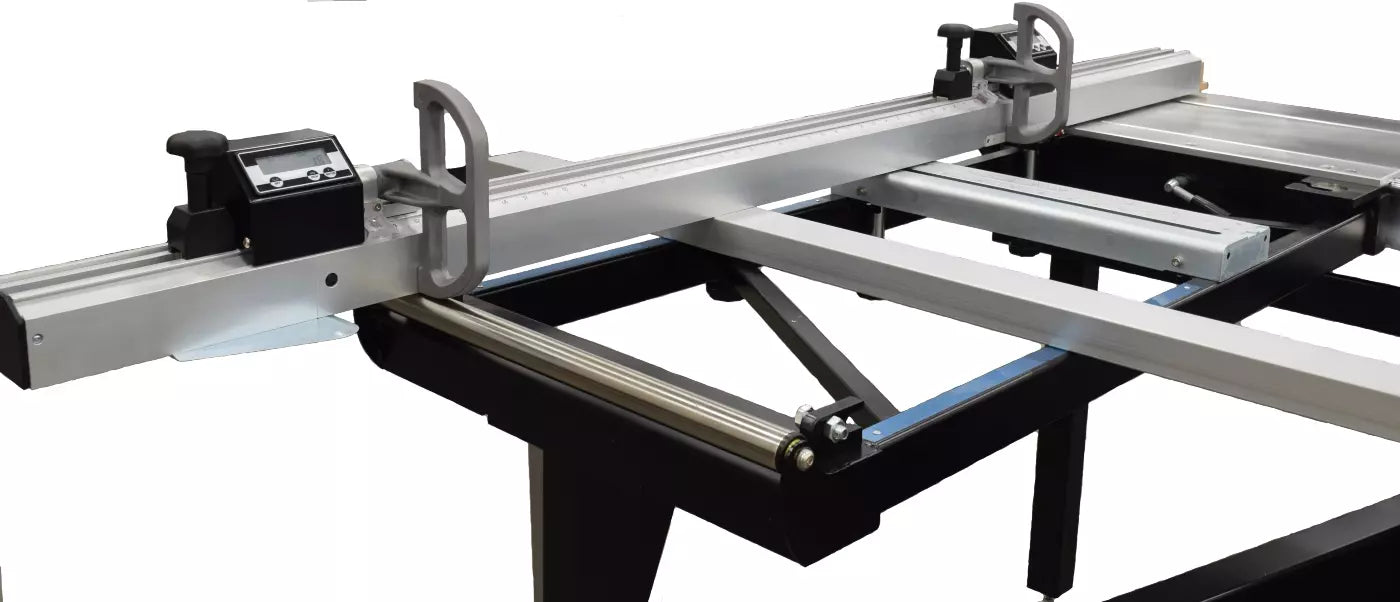

Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides

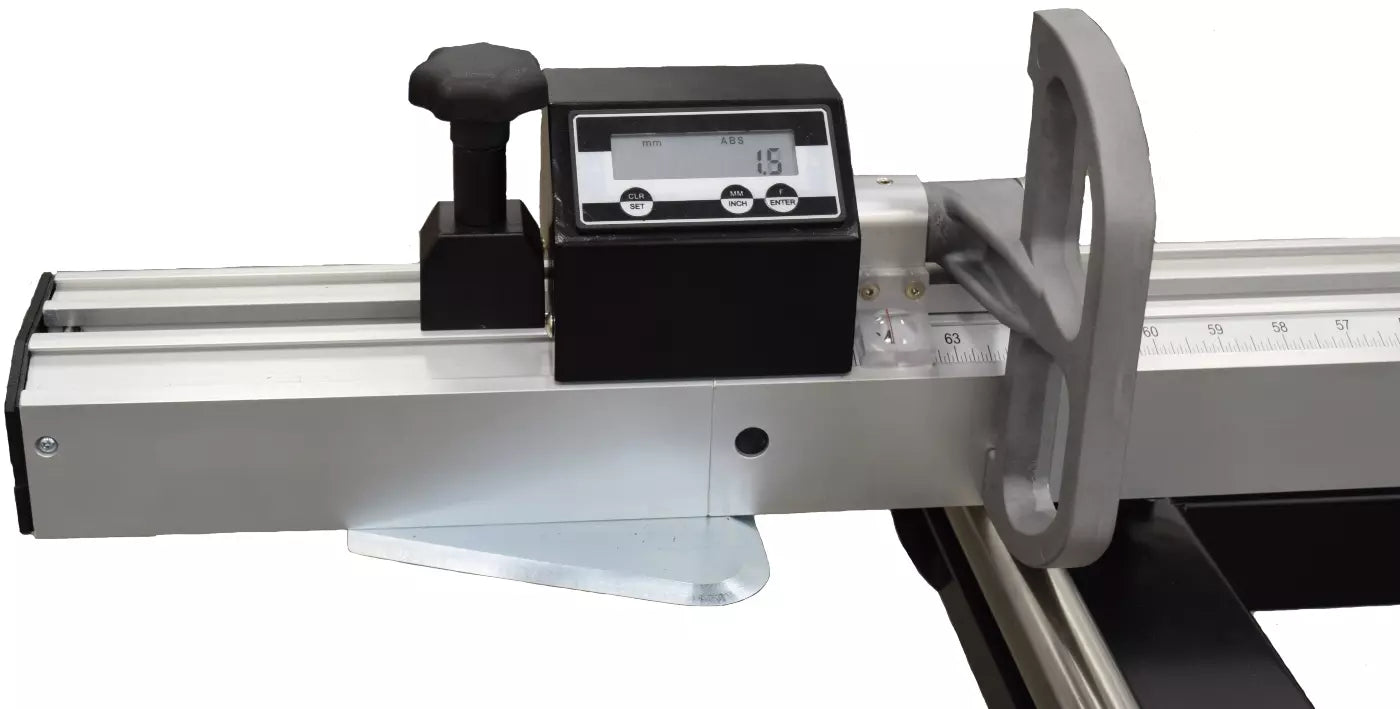

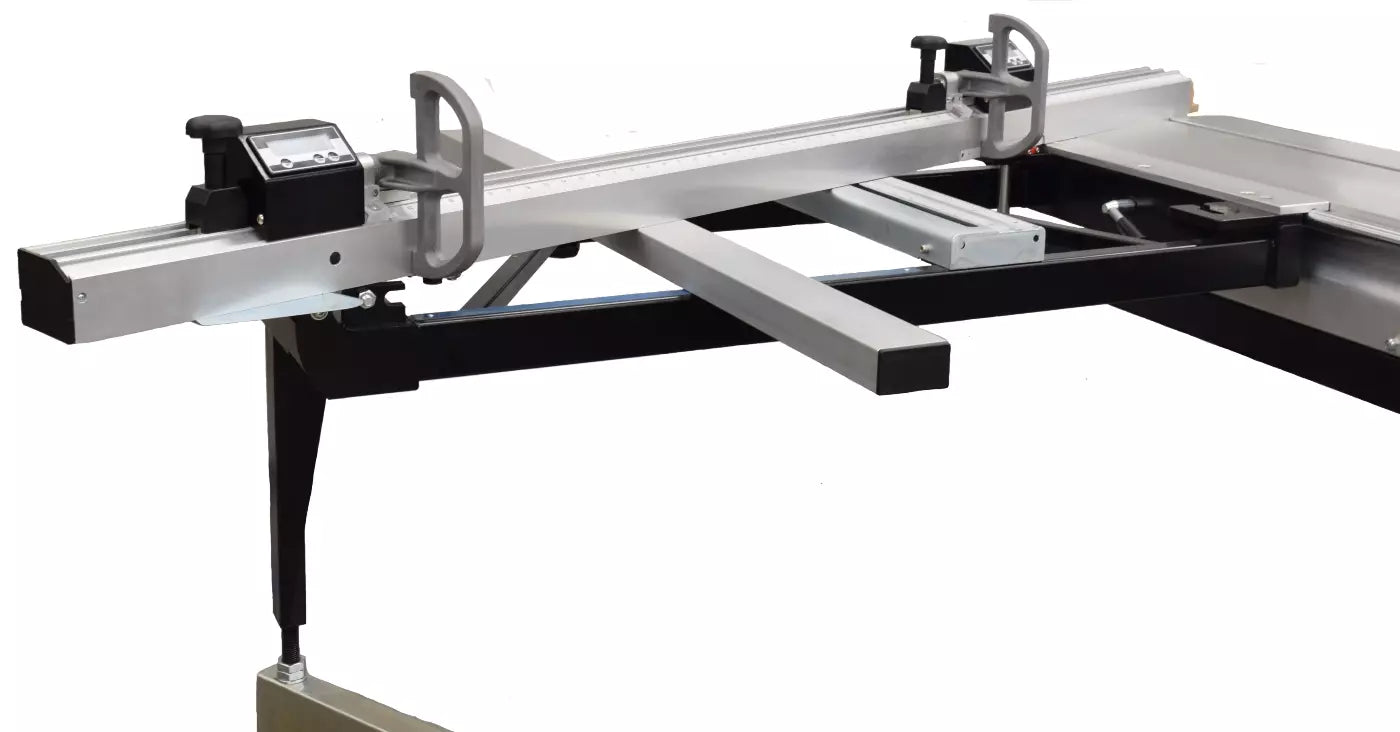

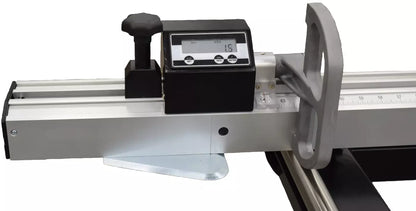

Aluminum extruded crosscut fence with DRO and flip stops

+47°/-47° cross-cut table

Precision ground and polished solid cast iron main table

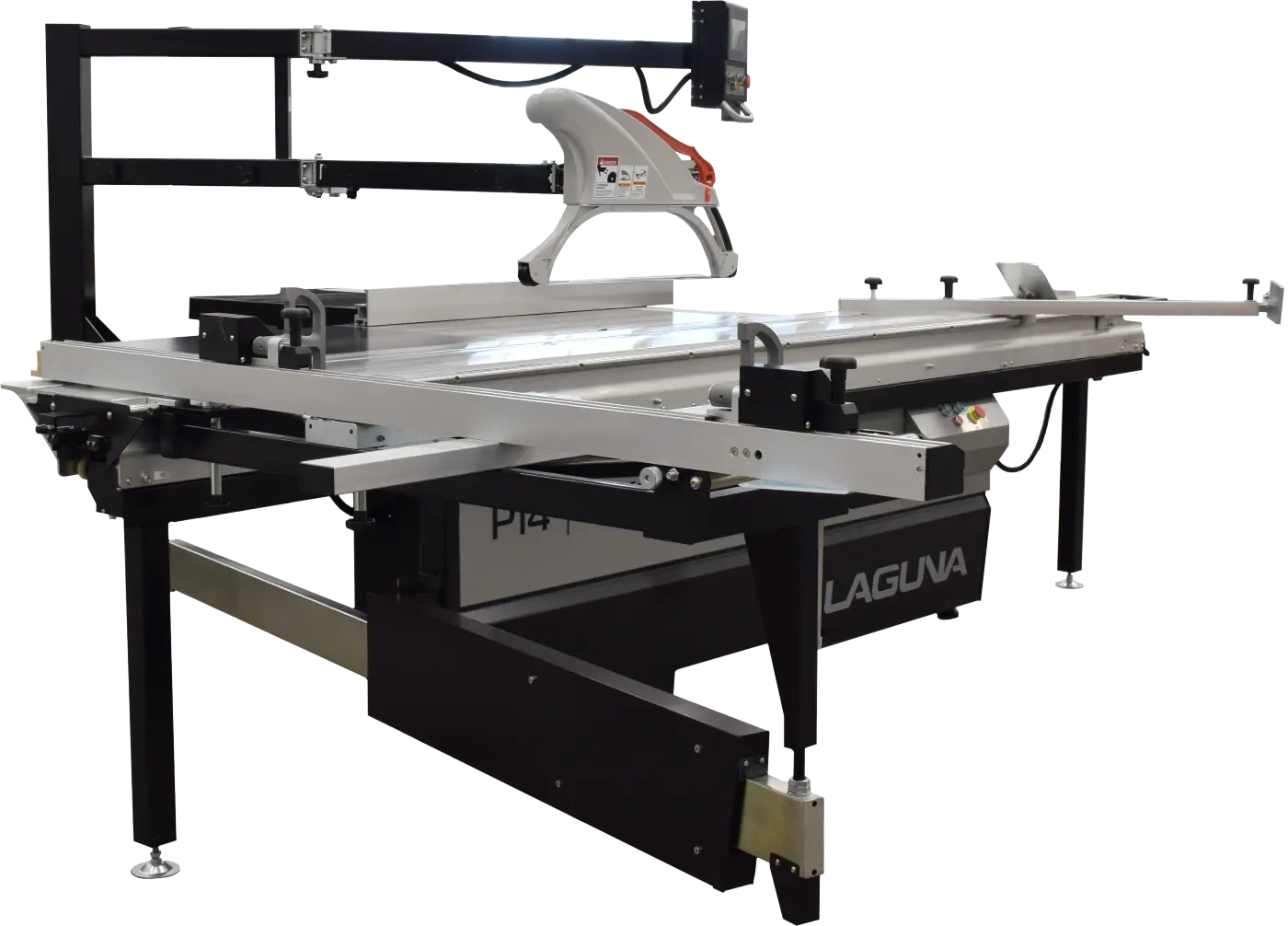

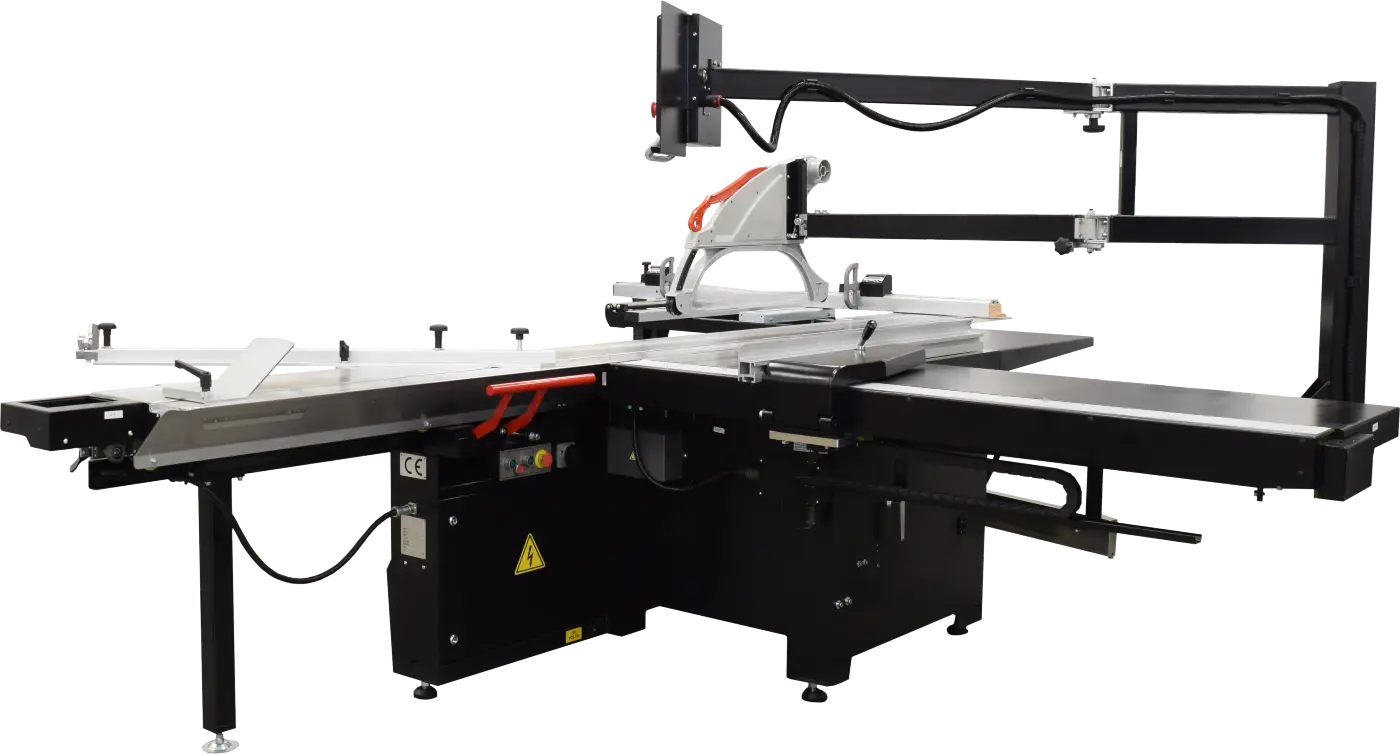

Overhead blade guard with dust port

Hold down clamp and rip shoe included
