Motor 5 HP Single-Phase 3450 RPM 220V For G1023ZX
Motor 5 HP Single-Phase 3450 RPM 220V For G1023ZX
Regular price
$550.00
Regular price
$550.00
Sale price
$550.00
Shipping calculated at checkout.
Quantity
Share
Couldn't load pickup availability
SKU: H5389
Grizzly
Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

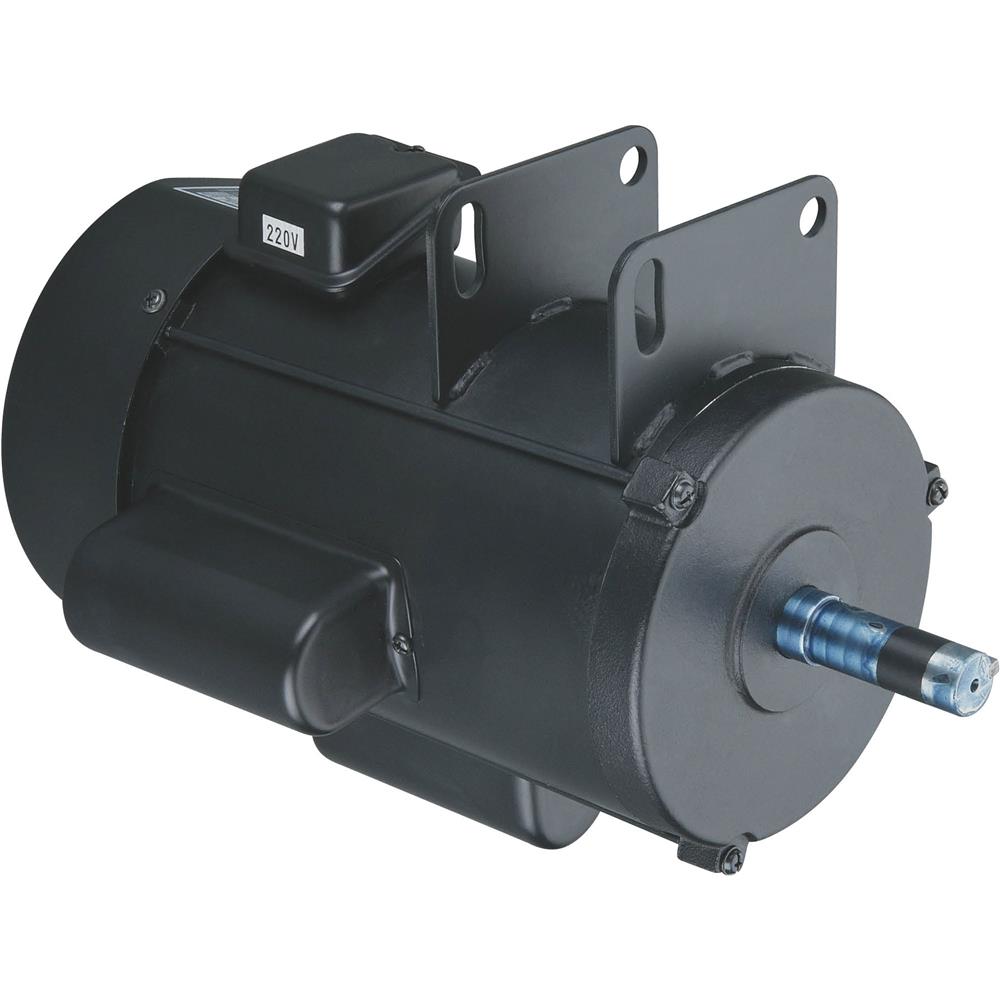

H5389 5 HP Single-Phase 3450 RPM 220V Motor For G1023ZX
A direct replacement motor for a Grizzly G1023ZX table saw.
Is your motor tired and limping on its last legs? No need to buy an entire new saw, replace the motor!
We are very pleased to offer this exceptionally high-quality motor at a discount price for the 10" Deluxe Heavy Duty-3 HP Table Saw.
This 3450 RPM motor has a table saw frame and is not for air compressor use.
The Totally Enclosed Fan-Cooled motor (TEFC) will keep out dust, oil, chips, or other foreign particles.
SPECIFICATIONS:
- Power: 5 HP
- Type: TEFC
- Cycle: 60 Hz
- Voltage: 220V
- Amperage: 25A
- Phase: Single-phase
- Speed: 3450 RPM
- Class: B
- Start capacitor: 400MFD 125VAC
- Run capacitor: 50MFD 350VAC
- Rotation: Clockwise
- U: 7/8"
- N: 2.35"
- Key: 5mm
- C: 15.63"
- O: 11.25"
FEATURES:

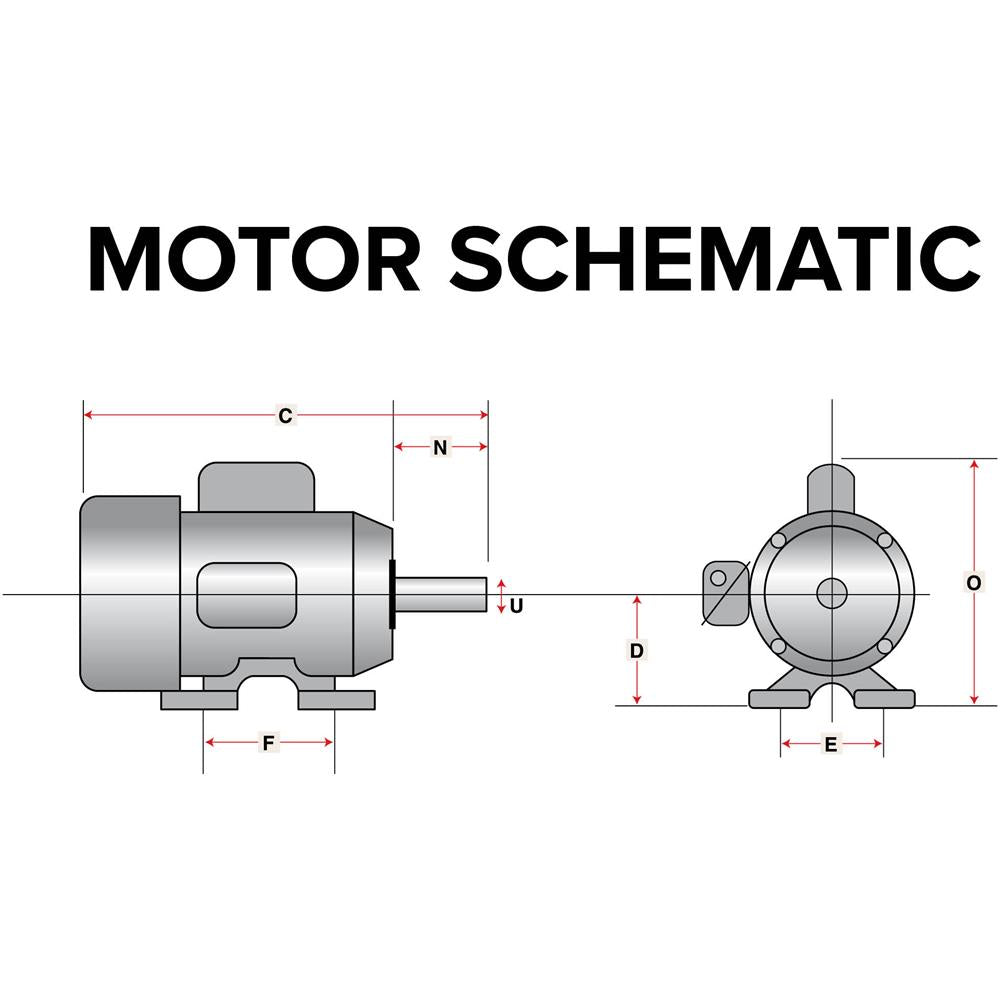

Note: See second photo with motor schematic breakdown.
