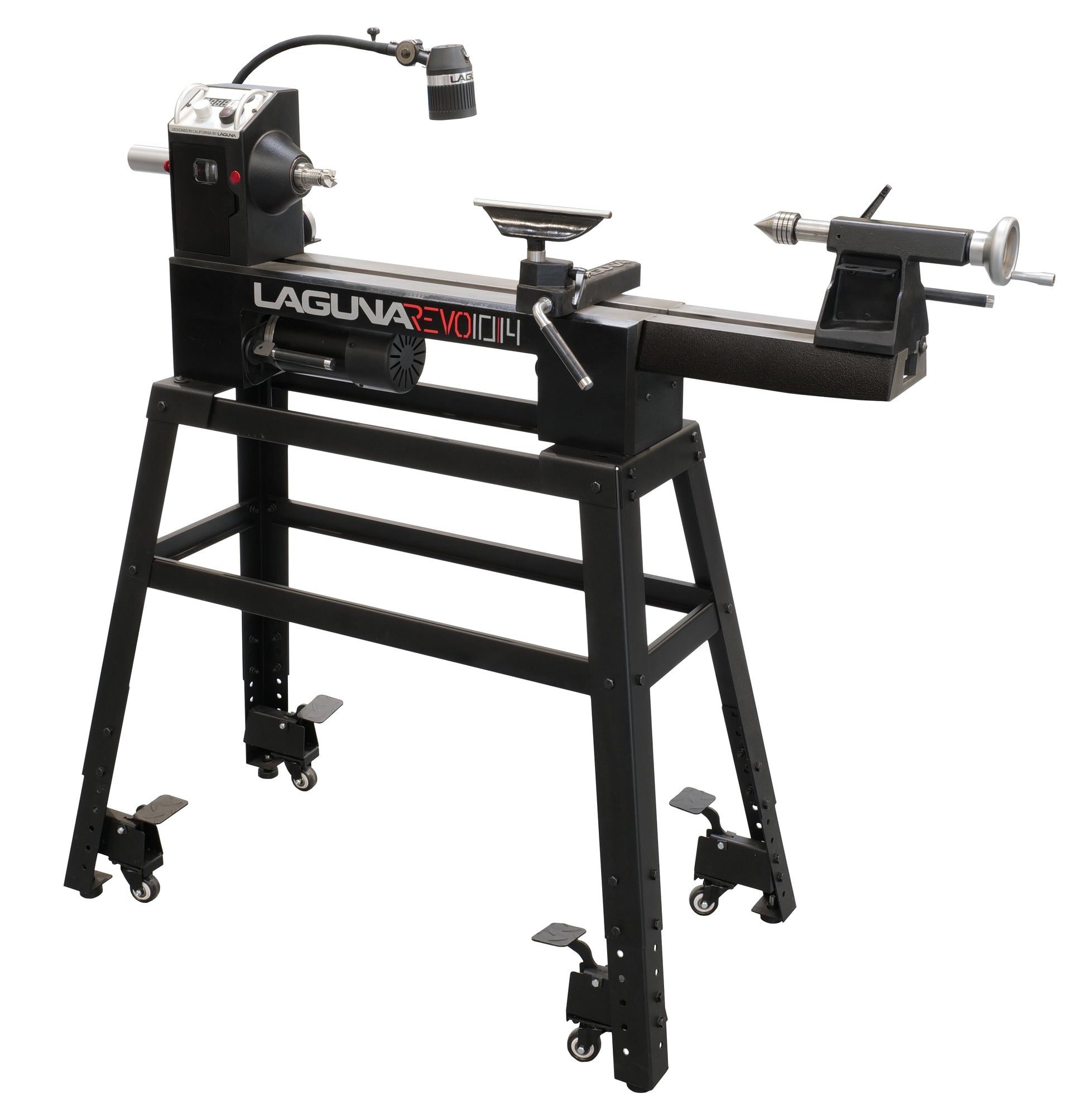

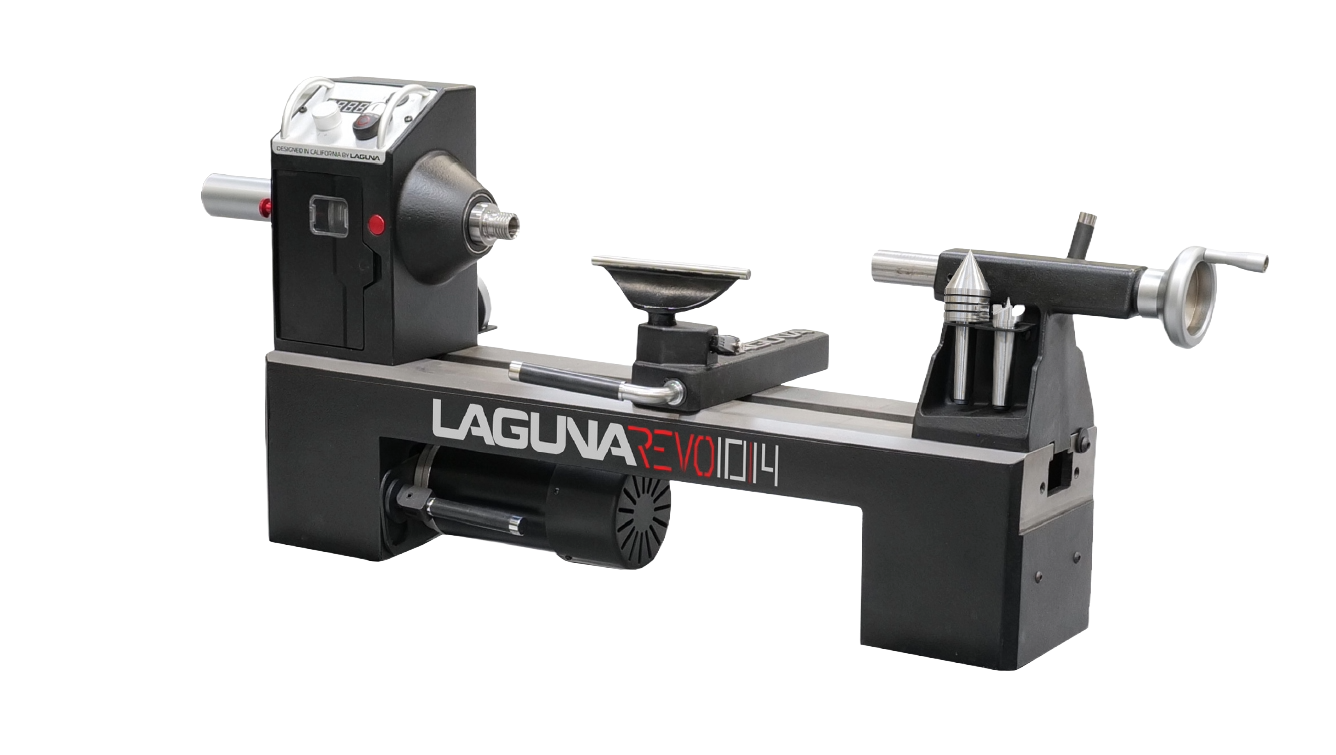

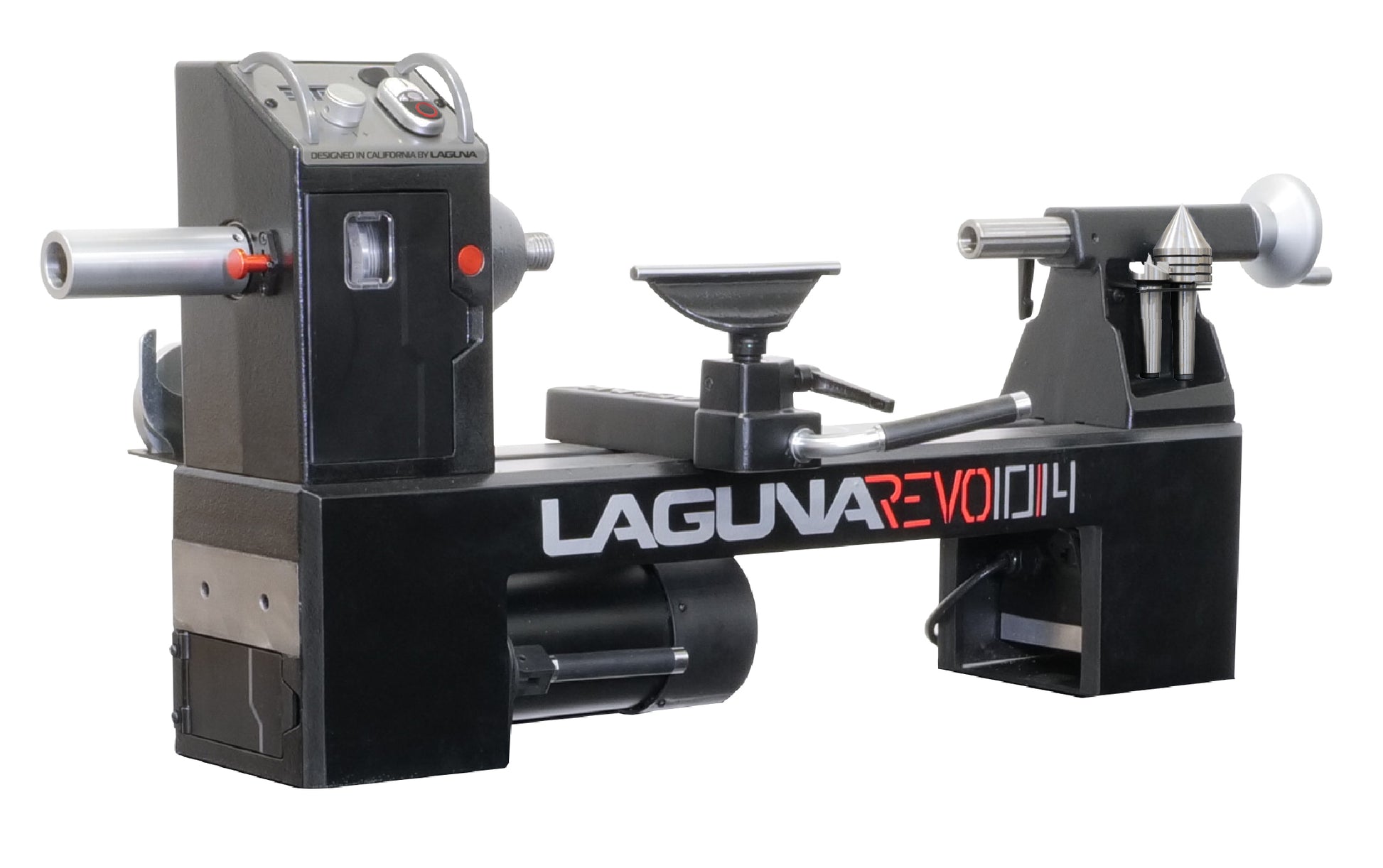

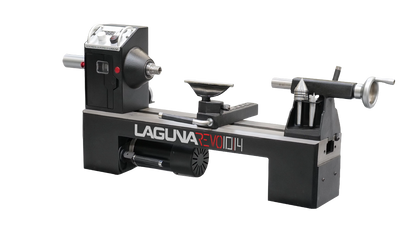

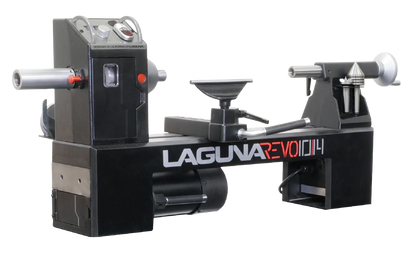

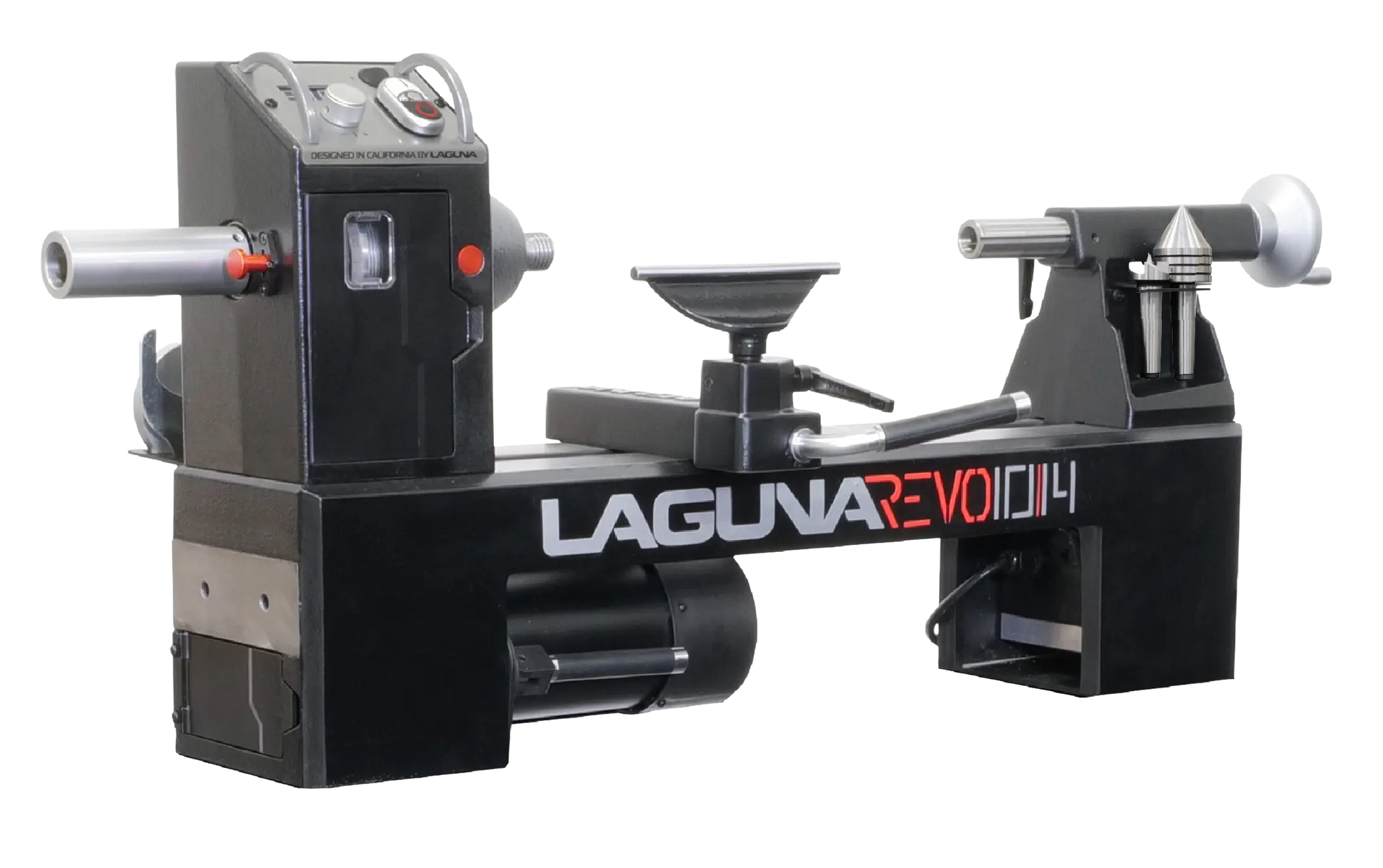

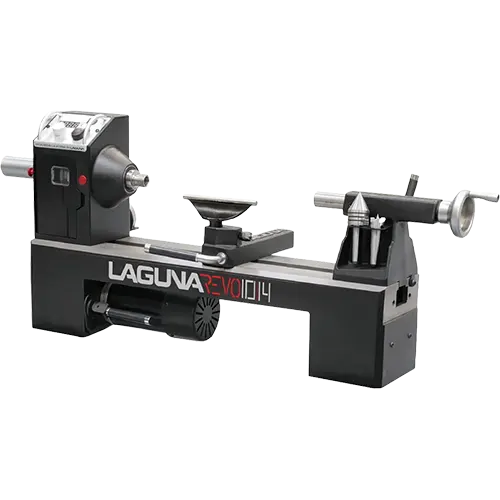

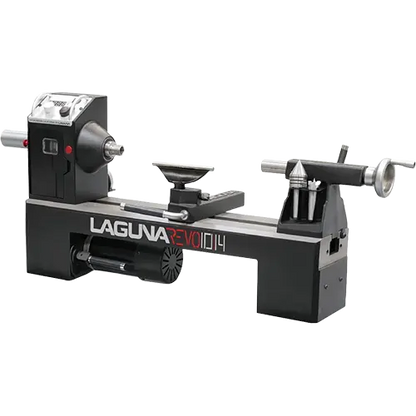

Laguna REVO 10|14

Compact in size but big on performance, the all-new Laguna Tools Revo 10|14 Lathe is the perfect blend of innovation, control, and classic craftsmanship. Engineered for precision turning in tight spaces, this upcoming model brings the quality of the Revo line to a smaller footprint—without compromise.

Ideal for hobbyists, professionals, and makers who want Revo power in a more compact form, the Revo 10|14 is built to inspire creativity at every turn.

• 1HP PWM Motor
• 110 – 120 Volt AC

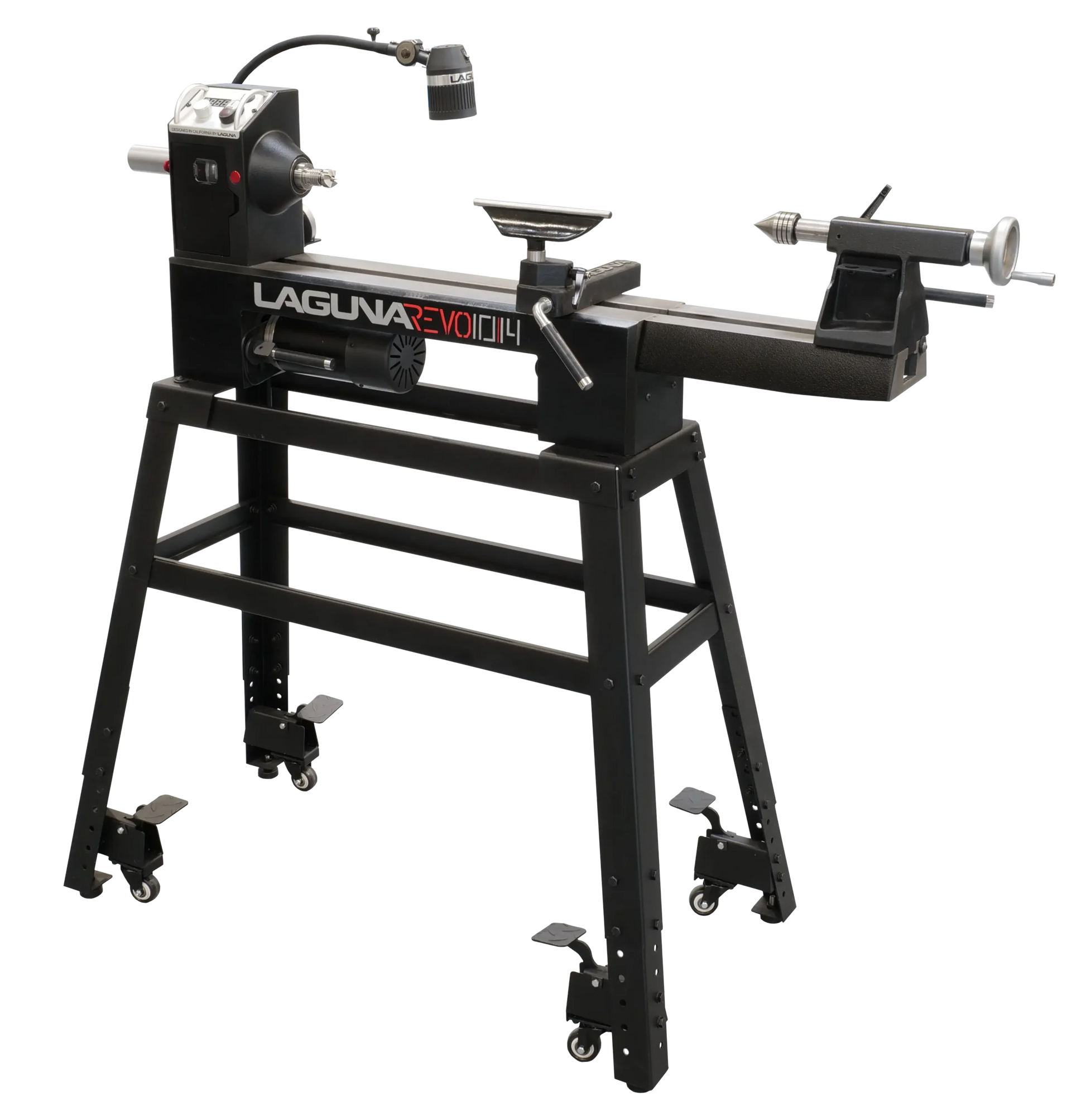

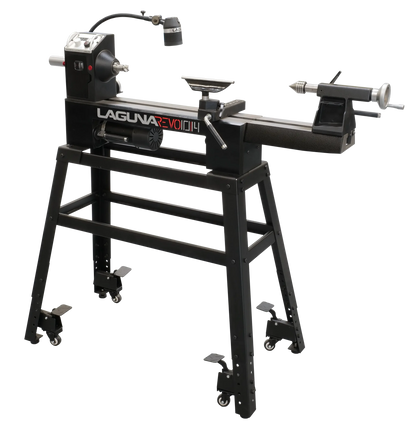

• Electrical Power – 120 Volt AC  – Additional 120 Volt Outlet for Optional LED Work Lights

• 110 – 120 Volt AC
• 1HP PWM Motor
• Electrical Power – 120 Volt AC  – Additional 120 Volt Outlet for Optional LED Work Lights
• Spindle Threads – 1 Inch x 8 TPI – #2 MT Internal Taper

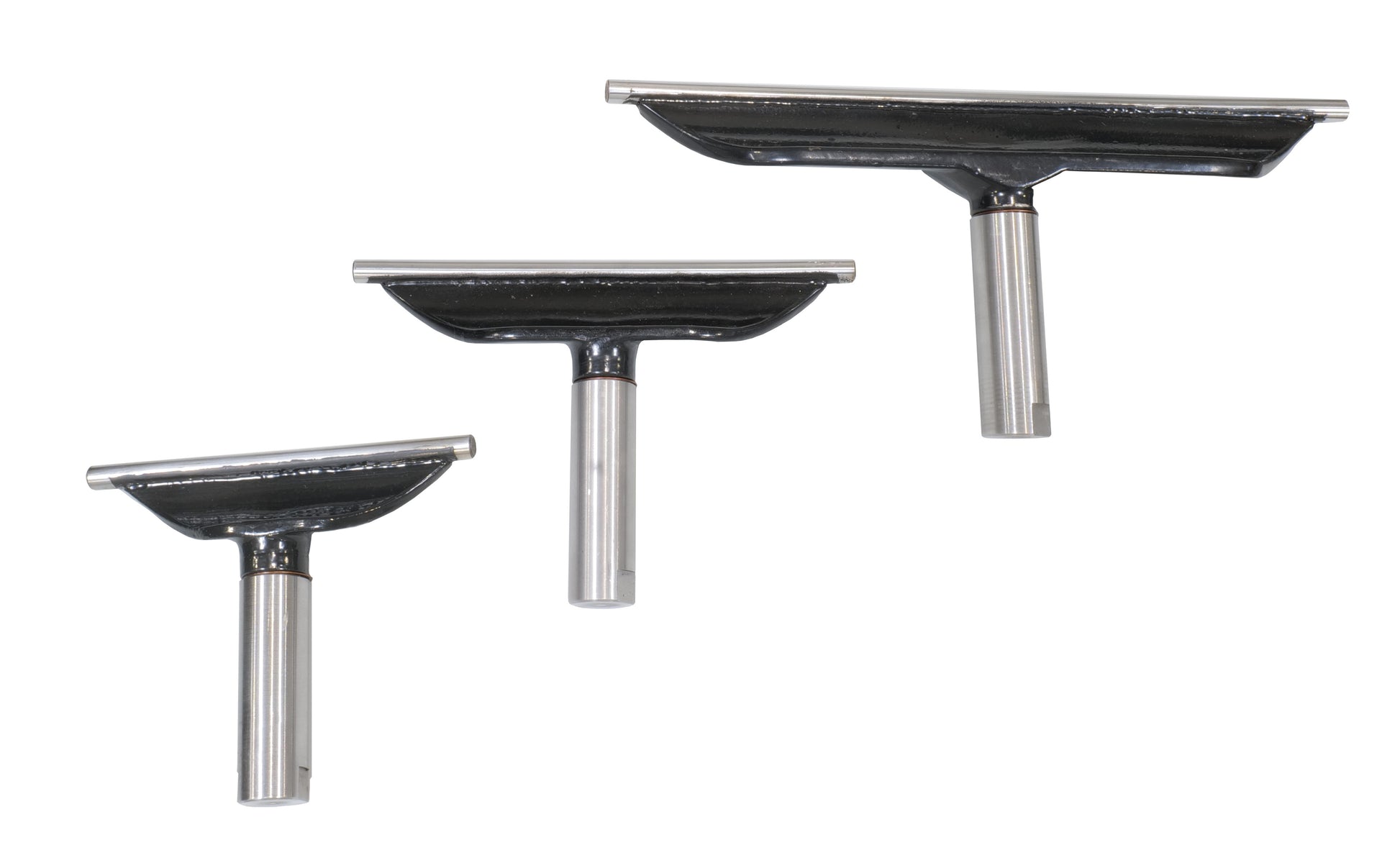

• Tool Rest – 1 Inch Post Diameter with 6mm Hardened Steel Leading Edge

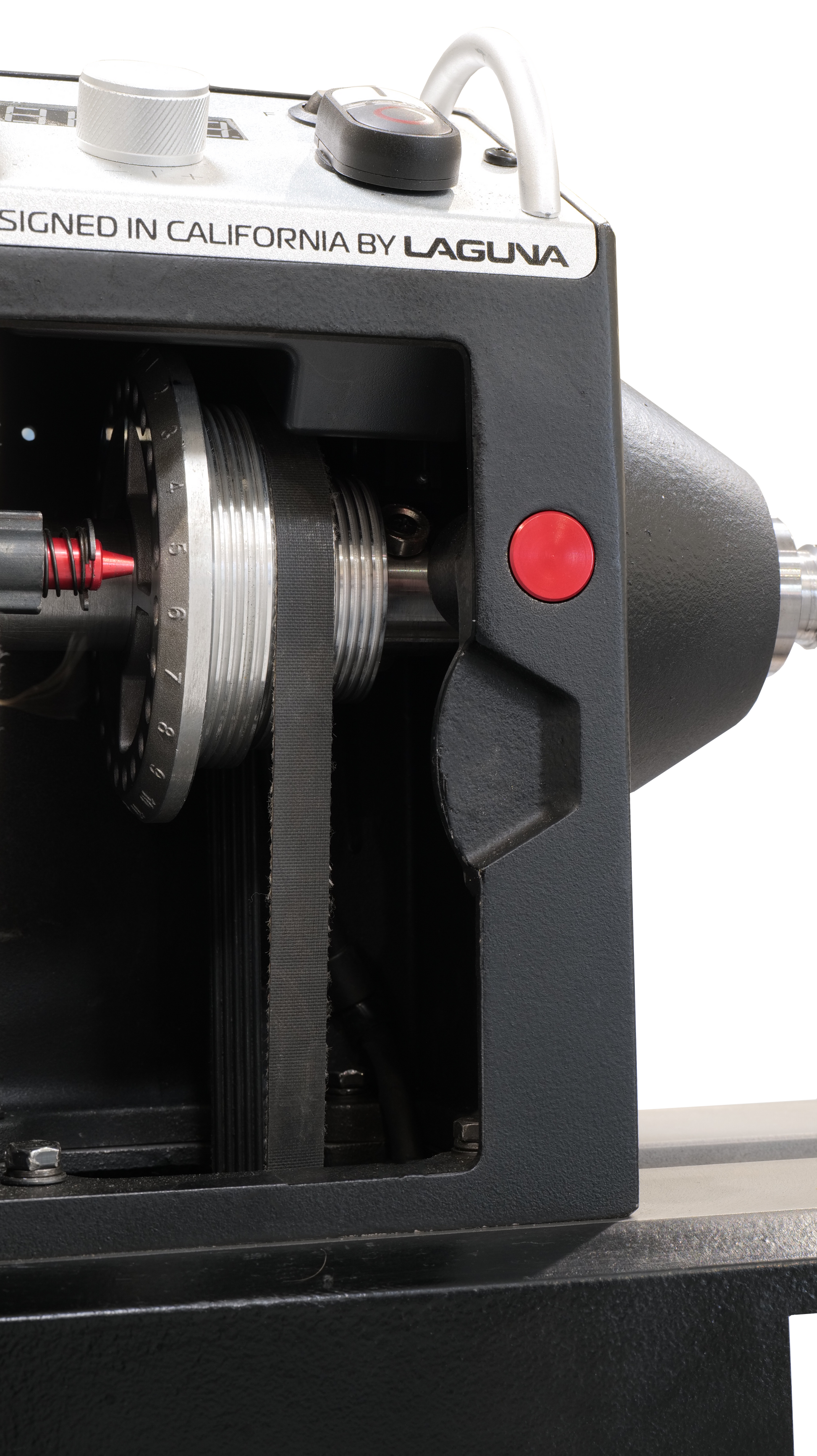

• Electronic Speed Control with 3-Step Pulley

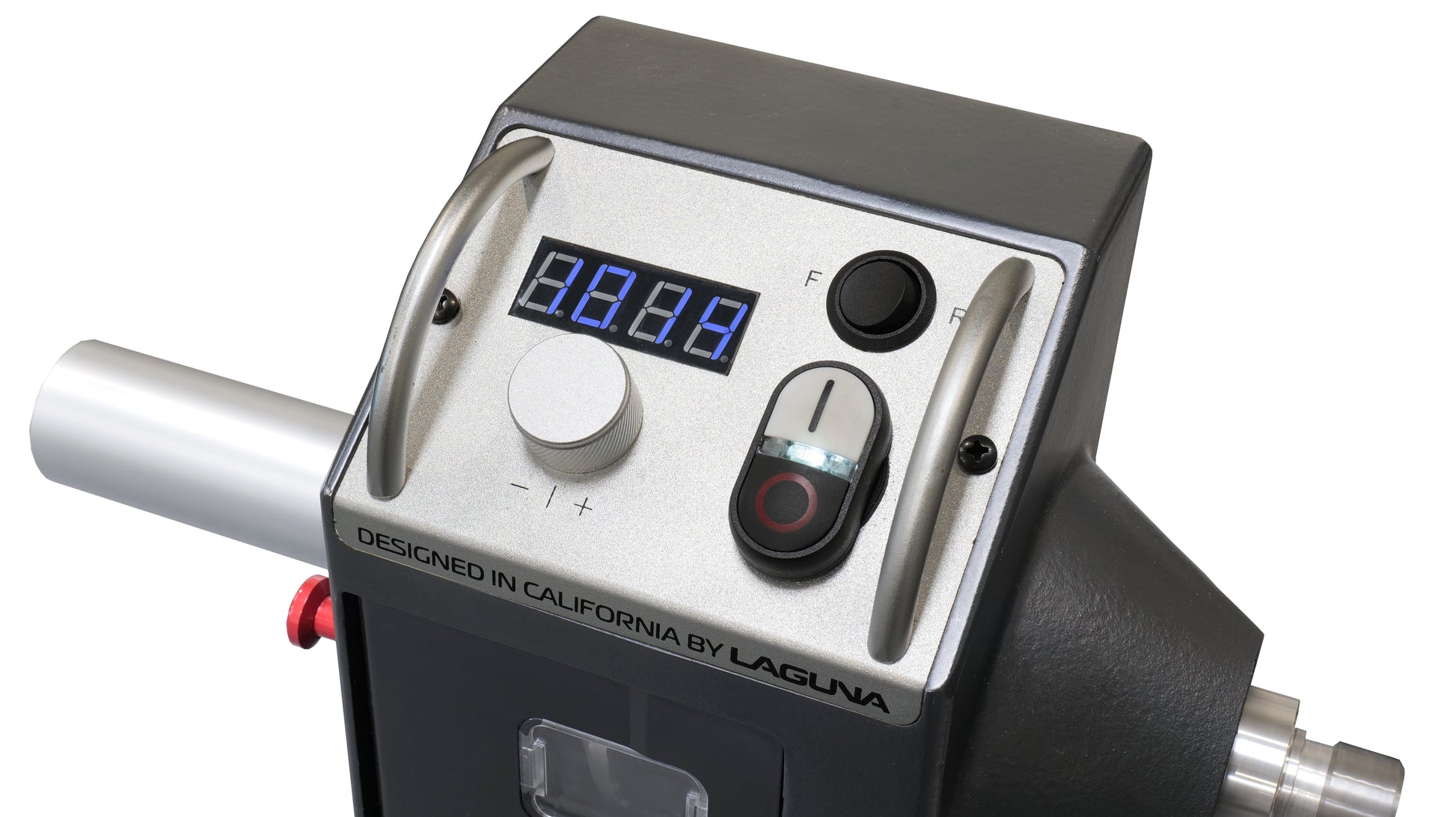

• Digital RPM Readout Display

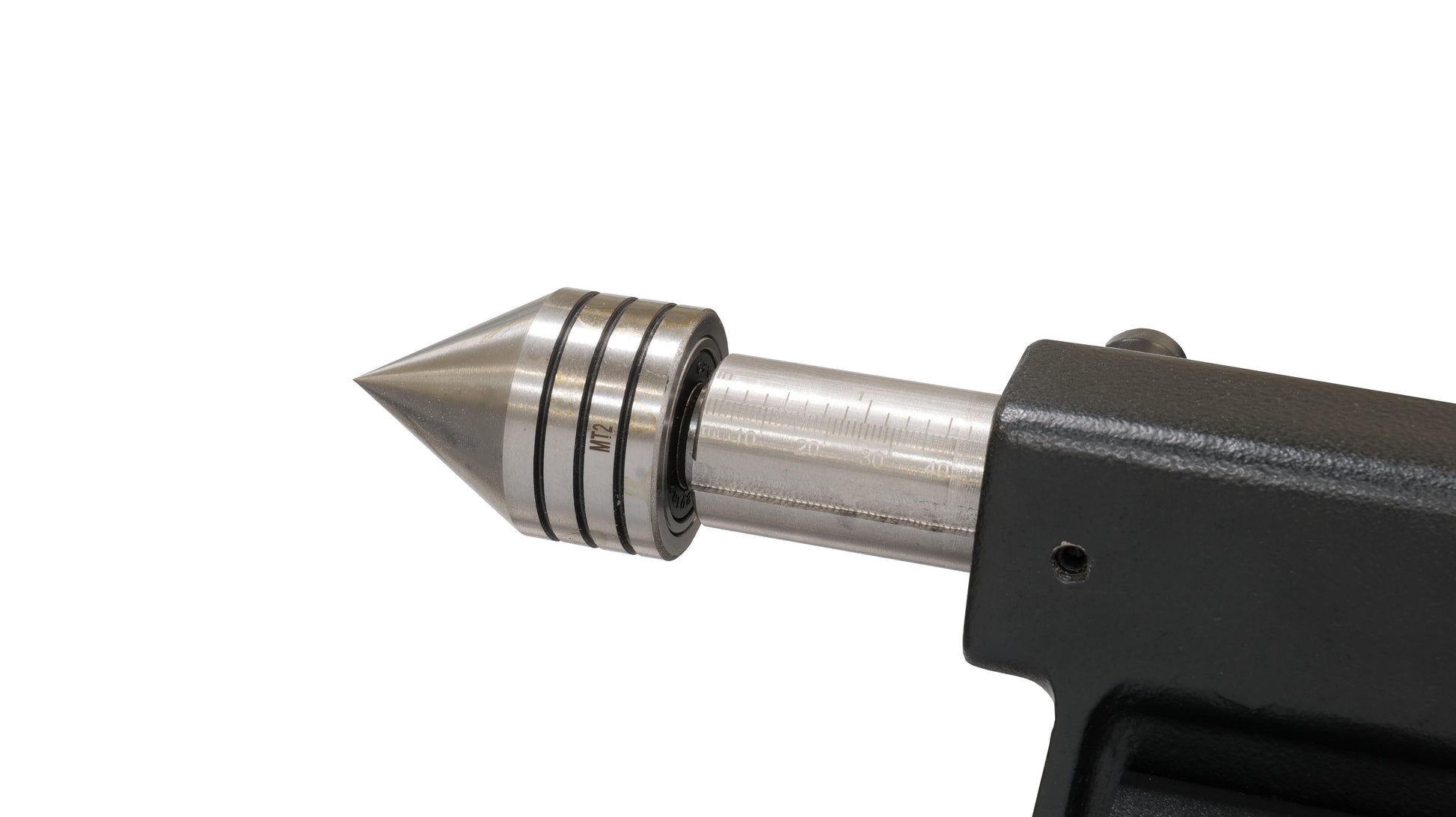

• Spur and Live Center Drives

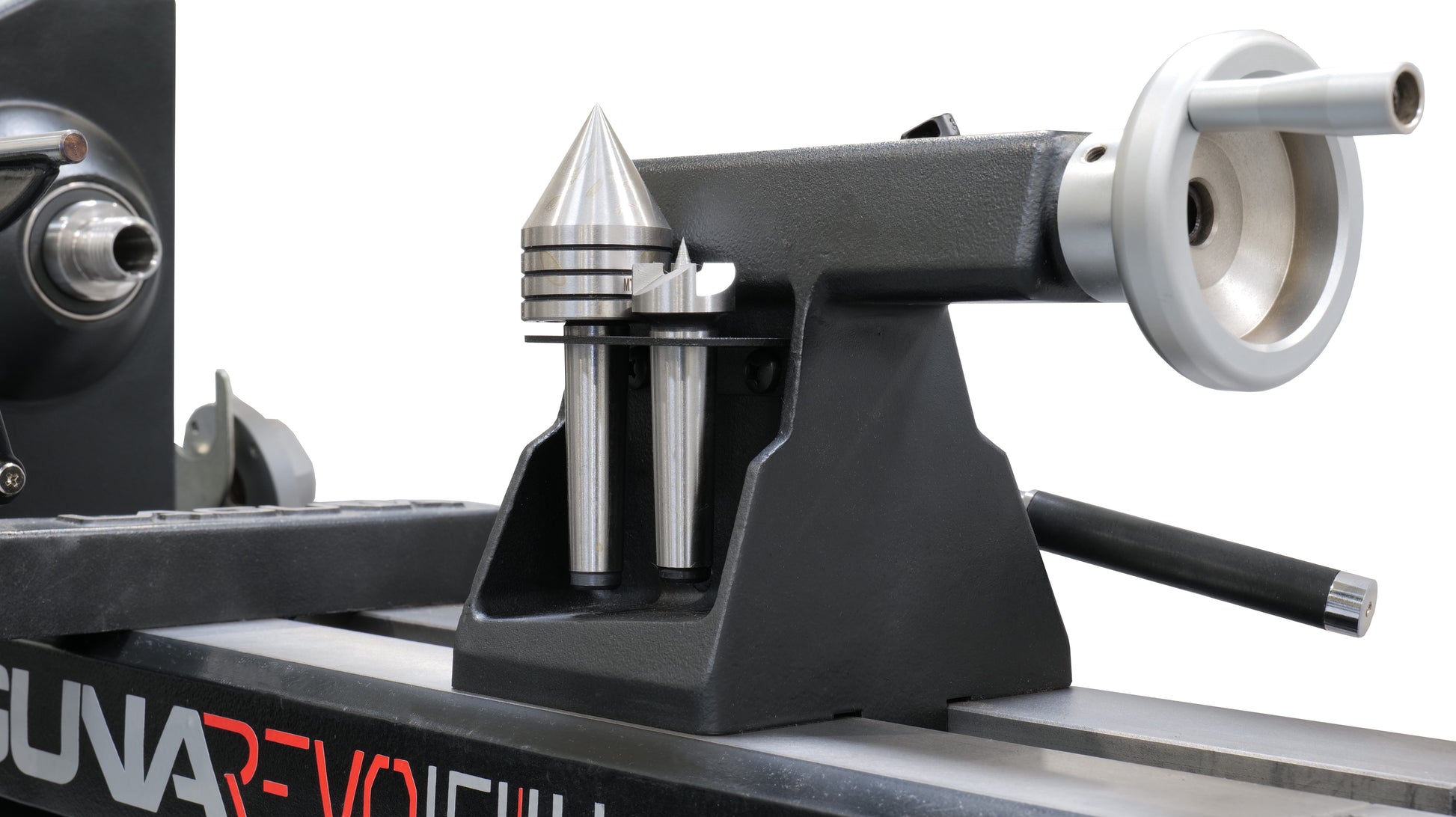

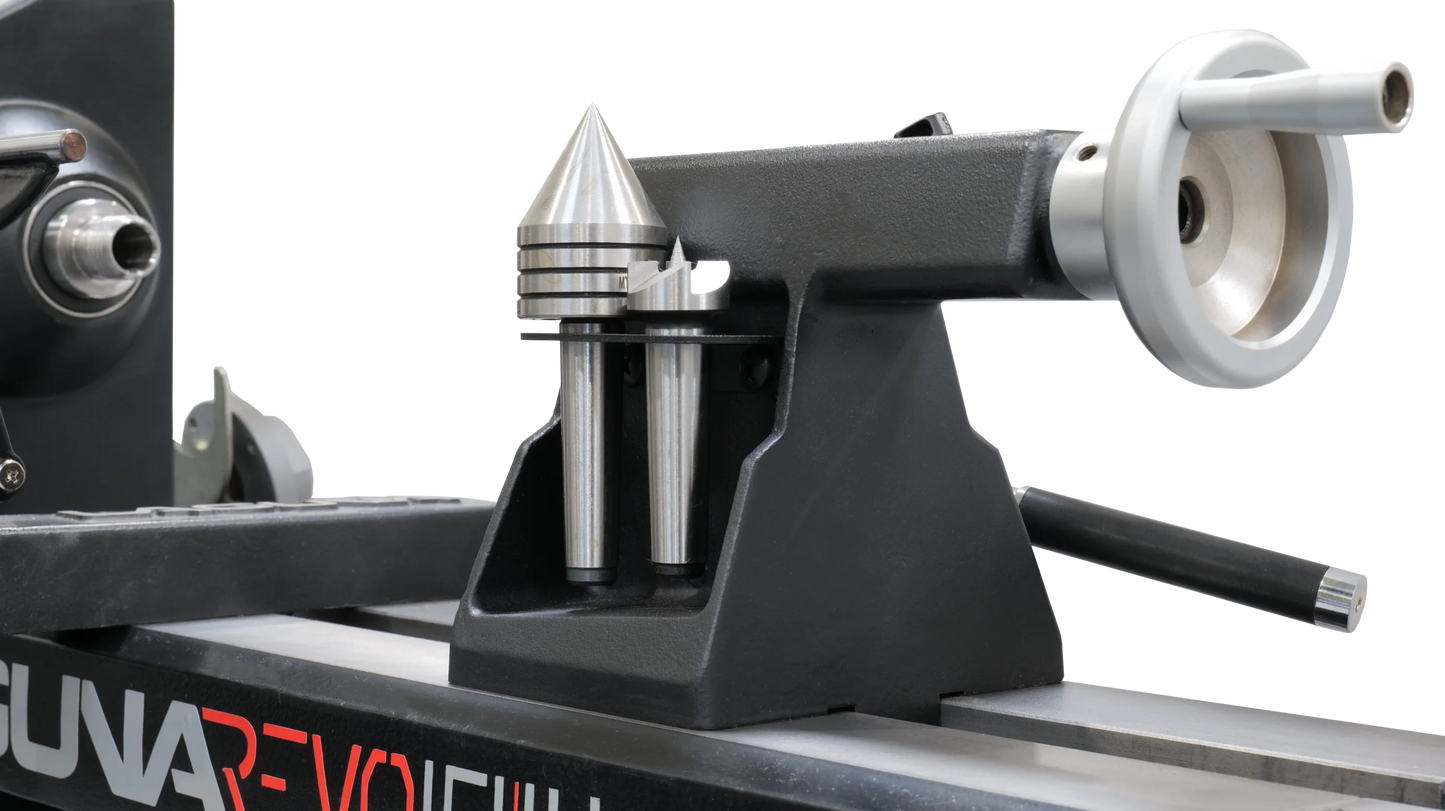

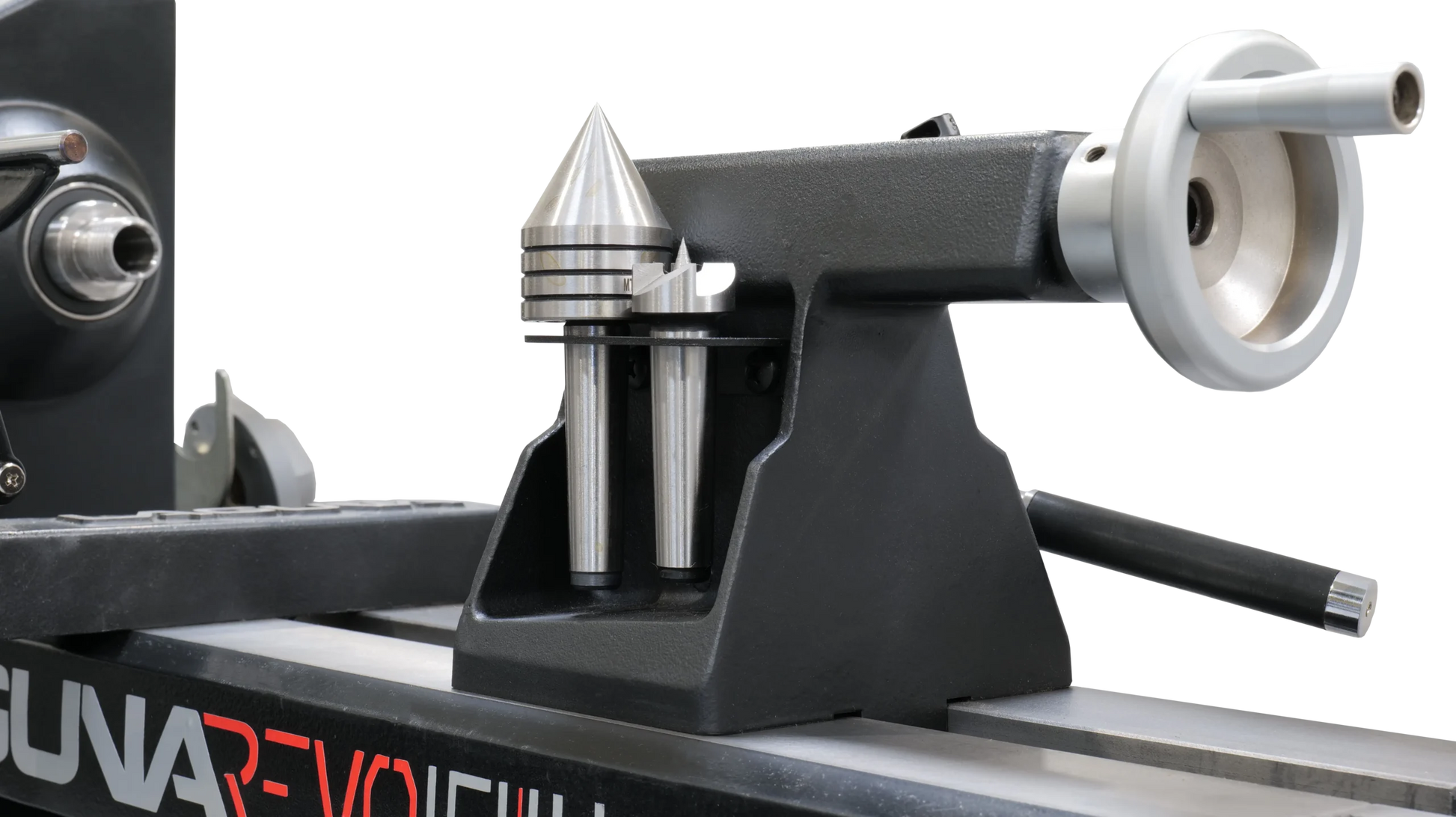

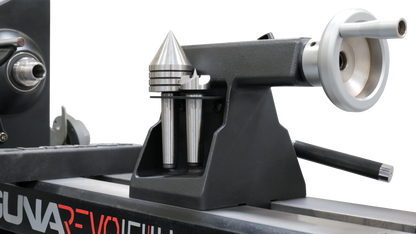

• Cast Iron Tailstock with Self-Ejecting Quill

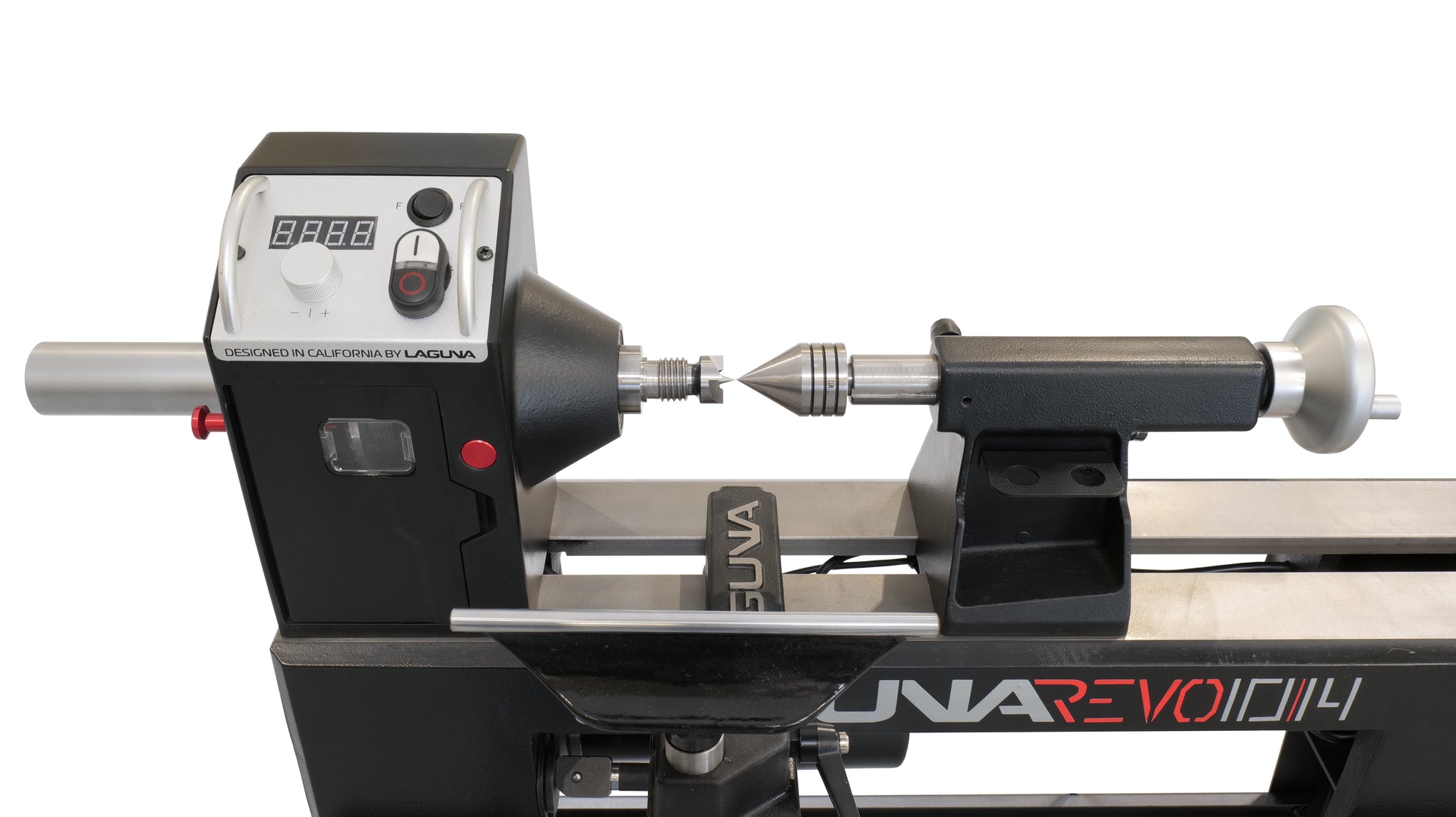

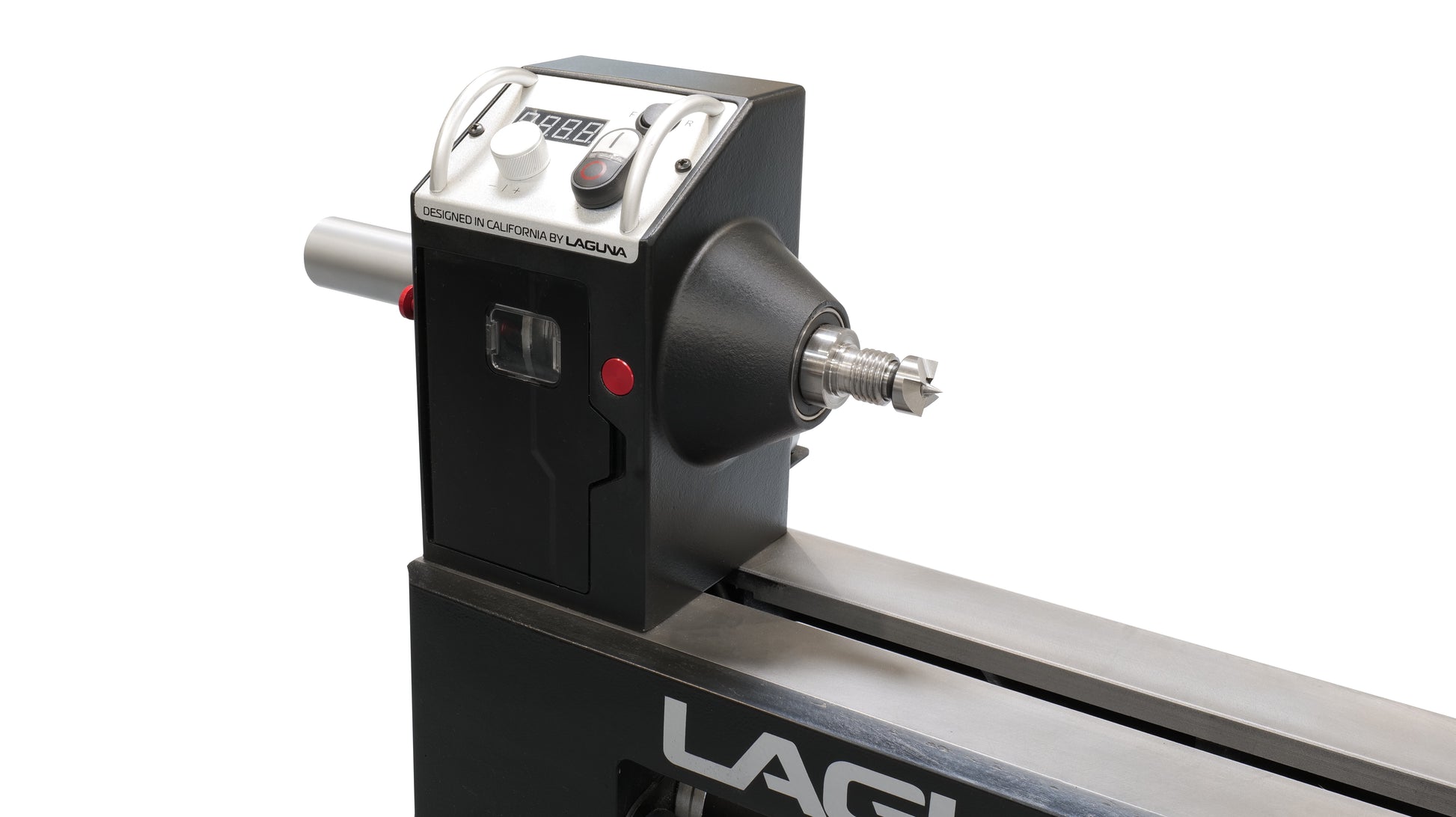

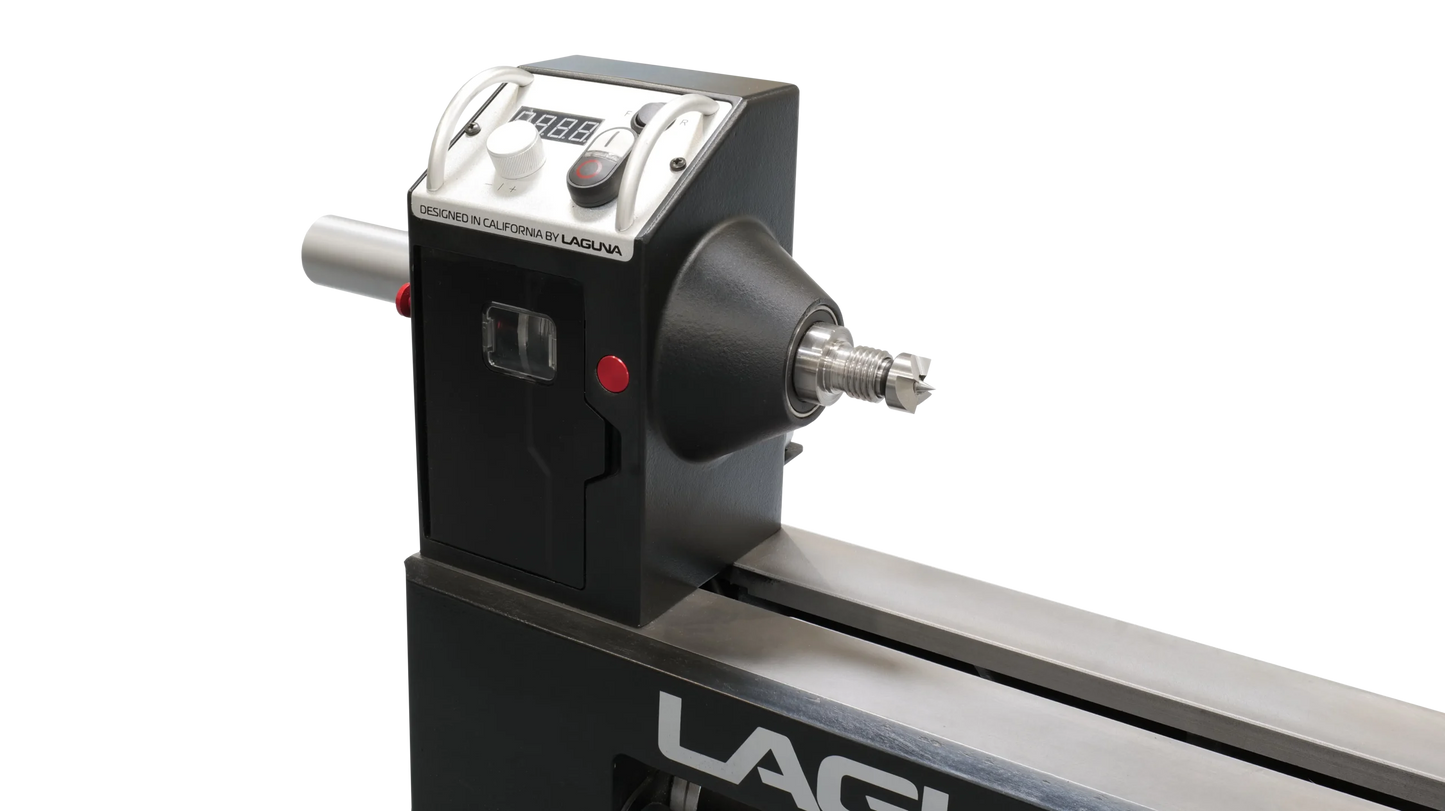

• Cast Iron Headstock with Projected Bearing Cone
• 3″ Faceplate
• Turning Capacity – 10″ Diameter over the bed – 14″ Length between centers.  (254 x 355mm)
• Tailstock Quill Travel – 3.5″ (92mm)

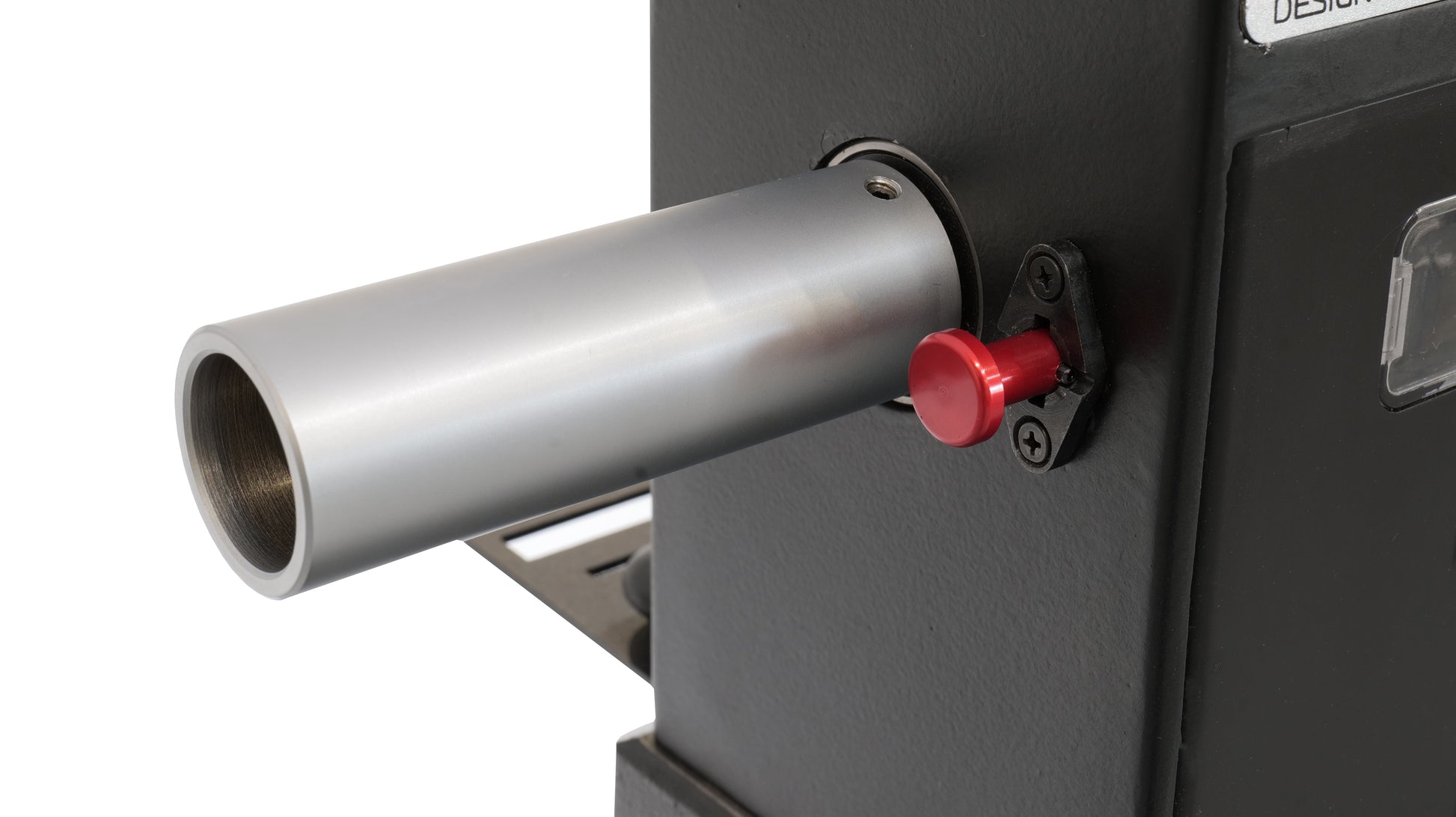

• Push Button Spindle Lock
• Headstock and Tailstock Bore – 3/8″ Through Bore
• Speed Range – 950 – 3200 RPM High – 430 – 1450 RPM Mid – 250 – 850 RPM Low
• Quick-Release Handle for Belt Tension
• Dual doors for belt changes
• Belt position window

• Net Weight: 95lbs
• Gross Weight: 99lbs
• Overall Size – 30.75” x 13.4” x 15.6” (350 x 340x 396mm) LxWxH
