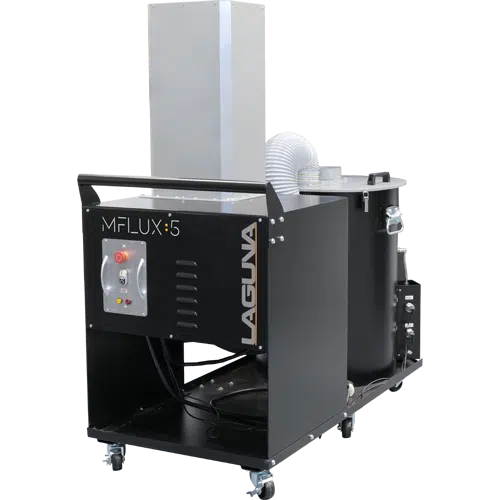

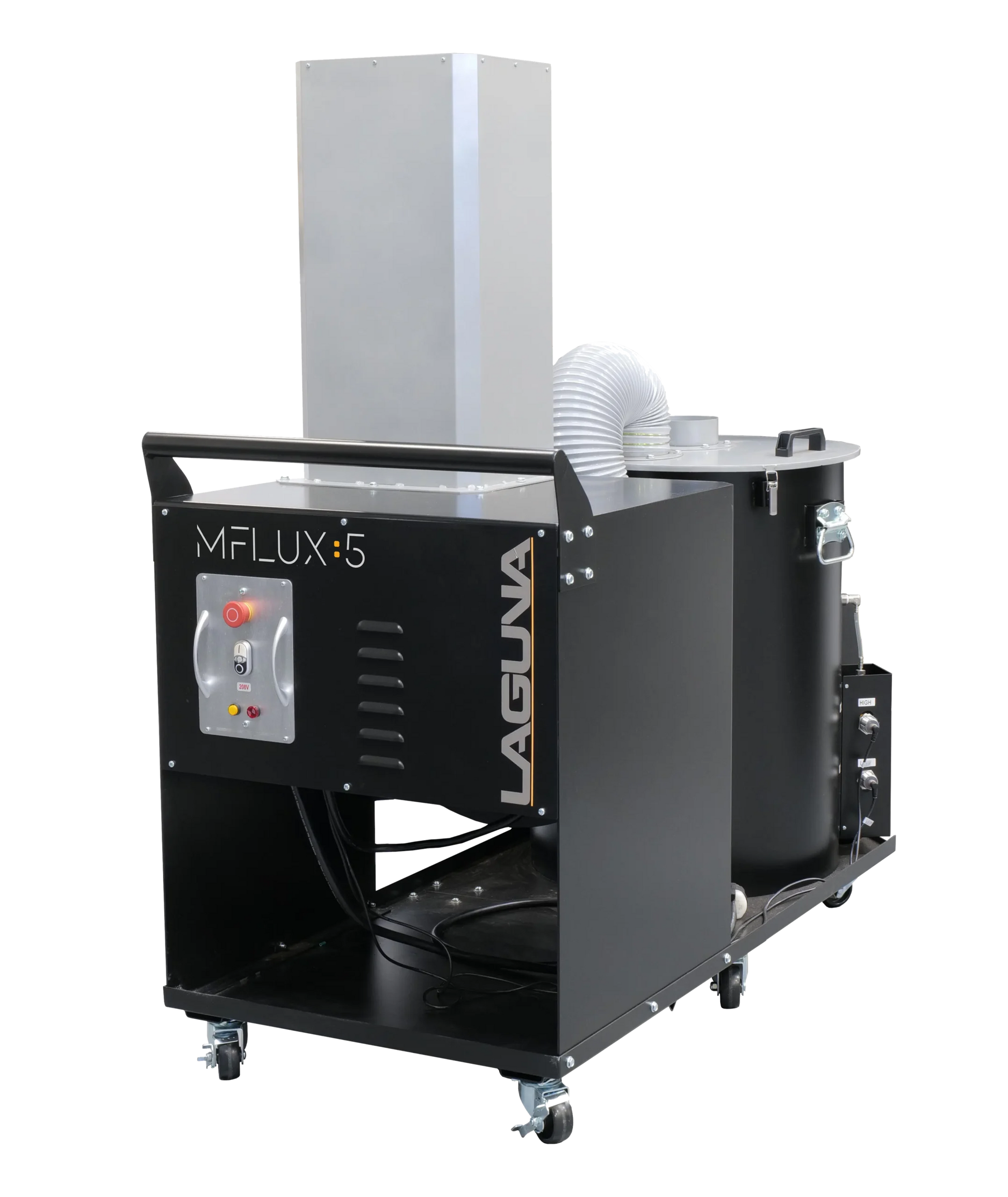

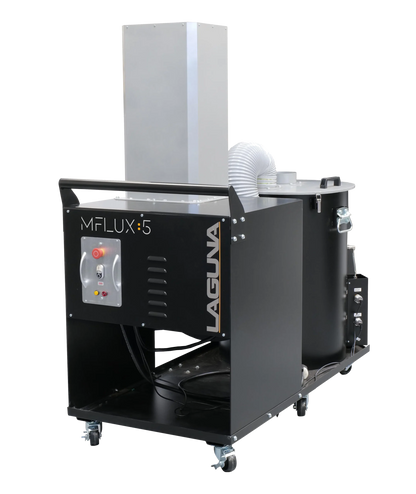

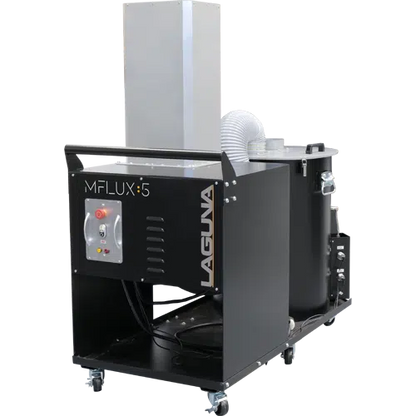

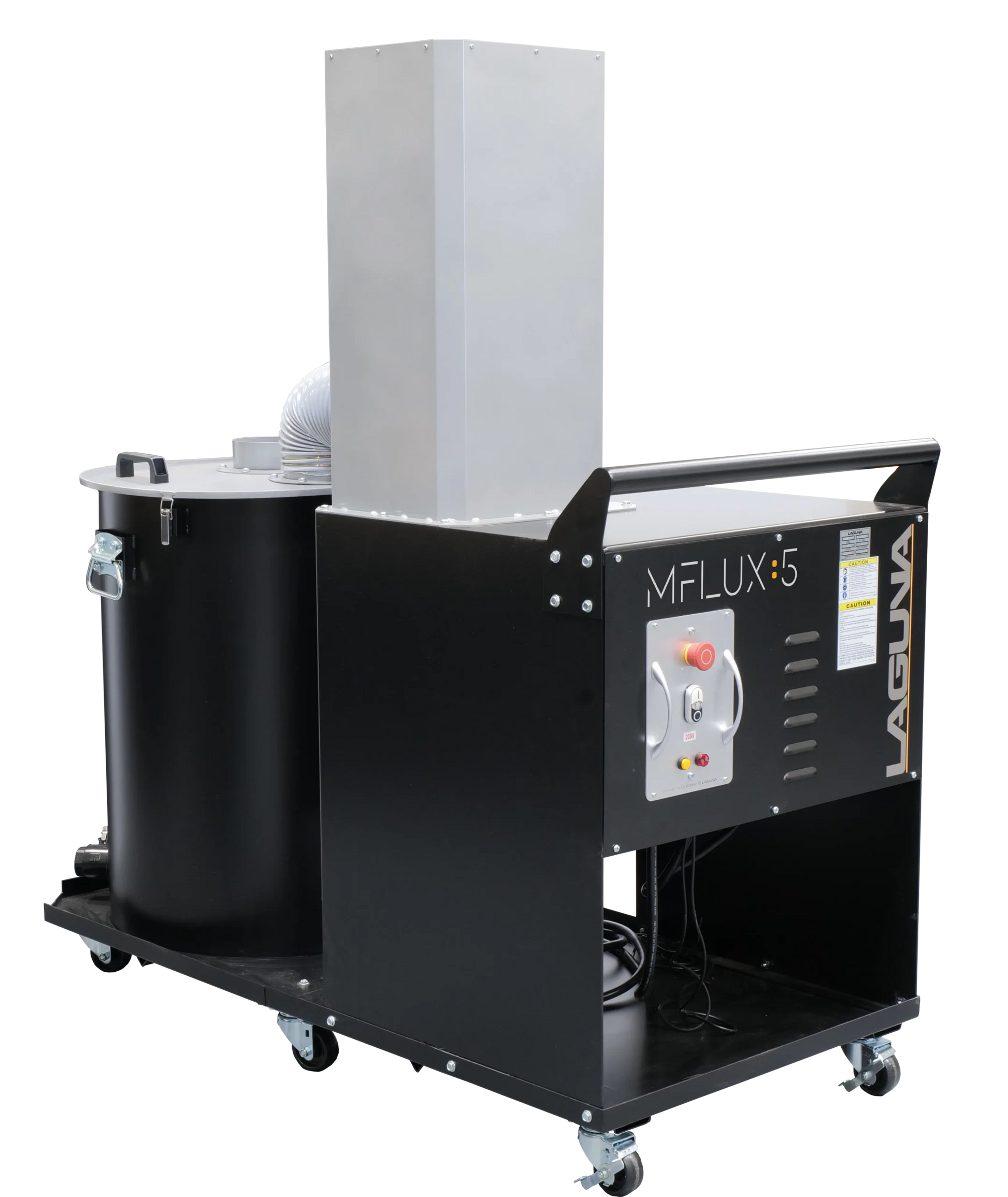

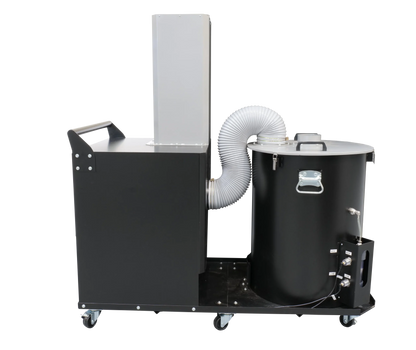

MDC-WDC 5HP Wet Dust Collector

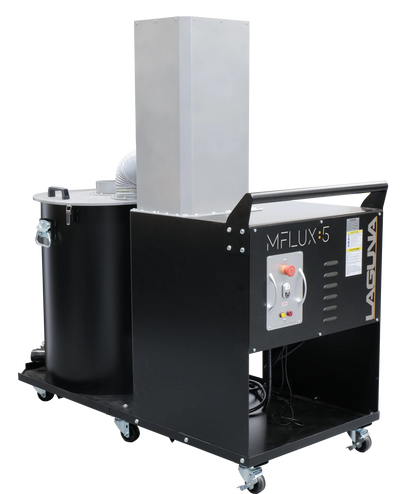

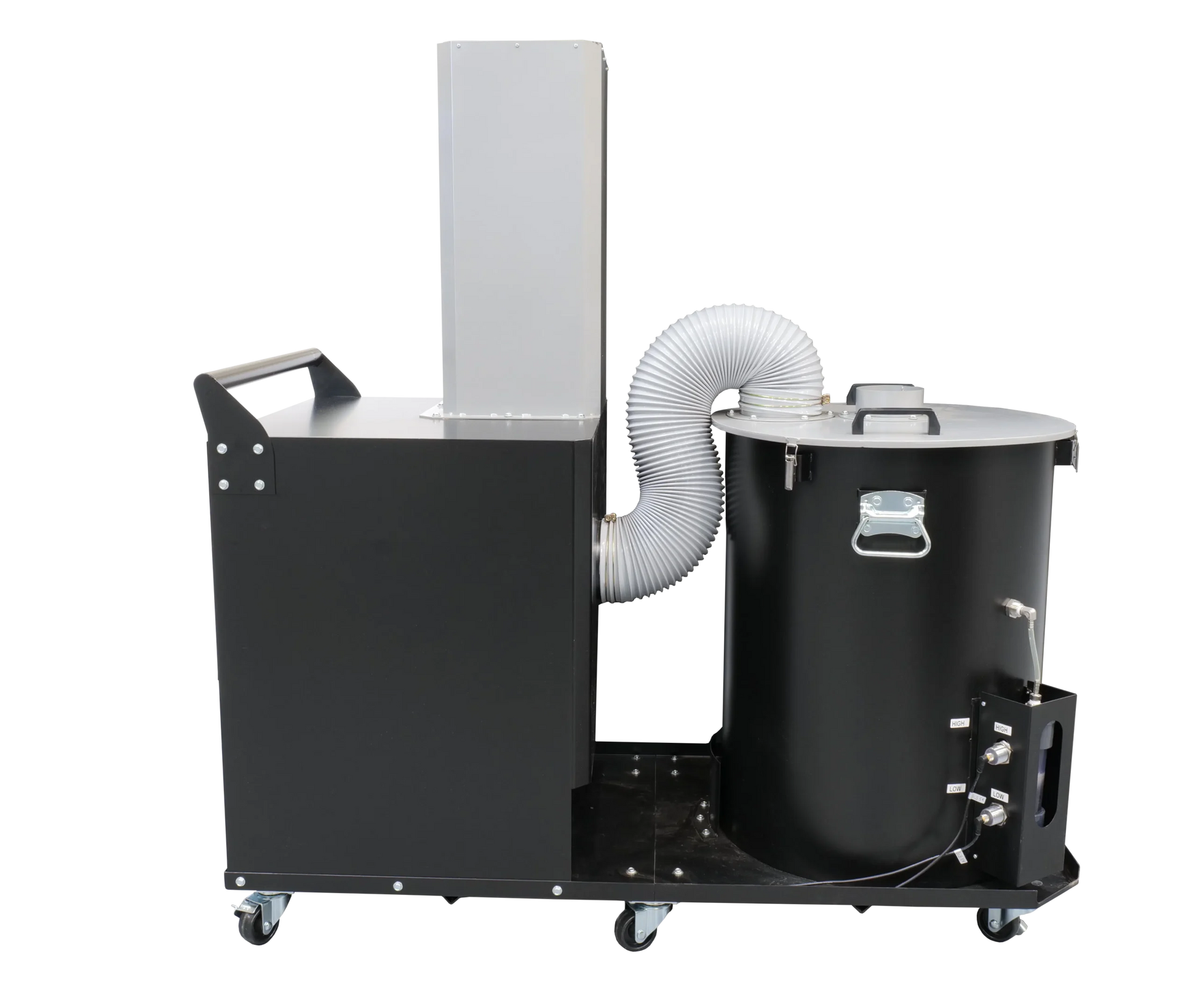

The Laguna M|Flux 5 Wet Metal Dust Collector is a robust and high-performance industrial-grade dust collection system designed specifically for metalworking applications. This machine enhances workplace safety by efficiently collecting metal dust and preventing hazardous dust particles from dispersing. Its water-based filtration system ensures maximum dust absorption, providing a clean and healthy work environment. Built with durability and convenience in mind, the M Flux 5 is equipped with a powerful 5 HP motor, a spacious collection drum, and user-friendly controls.

Ideal for professional workshops, the M|Flux 5 is engineered to meet stringent safety standards and can handle demanding operations with ease. Its compact footprint and advanced filtration capabilities make it a valuable addition to any metalworking setup.

• Power Requirements:208V / 60 Hz / 1 Phase
• Amperage:34 AMP
• Motor Speed:3450 RPM
• Motor Power:5 HP
• Suction Capacity:3103 CFM (Cubic Feet per Minute)
• Static Pressure:16.2 Inch H2O
• Impeller Size:13 inches
• Inlet Size:5 inches
• Outlet Size:6 inches
• Switch Type:Magnetic Switch
• Net Weight:493.5 lbs (223.3 kg)
• Gross Weight:541.5 lbs (245.5 kg)
• Cubic Feet:40.3 ft³
• Power Requirements: 208V / 60 Hz / 1 Phase
• Amperage: 34 AMP
• Motor Speed: 3450 RPM
• Motor Power: 5 HP
• Suction Capacity: 3103 CFM (Cubic Feet per Minute)
• Static Pressure: 16.2 Inch H2O
• Impeller Size: 13 inches
• Inlet Size: 5 inches
• Outlet Size: 6 inches
• Switch Type: Magnetic Switch
• Net Weight: 493.5 lbs (223.3 kg)
• Gross Weight: 541.5 lbs (245.5 kg)
• Cubic Feet: 40.3 ft³

• Power Requirements:208V / 60 Hz / 1 Phase
• Amperage:34 AMP
• Motor Speed:3450 RPM
• Motor Power:5 HP
• Suction Capacity:3103 CFM (Cubic Feet per Minute)
• Static Pressure:16.2 Inch H?O
• Impeller Size:13 inches
• Inlet Size:5 inches
• Outlet Size:6 inches
• Switch Type:Magnetic Switch
• Net Weight:493.5 lbs (223.3 kg)
• Gross Weight:541.5 lbs (245.5 kg)
• Cubic Feet:40.3 ft³
• Static Pressure: 16.2 Inch H?O

• Footprint (L x W x H):60” x 28” x 66” (1520 mm x 710 mm x 1670 mm)
• Shipping Dimensions (L x W x H):57” x 32.5” x 38” (1450 mm x 820 mm x 960 mm)
• Footprint (L x W x H): 60” x 28” x 66” (1520 mm x 710 mm x 1670 mm)
• Shipping Dimensions (L x W x H): 57” x 32.5” x 38” (1450 mm x 820 mm x 960 mm)

Ensure seamless setup with our expert on-site training and installation services, designed to maximize efficiency and empower your team with hands-on support.

• CNC Plasma Cutters: For precise and efficient metal cutting.
• Metal Lathes: Ideal for turning and shaping metal components.
• Bandsaws: Designed for accurate cutting of various metal materials.
• Grinders and Sanders: For smoothing, polishing, and finishing metal surfaces.
• Other Accessories: Including workbenches, clamps, and blades to complement your machinery.
• CNC Plasma Cutters : For precise and efficient metal cutting.
• Metal Lathes : Ideal for turning and shaping metal components.
• Bandsaws : Designed for accurate cutting of various metal materials.
• Grinders and Sanders : For smoothing, polishing, and finishing metal surfaces.
• Other Accessories : Including workbenches, clamps, and blades to complement your machinery.

Laguna Tools offers a wide variety of commercial finance options. The benefit of financing allows your business to preserve capital and allow your machinery to pay for itself. There are also tax benefits such as the section 179 program that may allow you to write off up to 100% of the machine cost in the first year.

See further details or download the loan application .

Yes, our metalworking machines are engineered for both industrial-grade and small-scale applications. They are built to handle heavy-duty workloads with precision, reliability, and durability, making them ideal for manufacturers, fabricators, and workshops.

Many of our metalworking machines, especially CNC plasma cutters, can be configured to meet specific requirements. Contact our team to discuss your needs, and we’ll help tailor a solution for your project.

Our machines are designed to handle a variety of materials, including:

• Steel
• Aluminum
• Copper
• Brass
• Titanium
• Other ferrous and non-ferrous metals
