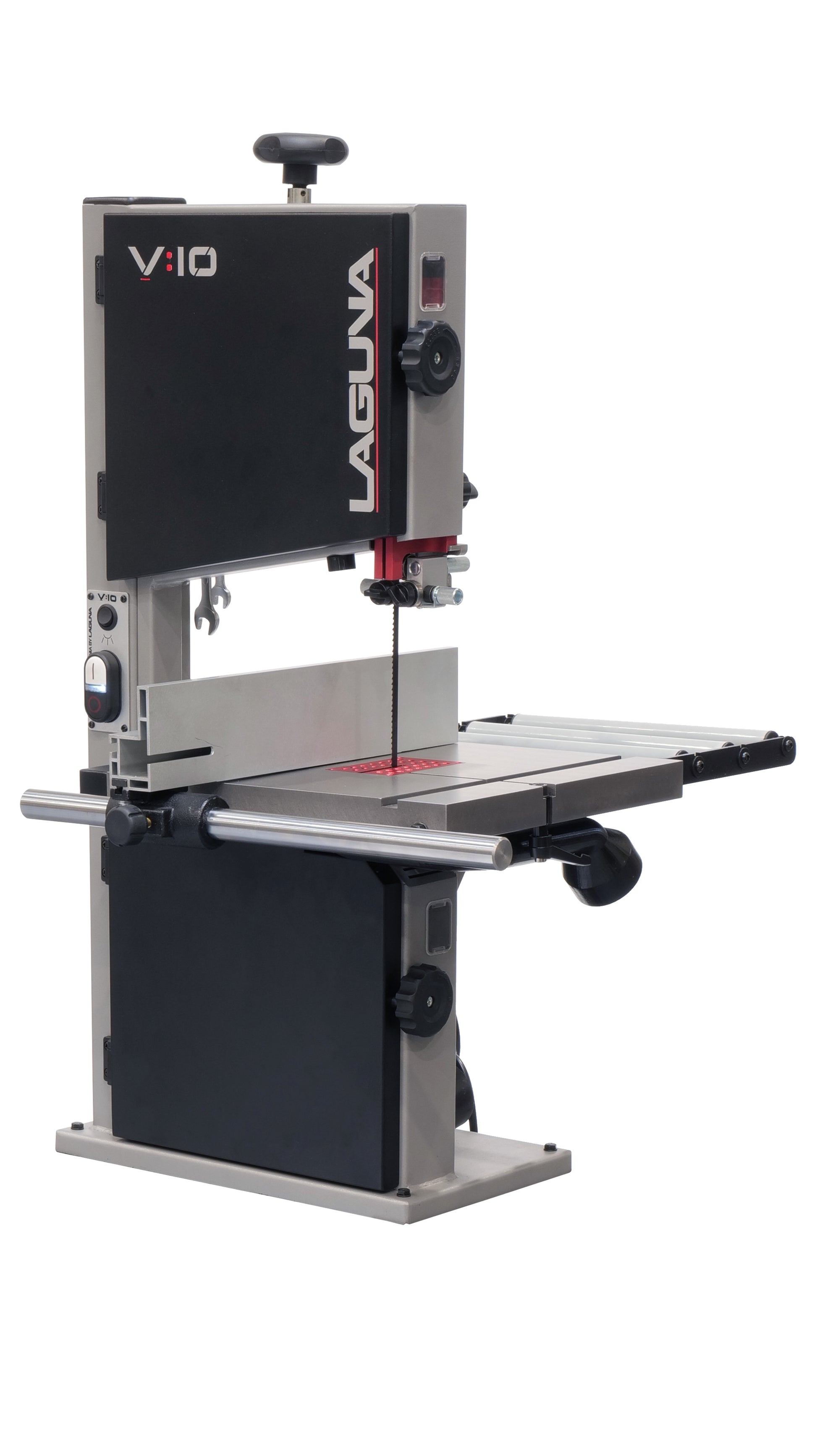

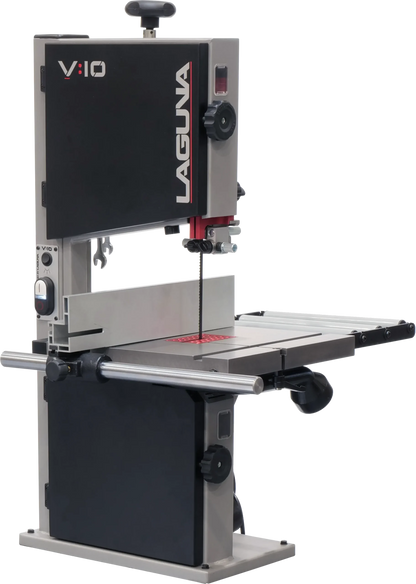

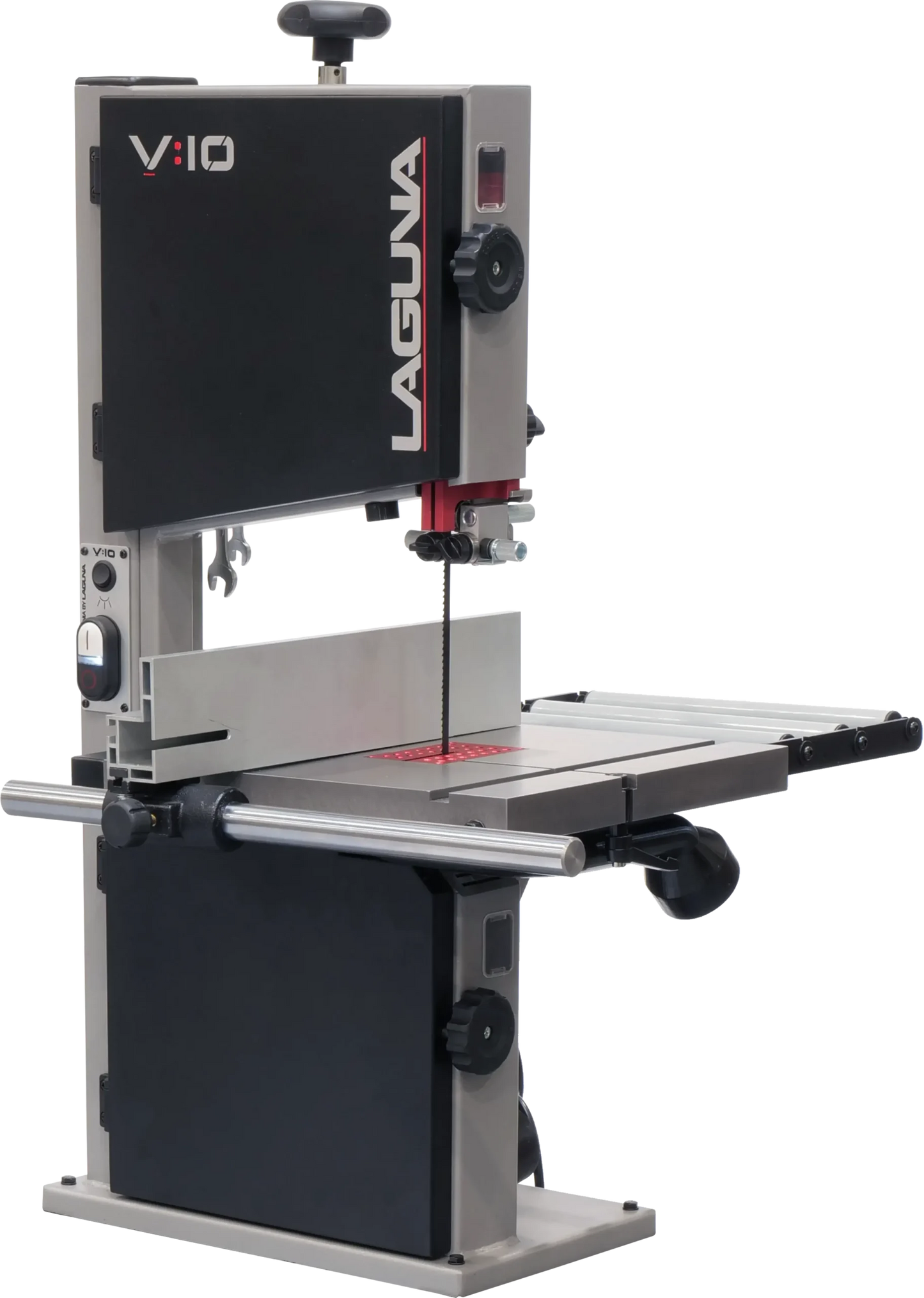

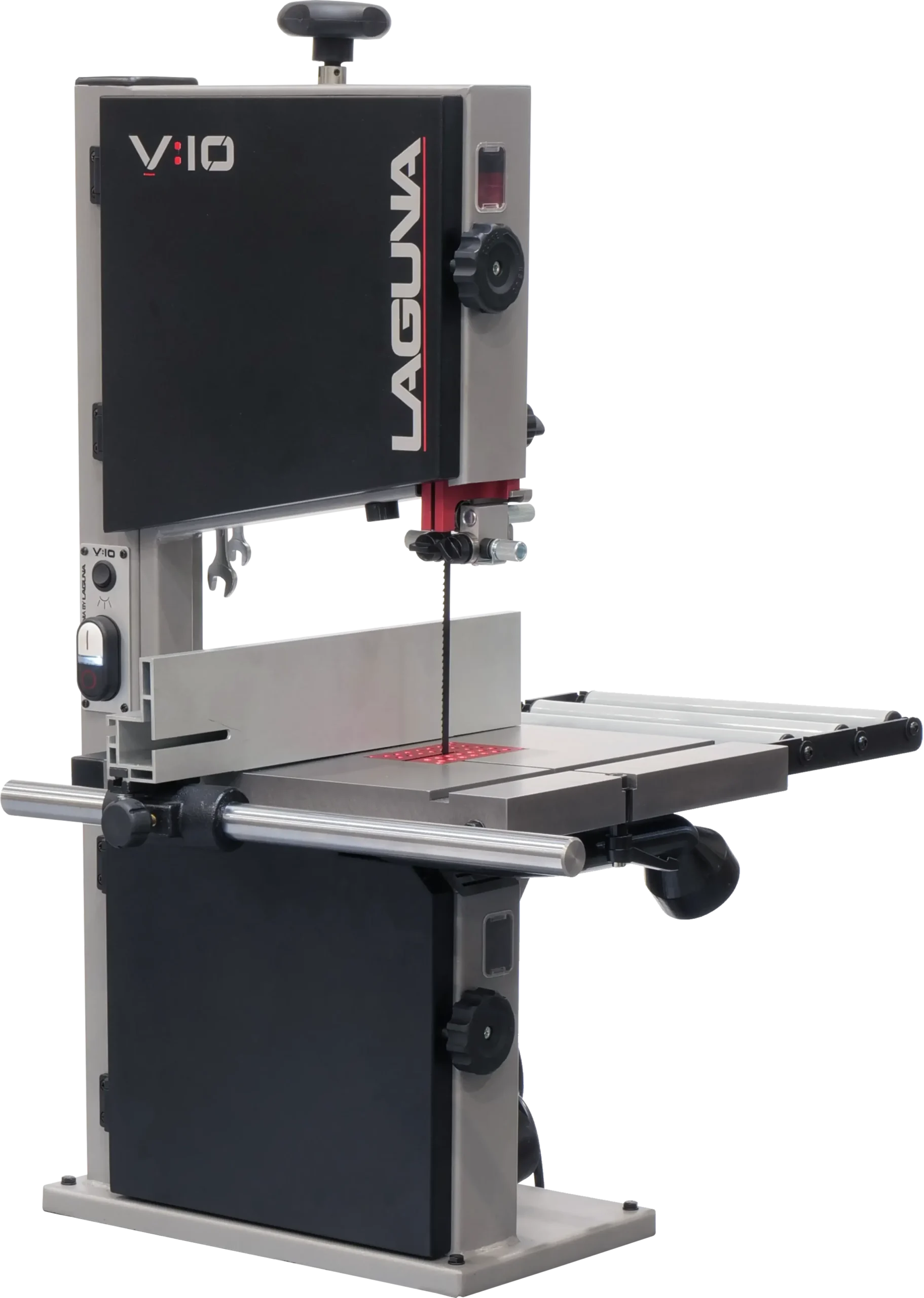

Laguna V:10 10" BANDSAW 110V, 1HP

Recalibrating The 10” Bandsaws.

The All-New Laguna V:10 bandsaw leads the competition with many Best-In-Class features for 10” bandsaws. Our smallest bandsaw is loaded with innovative features normally found in larger machines. These features along with the superior performance of the V:10 make it the best value for the price in 10” bandsaws.

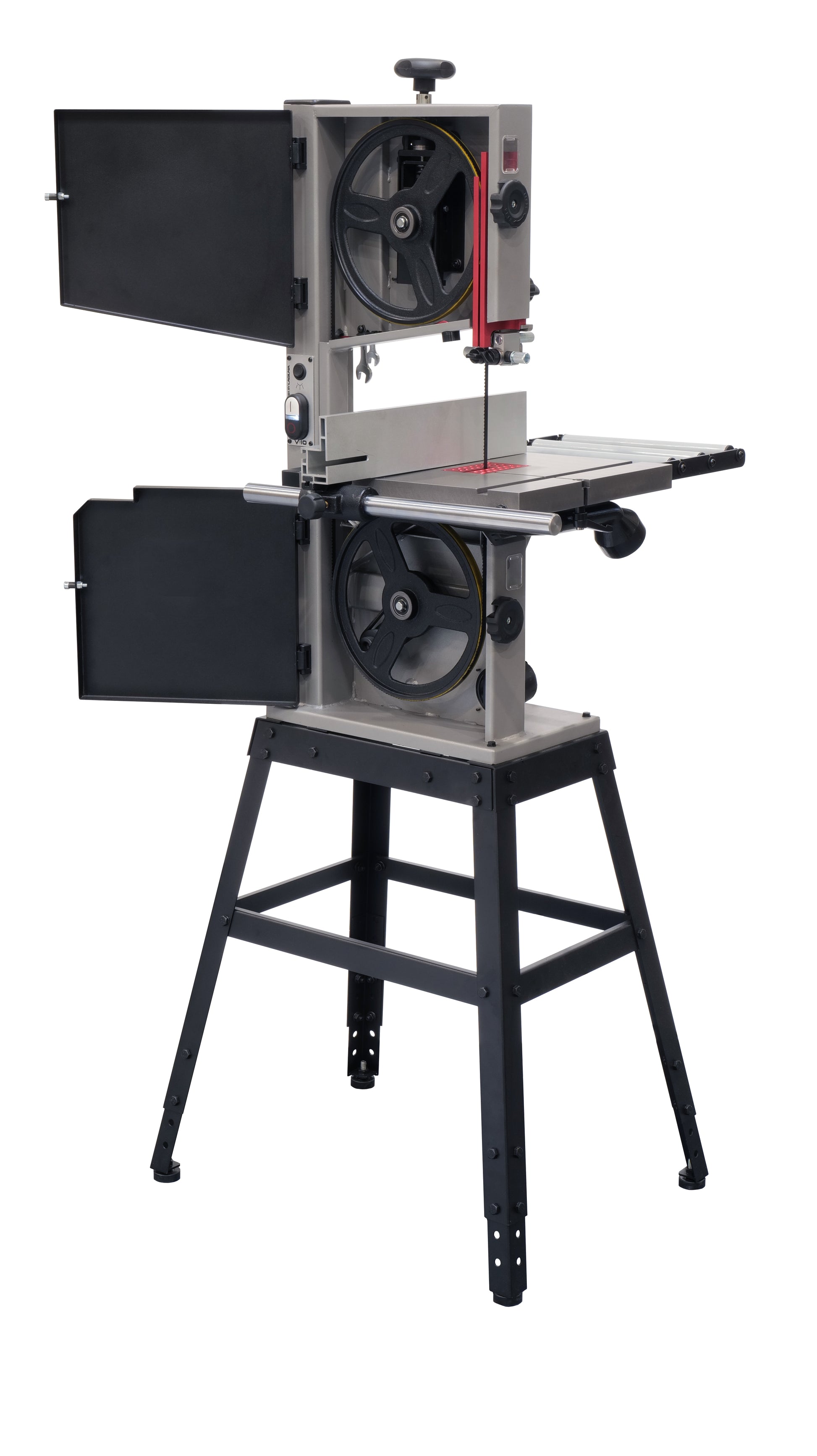

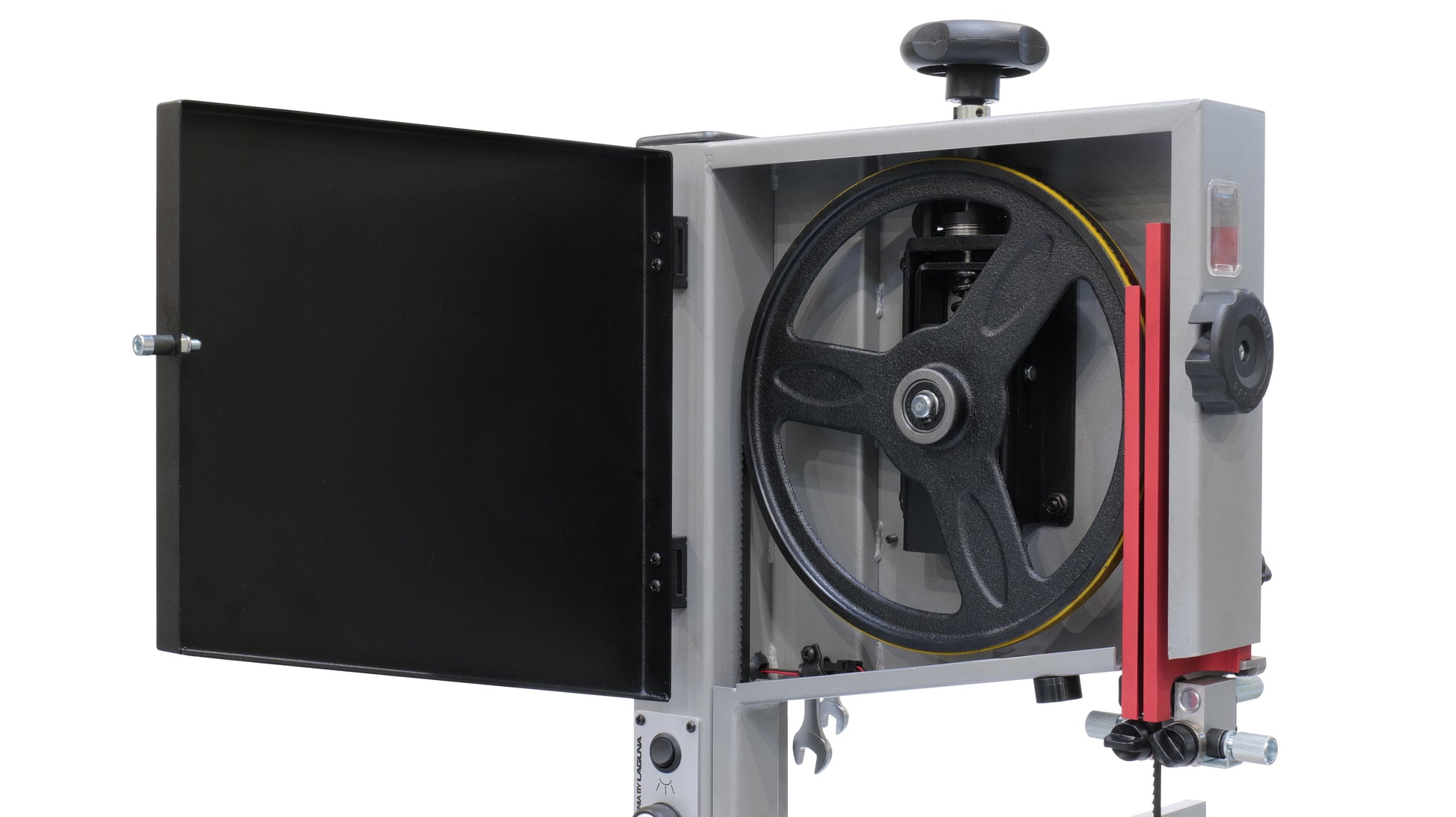

• Cast Iron Wheels
• 1 HP Induction Motor
• 6” Resaw Capacity

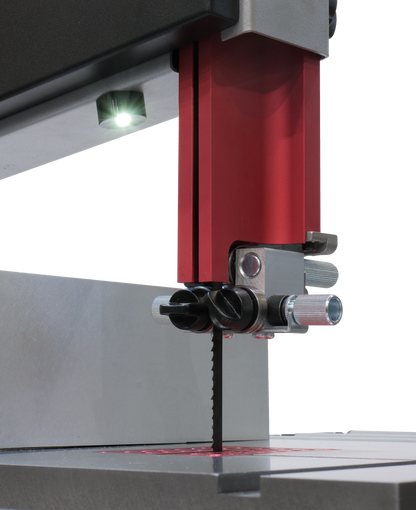

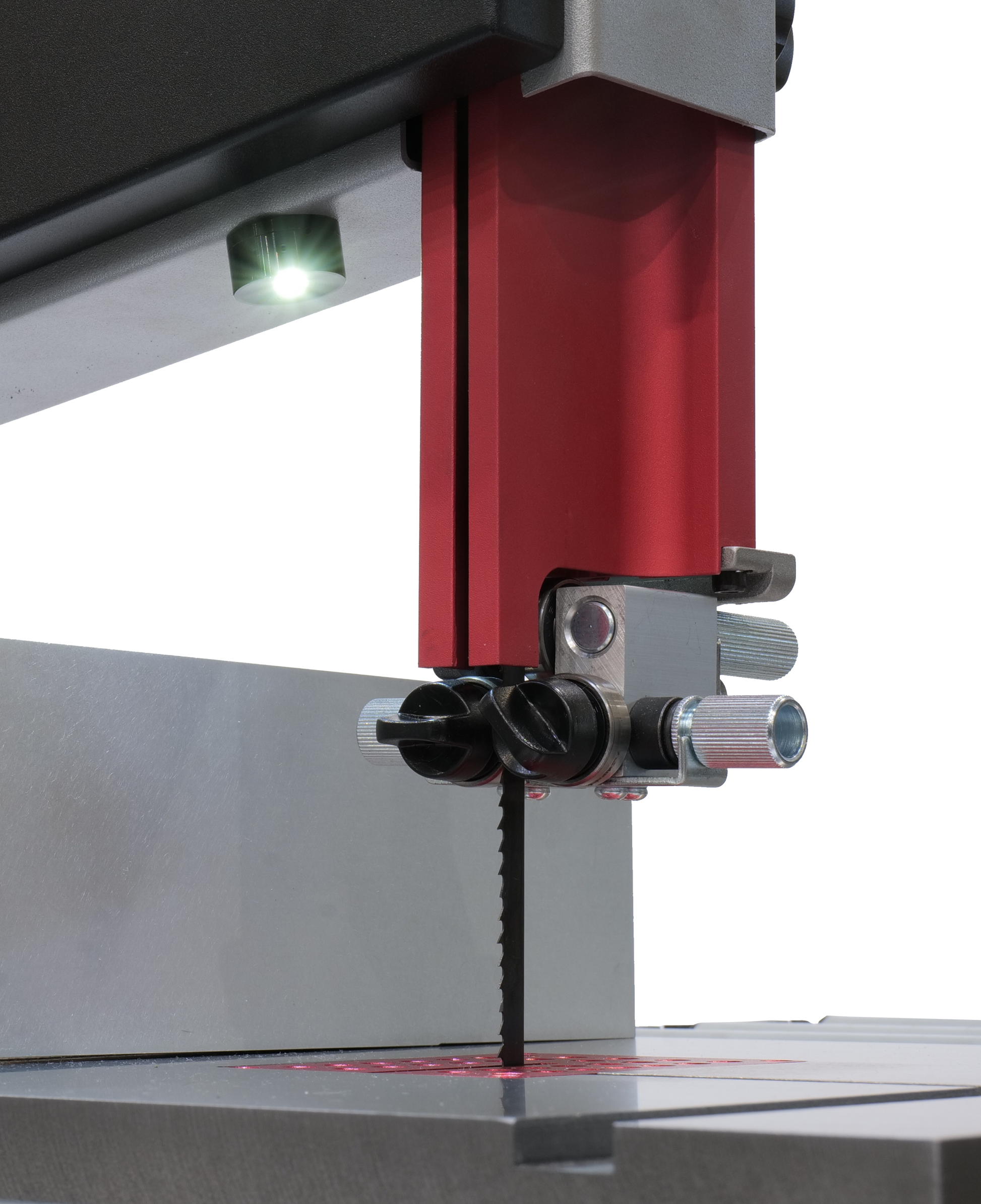

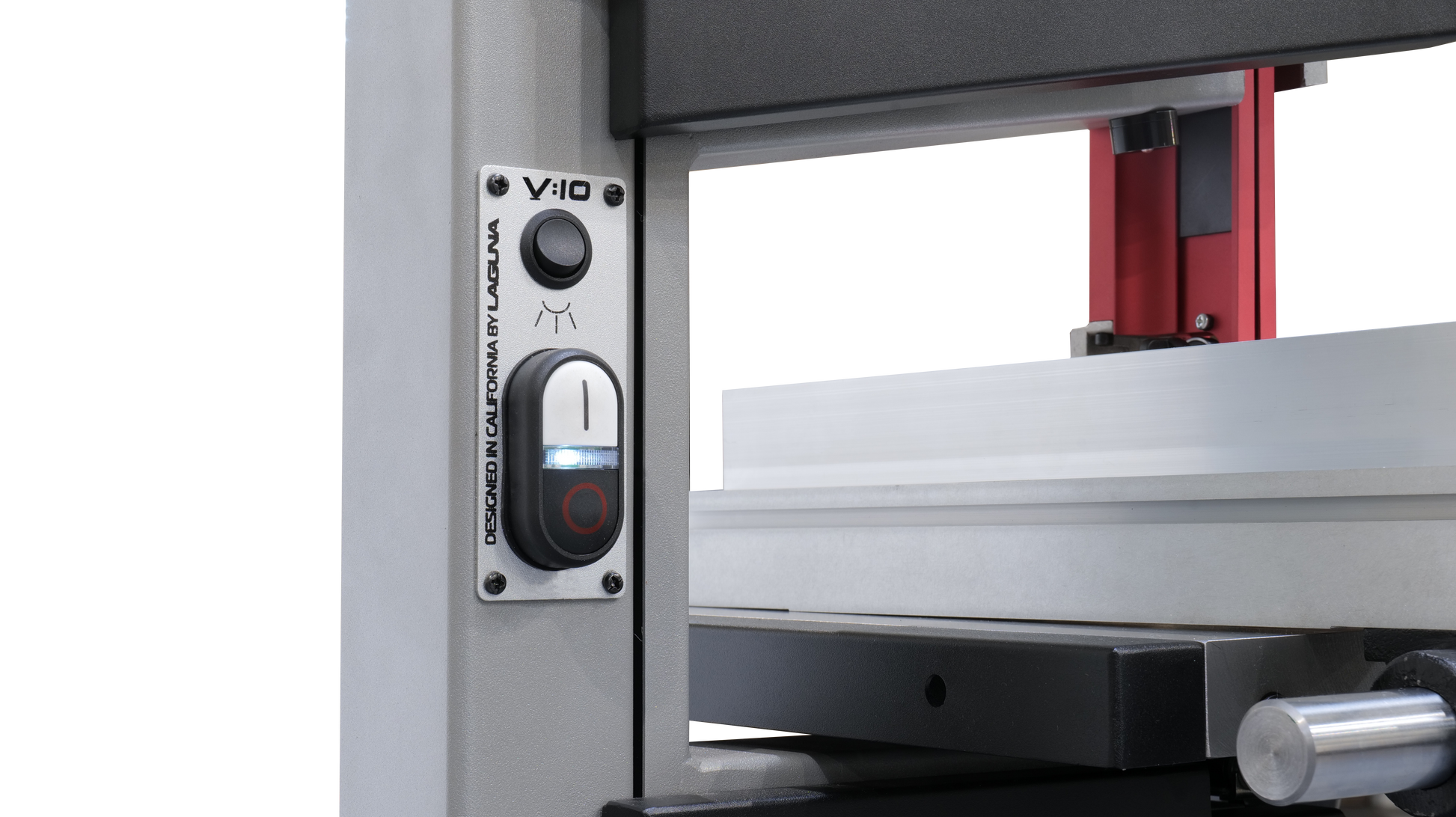

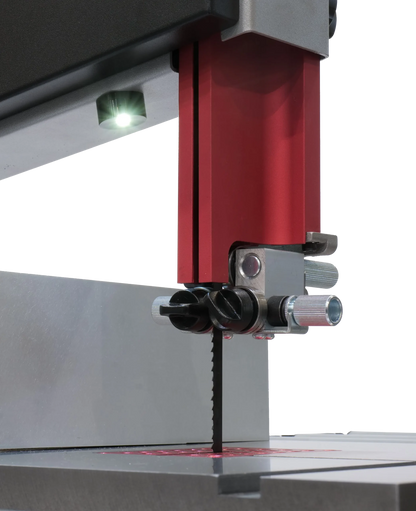

• Built-in LED light

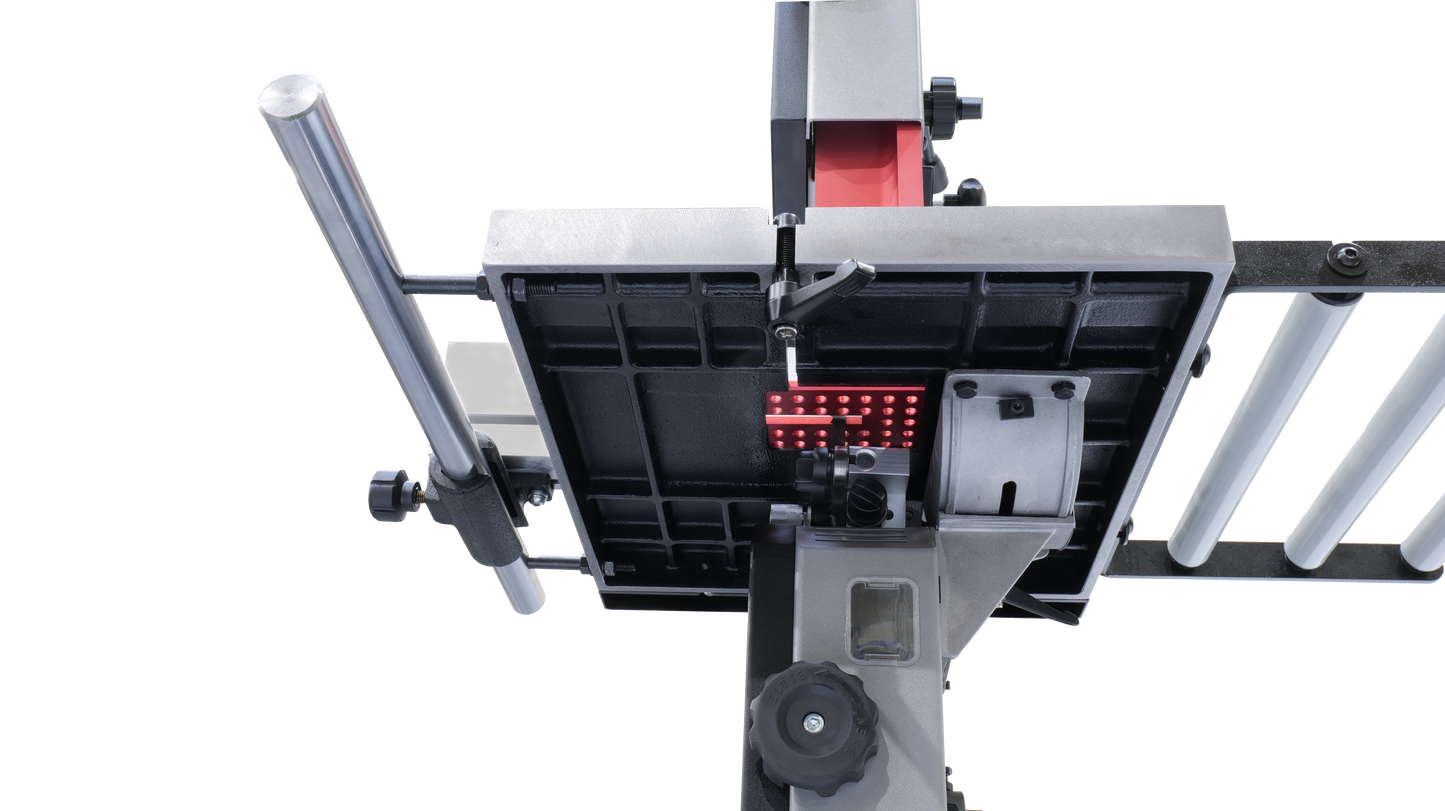

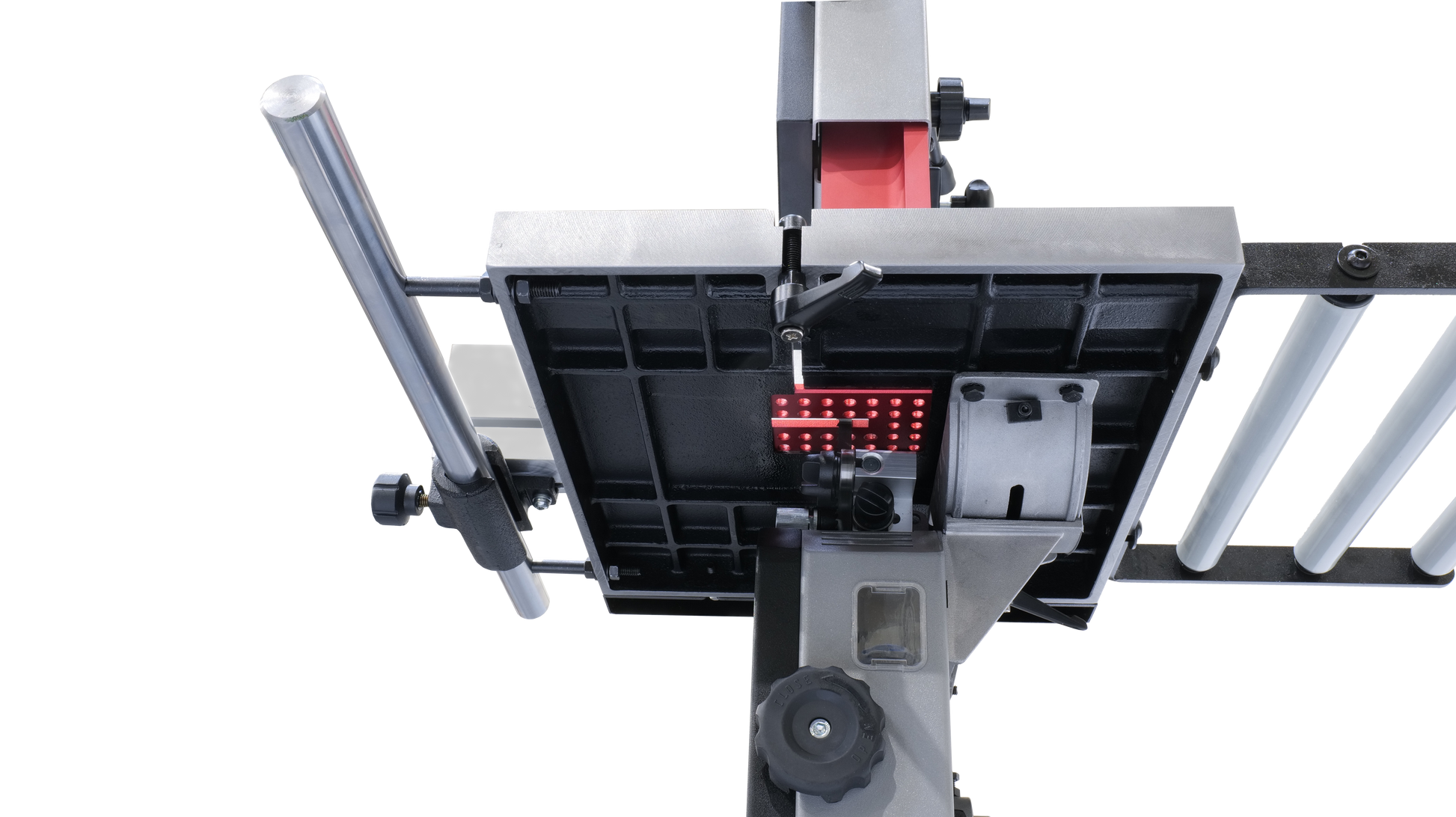

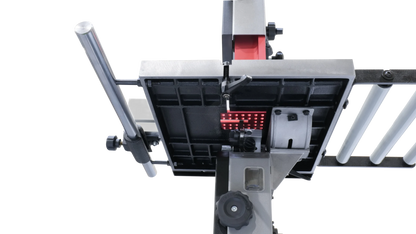

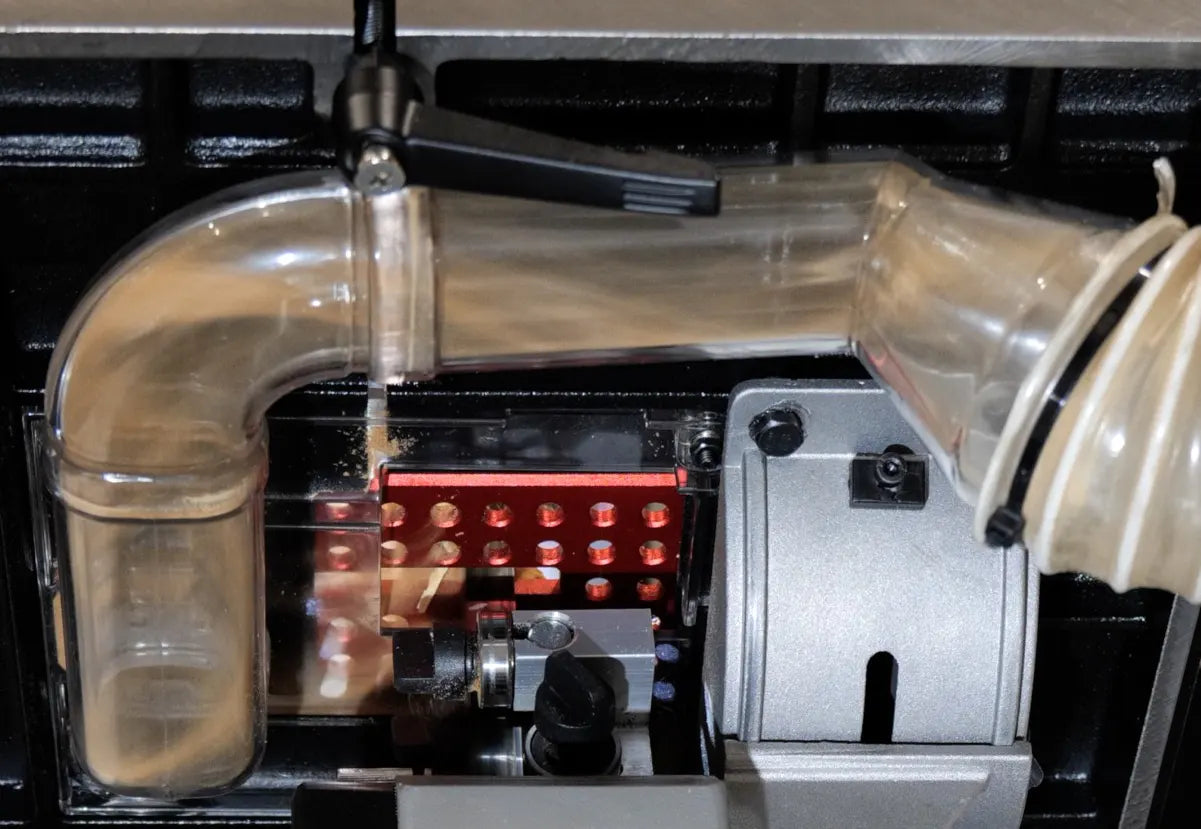

• Quick-release Magnetic under-table Dust Chamber
• 120V Outlet for Optional light

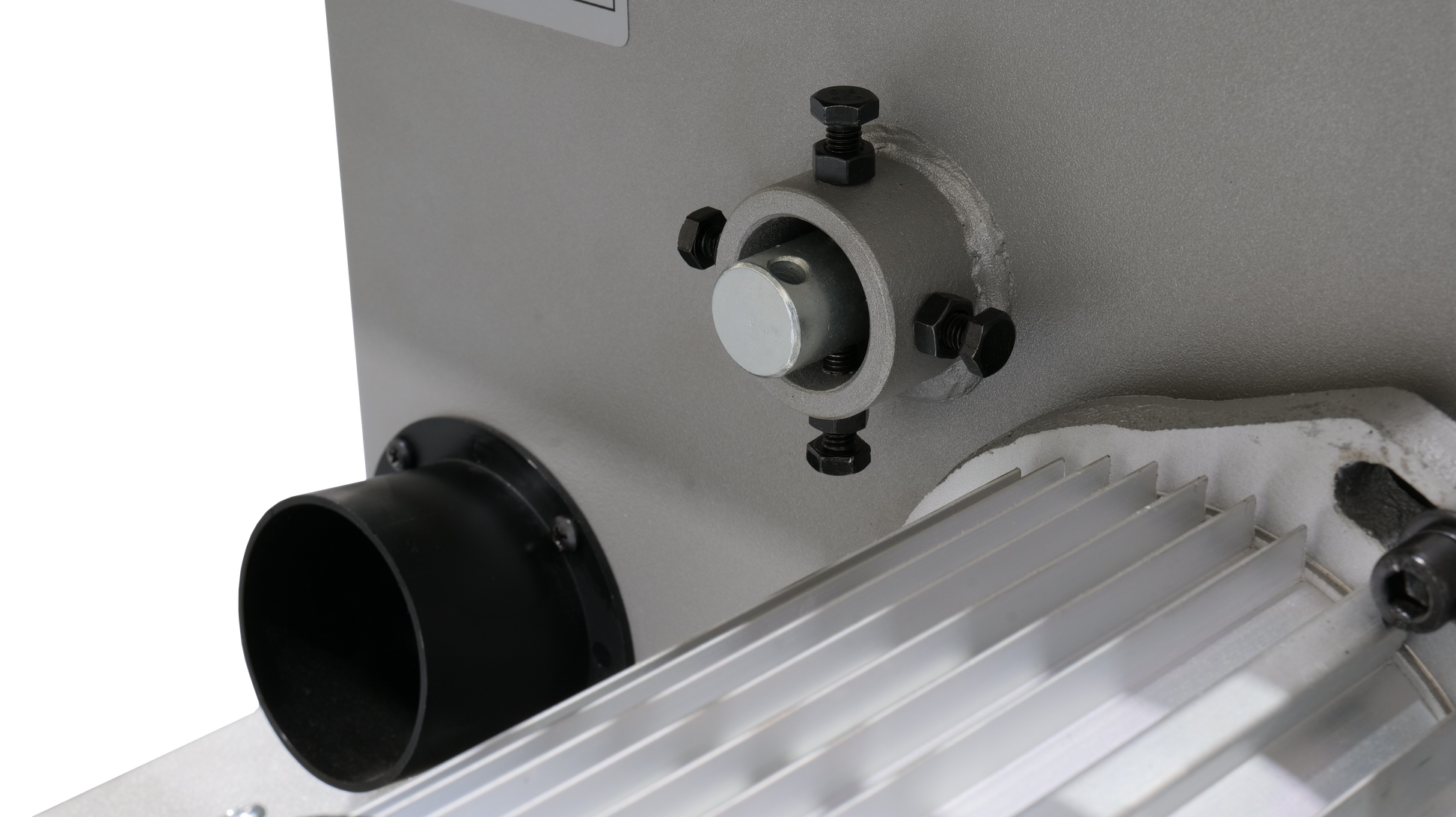

• Dual 2 ½” Dust Ports

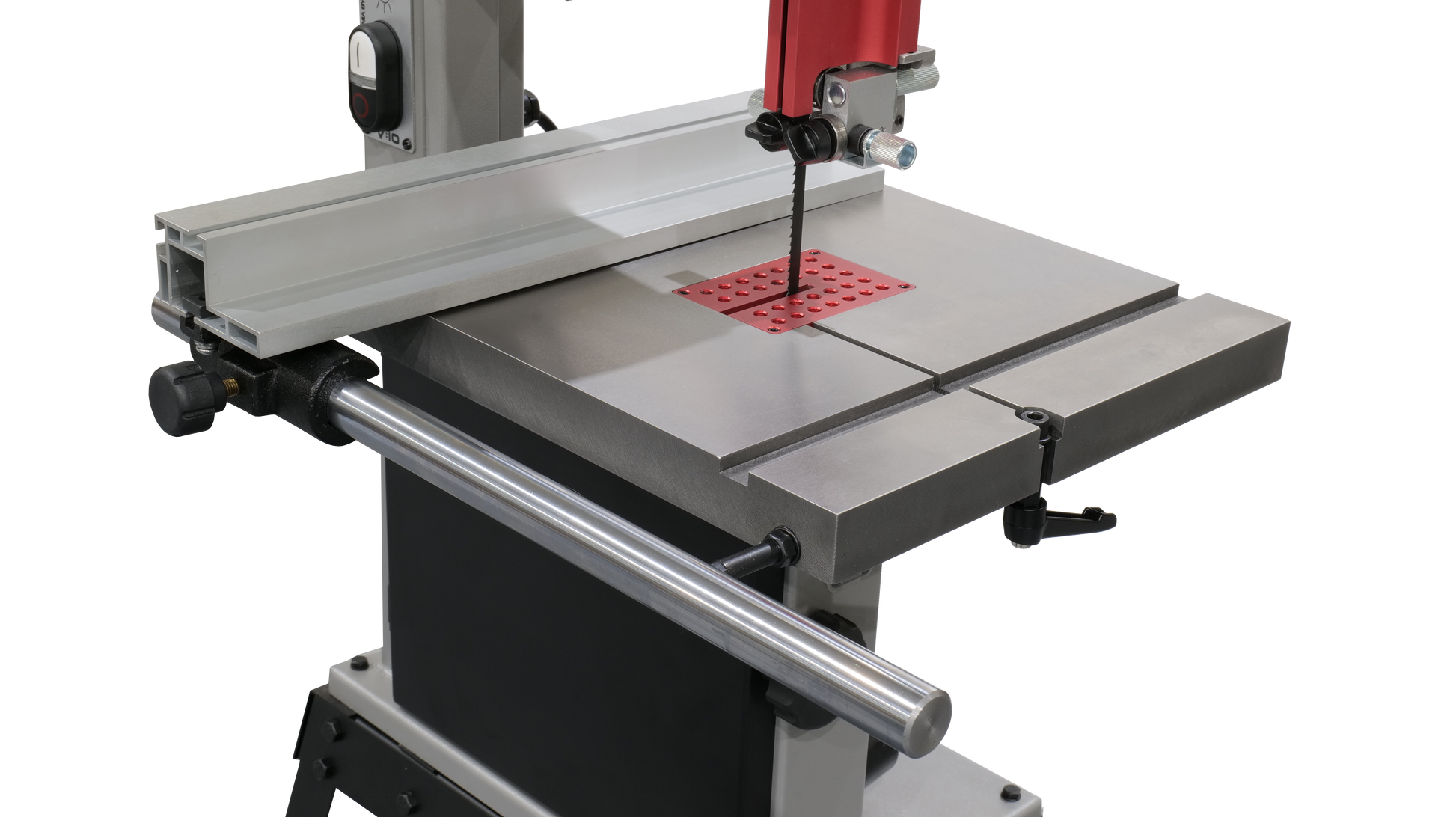

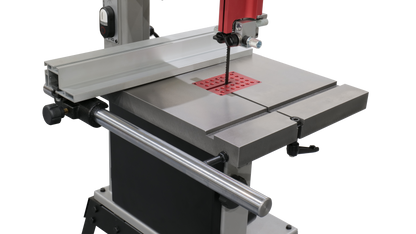

• Hi/Low Fence with Solid Steel Rail

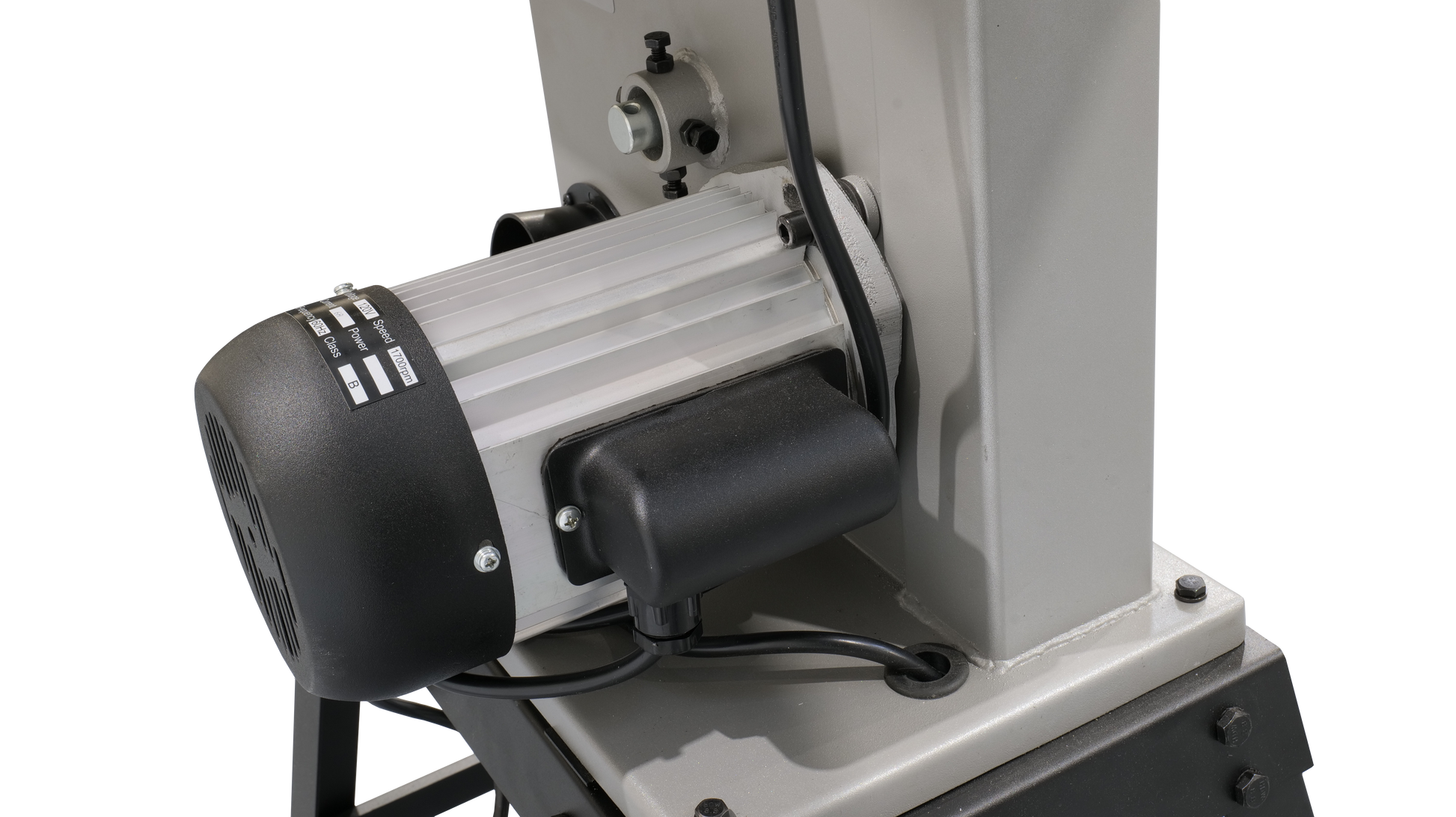

• Motor –  1 HP Induction Motor
• Power – 120 Volt 60 Hz
• Flywheel Size –  10” Diameter
• Resaw Height –  6” (152.4 mm)
• Throat –  9-5/8” – 245 mm)
• Blade Length –  70-1/2” (1791 mm)
• Blade Width –  1/8” – Max 1/2” (3.18 – 12.7 mm)
• Blade Speed – 1515 High / 3280 Low Ft/Min – (462 / 1000 m/min)
• Table Size –  13-3/4” x 12-1/2” (350 x 318 mm) (+ 1.25” left extension)

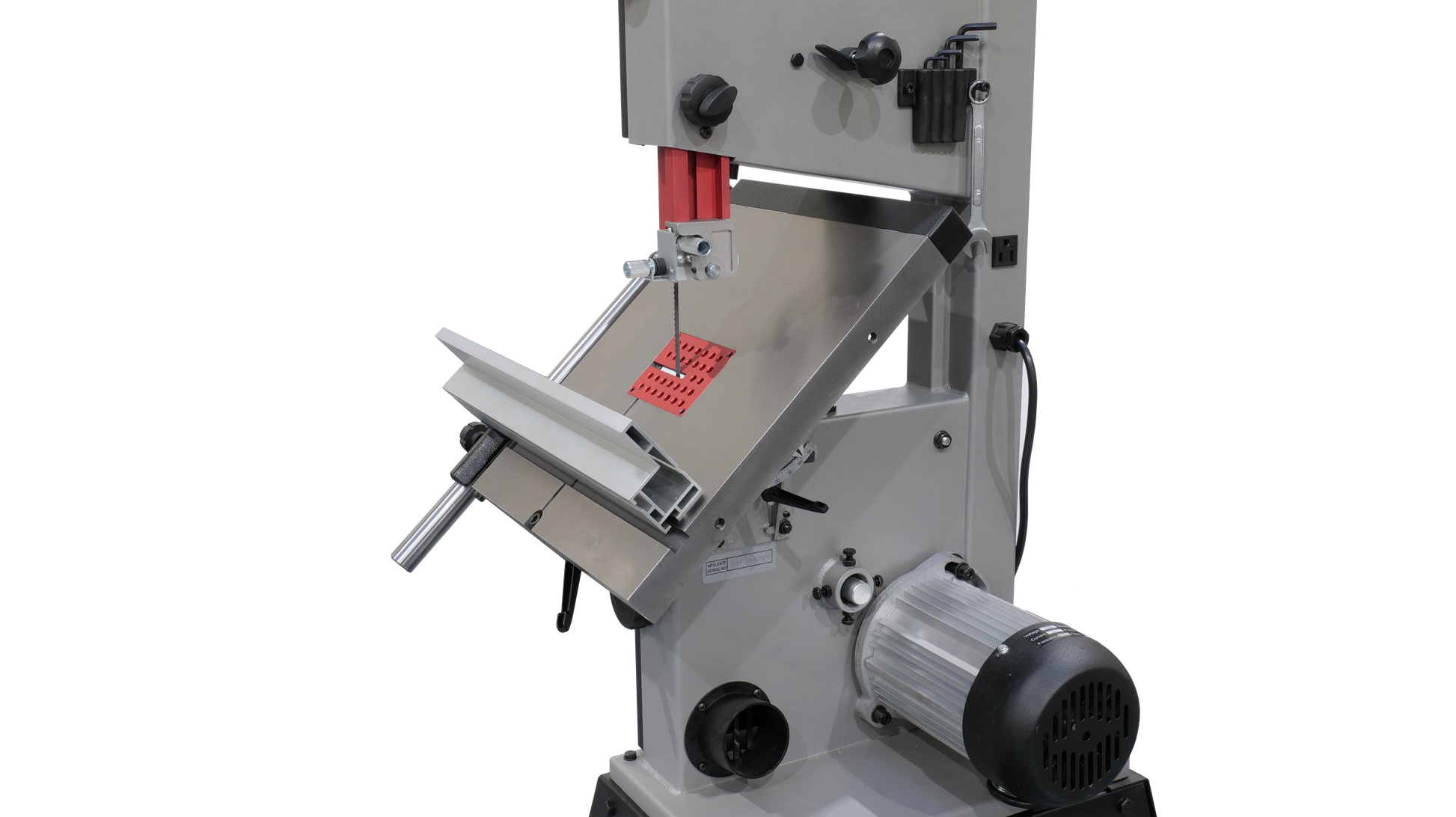

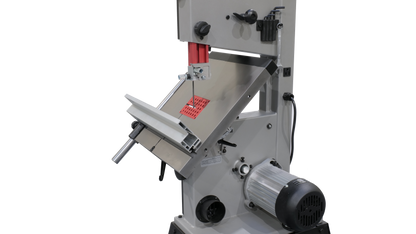

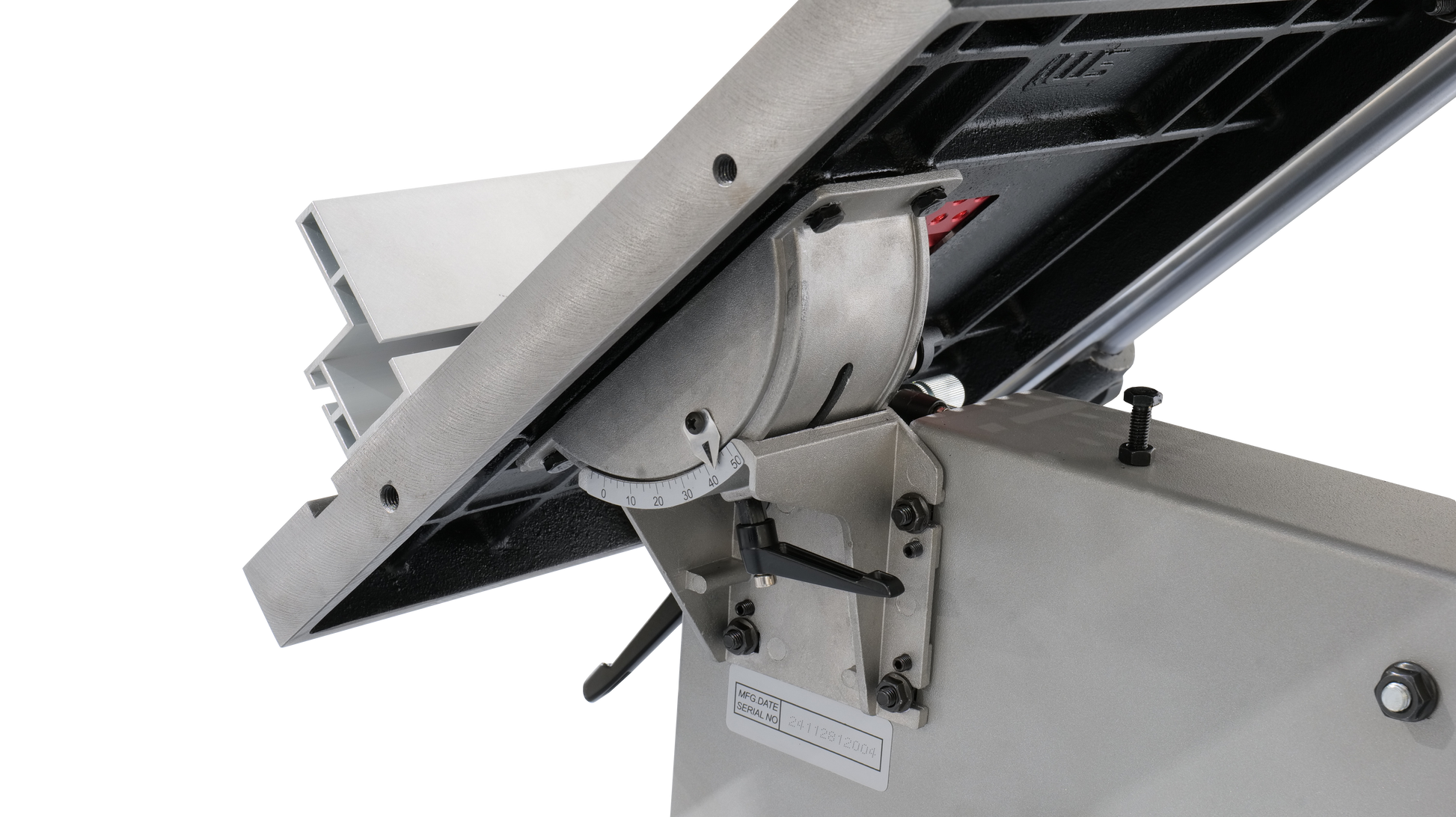

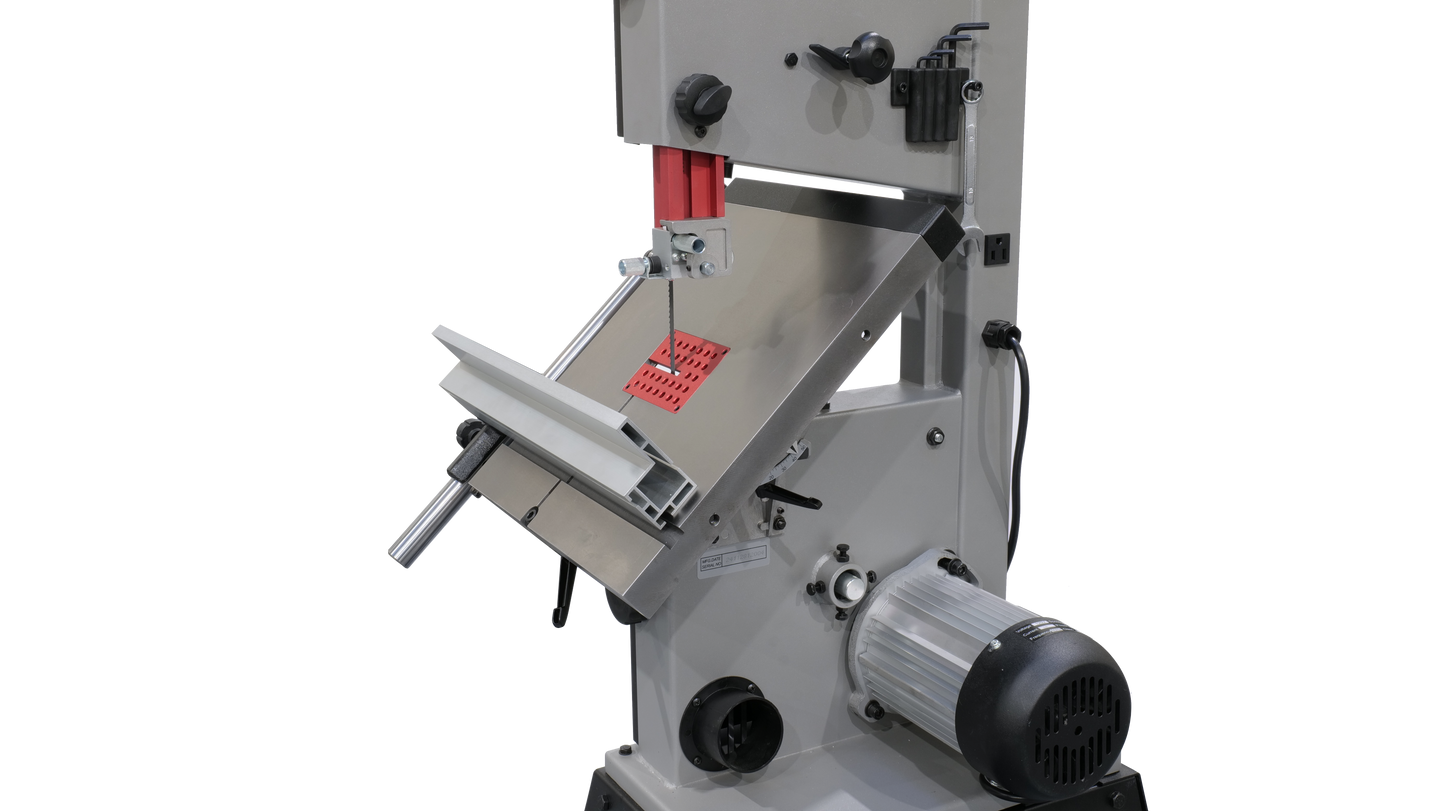

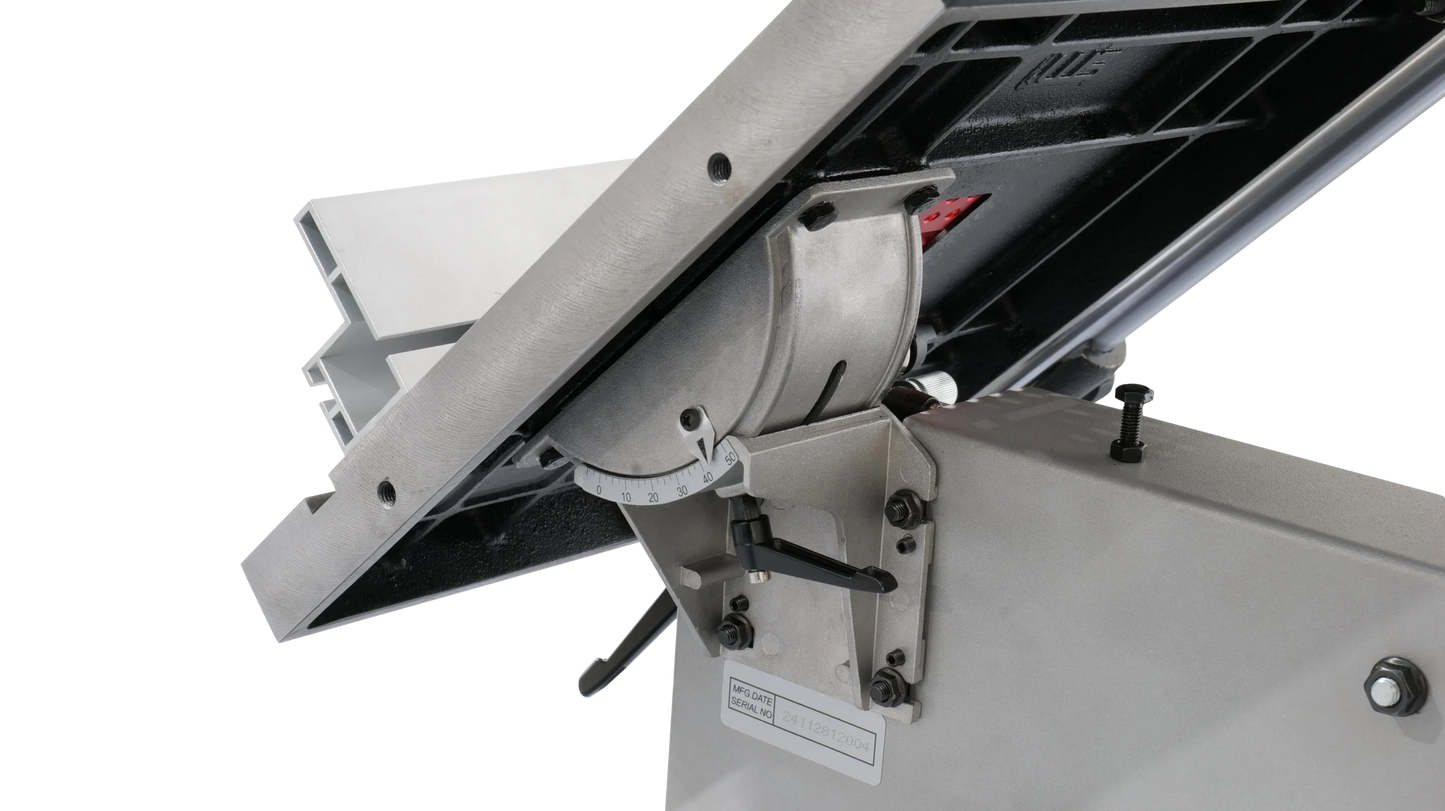

• Table Tilt –  Left -5° / Right 45°
• Table Height –  14-1/2”  (368 mm) (without optional stand)
• Dust Port Diameter –  2-1/2” x 2 (64mm)
• Base Size –  9-1/4” x 15-3/4”  (235 x 400 mm)
• Overall Size –  22-1/2” x 21” x 34-1/2” (546 x 533 x 876 mm) LxWxH
• Included: 3/8” Blade
• Blade Material: Carbon Steel

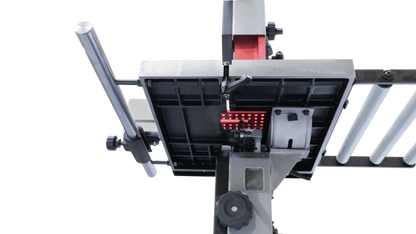

• Quick-Release Magnetic Under-Table Dust Port
• Oversized Perforated Throat-Plate with Levelling Screws

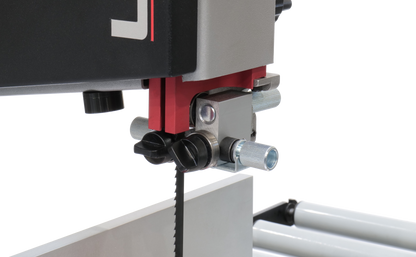

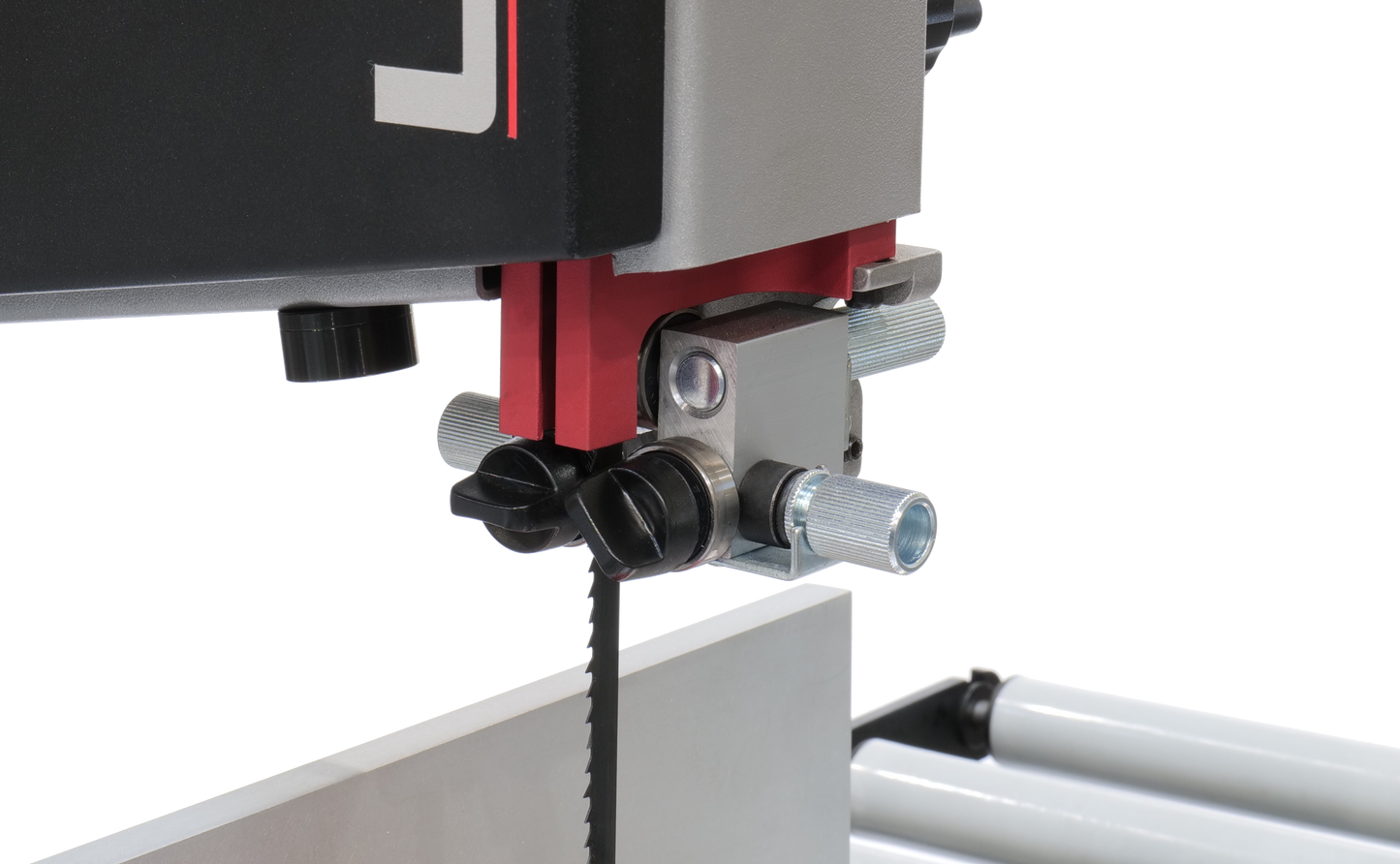

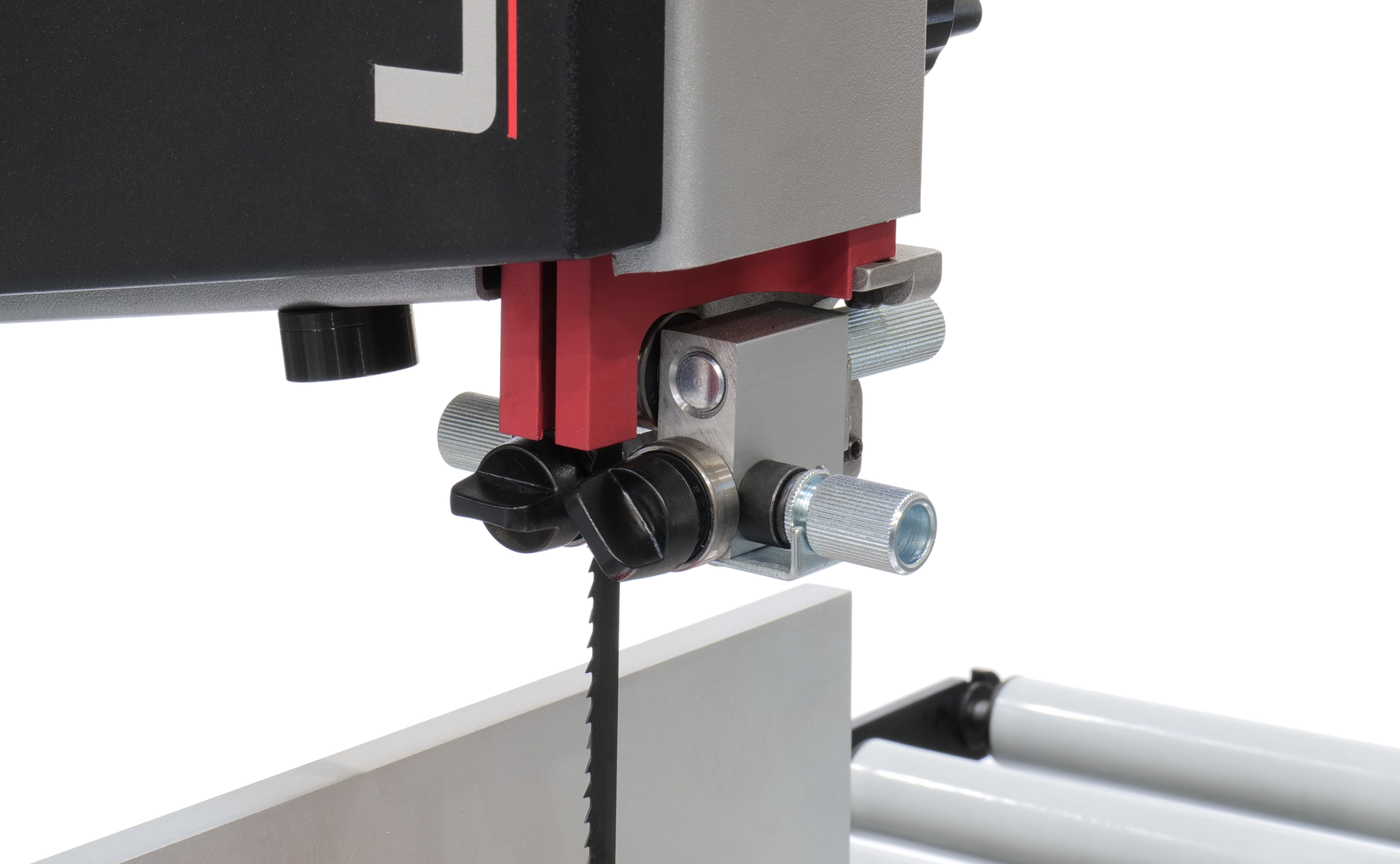

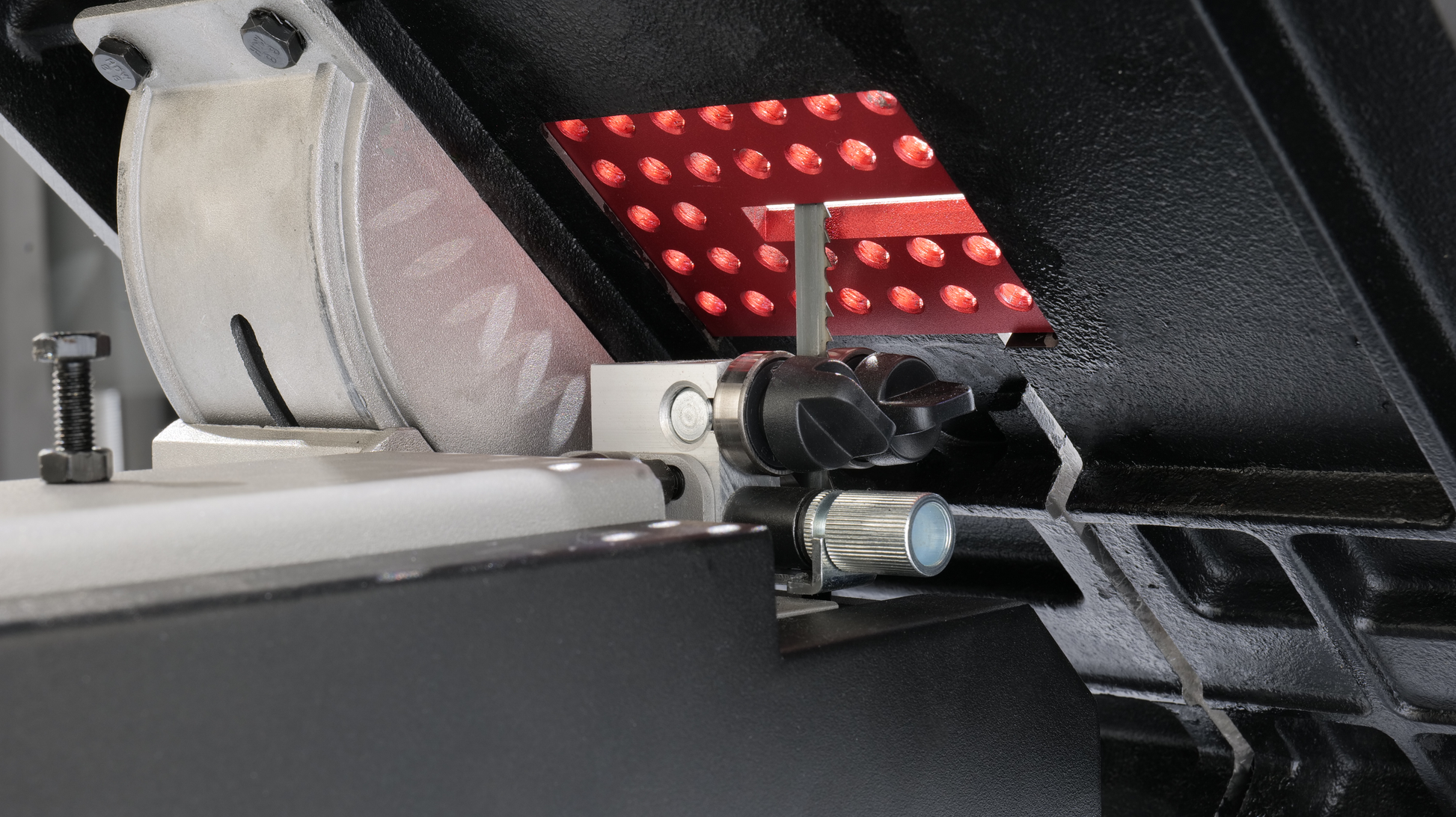

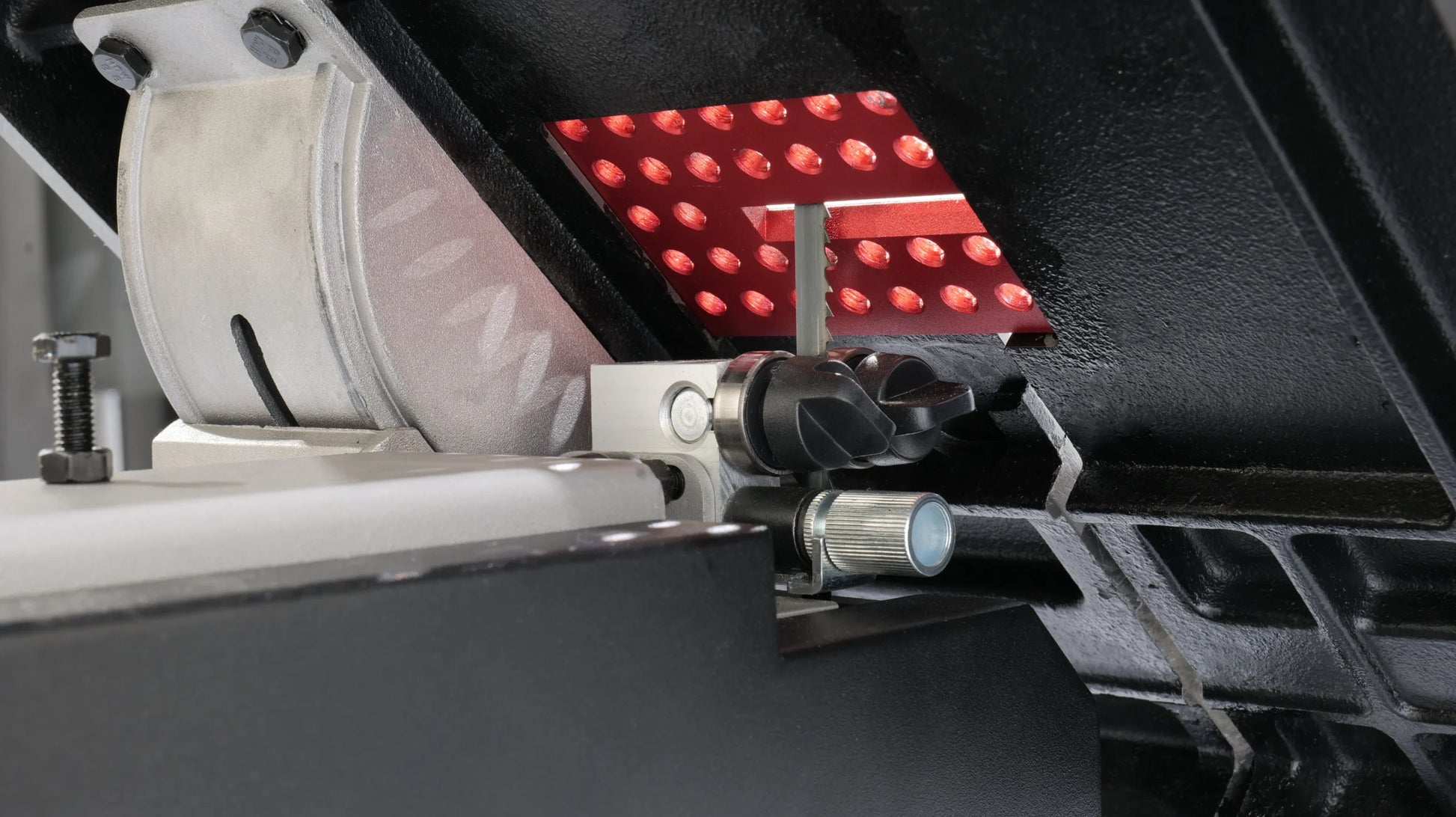

• Roller Bearing Blade Guides with Tool-Less Micro-Adjustment

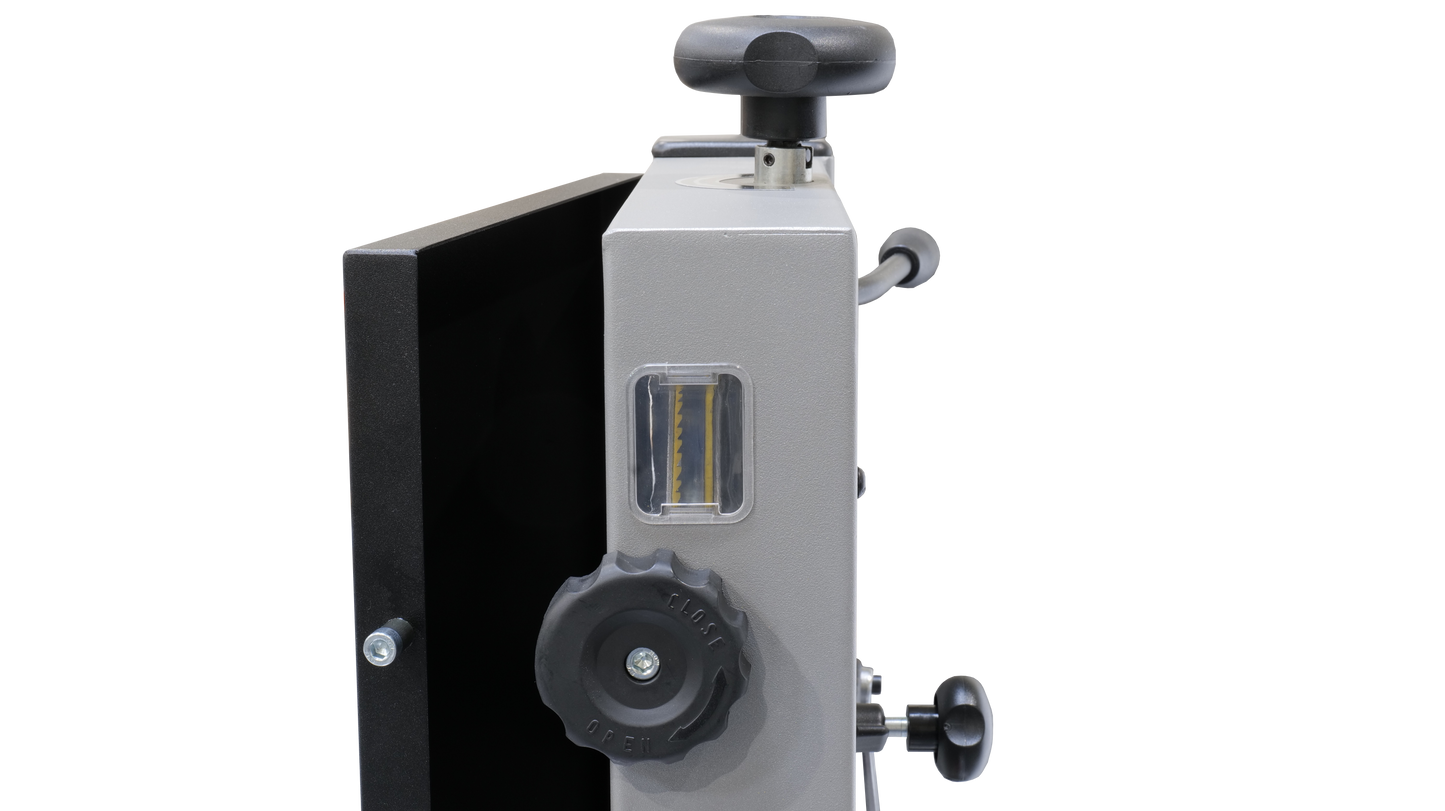

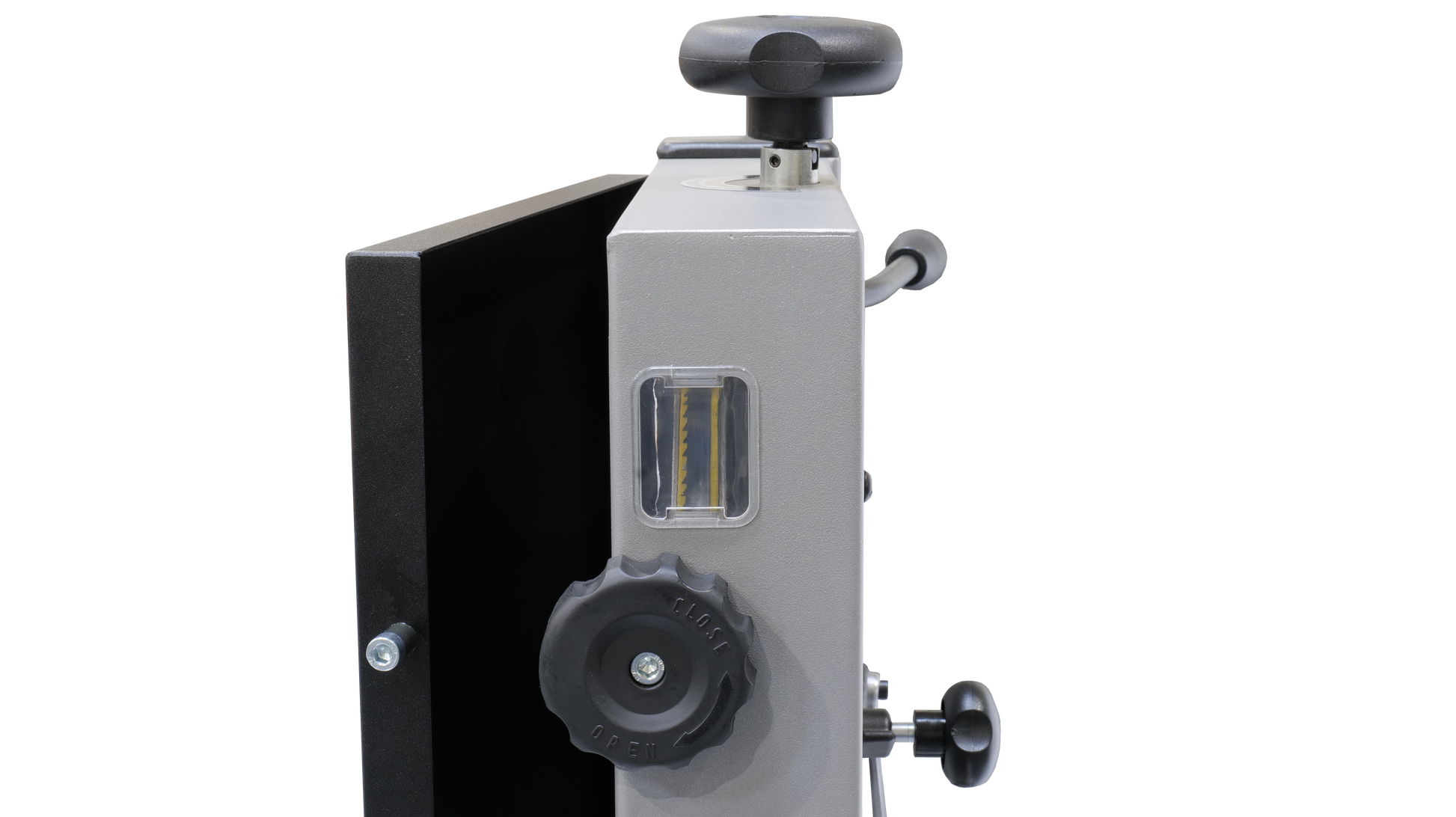

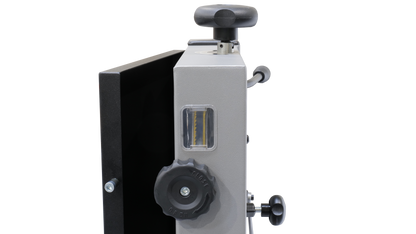

• Dual Blade Tracking Windows

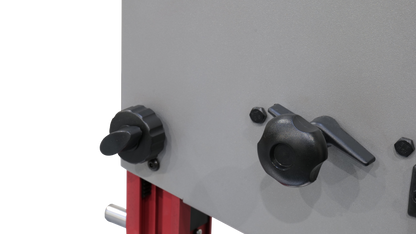

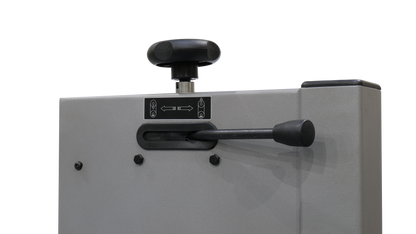

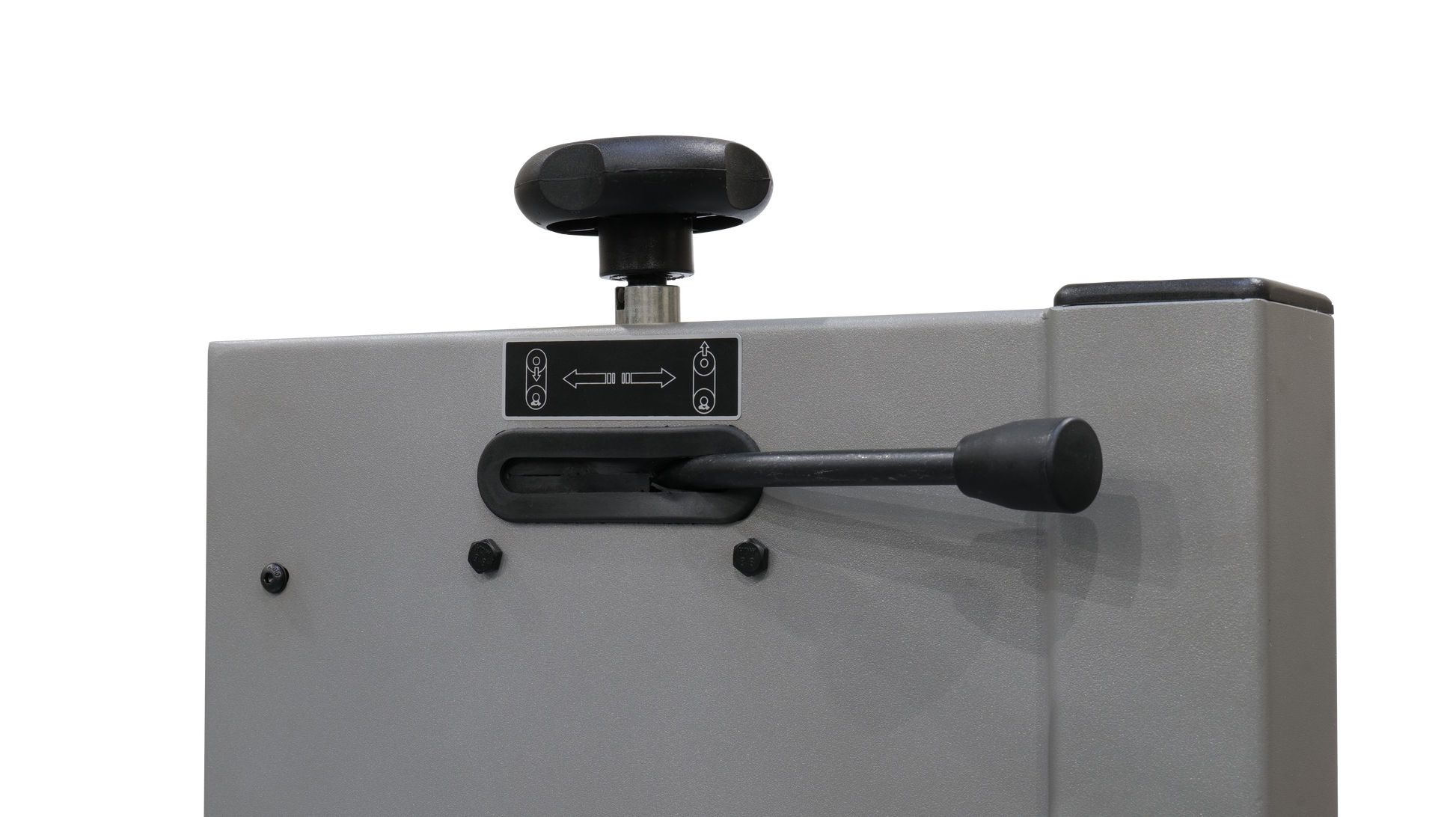

• Quick-Release Blade Tension Lever
• Dual Blade Speeds: 1515 /3280 ft/min
• Rack and Pinion Upper Guide

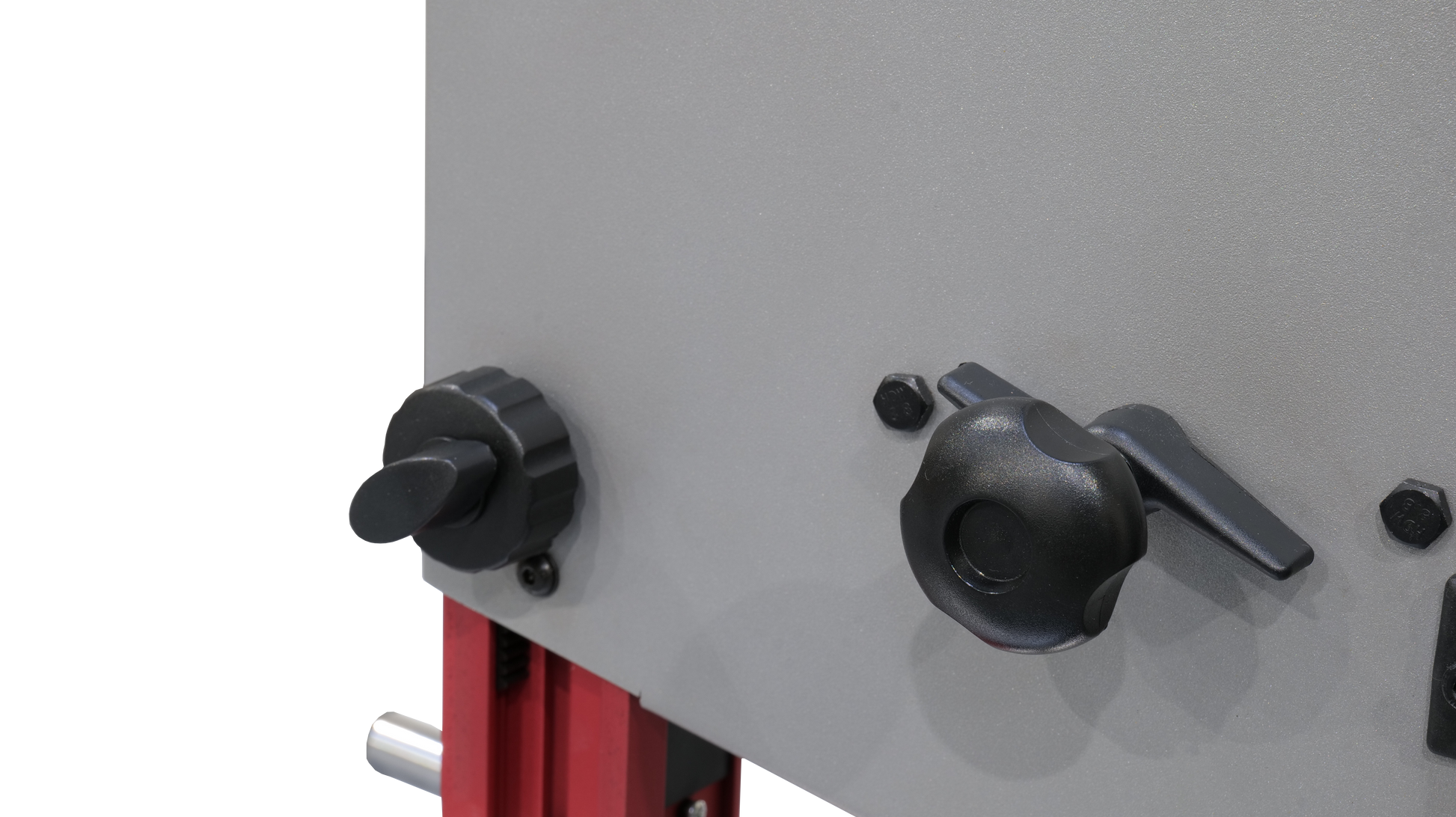

• Large Blade Tensioning Knob

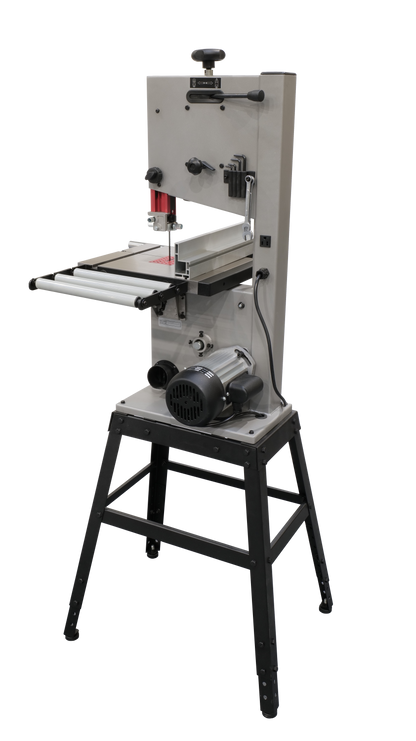

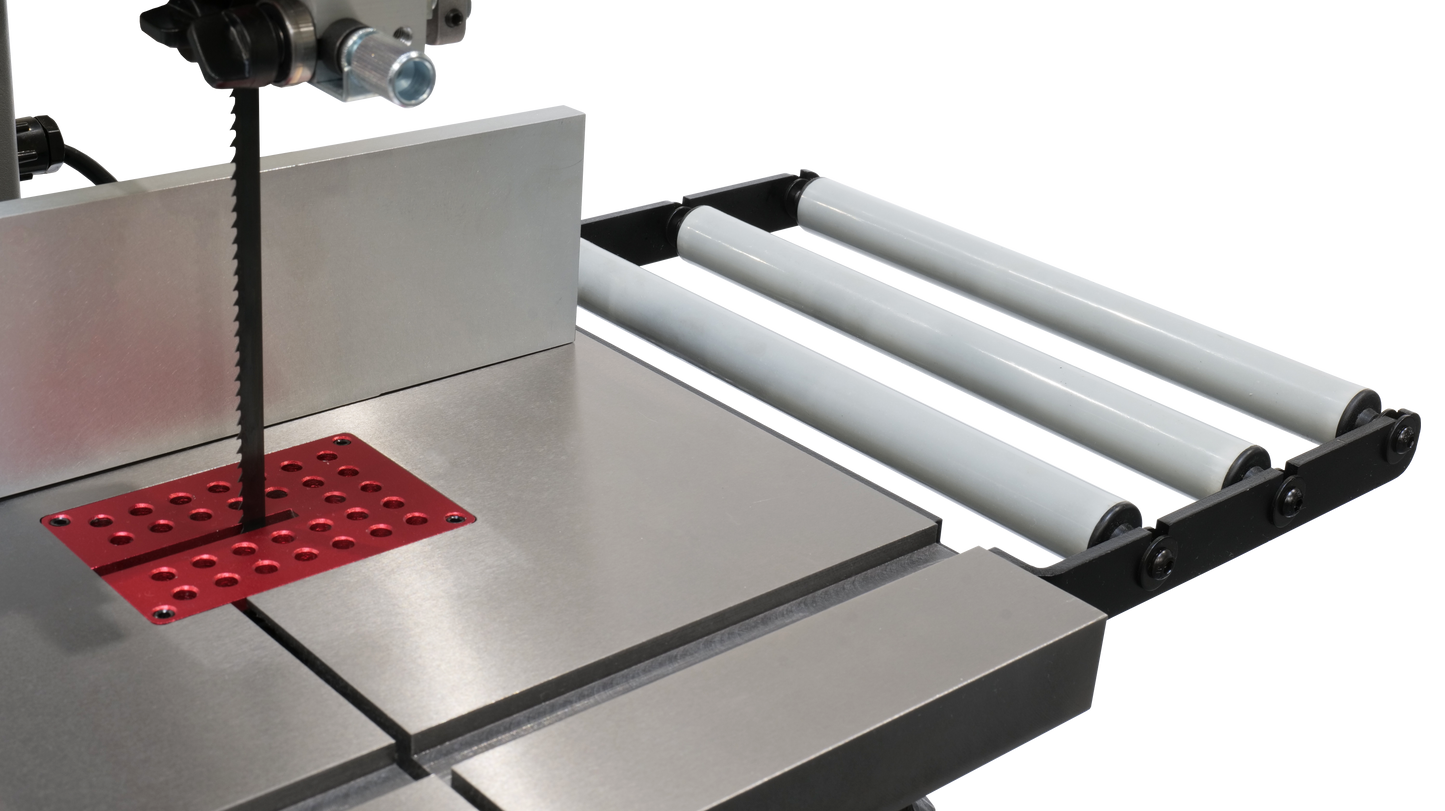

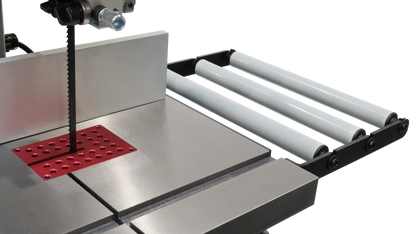

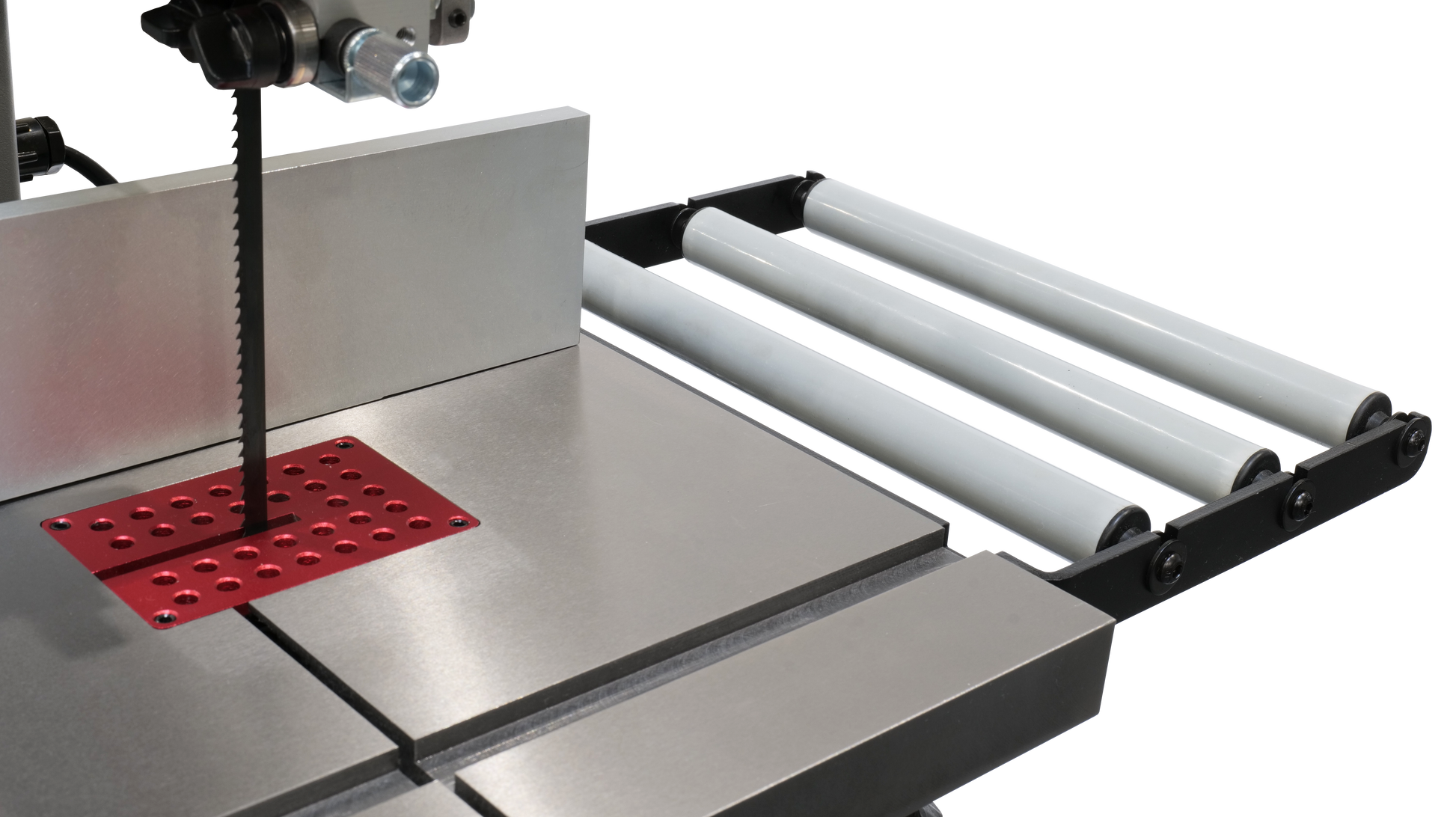

• Roller Outfeed Table (Optional Accessory)

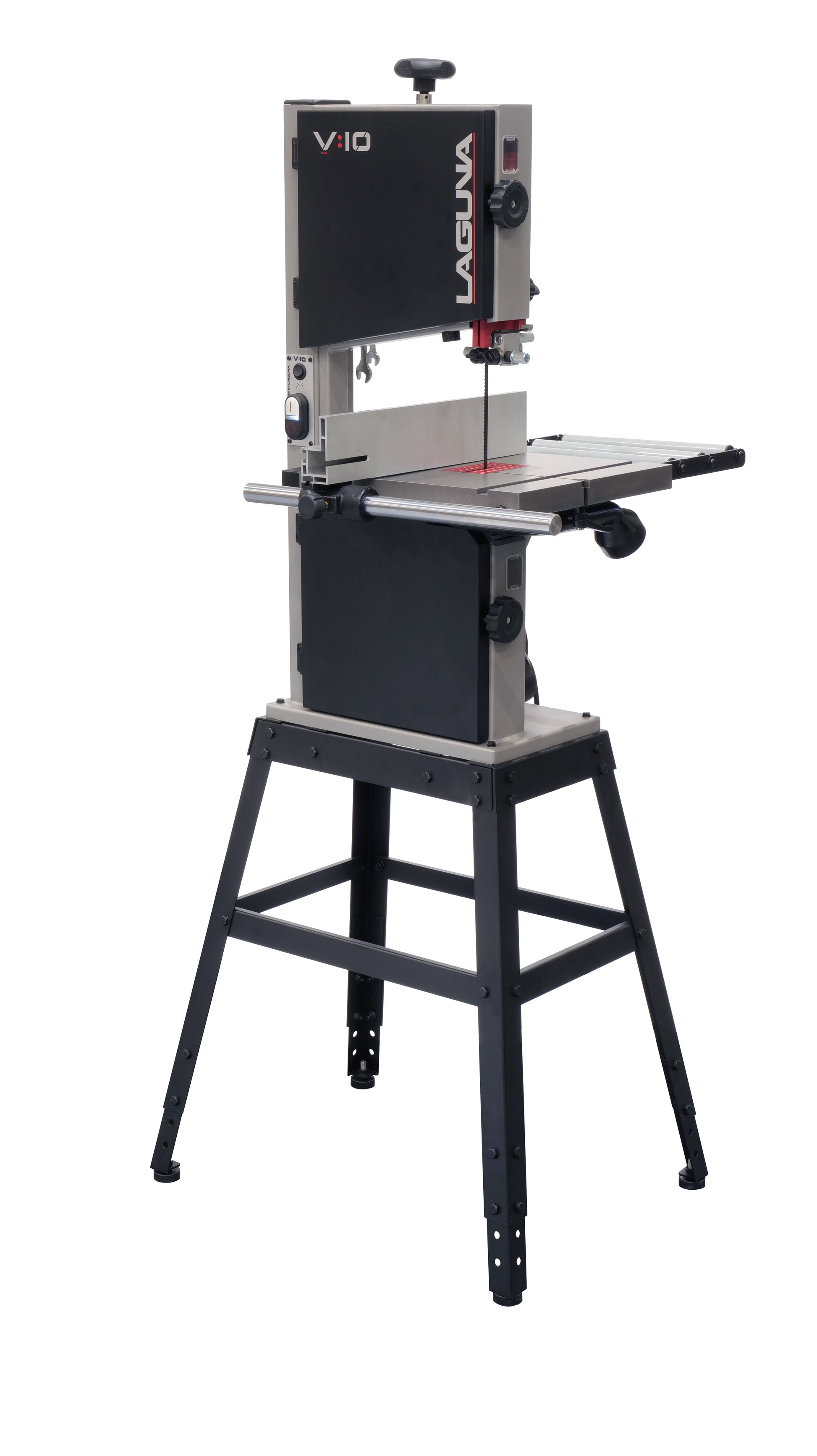

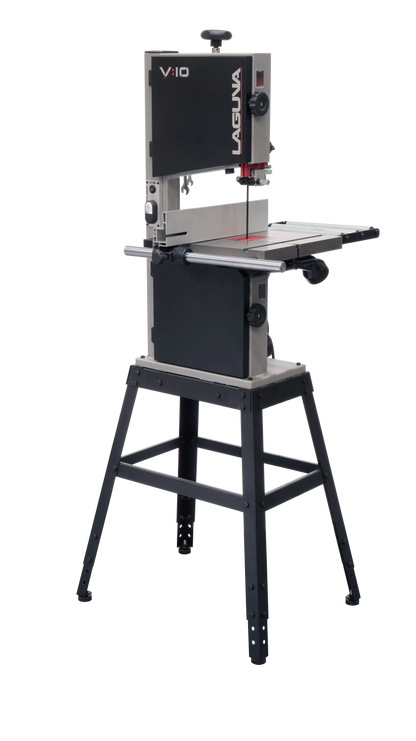

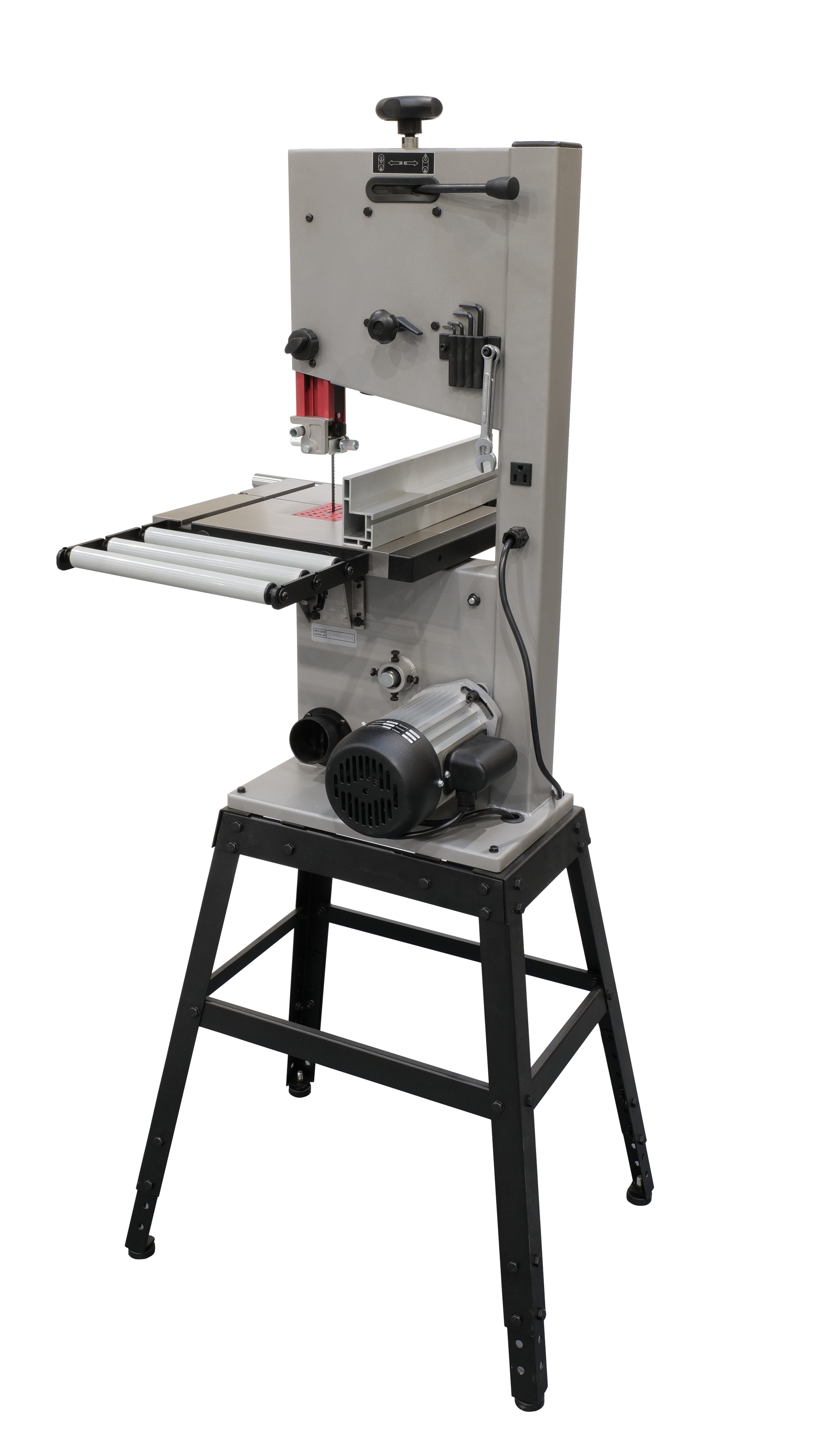

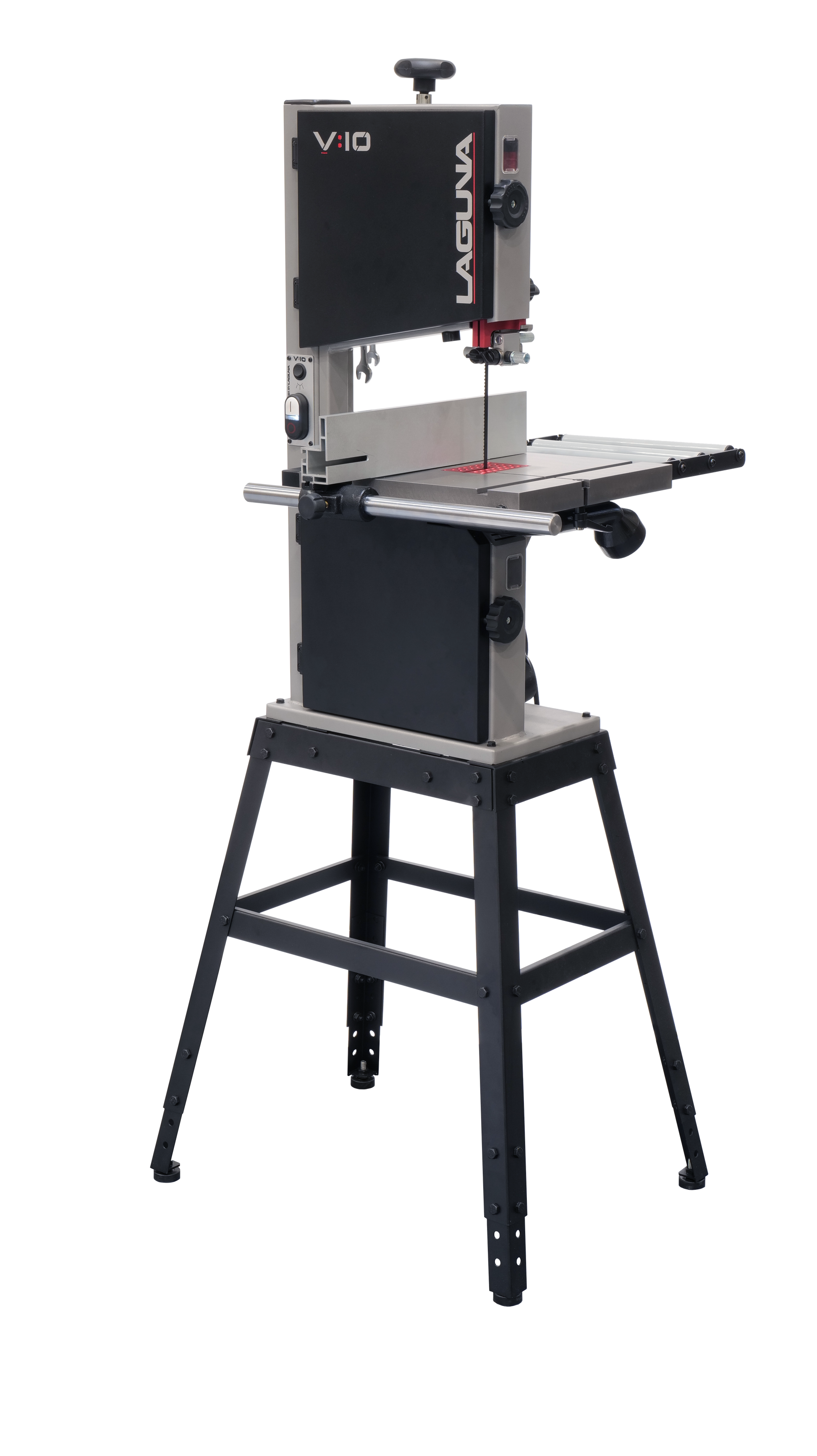

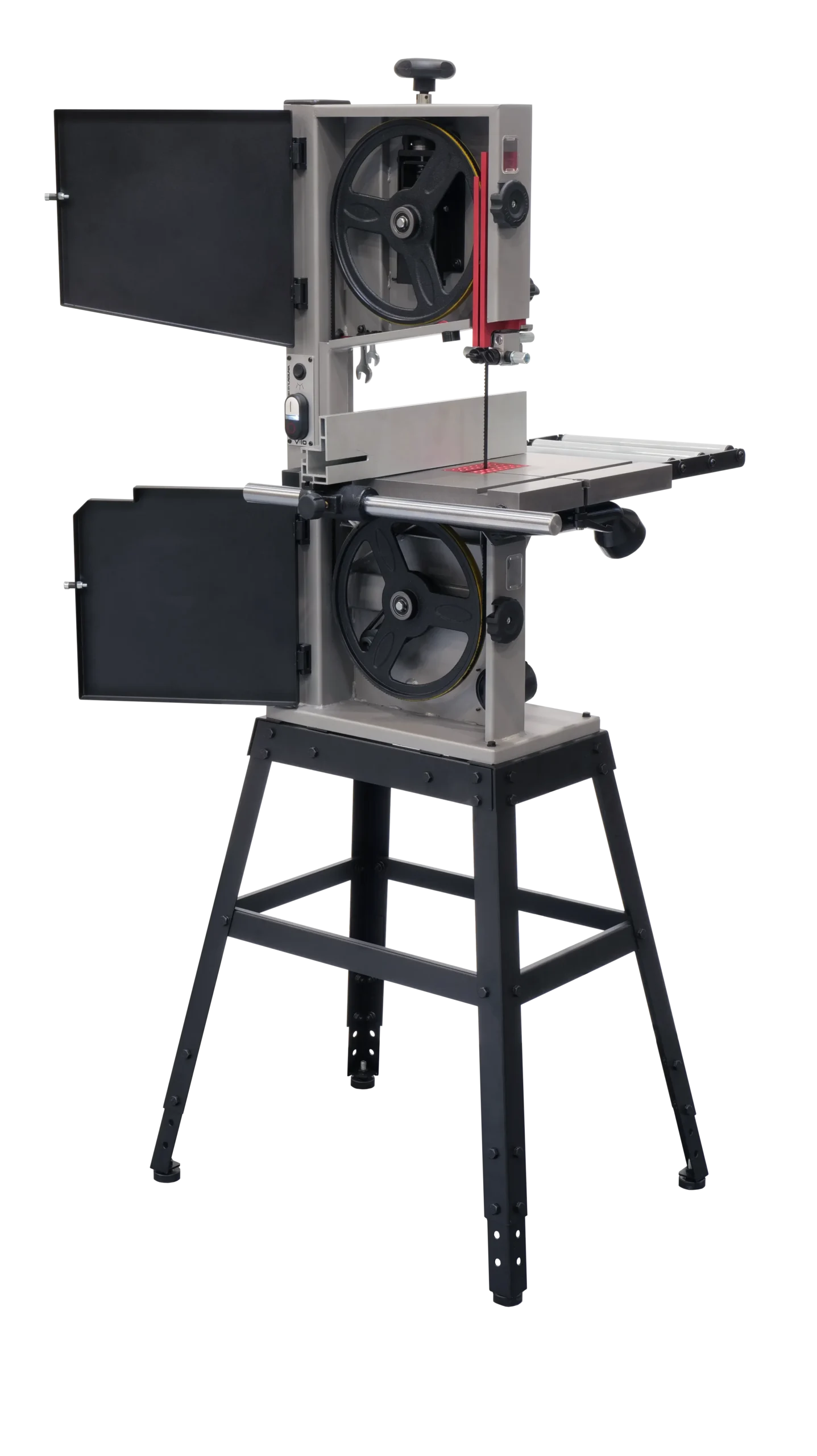

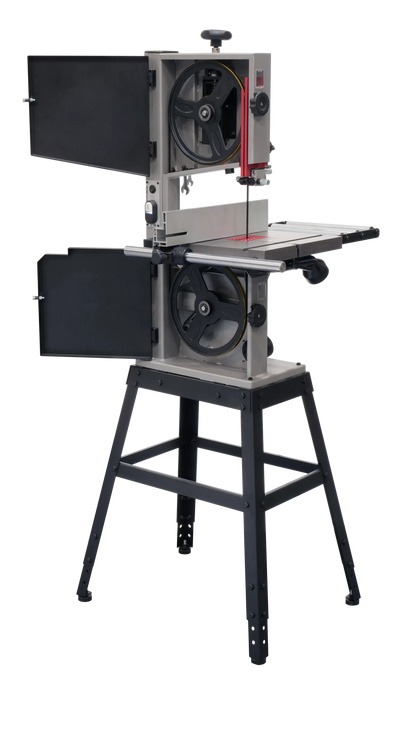

• Stand with Adjustable Height (Optional Accessory)
• Caster Set (Optional Accessory)
