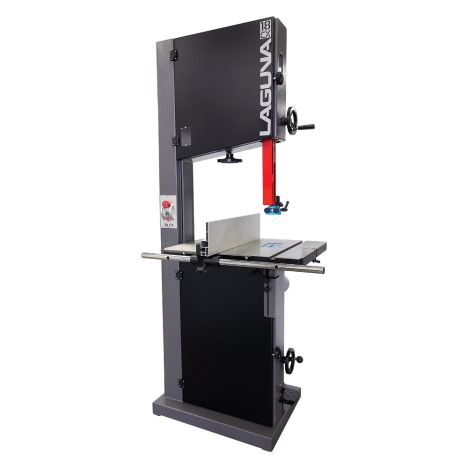

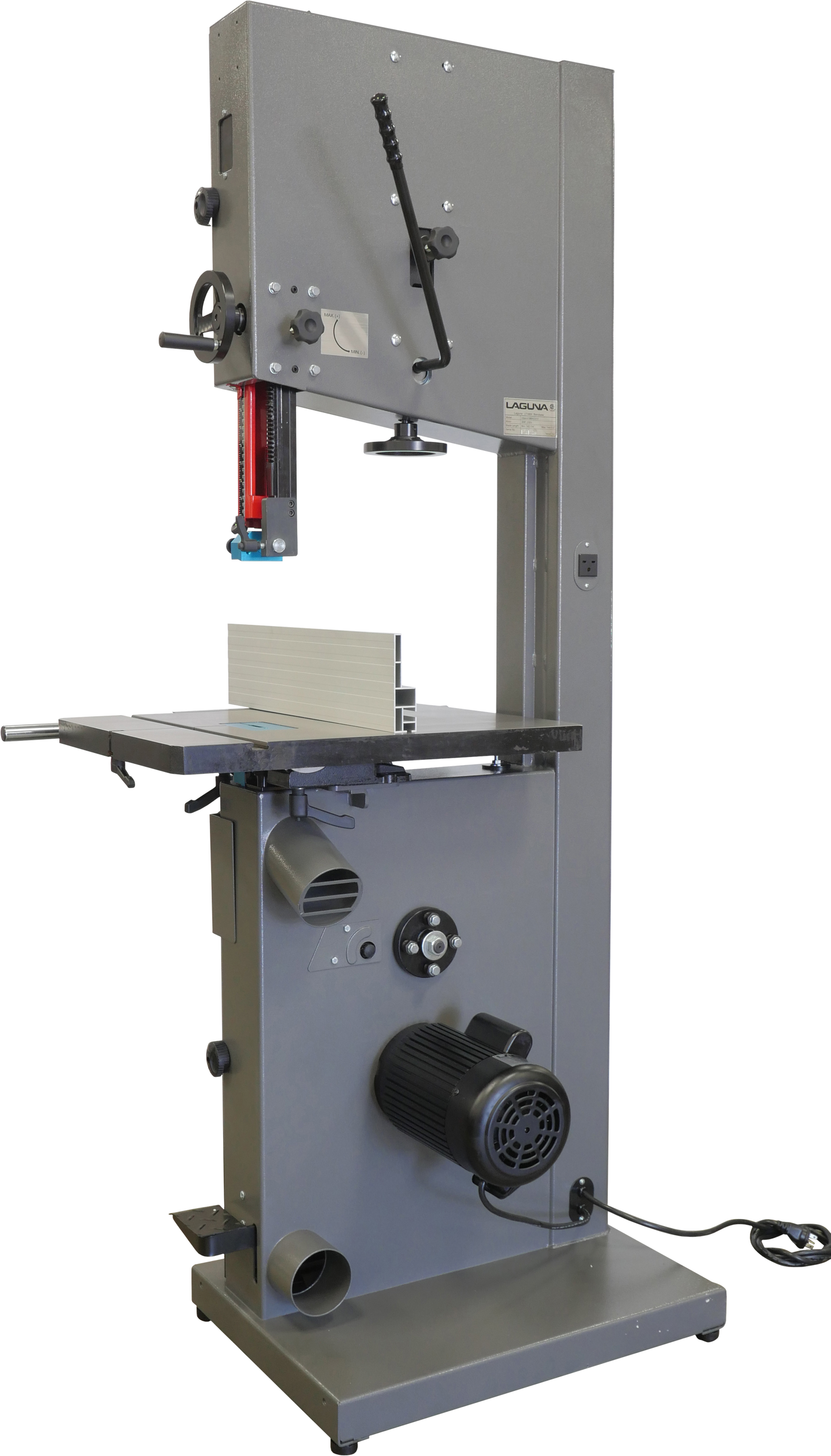

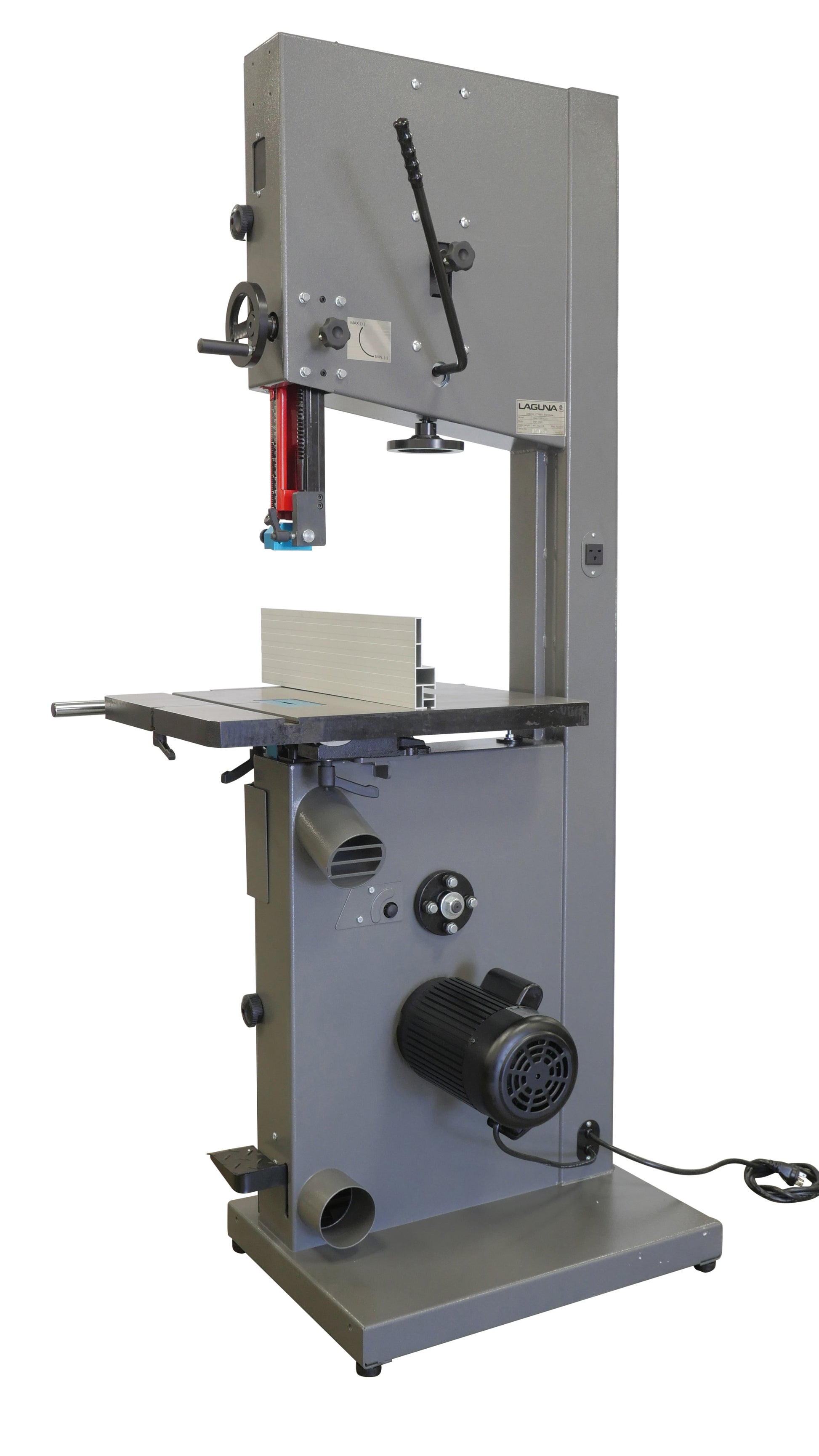

Laguna 18|BX 16" RESAW

Laguna 18|BX 16" RESAW

$3,299.00
$3,299.00 $3,299.00
Sale Sold out
Shipping calculated at checkout.

SKU: MBAND18BX2203

Laguna

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

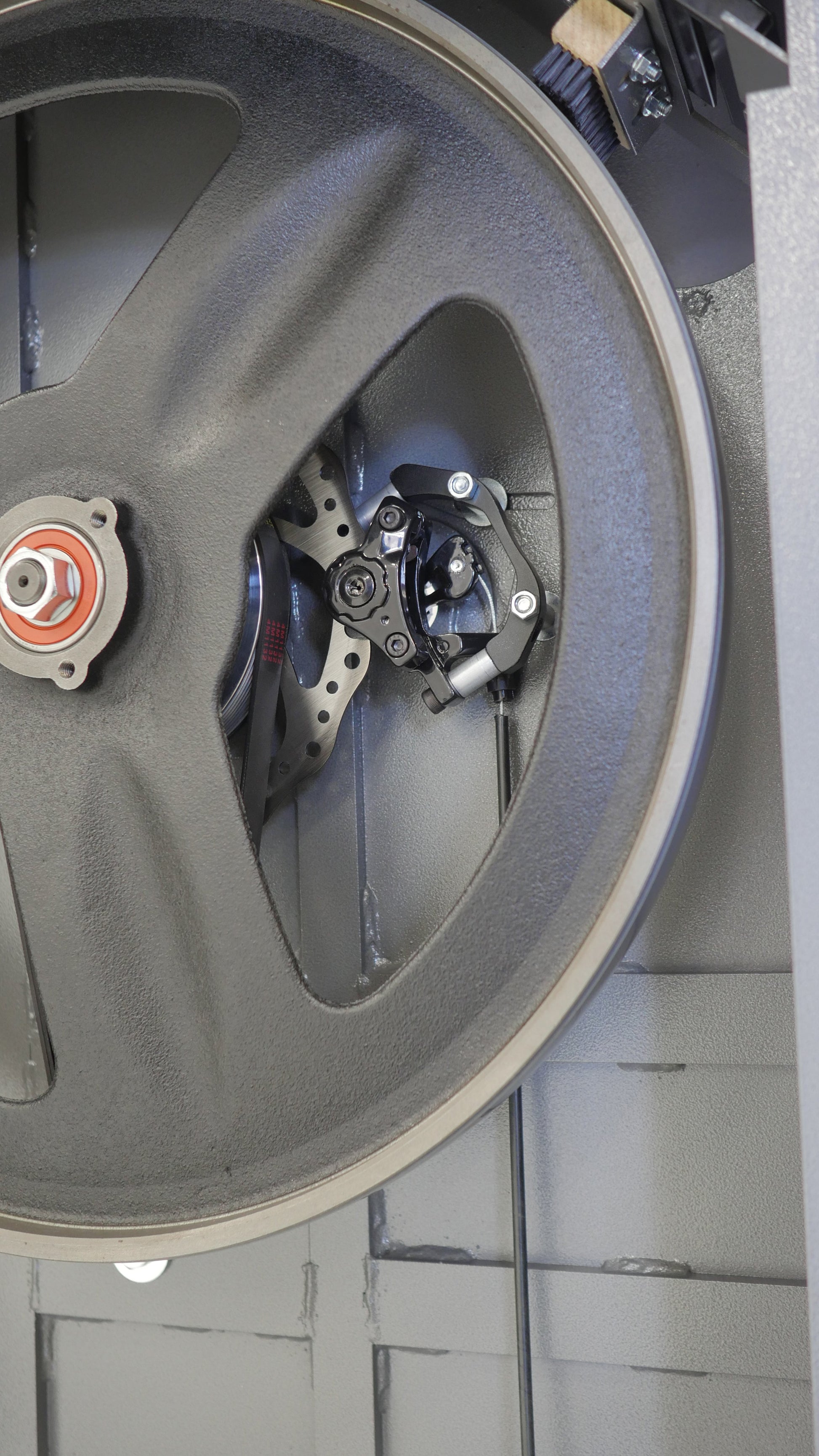

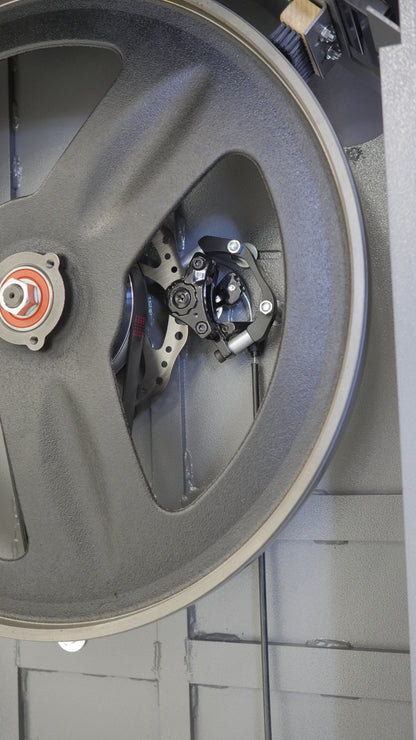

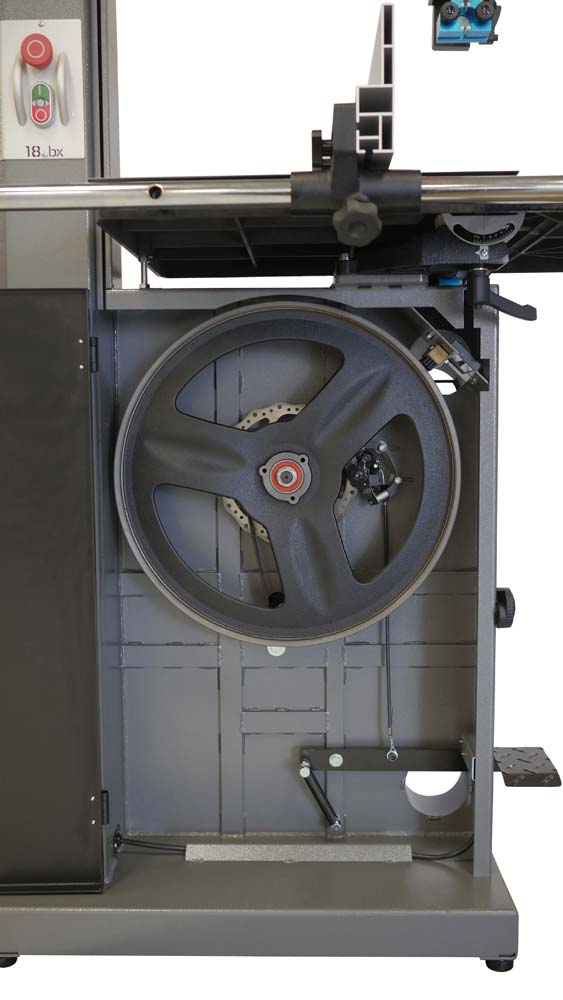

Disc-Brake With Micro Switch

220V Outlet On Back For Light

Window For Tension

Window For Tracking

Magnetic Blade Tension Guide

Worm Gear & Pinion Upper Guide

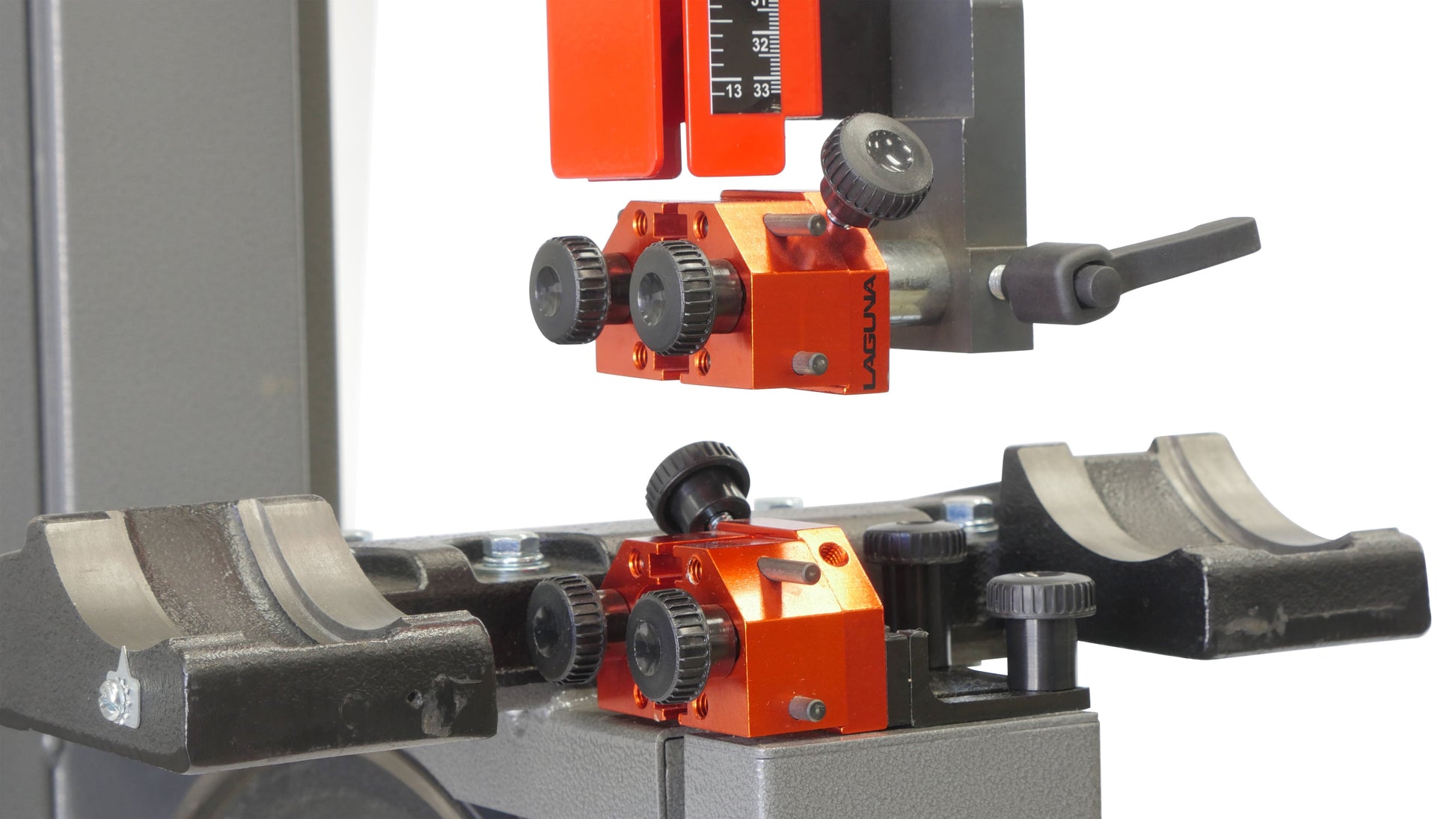

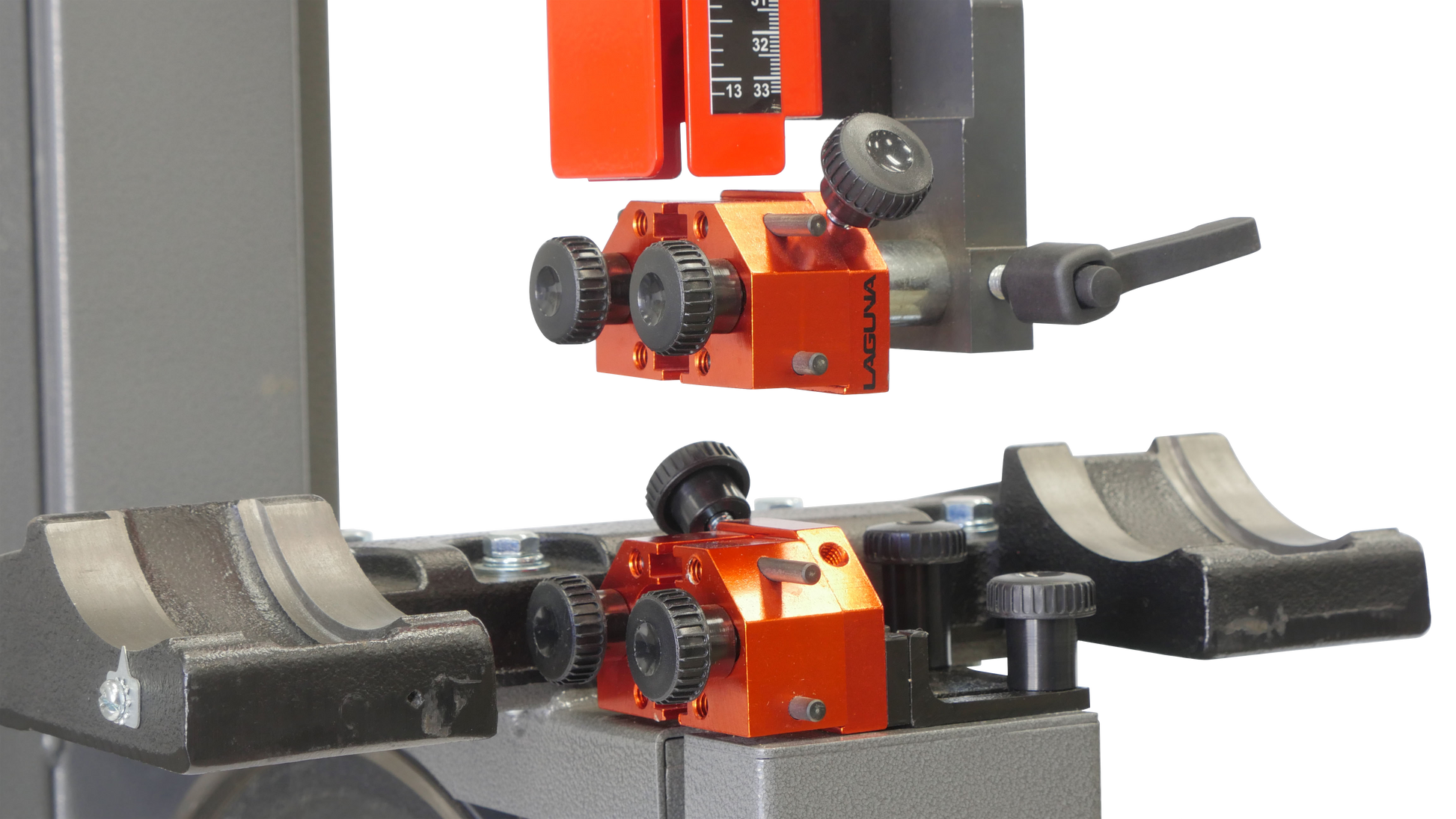

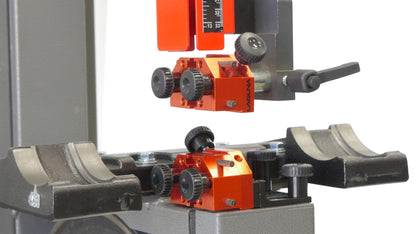

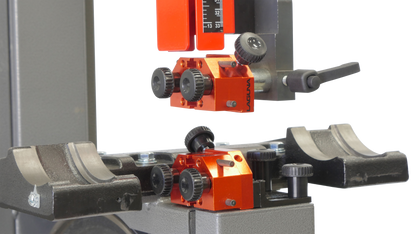

10 Point Laguna Ceramic Guides

Flat Poly-Groove Drive Belt

Premium Anodized Insert With Micro Adjustment

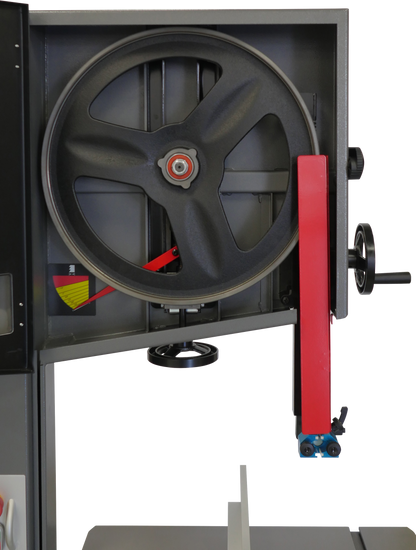

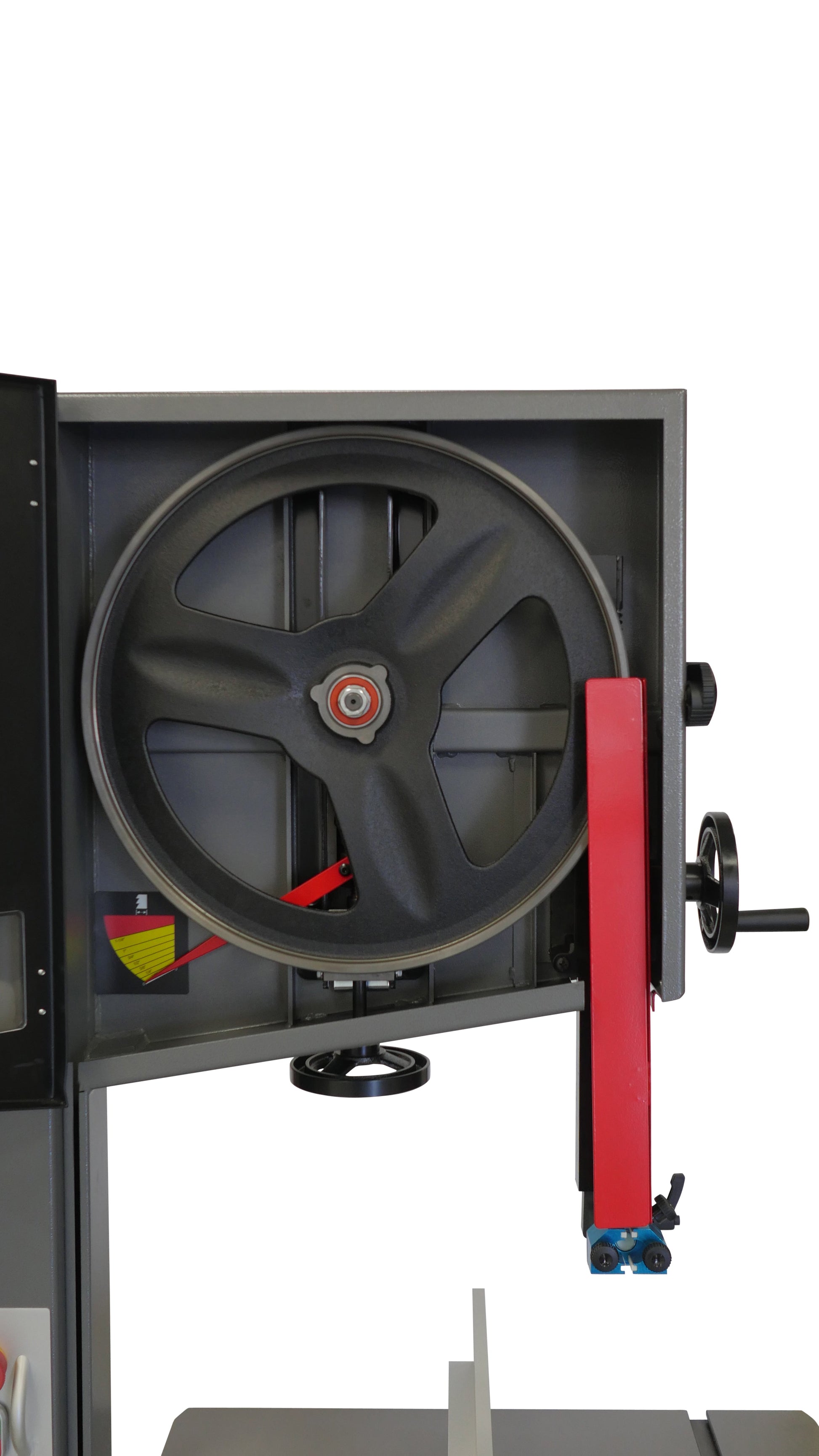

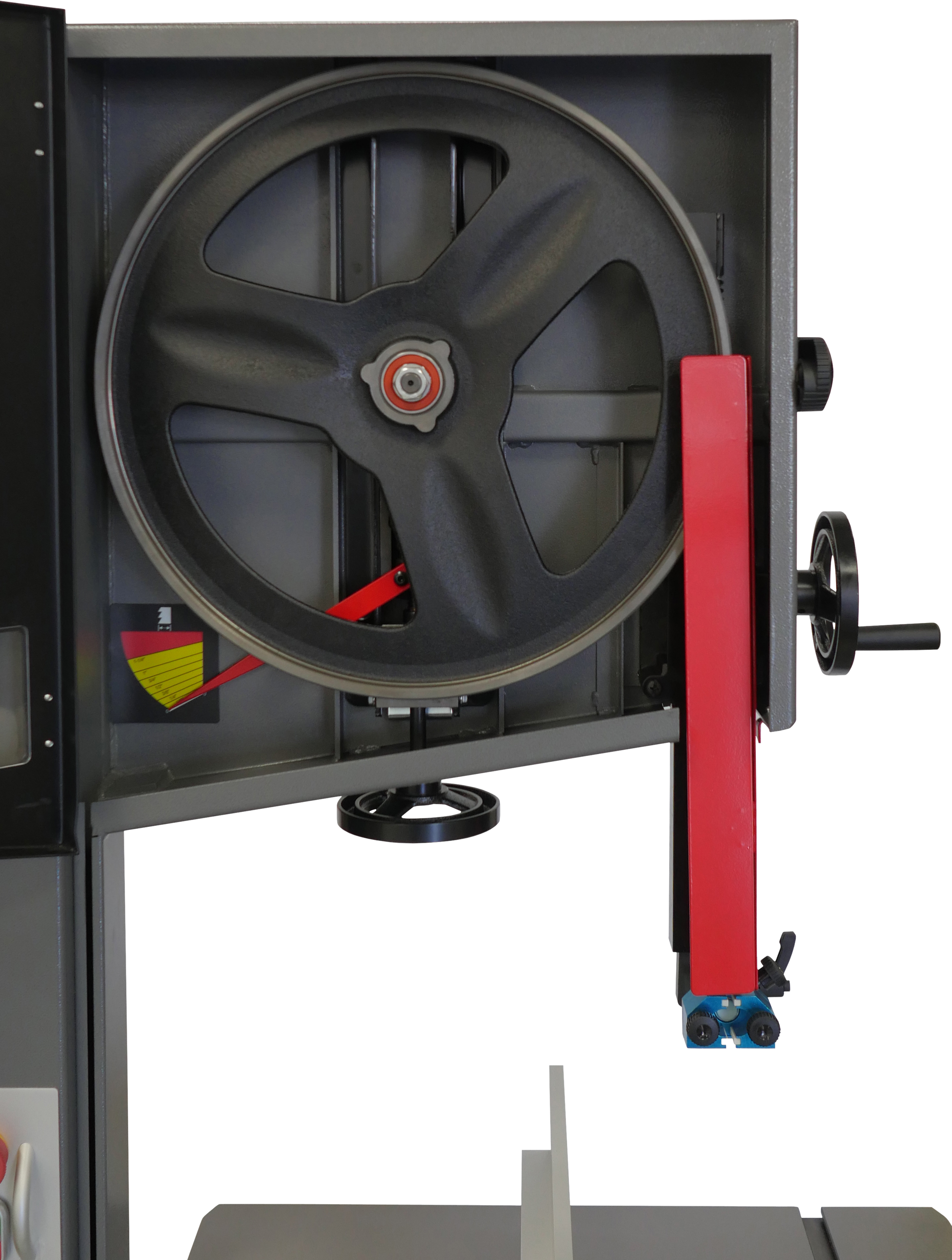

Dynamically Balanced Cast Iron Wheels

Urethane Single Piece Snap-On Tire

Cast Table Size: 20″ x 26″

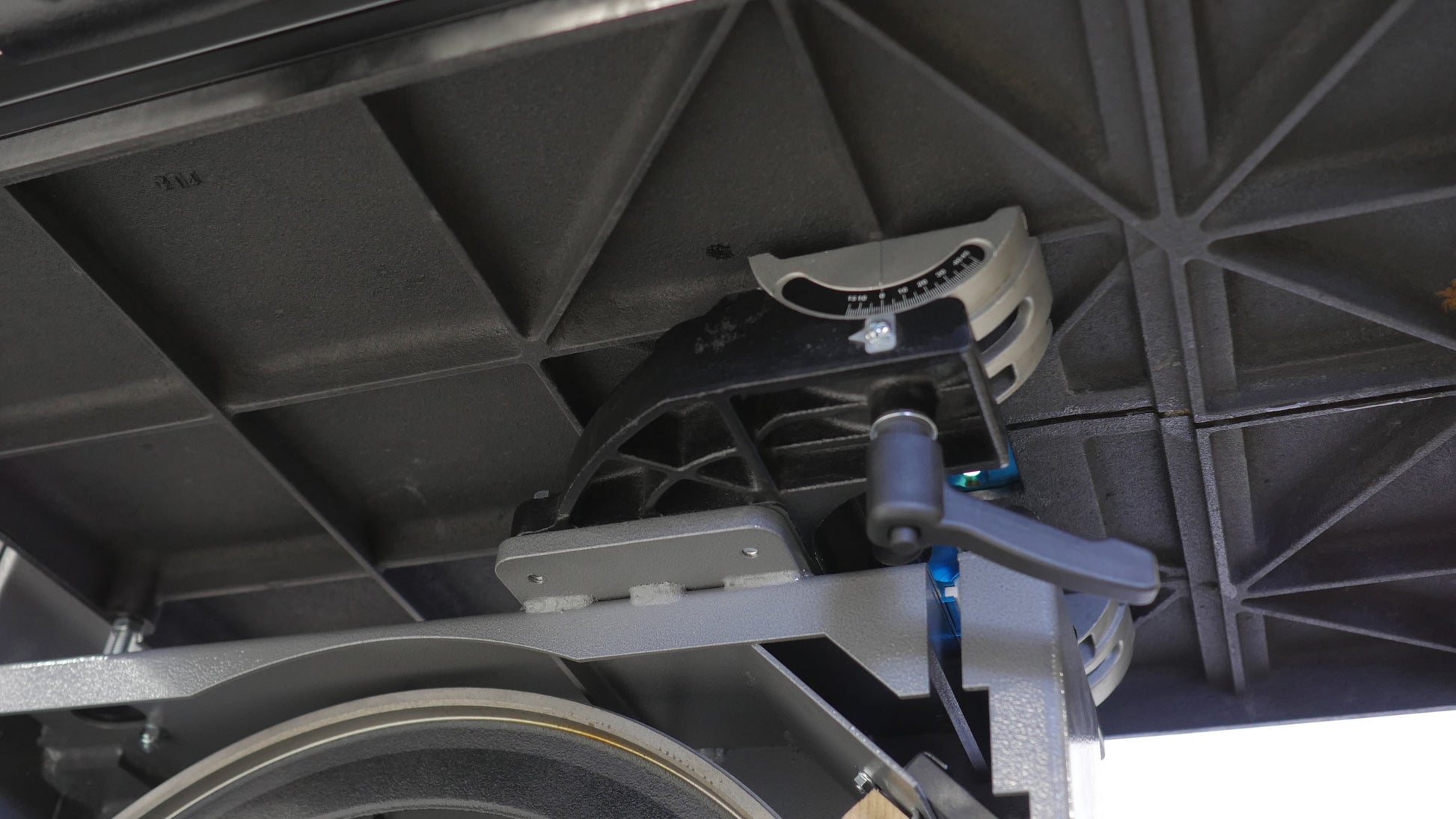

Table Tilt: -6°, +45°

Cord: 6 ft

Quick-Release Tension

Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″

Table Height: 38″

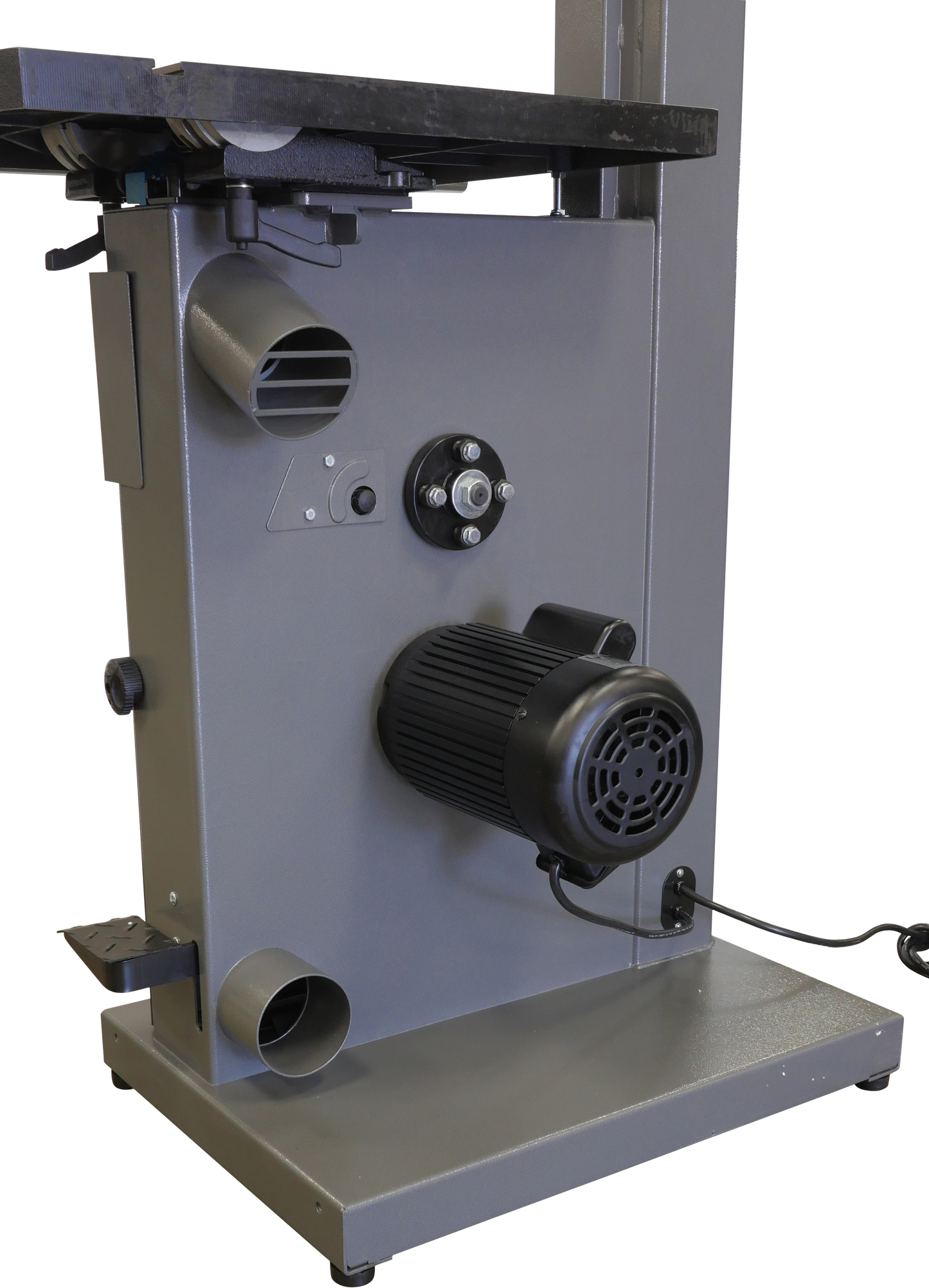

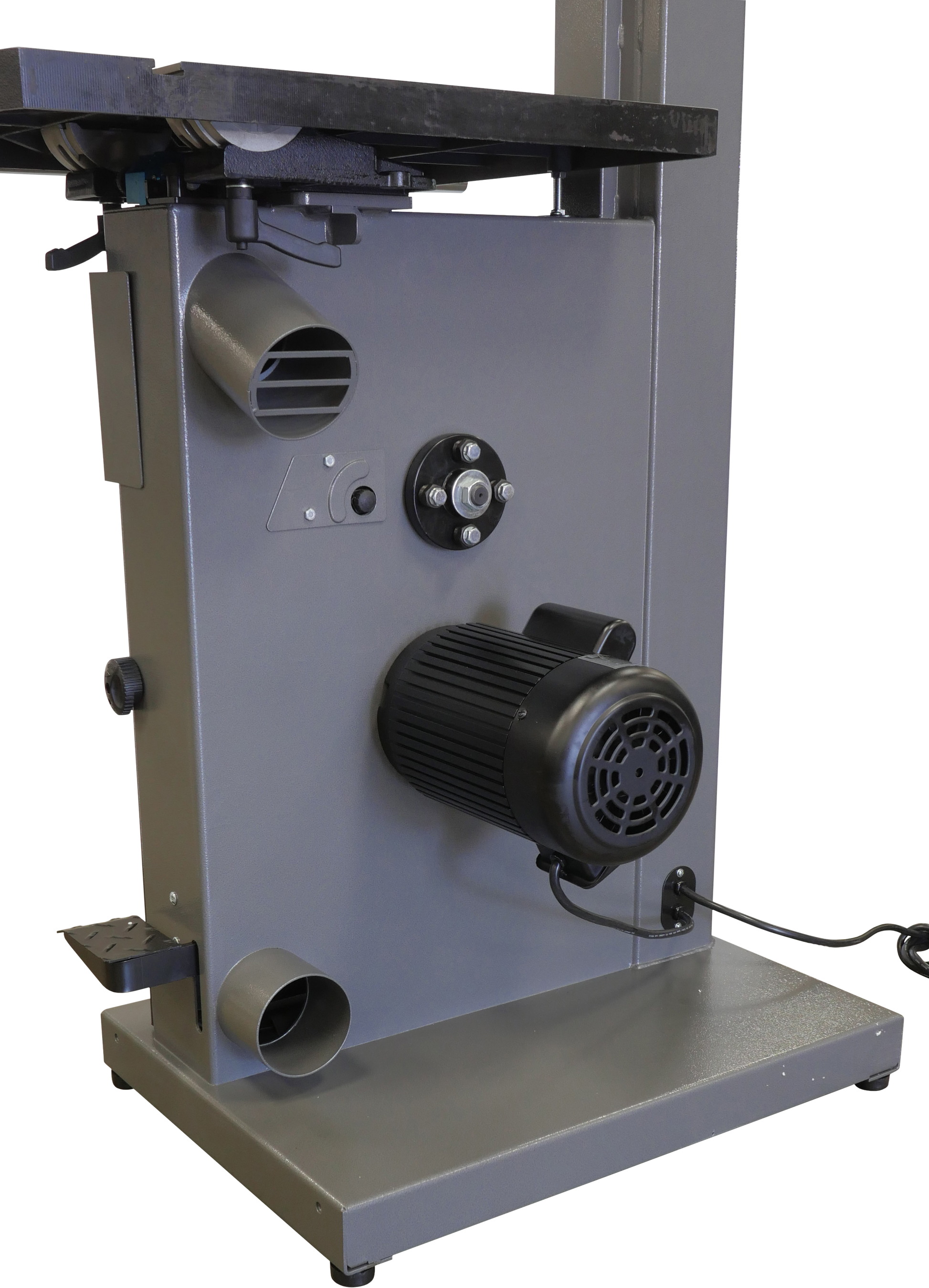

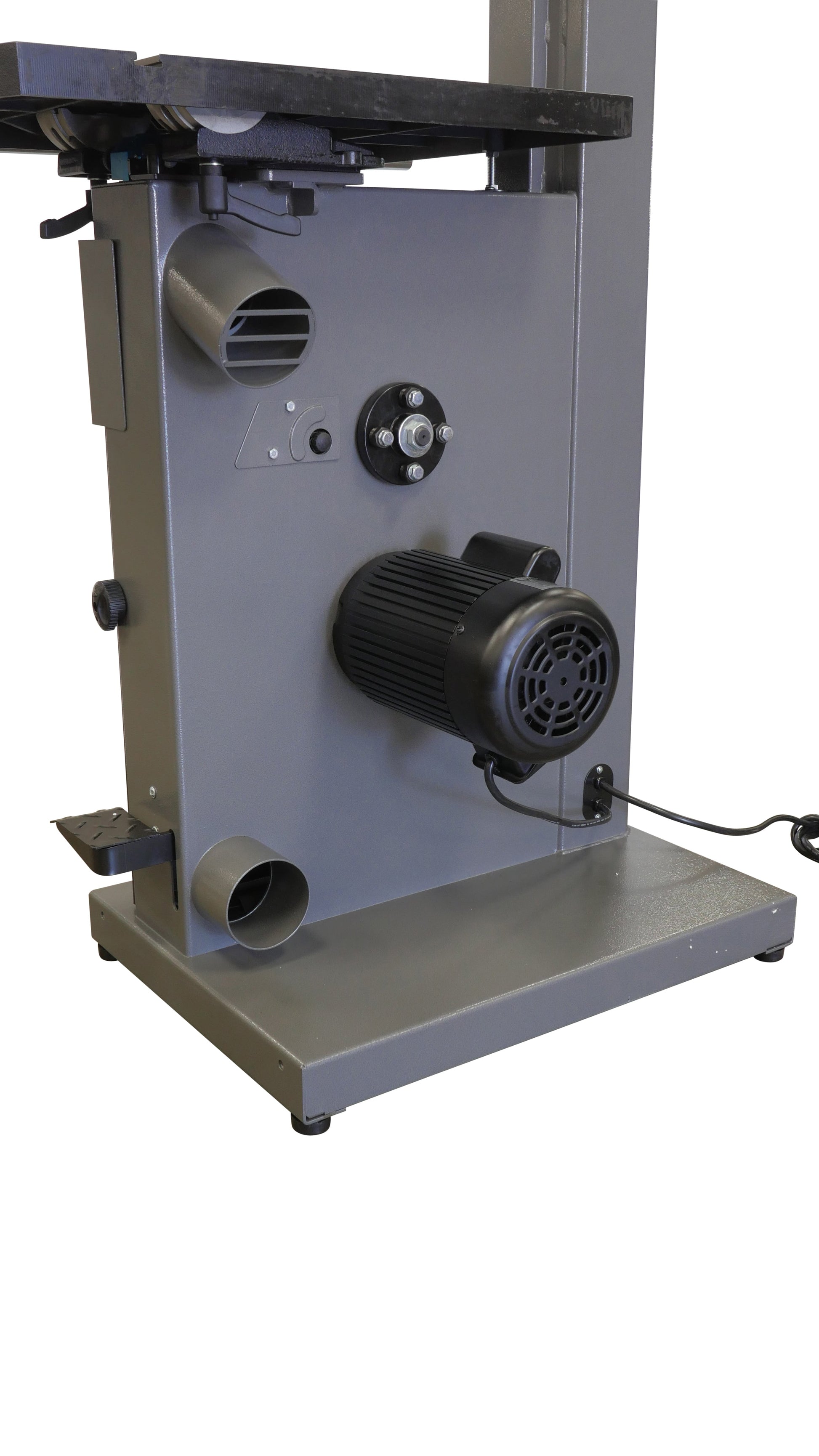

Dust Ports: 4″ x 2

Overall Height: 77-¾″

Dimensions (Base): 27″ x 20″

Dimensions Overall: 36″ x 30″

Dimensions Box: 36″ x 84″ x 30″

Weight (Net/Ship): 410/460 lbs

  • Foot Operated
  • 360° Omni-Directional
  • Rubber-Coated Wheels
  • Adjustable Rubber Pads
  • Oilite Bronze Bushing Allows For Less Friction & Longer Life
  • Easy Install With No Drilling Required
  • Pedal Raises & Lowers Front Wheel
  • Wheels Mounted Outside Frame To Maximize Stability
  • Swivels 220°
  • 12 Volt/50 Watt
  • Tilts Vertically 320°
  • Built-In Transformer
  • Independent On/Off
  • Ribbed Aluminum Case
  • Halogen Hi-Intensity Light
  • Bright, Glare-Free Flood Light
  • Designed for Even Light Distribution
  • Reinforced Glass, Dustproof Design
  • Top and Side Cabinet Mounting Position

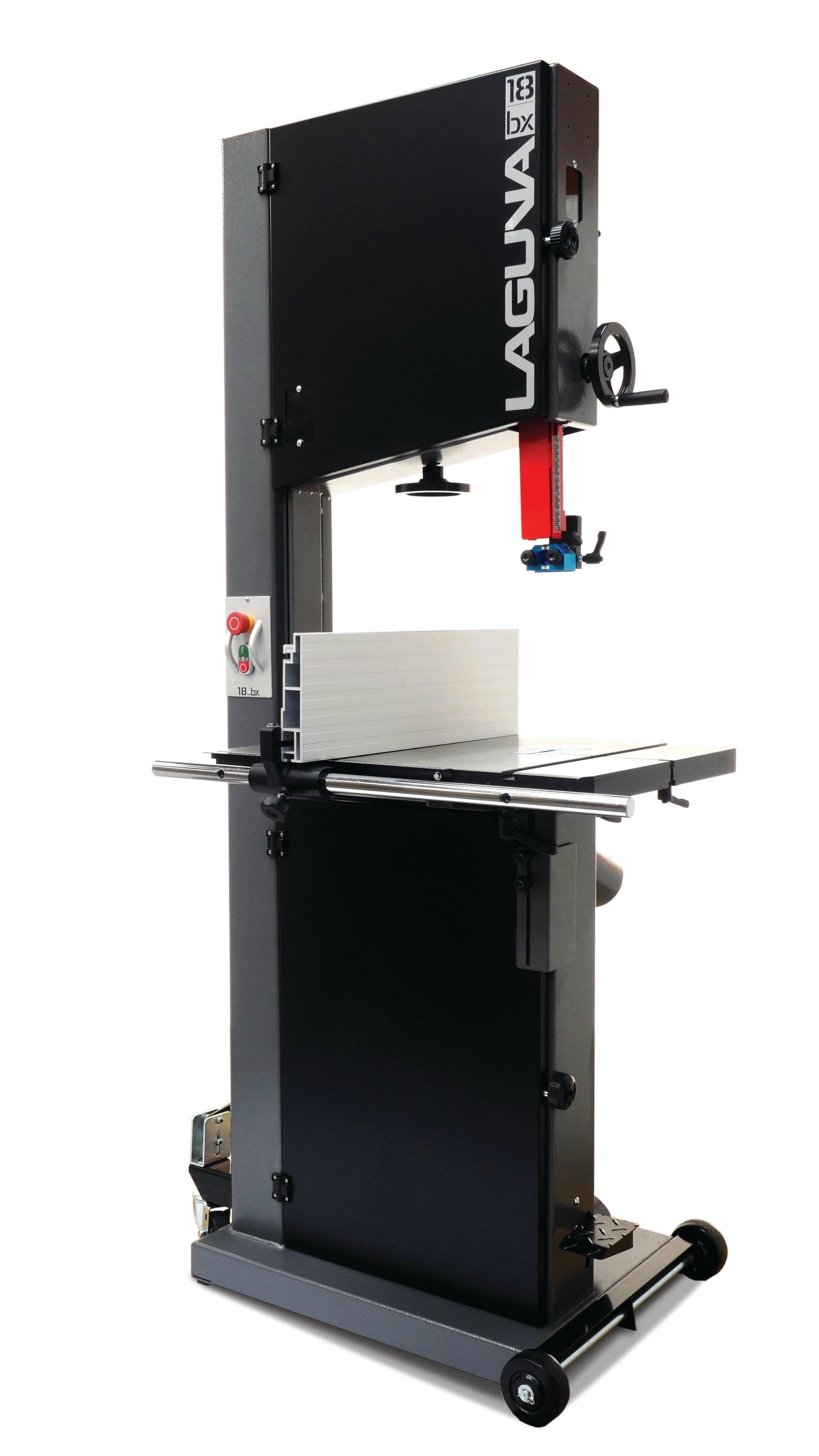

Shown with optional Blade, Lighting and Mobility Kit

  • Motor: 3HP, 220V, 1 Ph. 12 Amp.
  • Recommended Breaker: 20 Amp.
  • Magnetic Starter
  • Min-Max Blade Width: 1/8″ – 1-1/4″
  • Resaw Capacity: 16″
  • Throat: 18″
  • Blade Length: 145″

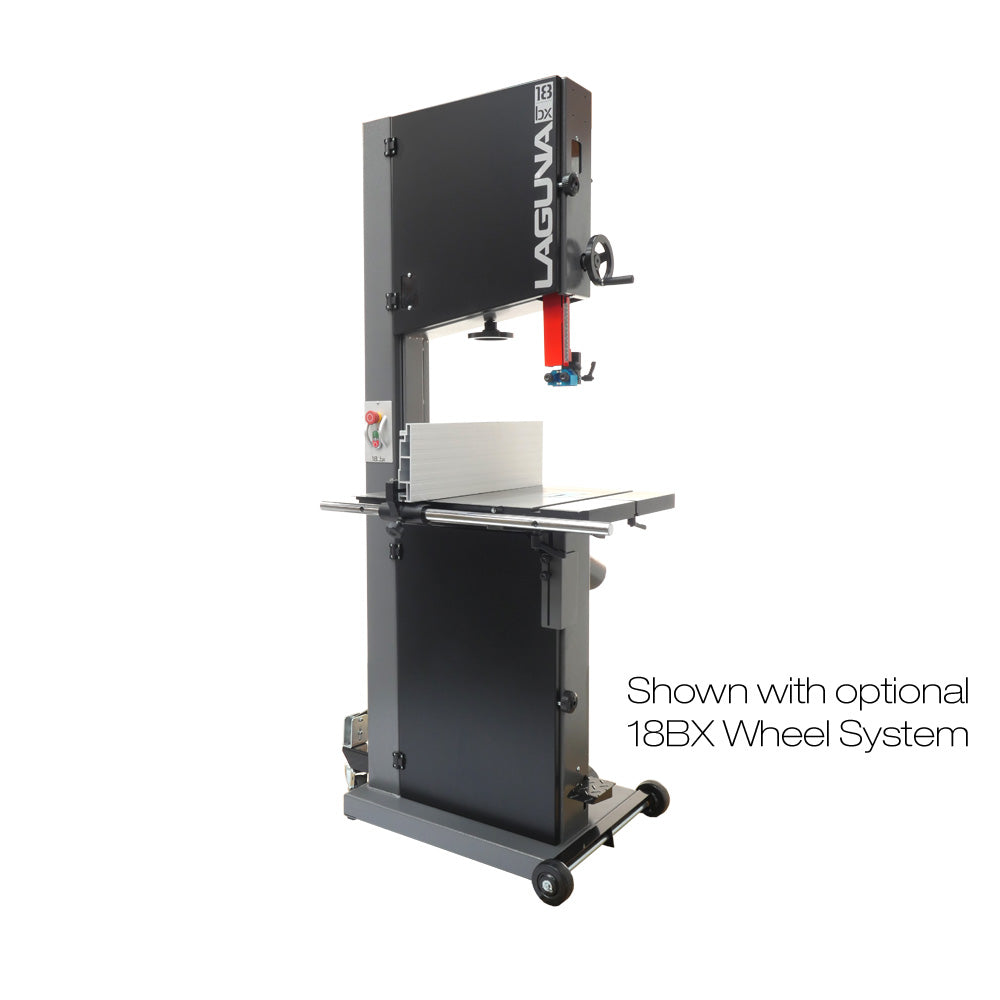

*Optional Accessory – 18|bx Wheel System

  • Foot Operated
  • 360° Omni-Directional
  • Rubber-Coated Wheels
  • Adjustable Rubber Pads
  • Oilite Bronze Bushing Allows For Less Friction & Longer Life
  • Easy Install With No Drilling Required
  • Pedal Raises & Lowers Front Wheel
  • Wheels Mounted Outside Frame To Maximize Stability

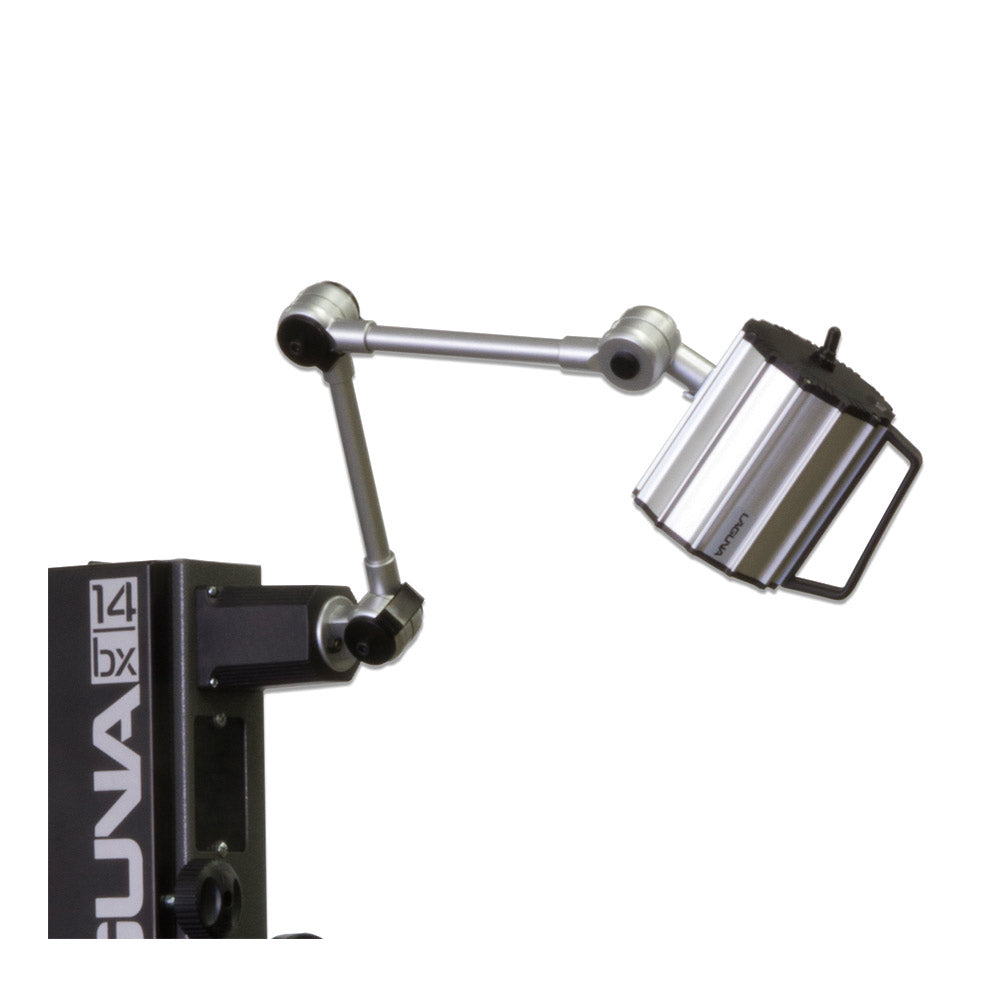

*Optional Accessory – Pro Light System

  • Swivels 220°
  • 12 Volt/50 Watt
  • Tilts Vertically 320°
  • Built-In Transformer
  • Independent On/Off
  • Ribbed Aluminum Case
  • Halogen Hi-Intensity Light
  • Bright, Glare-Free Flood Light
  • Designed for Even Light Distribution
  • Reinforced Glass, Dustproof Design
  • Top and Side Cabinet Mounting Position
