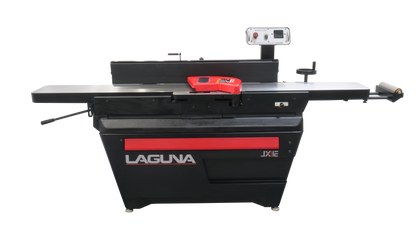

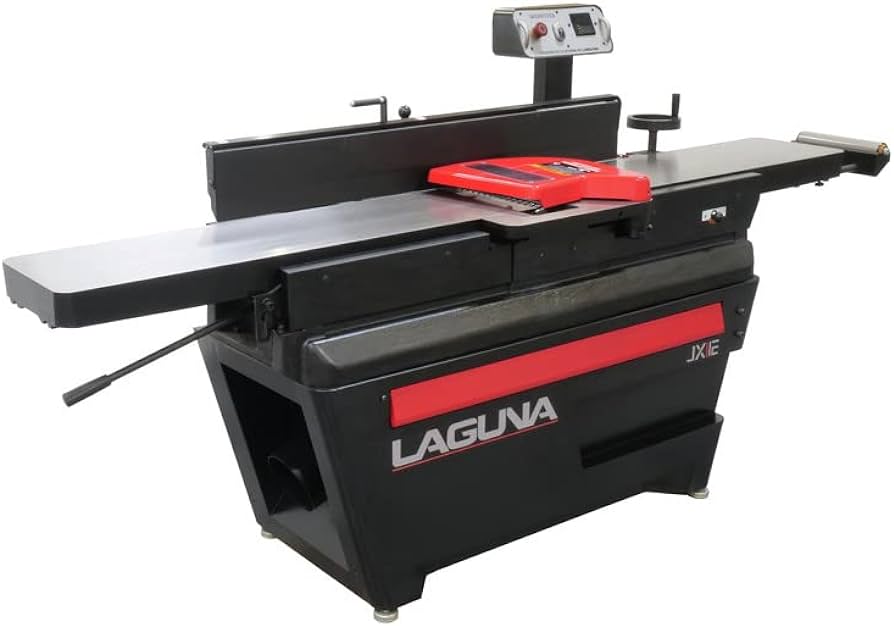

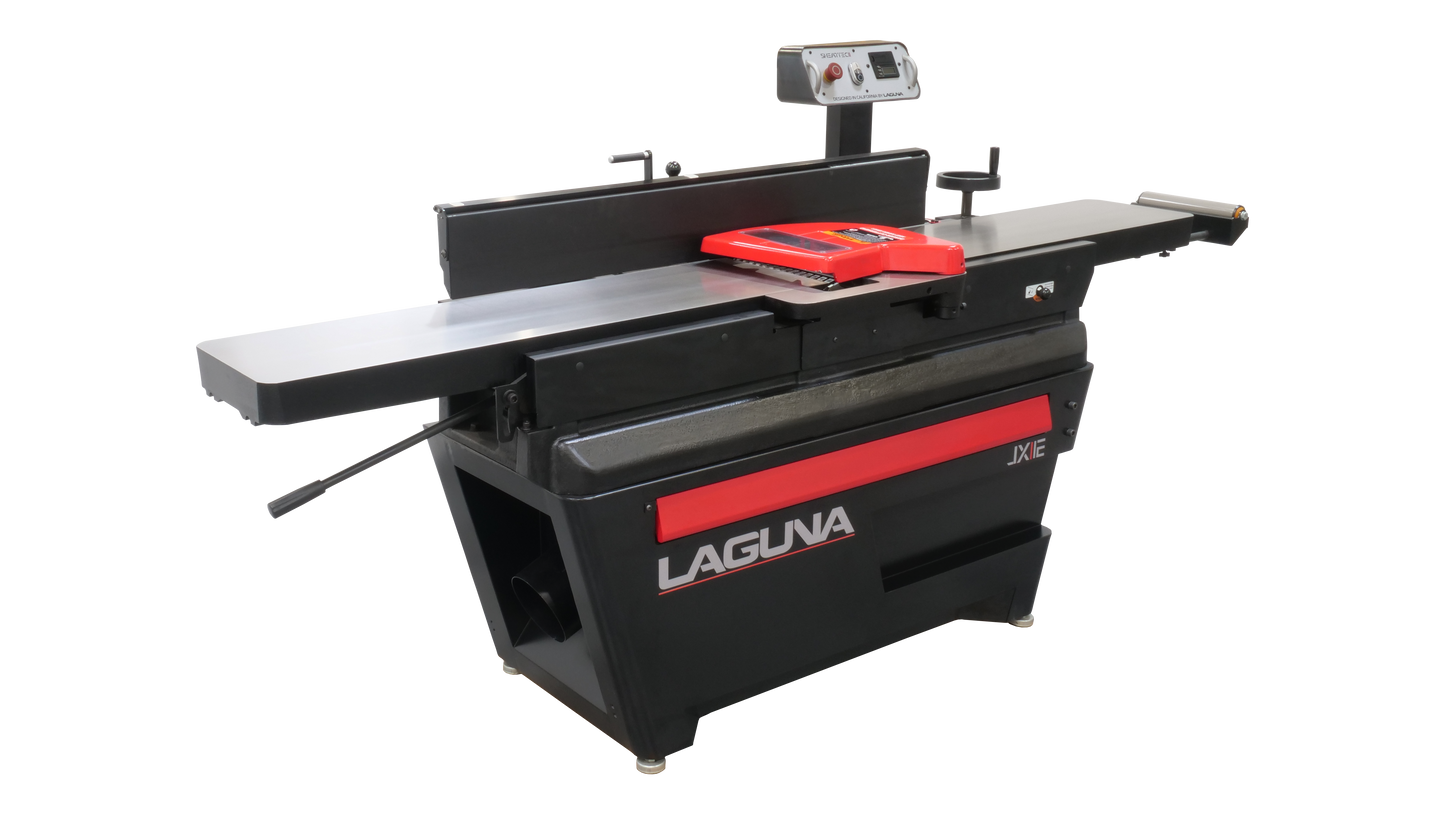

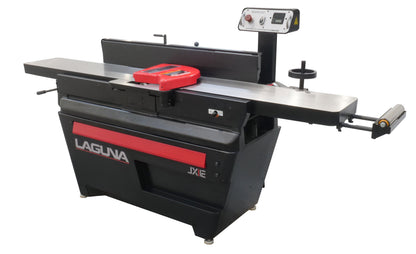

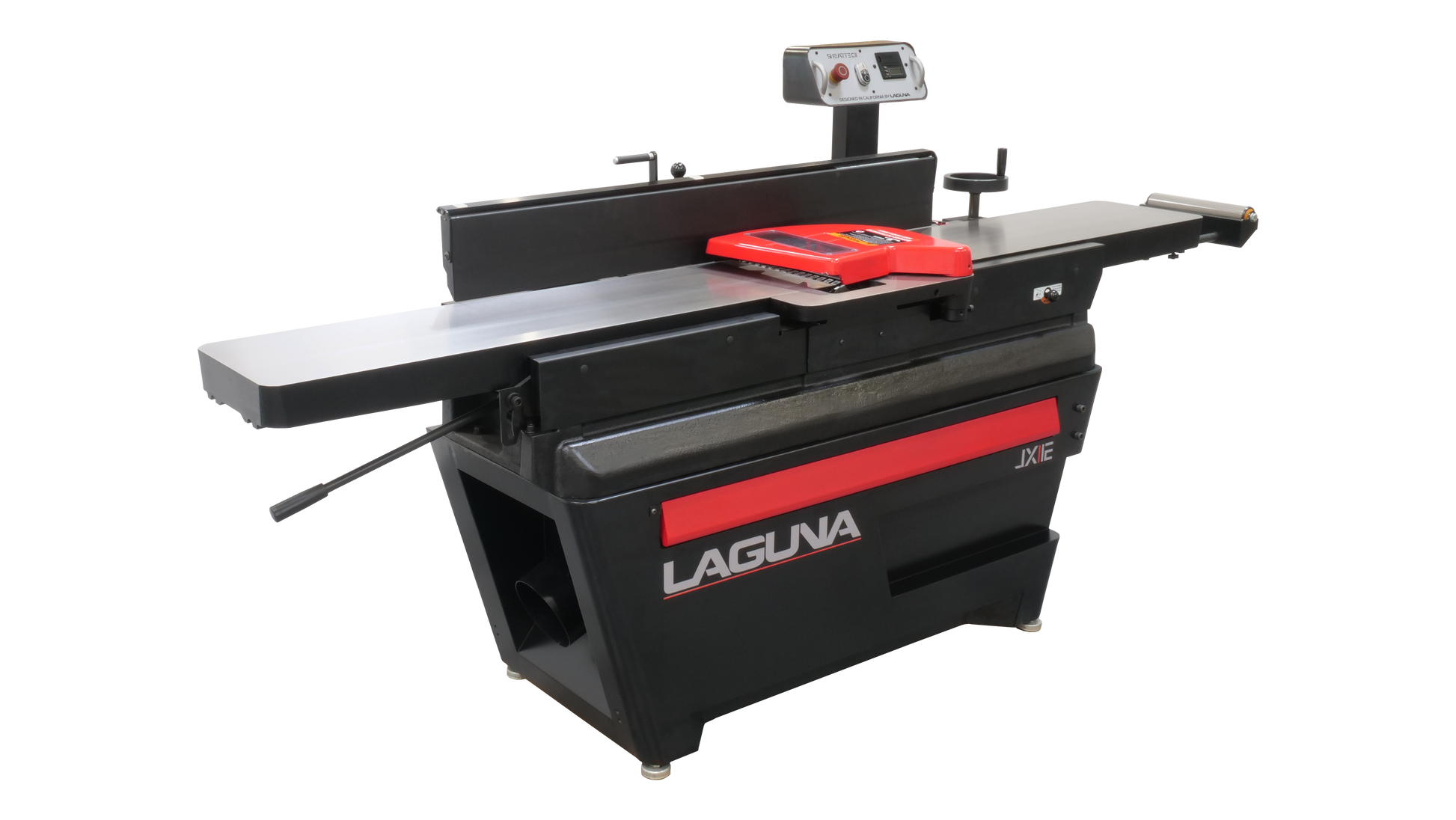

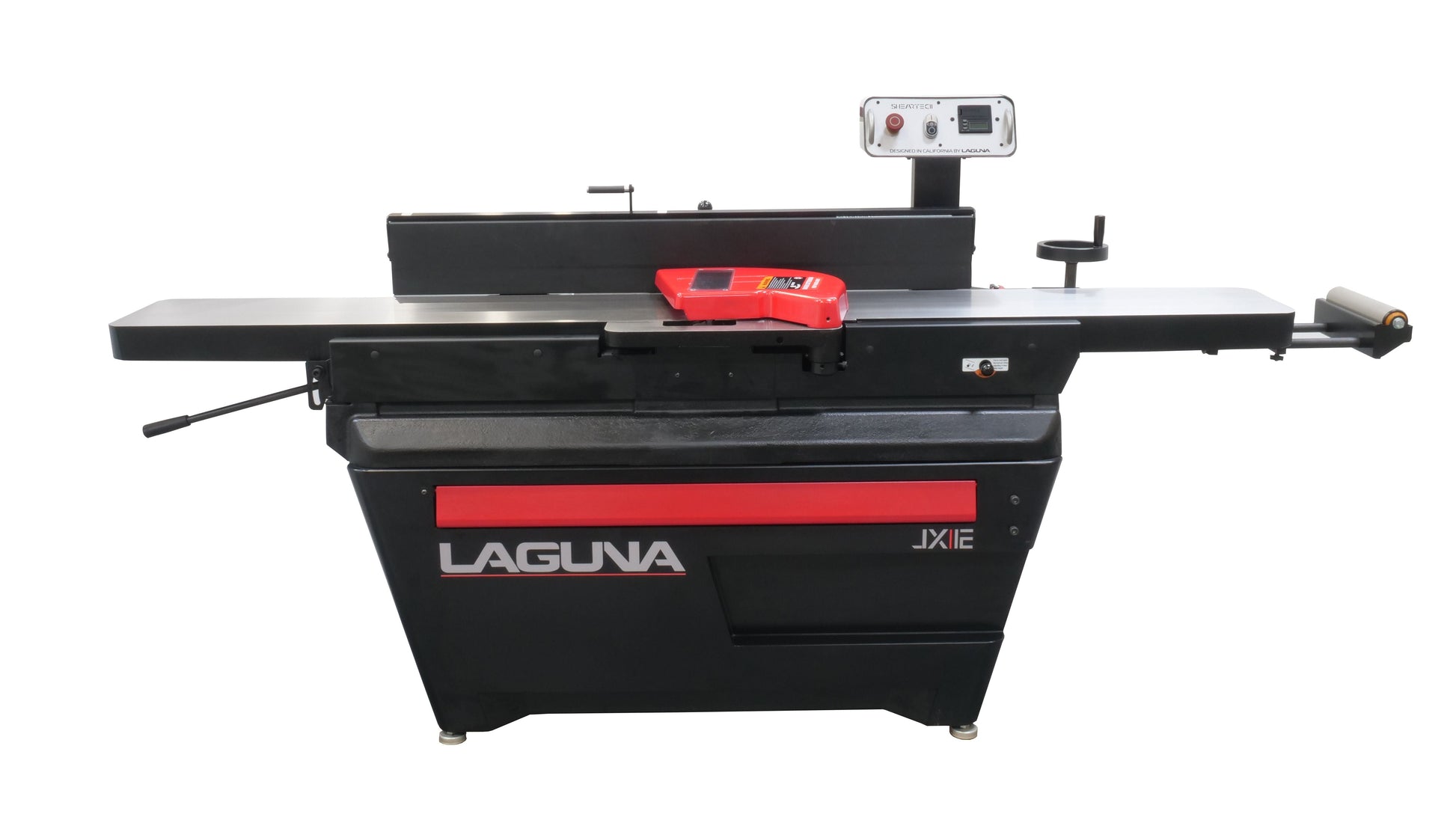

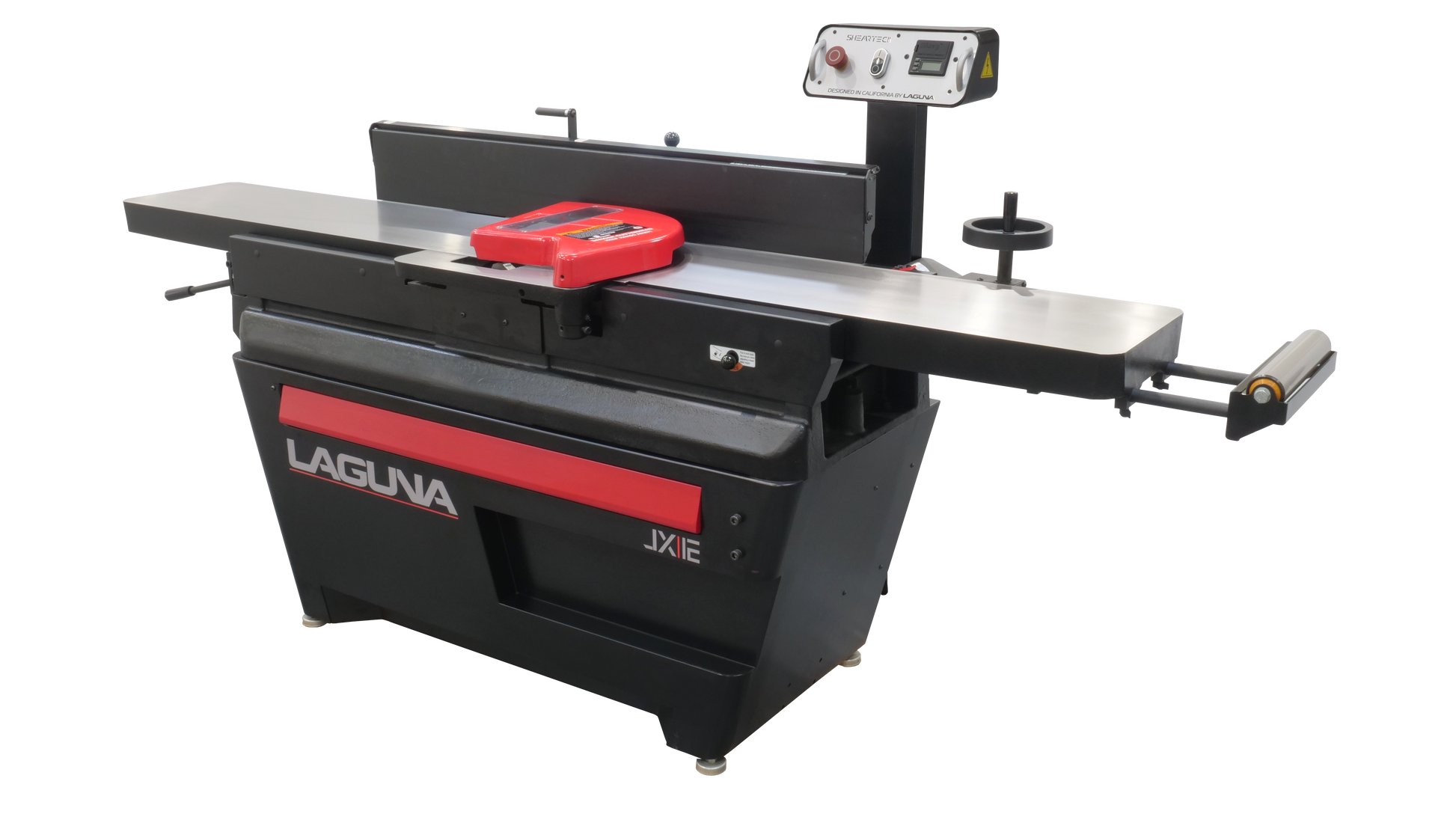

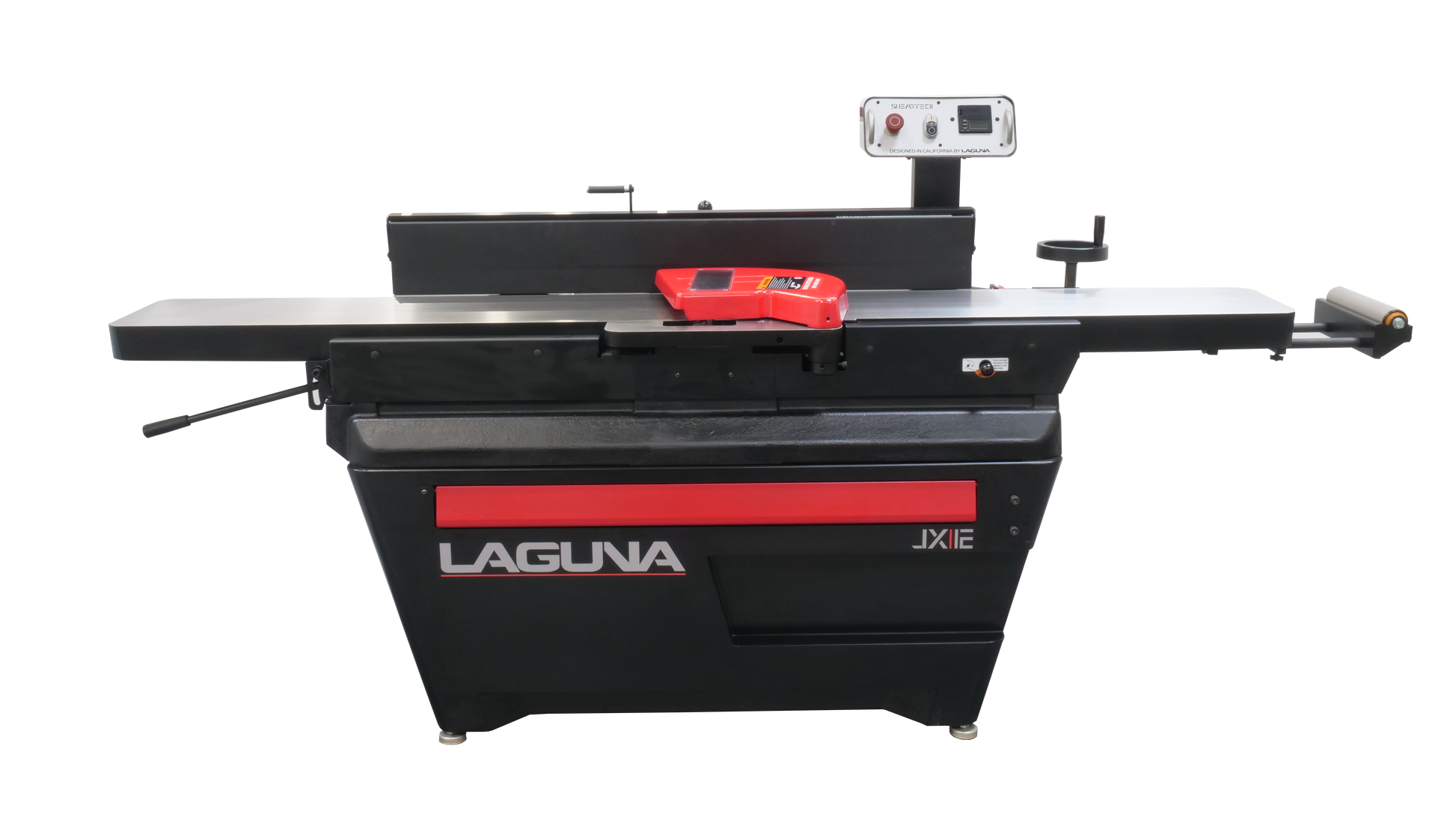

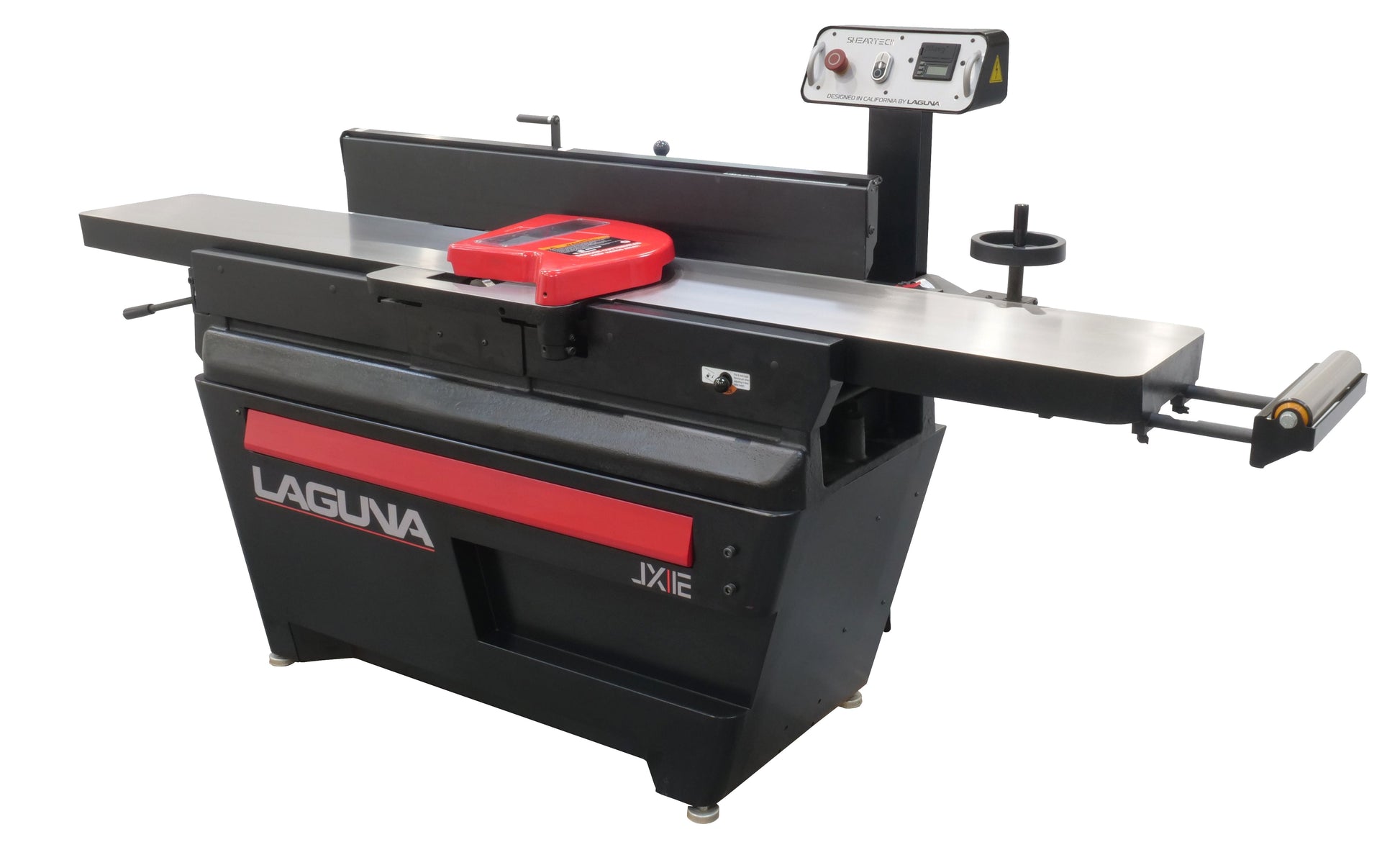

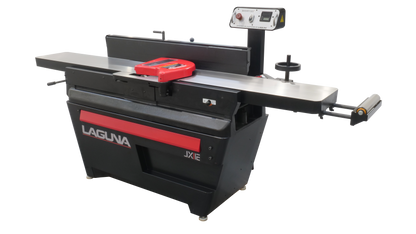

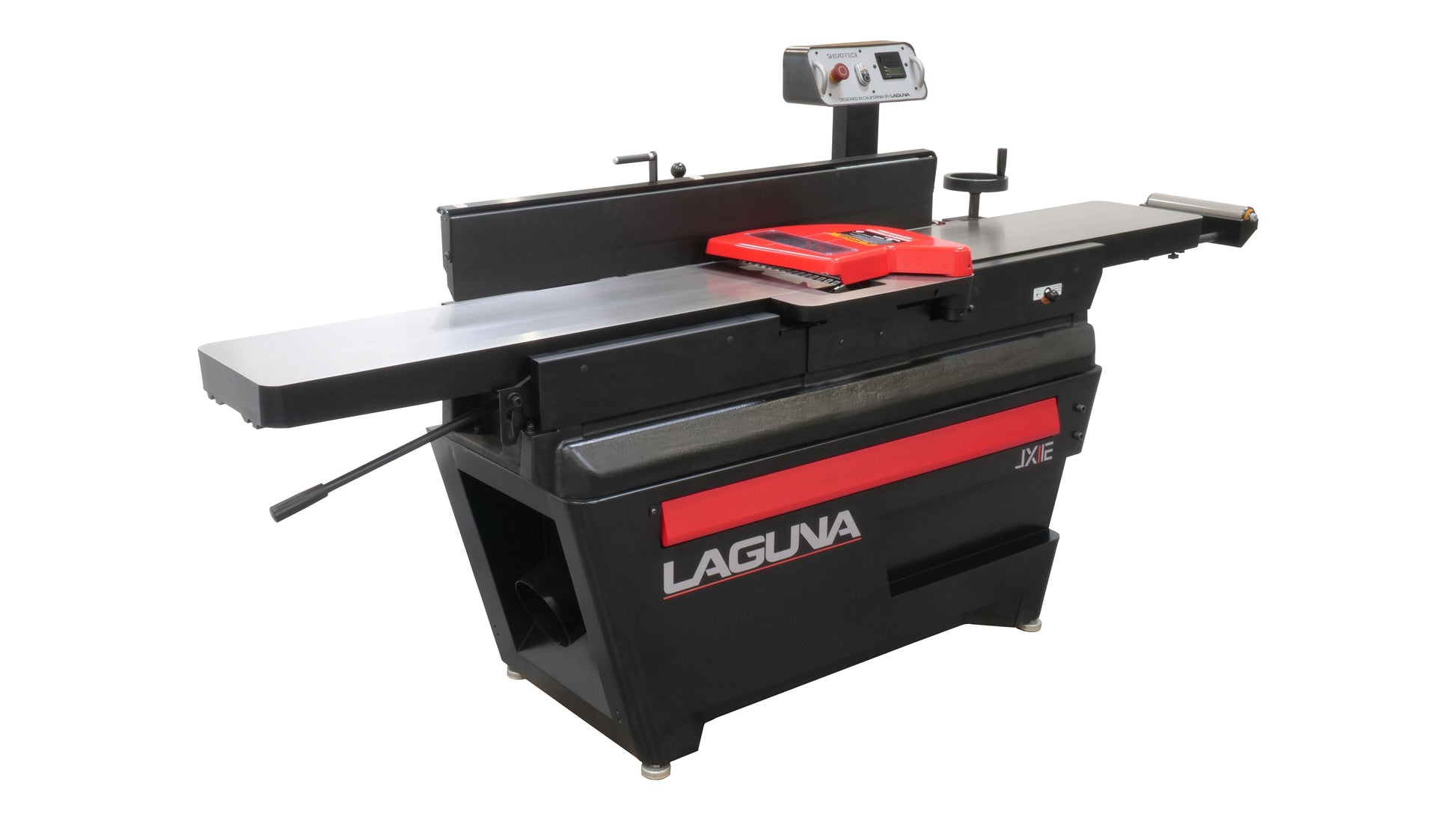

The Laguna JX|12 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.

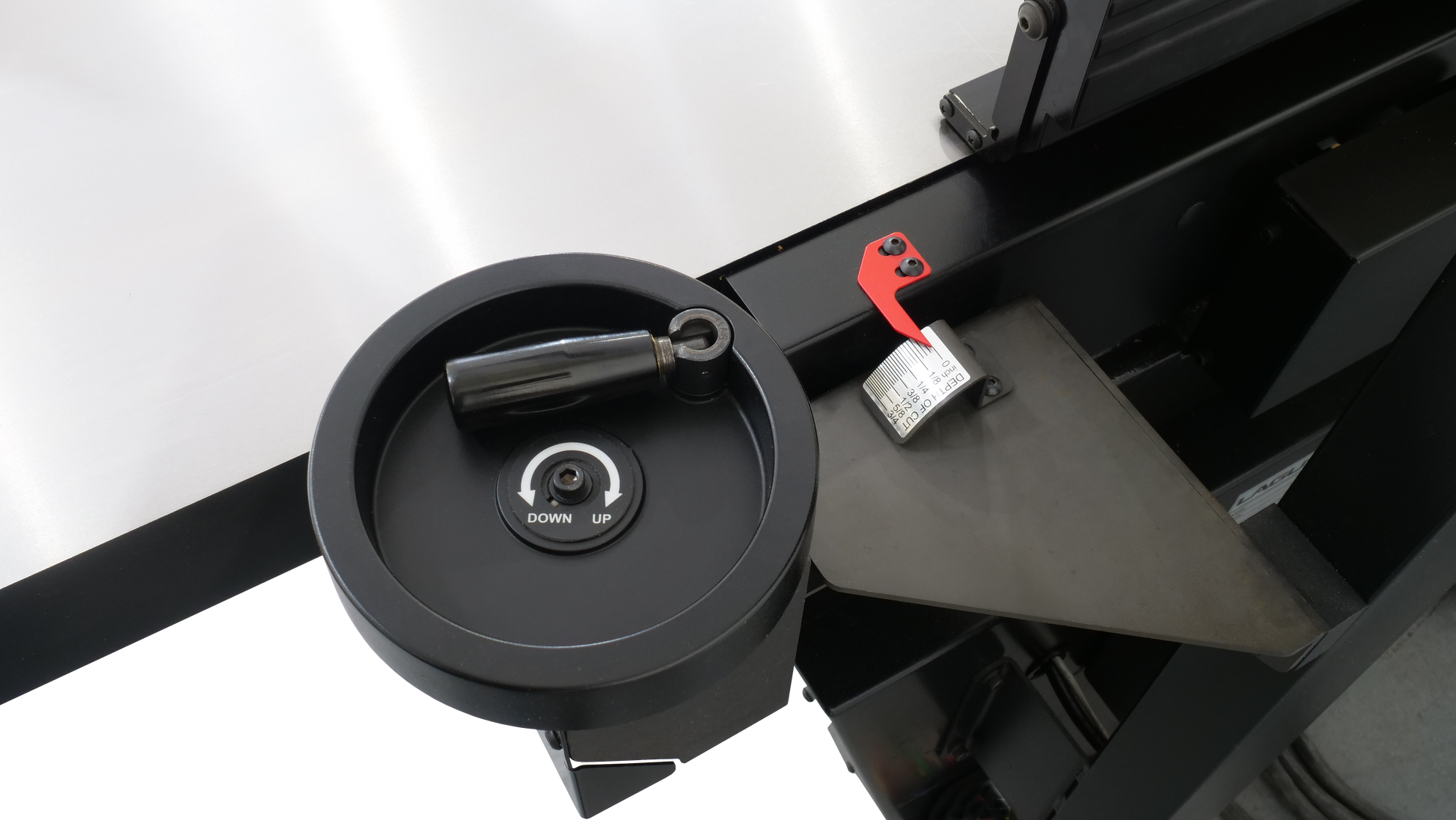

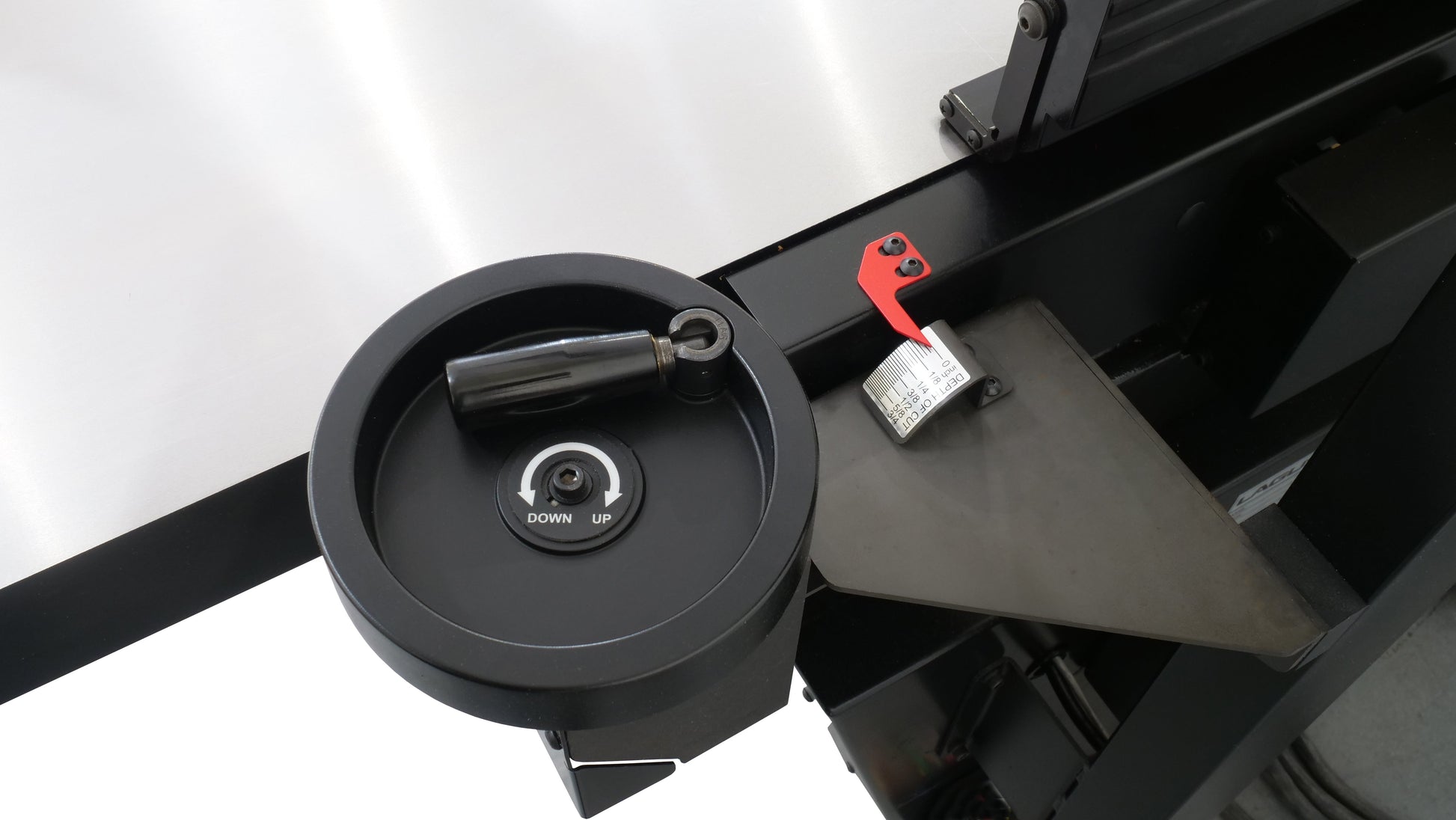

Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel

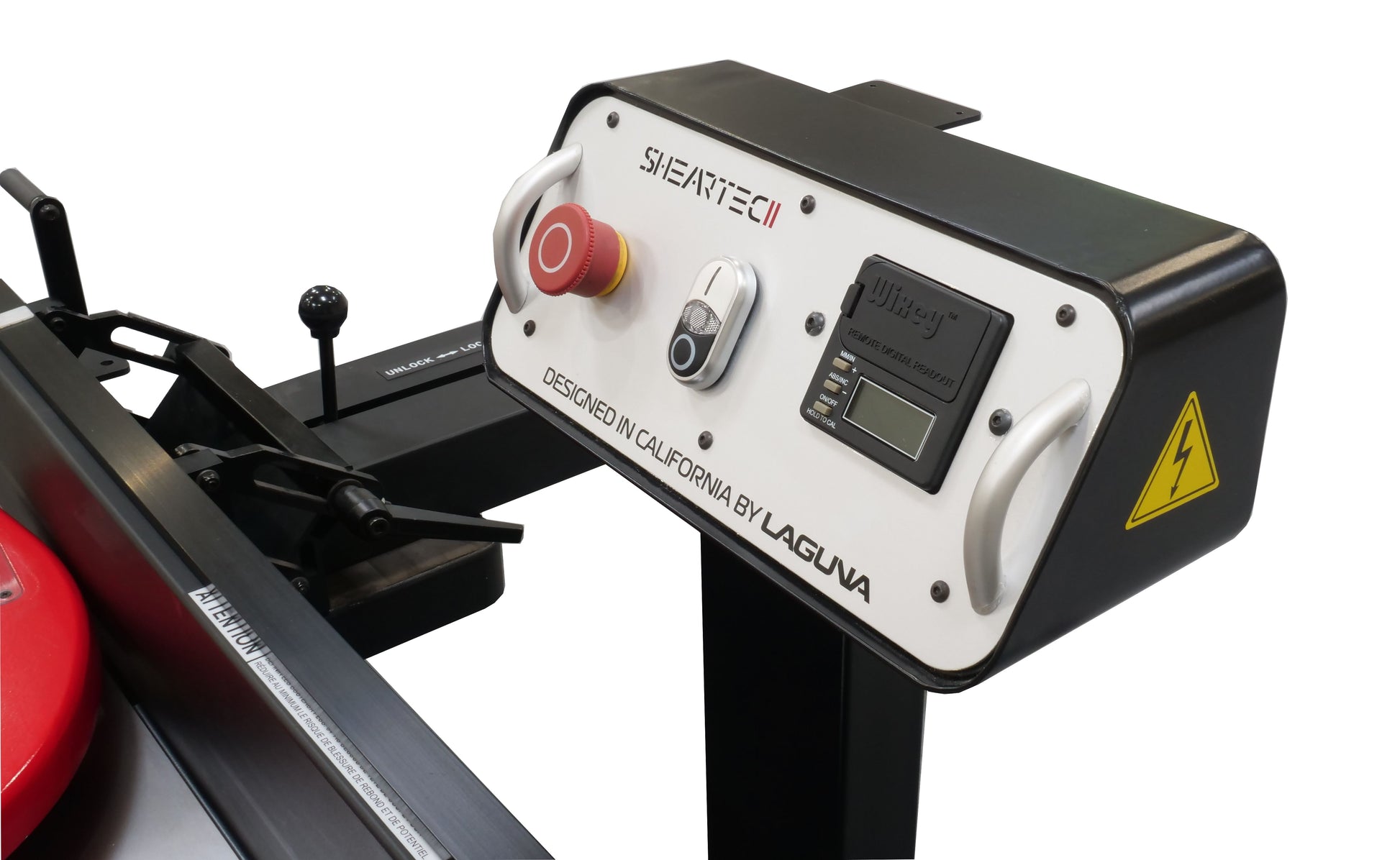

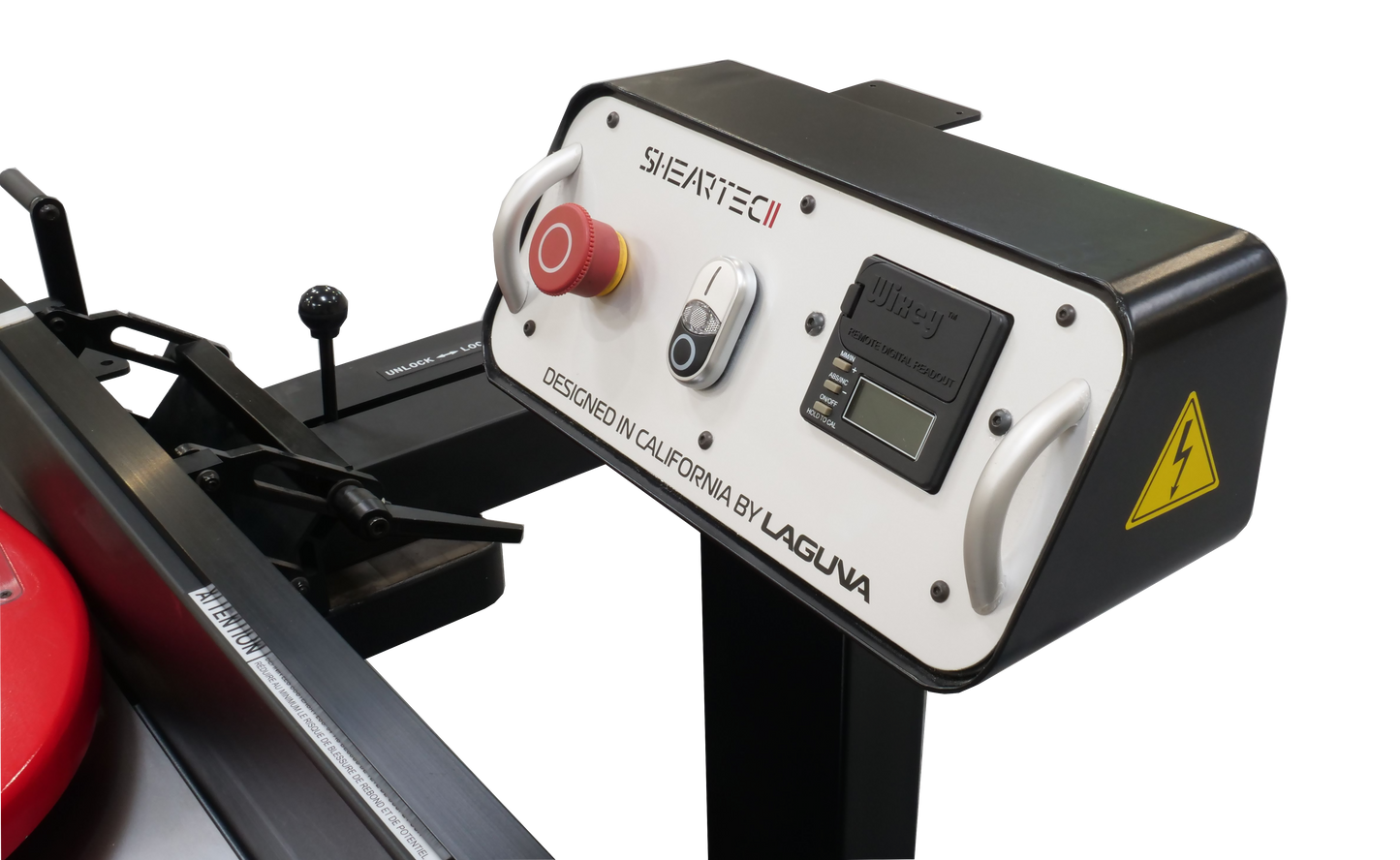

Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine

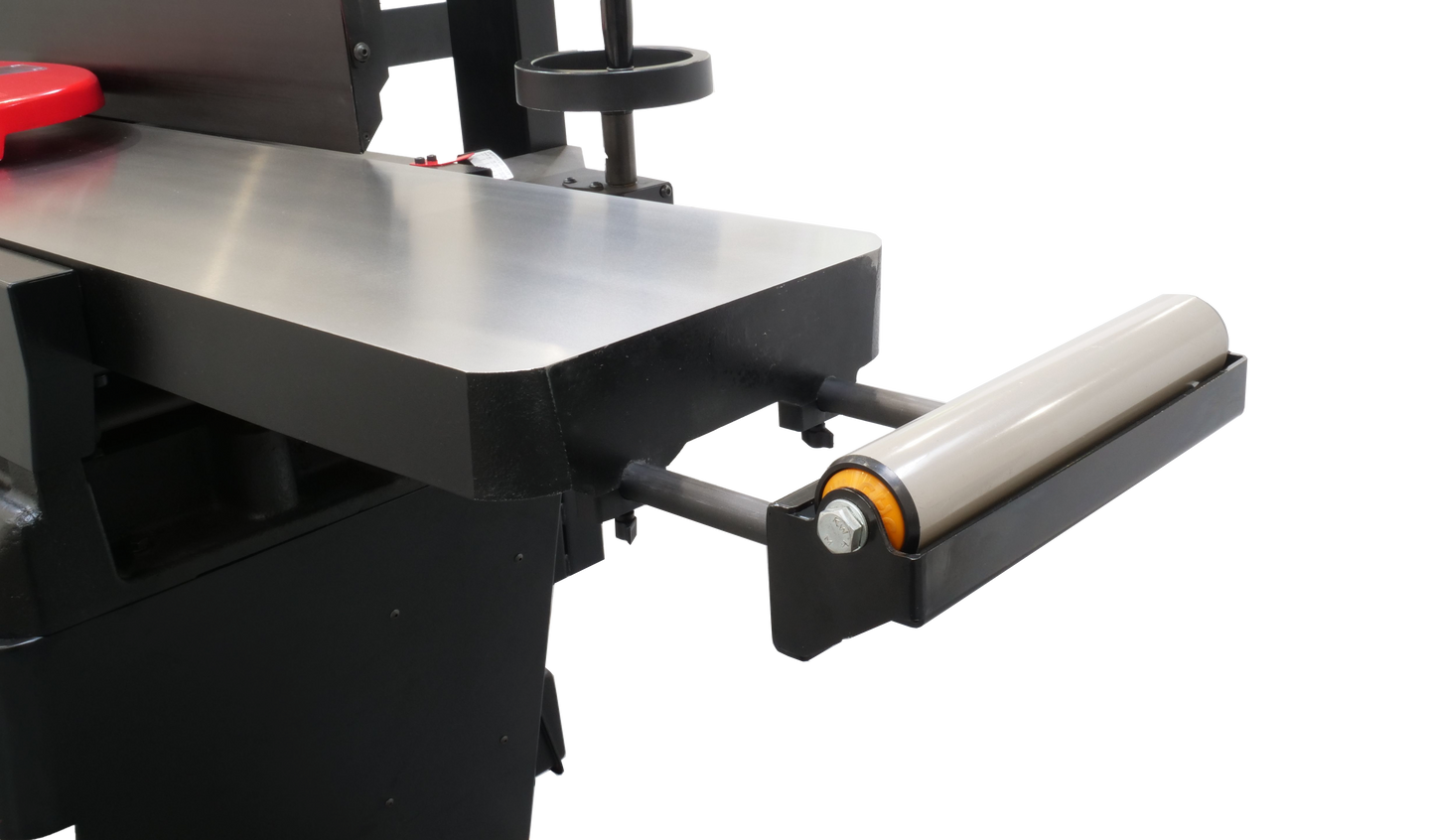

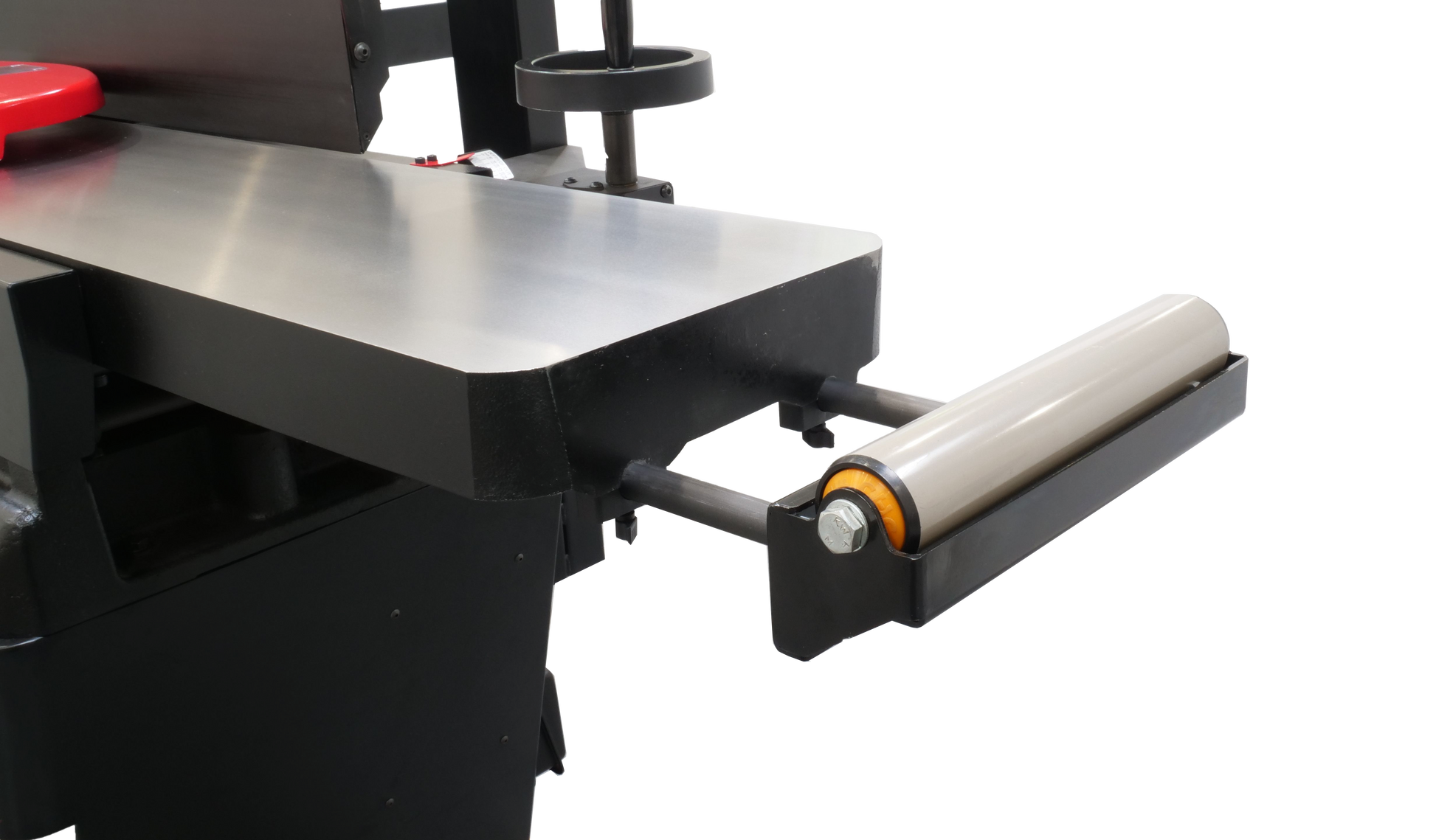

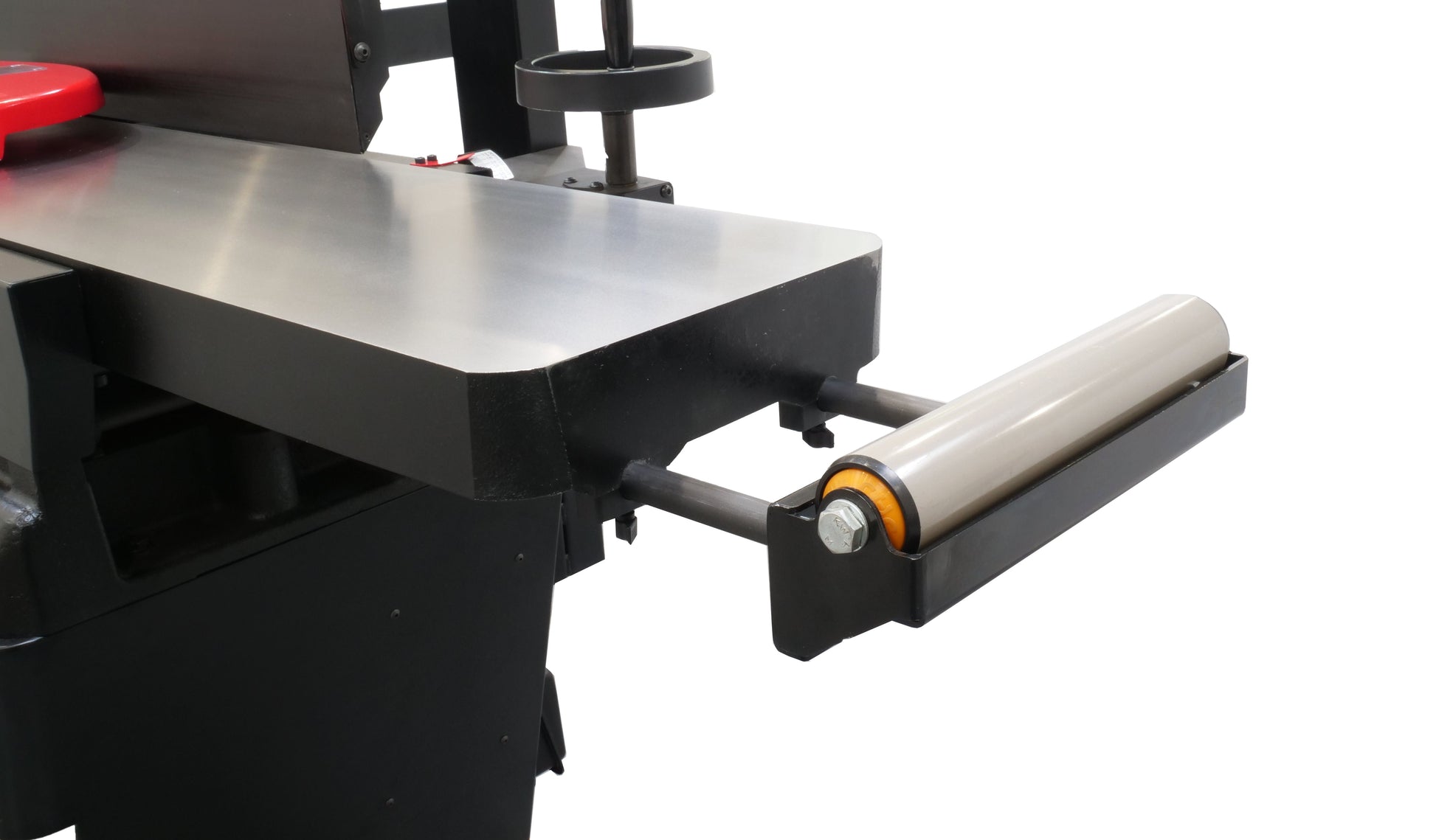

In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials
ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer .

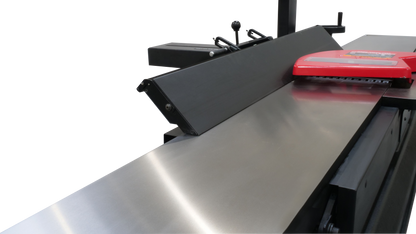

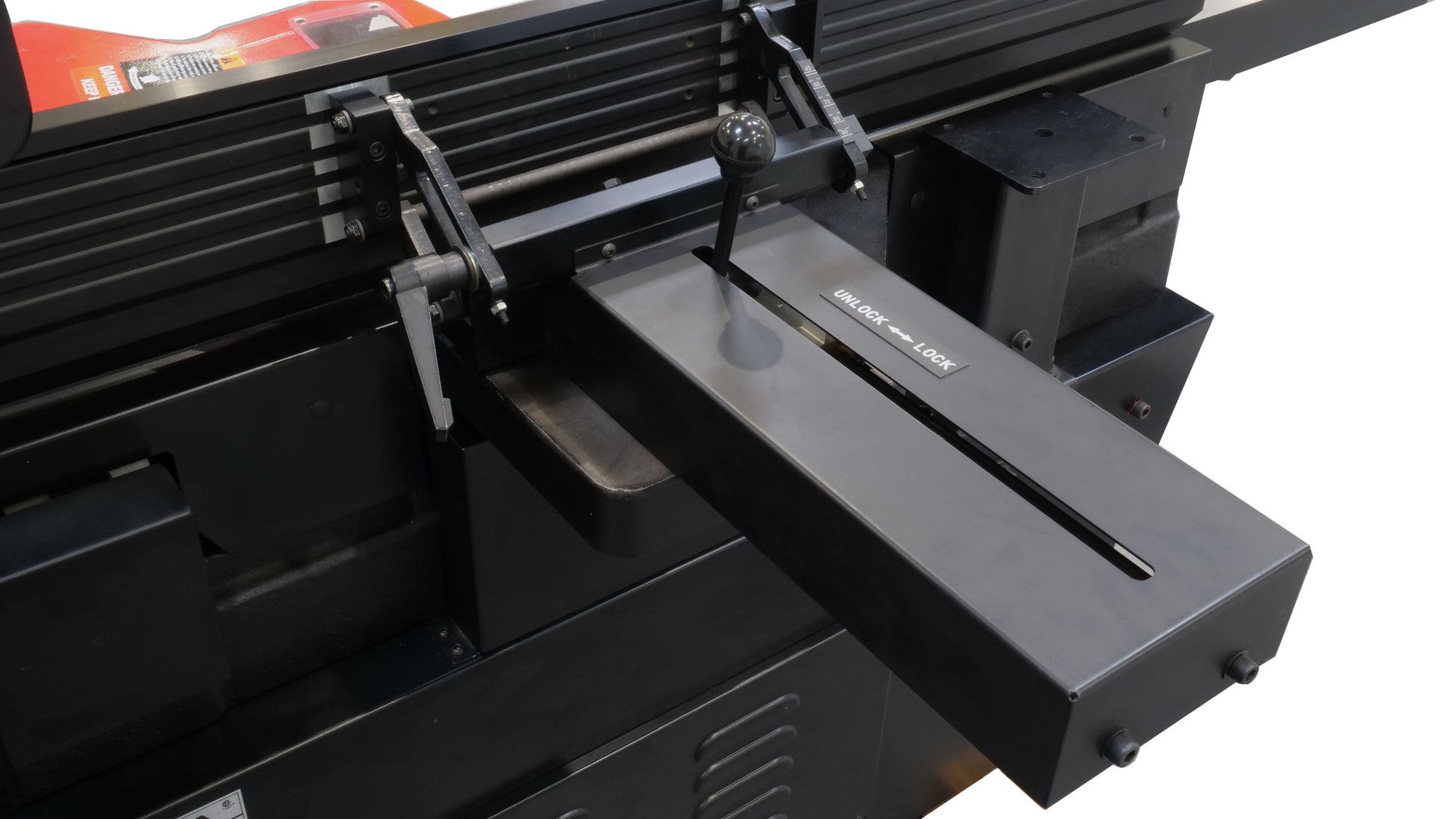

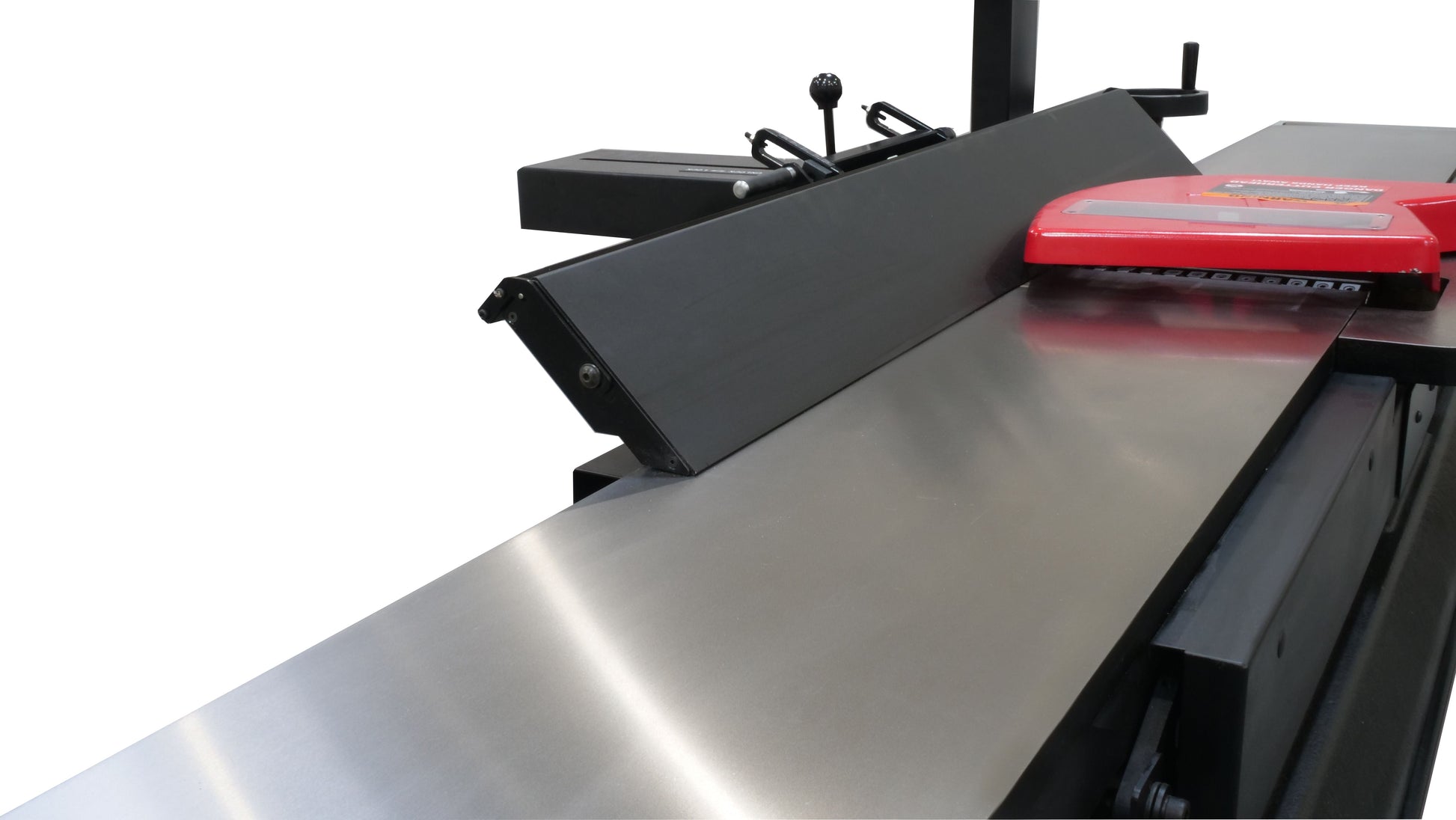

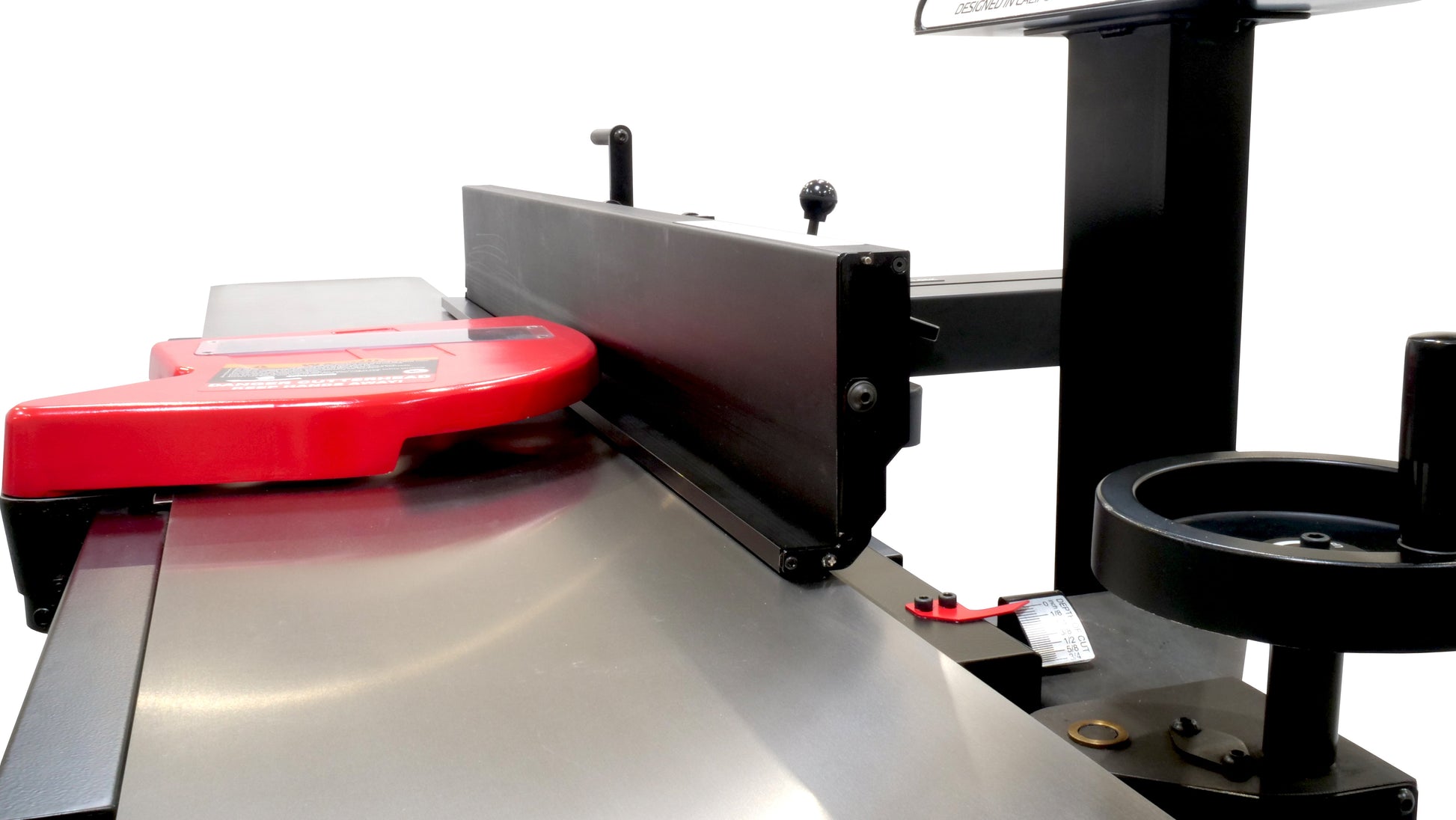

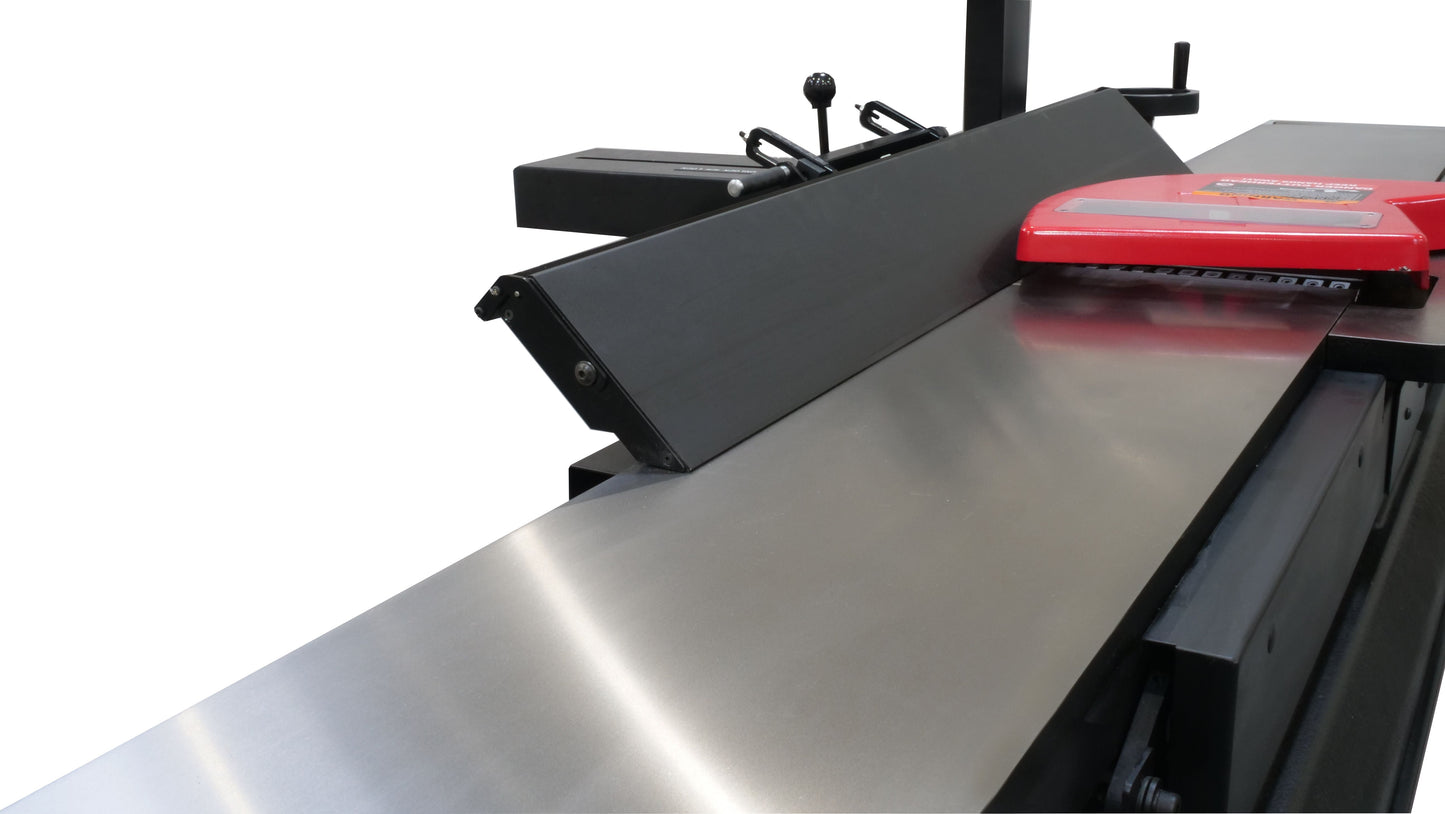

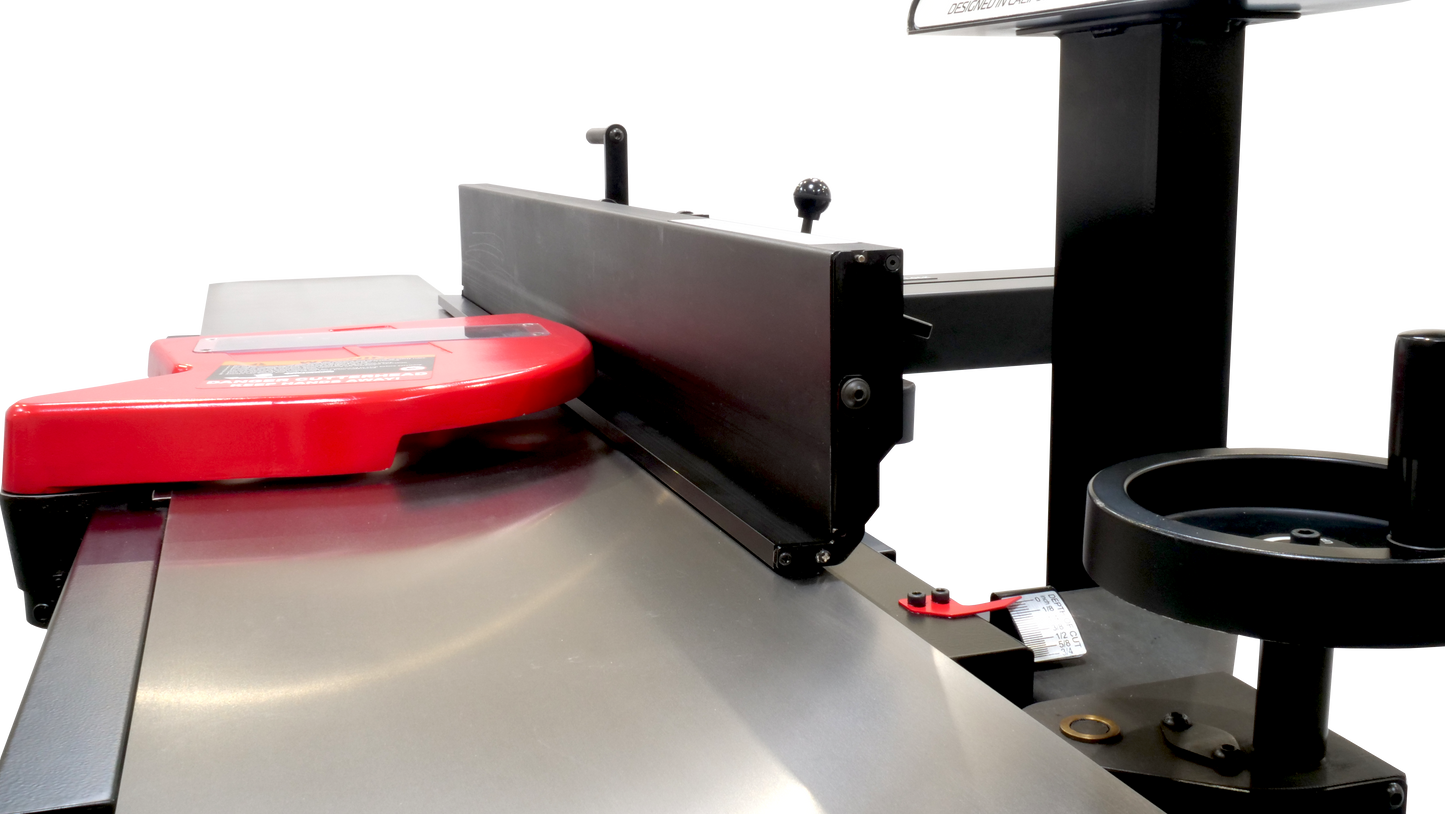

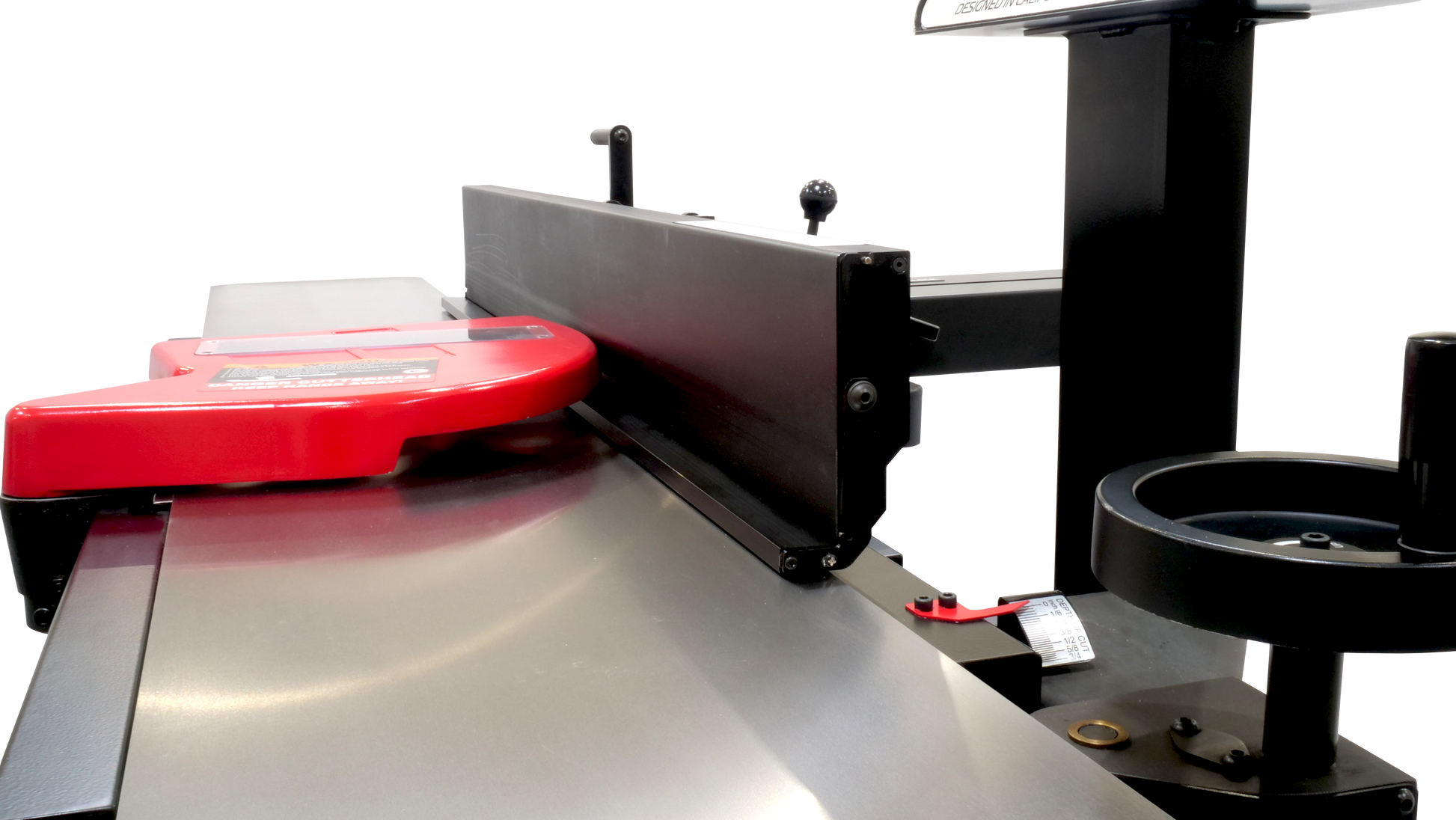

Solid Cast Iron Fence – 5-3/4″ x 48″, tilt angle adjust +/- 45/90 degrees

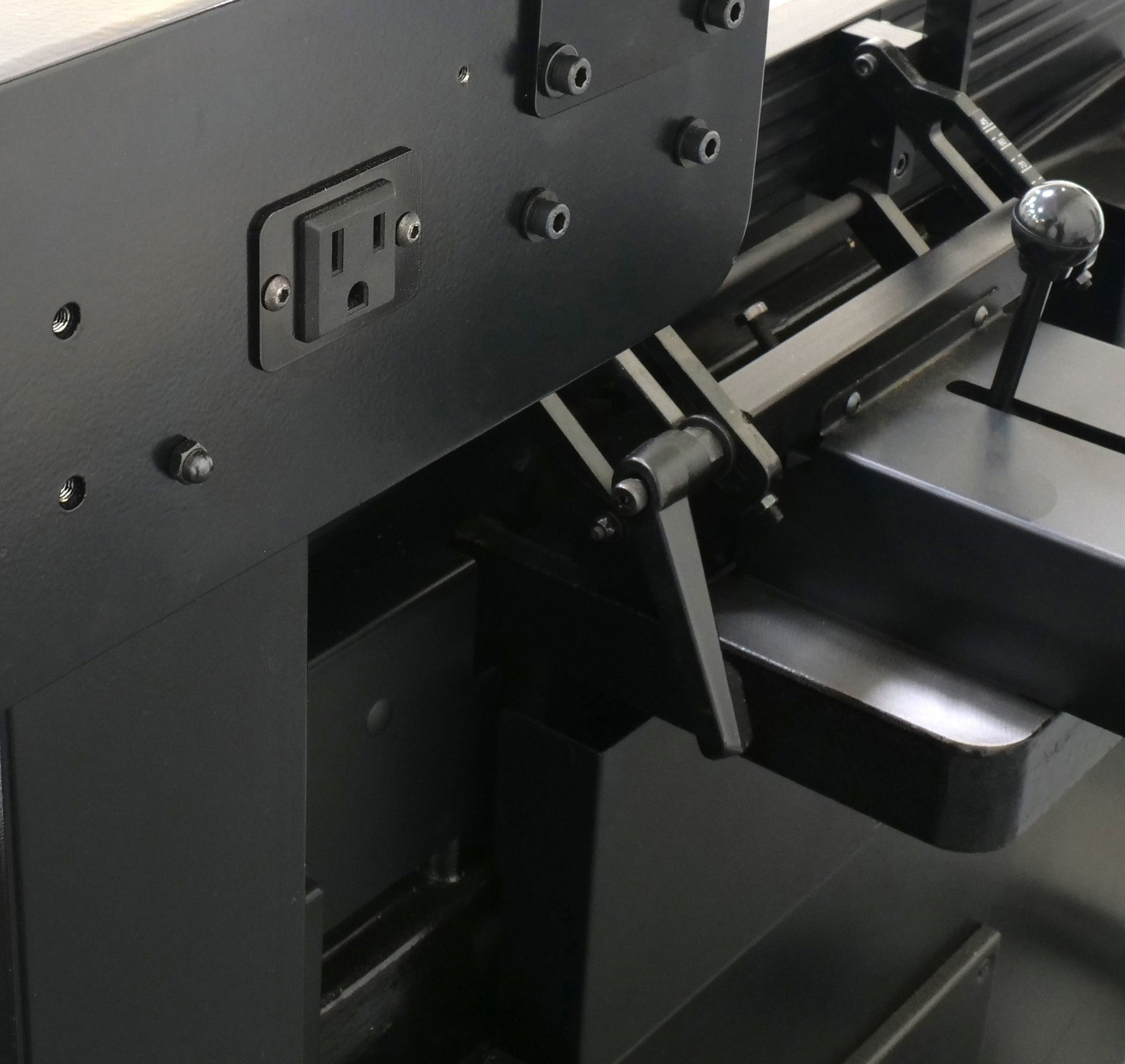

Worklight Ready – Built-in outlet and bracket for optional LED work light
Power-feeder Ready – Included bracket to mount optional power-feeder
Plenty Of Power – 220V 5HP, 1 Phase Motor
Motor: 220V 5HP 1 Phase 60hz/23 Amp
CSA: Yes
Bed Size: 12? x 88?
Infeed Table Pull-Out Extension: 10?
Rabbetting Capacity: 3/4?
Fence Size: 5-3/4? x 47? Cast-Iron Fence

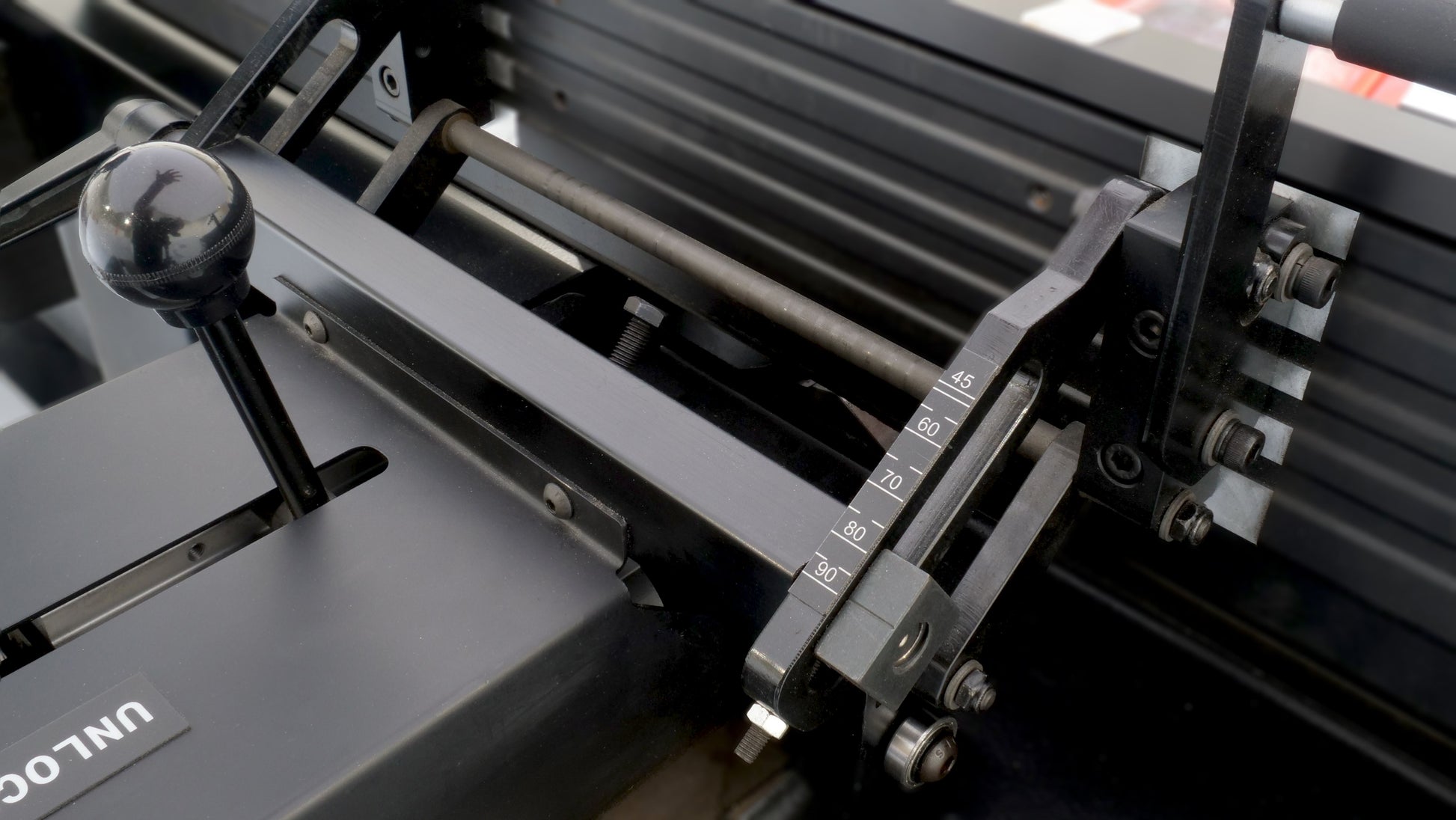

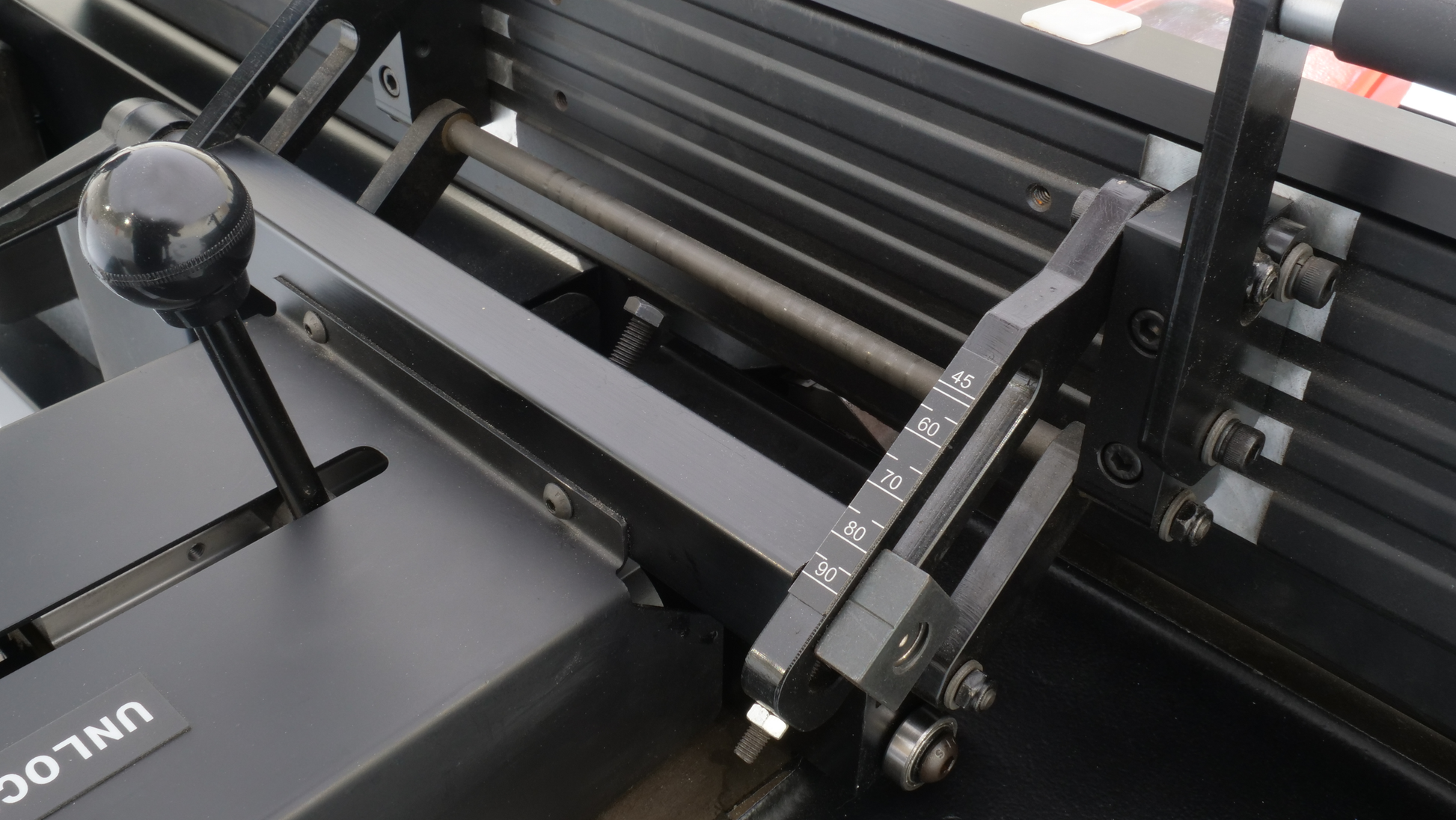

Fence Tilt: ±45/90°

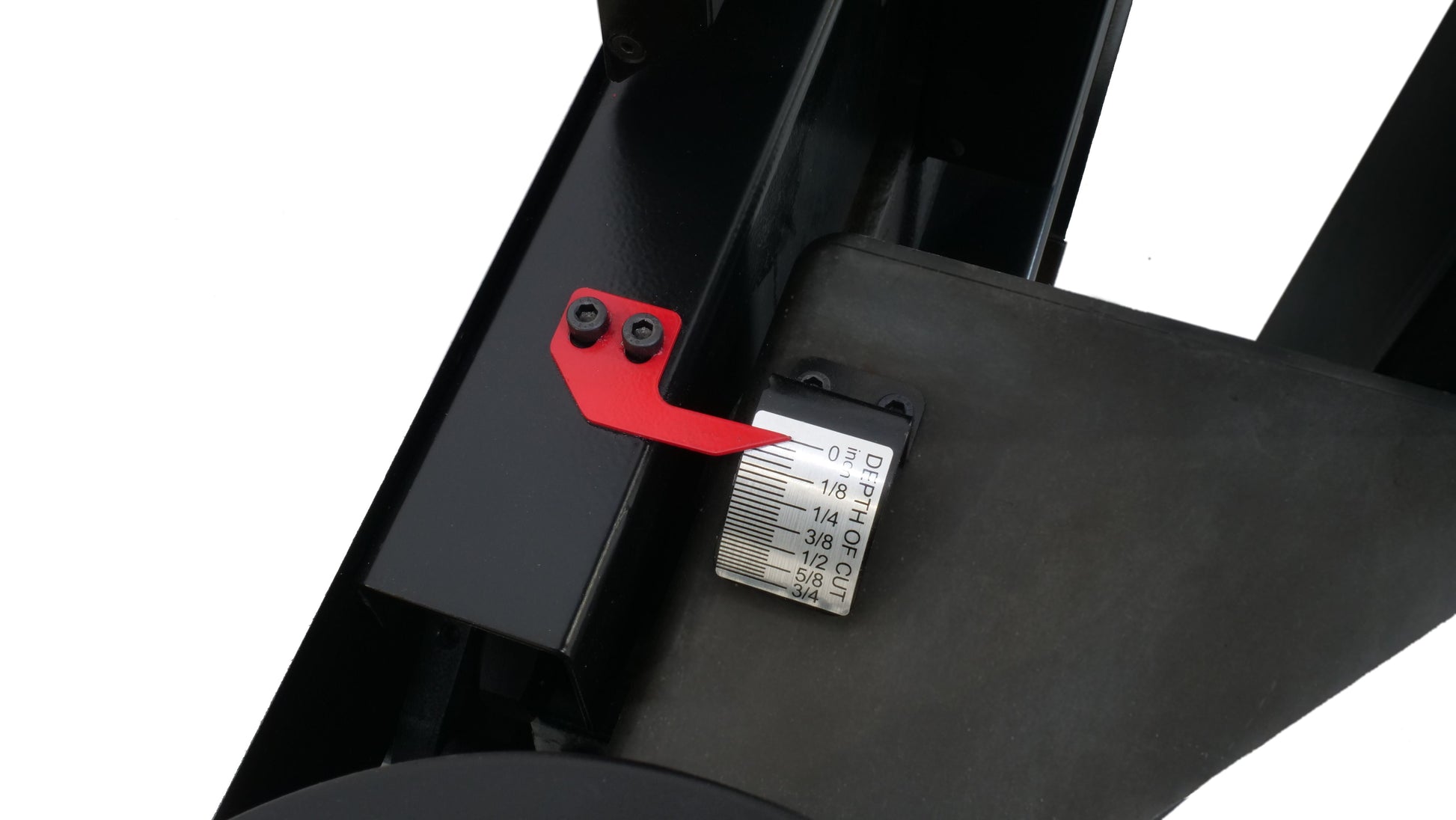

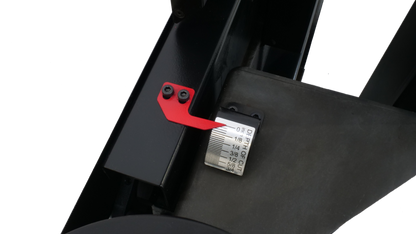

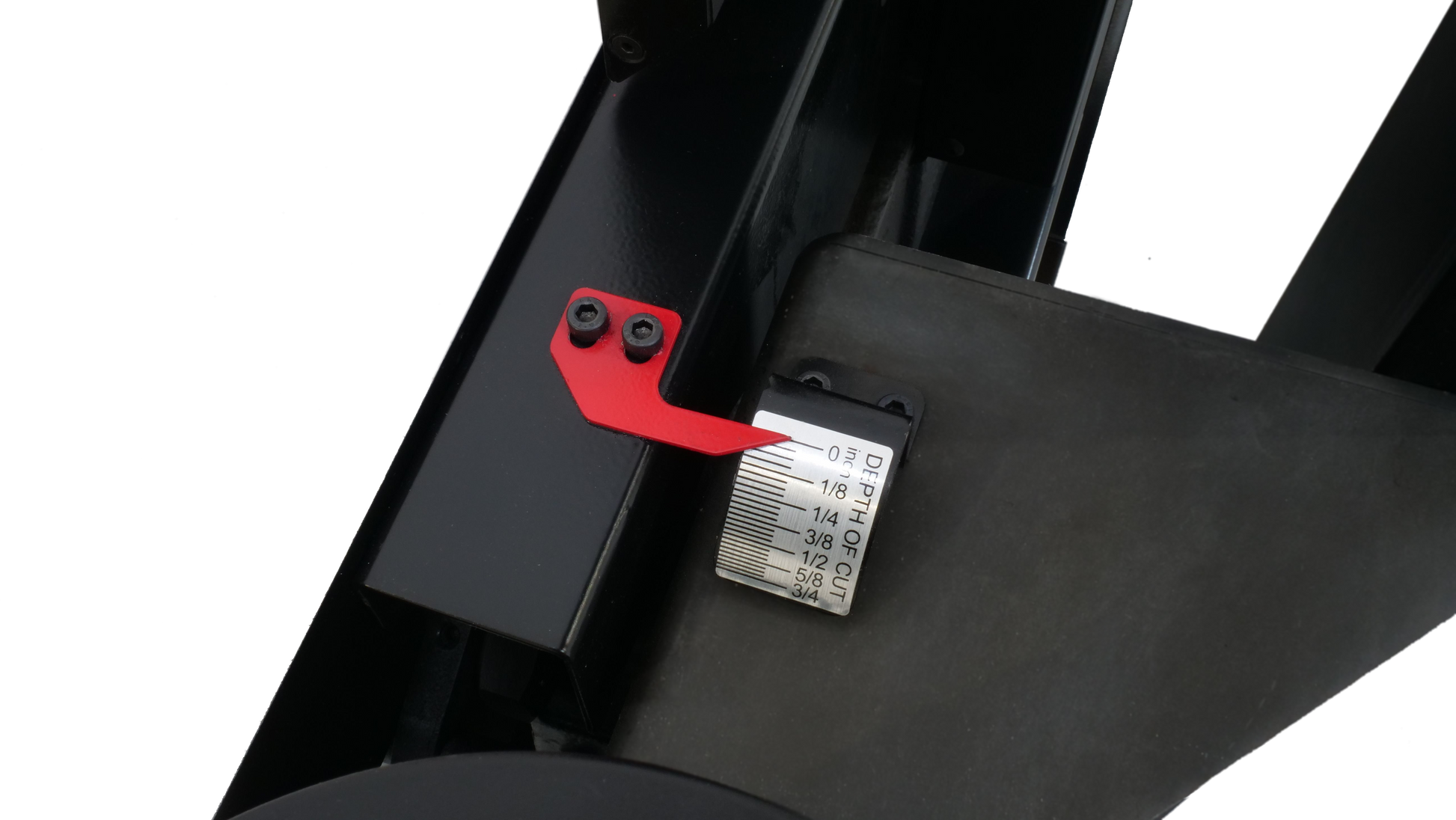

Max. Depth Of Cut: 1/8?
Table Height From Floor: 32?
Safety Bar Shut-Off: Yes
Bracket To Mount Light: Yes
110V Outlet For Light: Yes
Bracket To Mount Feeder: Yes
Dust Port Diameter: 6?
No Cord Or Plug Supplied
Cutterhead Insert #: 66 x 4-Sided Carbide, 6 Row
Cutterhead RPM: 5500
Cutterhead Diameter: 3-7/8?
Bed Adjustment: Parallelogram
Dimensions Set Up (Approx): 92? x 40?
Base Footprint Dimensions: 43? x 20-1/2?
Dimensions Shipping: 91? x 32? x 45?
Net/Ship Weight: 876/1043 Lbs. (1 Box)
Industrial Casters with Retractable Levelling Feet
Recessed toe kick at the base of the machine gives user better positioning

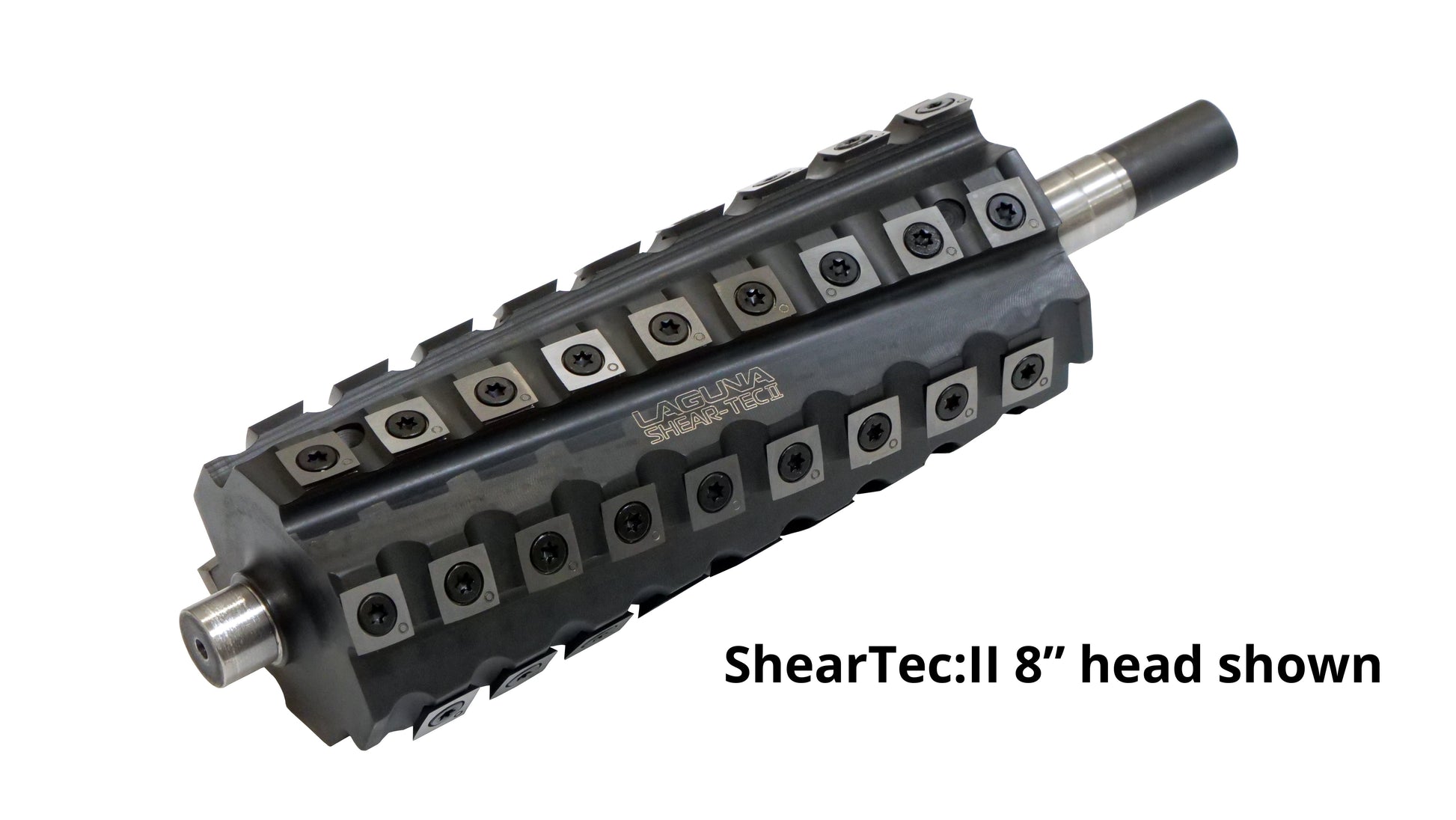

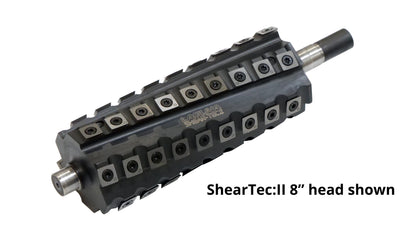

The ShearTec: II features 4-sided solid carbide inserts with a T-shoulder rather than a cone-shaped design, which helps prevent cracking of the inserts.

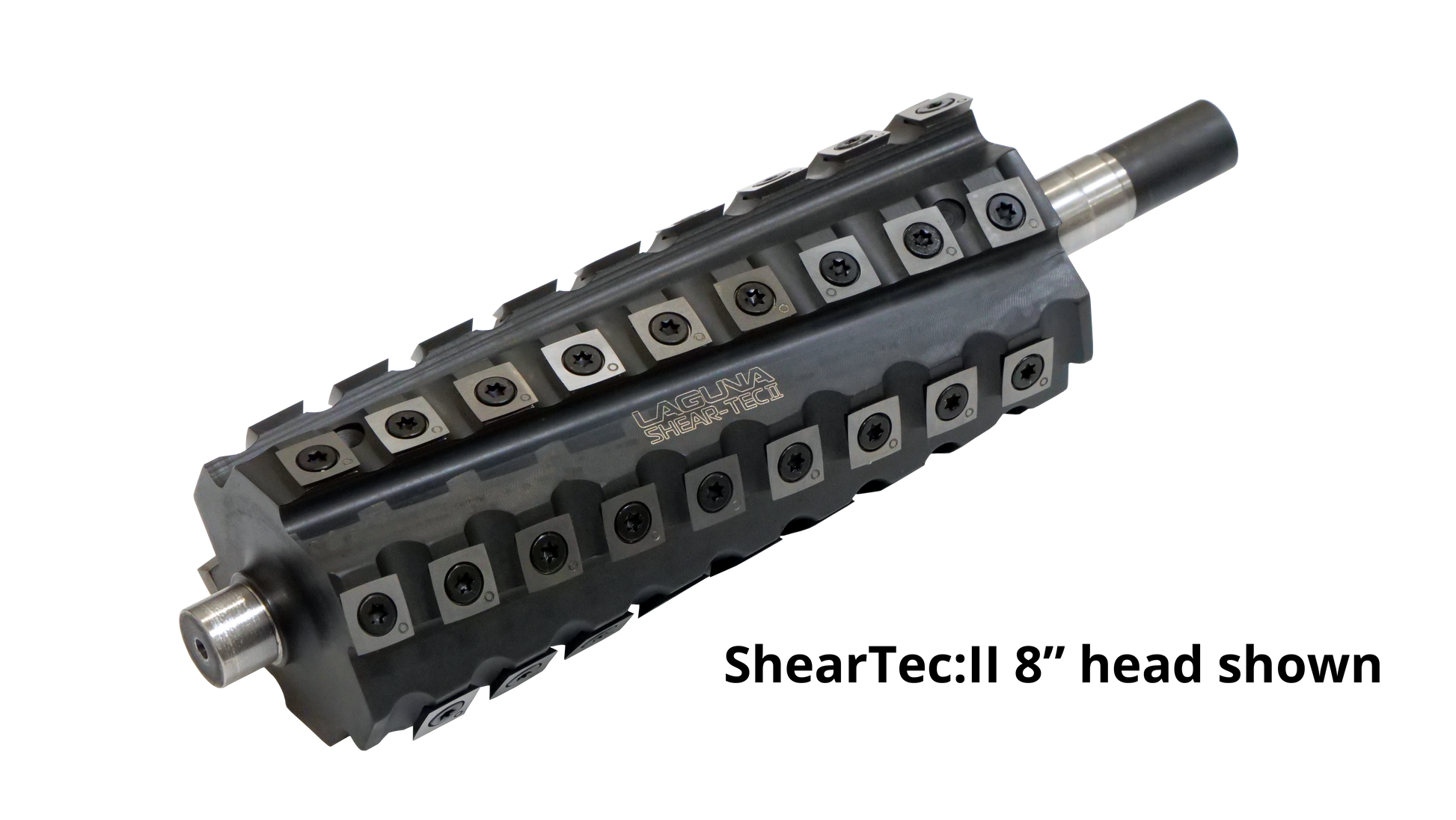

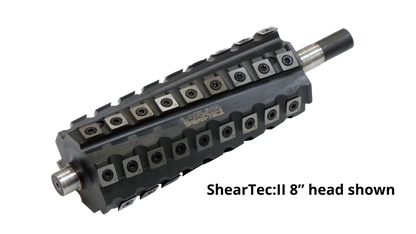

The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.
