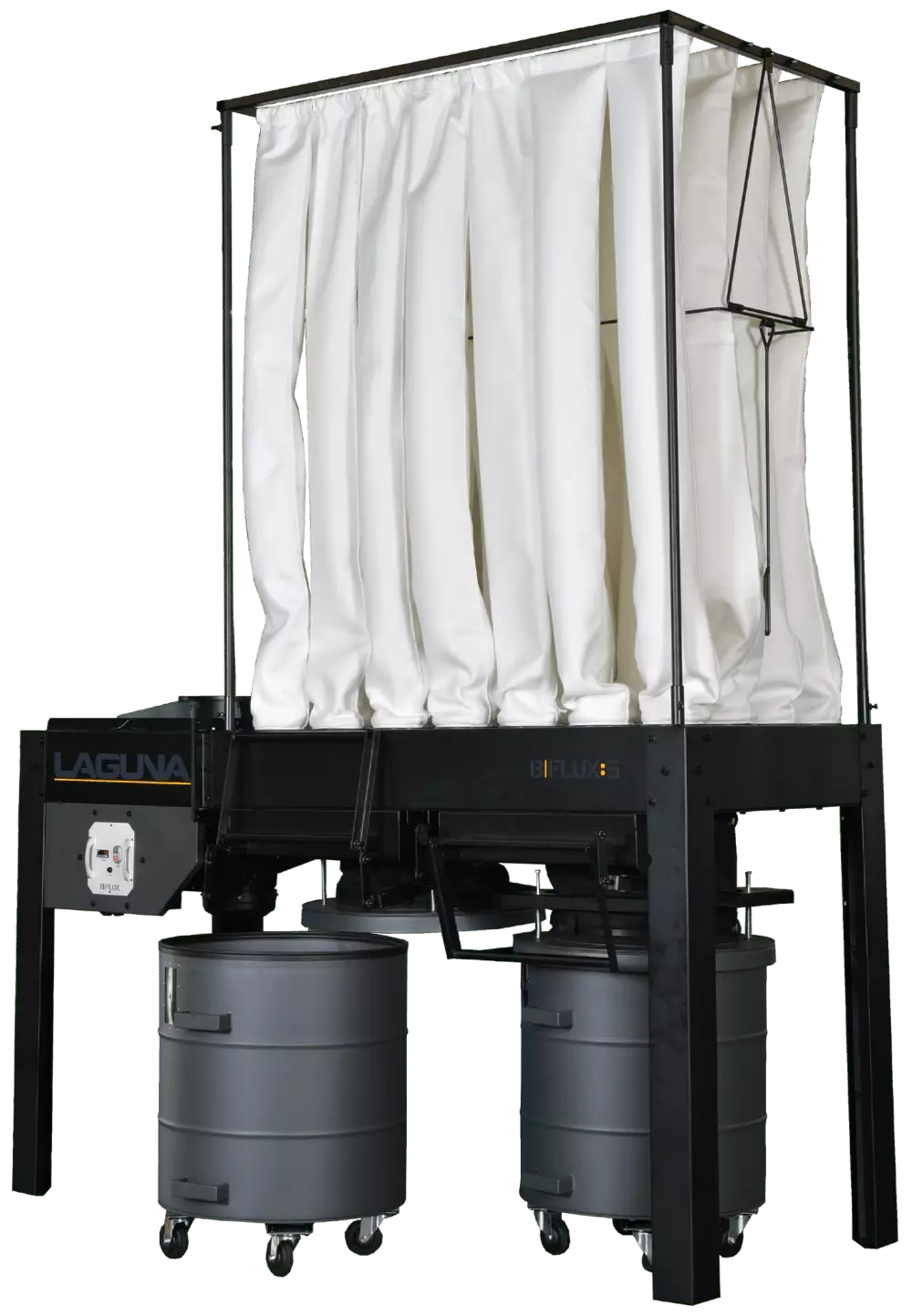

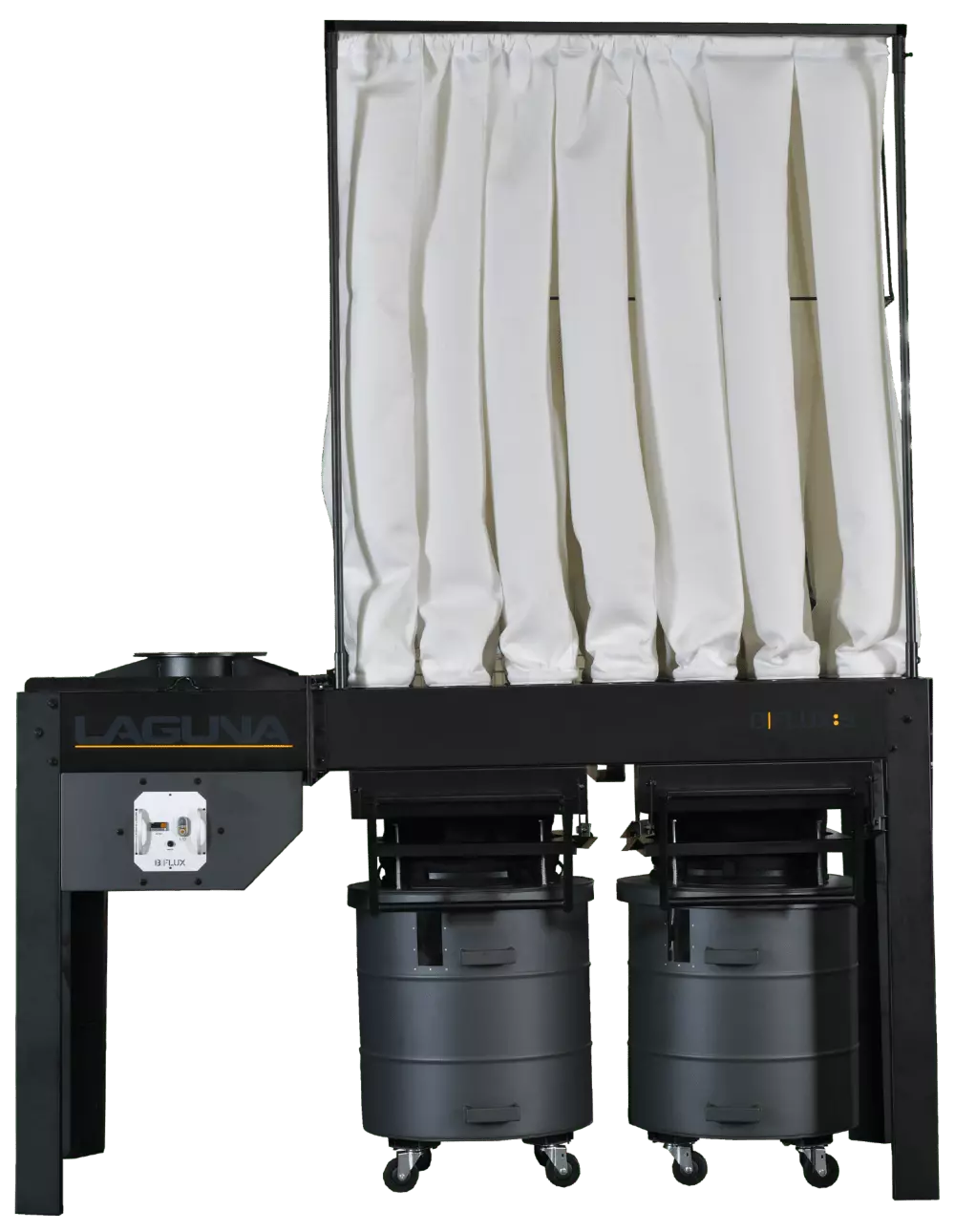

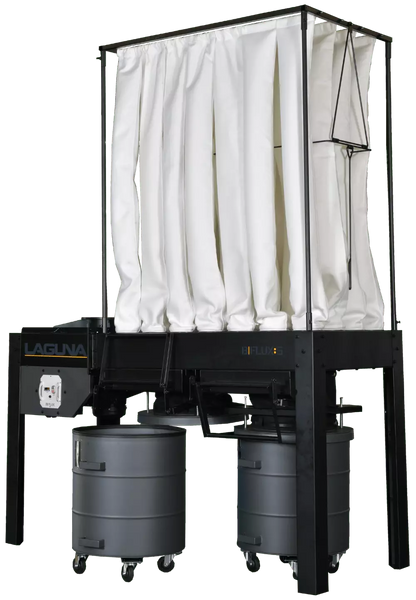

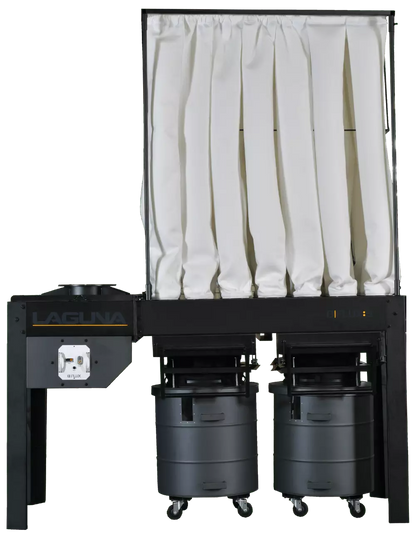

I|Flux: 5 Elite Dust Collector

I|Flux: 5 Elite Dust Collector

$11,999.00
$11,999.00 $11,999.00
Sale Sold out
Shipping calculated at checkout.

SKU: MDCIF52203

Laguna

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

The I|Flux: 5 Elite uses an appropriate filter arrangement with 286 square feet of surface area – double that of a typical 5HP collector. To do this, we used a smaller diameter bag and a lot more of them. This arrangement maximizes the amount of surface area possible which is vital to adequate airflow through the collector. Keeping these filters clean was addressed in the design.

  • 5hp Motor
  • Motor RPM: 1720
  • Air Flow: 3991CFM @ 5″wc
  • Inlet Diameter: 12″
  • Filter Area: 286.3 ft2
  • Filter Bag: 28 x D168mm x H1800mm
  • Filter Bag Material: Polyester
  • Filter Cleaning: Manual Shaker
  • Waste Bin: EZ Lift Metal Bin 64gal x 2
  • 5hp Motor
  • Motor RPM: 1720
  • Air Flow: 3991CFM @ 5″wc
  • Inlet Diameter: 12″
  • Filter Area: 286.3 ft 2
  • Filter Bag: 28 x D168mm x H1800mm
  • Filter Bag Material: Polyester
  • Filter Cleaning: Manual Shaker
  • Waste Bin: EZ Lift Metal Bin 64gal x 2
