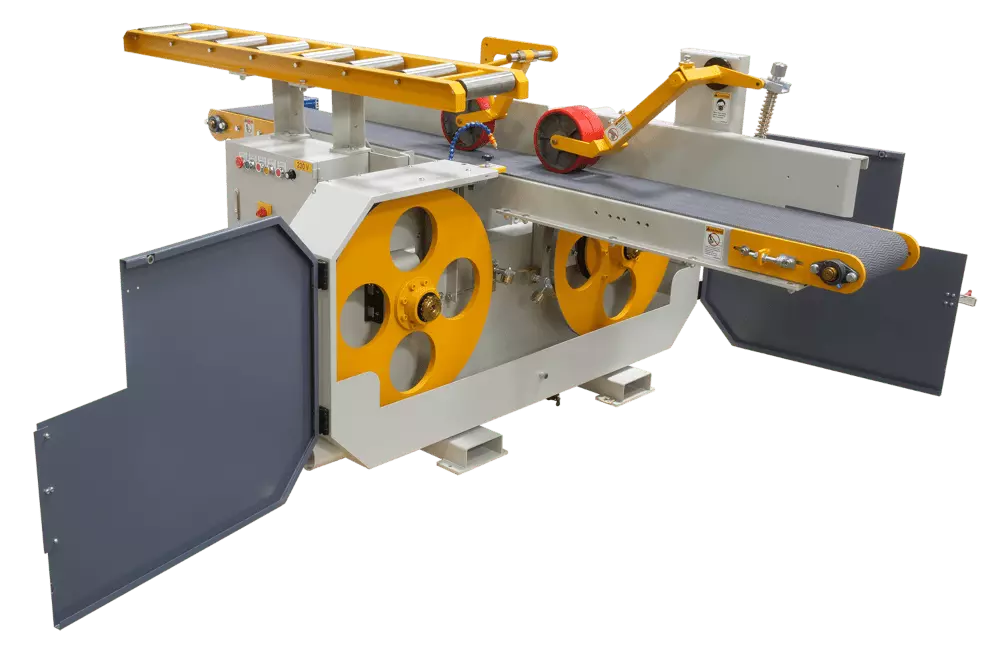

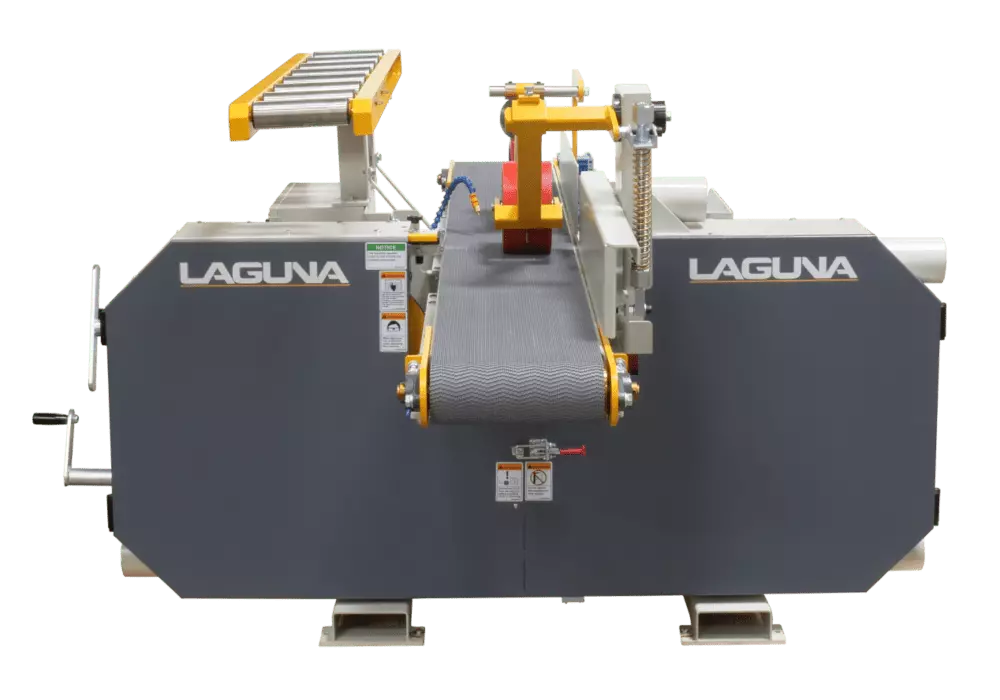

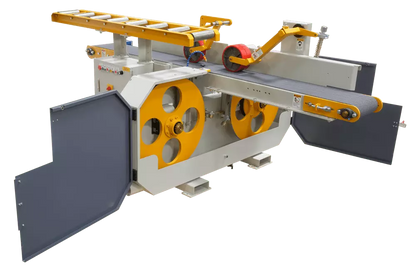

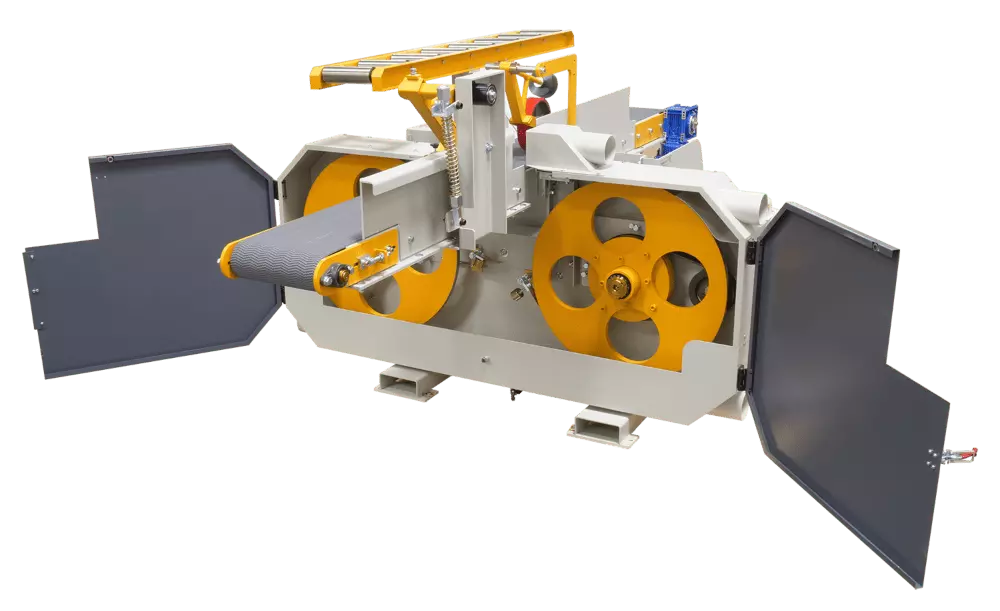

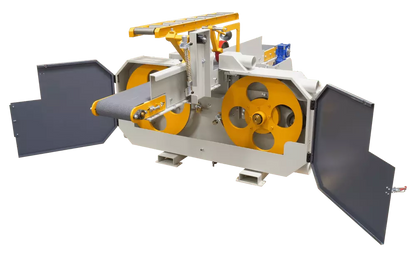

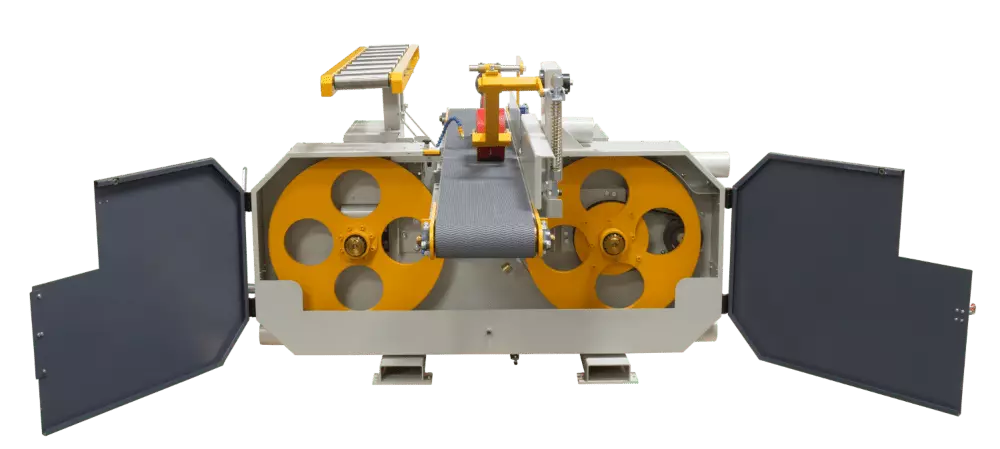

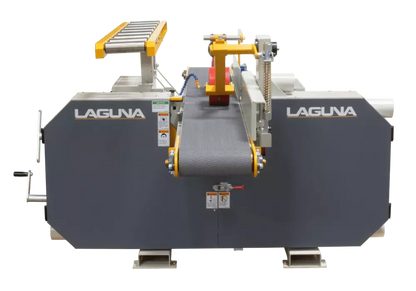

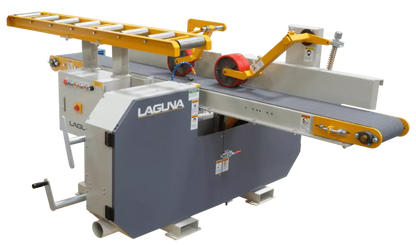

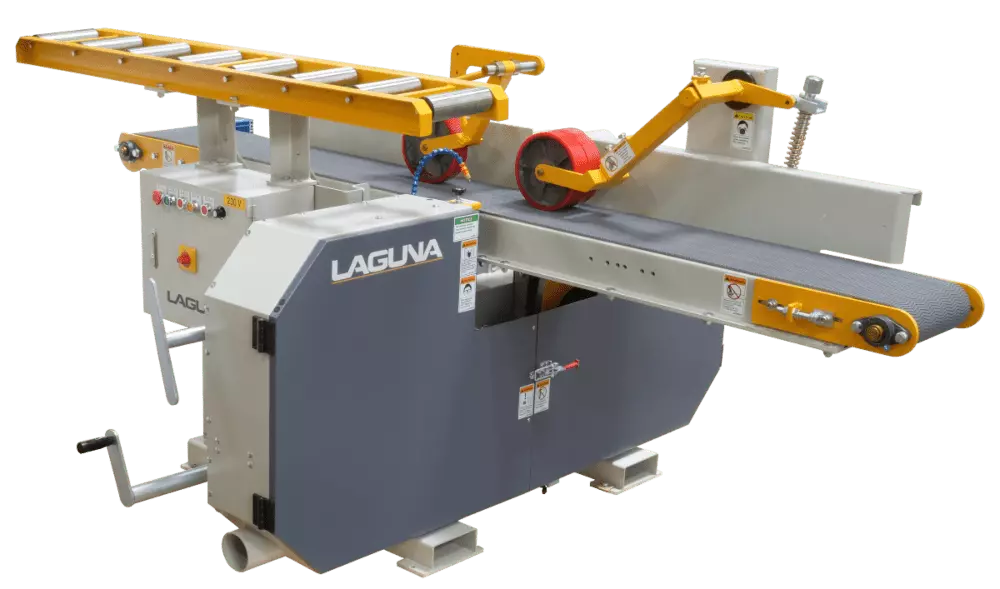

HRS|28 Horizontal Resaw

The HRS-28 Horizontal Band Resaw was designed to be Laguna tough to withstand any jobs thrown at it. We designed this bandsaw to be fully adjustable to accommodate a wider variety of stock so that users can get the most bang for their buck. See the specs below and take the first step toward a truly quality cut.

• Manual Blade Tension Control.The blade tension is adjusted by turning the tensioning handle.Large handle design facilitates blade tension adjustment.
• The blade tension is adjusted by turning the tensioning handle.
• Large handle design facilitates blade tension adjustment.

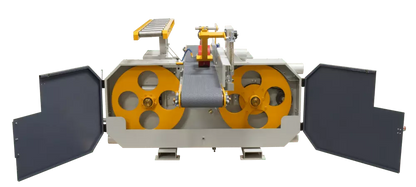

• Easy to Elevate Saw WheelsManual elevation of saw wheels is transmitted through a worm gear mechanism for easy operation.Both elevation screws are linked by a shaft to ensure synchronized elevation of saw wheels
• Manual elevation of saw wheels is transmitted through a worm gear mechanism for easy operation.
• Both elevation screws are linked by a shaft to ensure synchronized elevation of saw wheels

• The blade tension is adjusted by turning the tensioning handle.
• Large handle design facilitates blade tension adjustment.

• Manual elevation of saw wheels is transmitted through a worm gear mechanism for easy operation.
• Both elevation screws are linked by a shaft to ensure synchronized elevation of saw wheels

Max. Work Piece Size (W x H): 11.8″ x 9.8″

Distance From Blade To Conveyor Table: 4-125mm

Conveyor Belt Size: 11.2″ x 215.4″

In-Feed Speed: 5-25M/min

Blade Size: 168″ x 1″

Main Motor: 20HP

Electric Conveyor: 2HP Motor 30 – 1 Gearbox + 2HP Inverter

Manual Return Conveyor

Net Weight: 1982 lbs

Minimum Working Length: 15.7″

Pressure Roller System For Accurate Cutting

Tolerance: ±0.1mm

Shipping Dimensions (L x W x H): 120″ x 88.5″ x 87″
