A must-have for custom furniture builders, cabinetry builders or other woodworkers using mortise and tenon joinery.

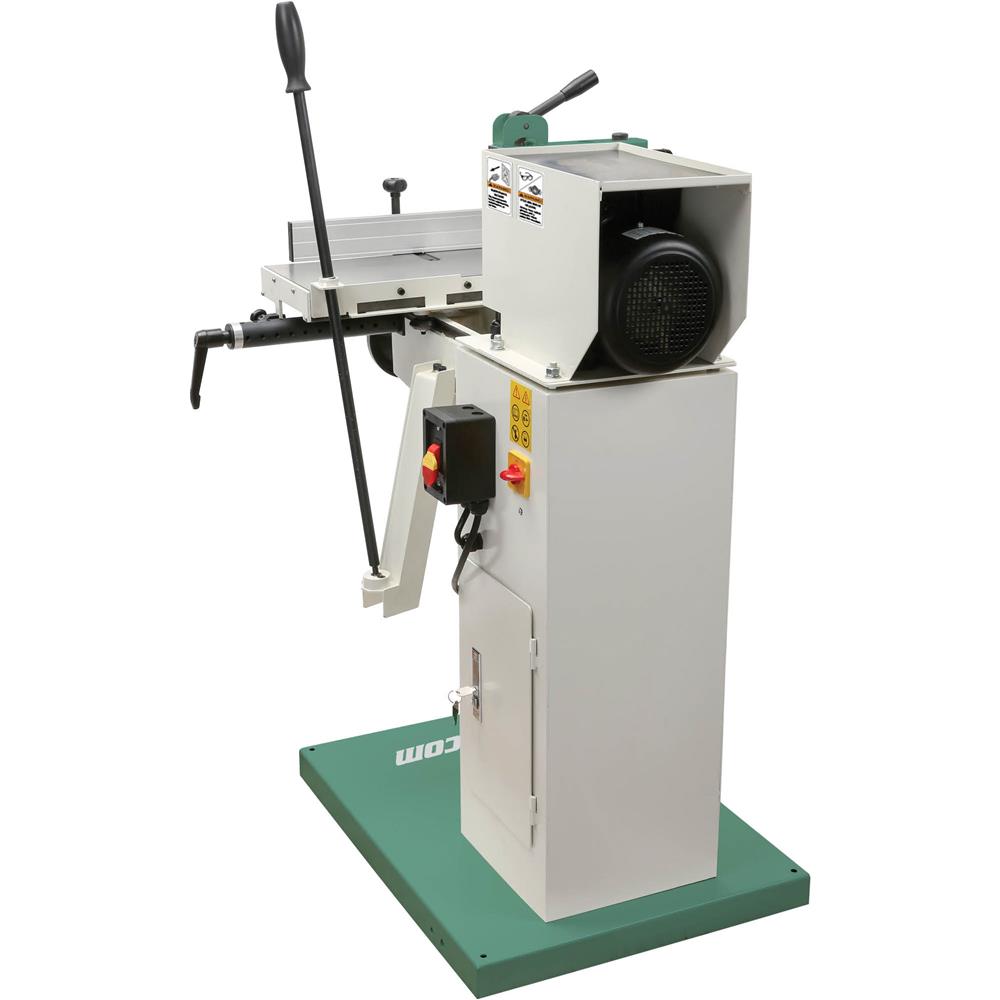

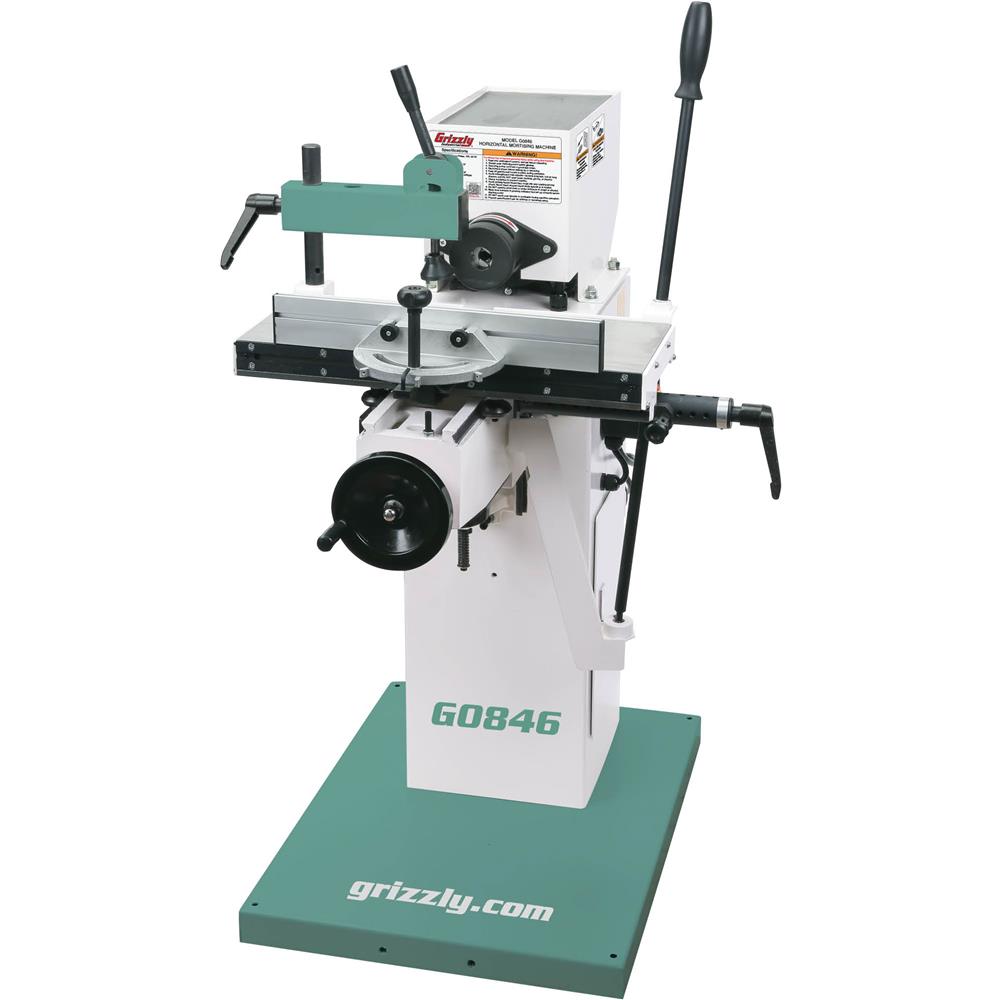

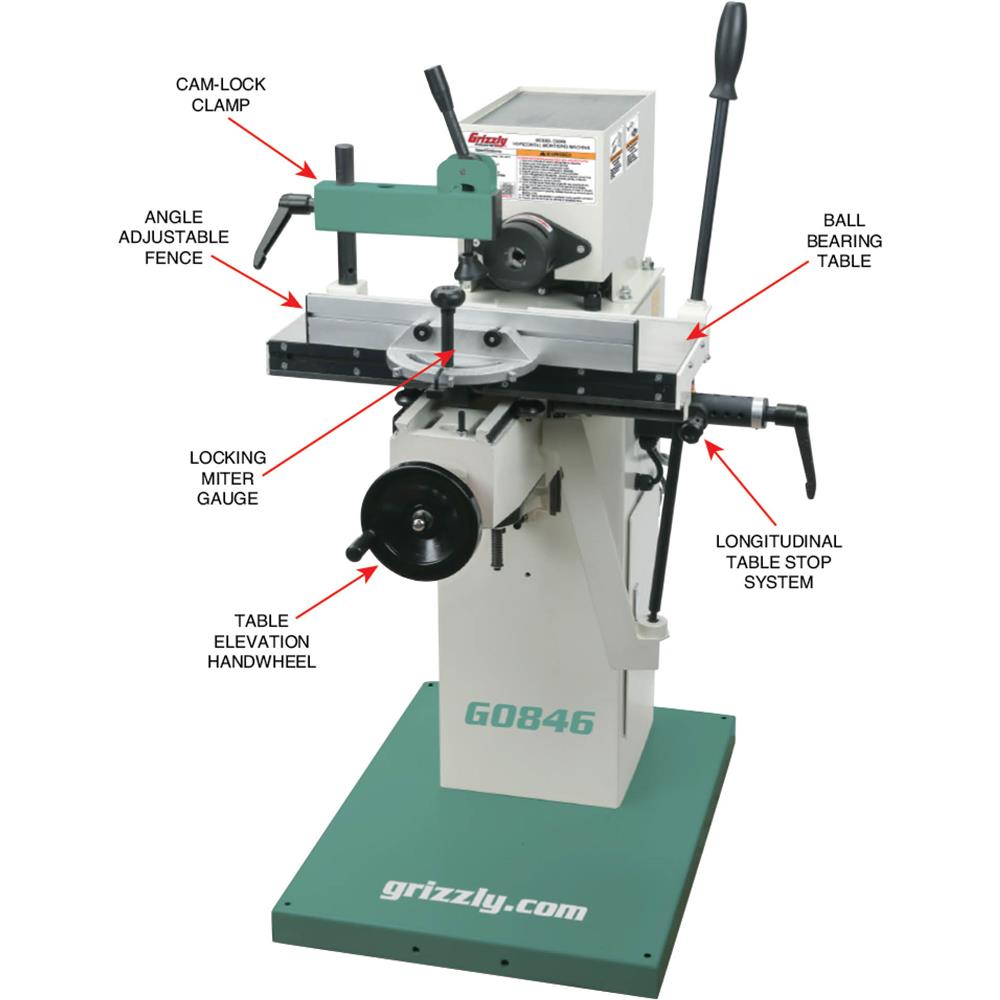

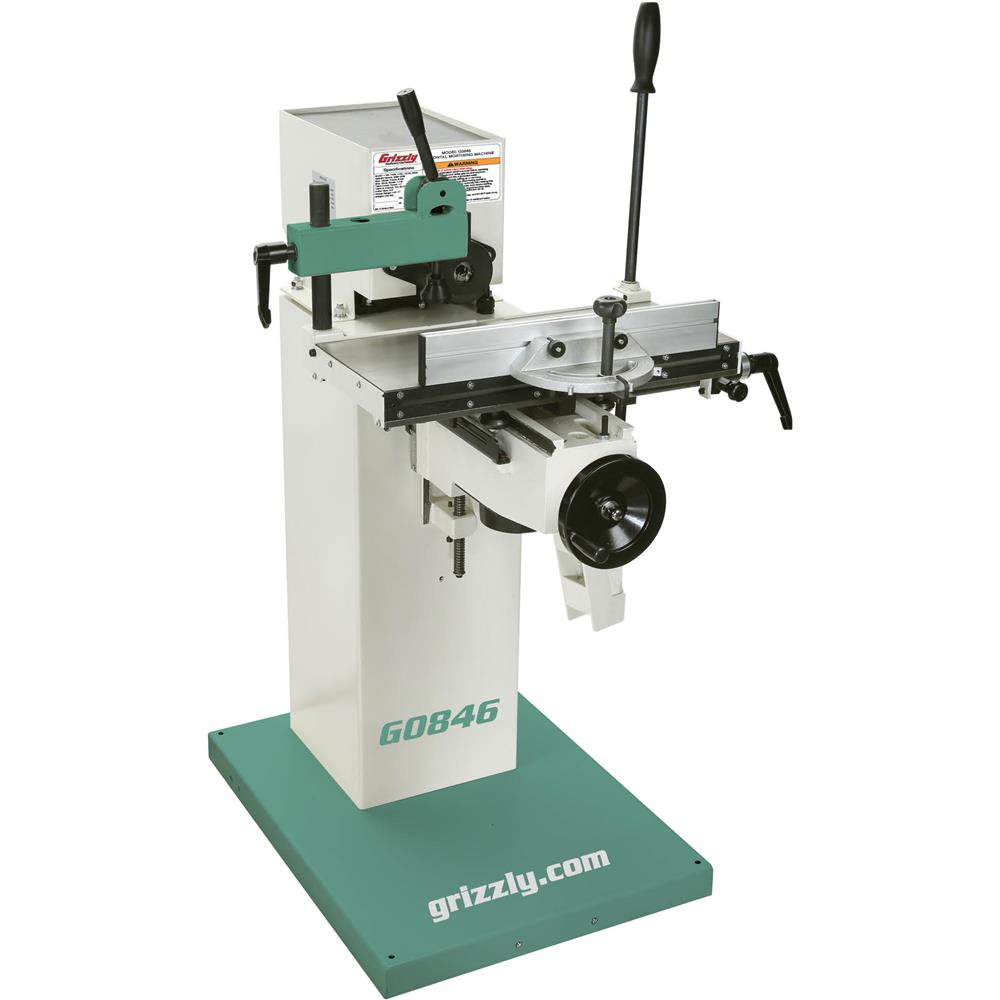

The Grizzly G0846 Horizontal Slot Mortiser incorporates a router mounted on its side with the workpiece clamped to a multi-axis sliding table.
Use it to quickly cut mortises for traditional mortise-and-tenon or 'loose tenon' joinery and easily cut angled mortises as no elaborate jigs and fixtures are required!
The G0846 is driven by a powerful 2-horsepower, 220V, 10-amp motor and is equipped with a 20" x 8-1/4" precision-ground cast-iron table.

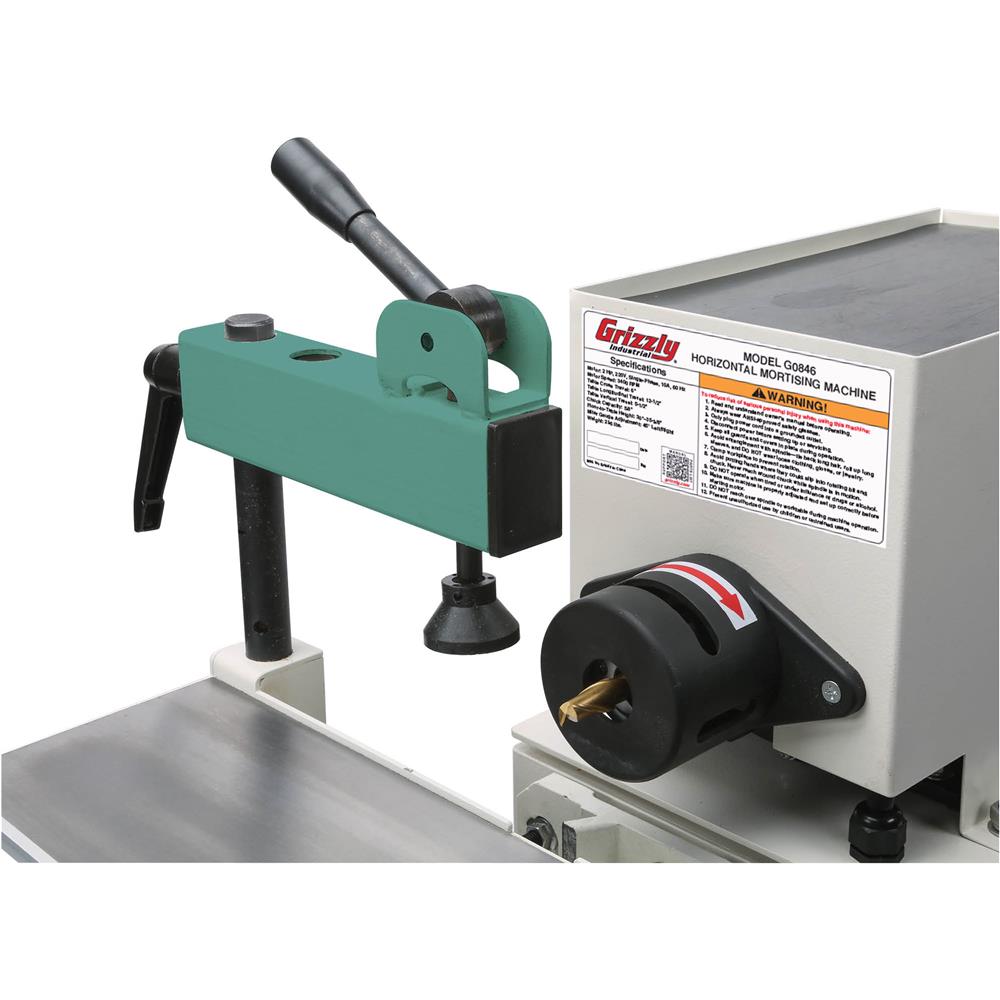

The table features an adjustable cam-action hold-down clamp to secure the workpiece.
The table glides along two hardened V-ways using four ball bearings for smooth, effortless motion.

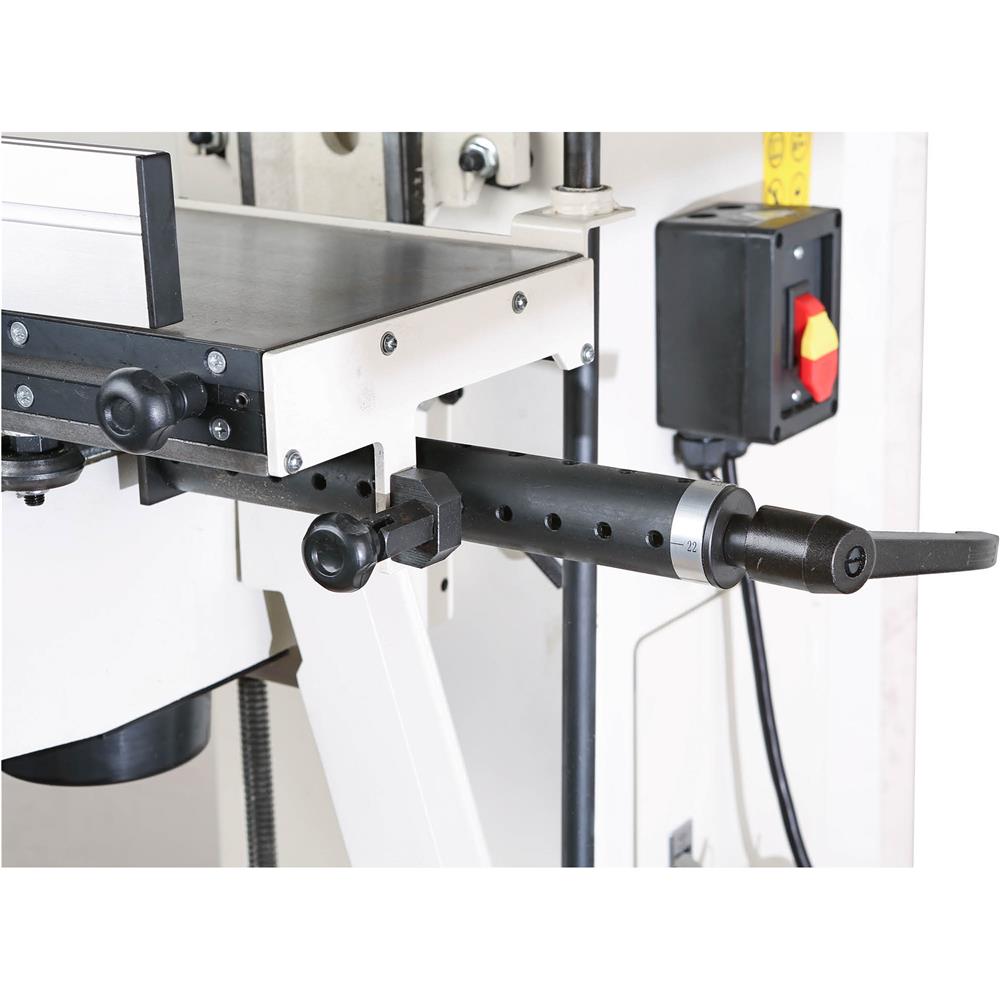

The table has two adjustable X-axis (side-to-side) stops and one Y-axis (depth) stop.
The G0846 has an indexing guide with four spacing patterns that, when combined with the stops, are all crucial for repeat operations and production work.
Adding this Horizontal Slot Mortiser to your shop will dramatically increase your capability, production and efficiency.
SPECIFICATIONS:
FEATURES:

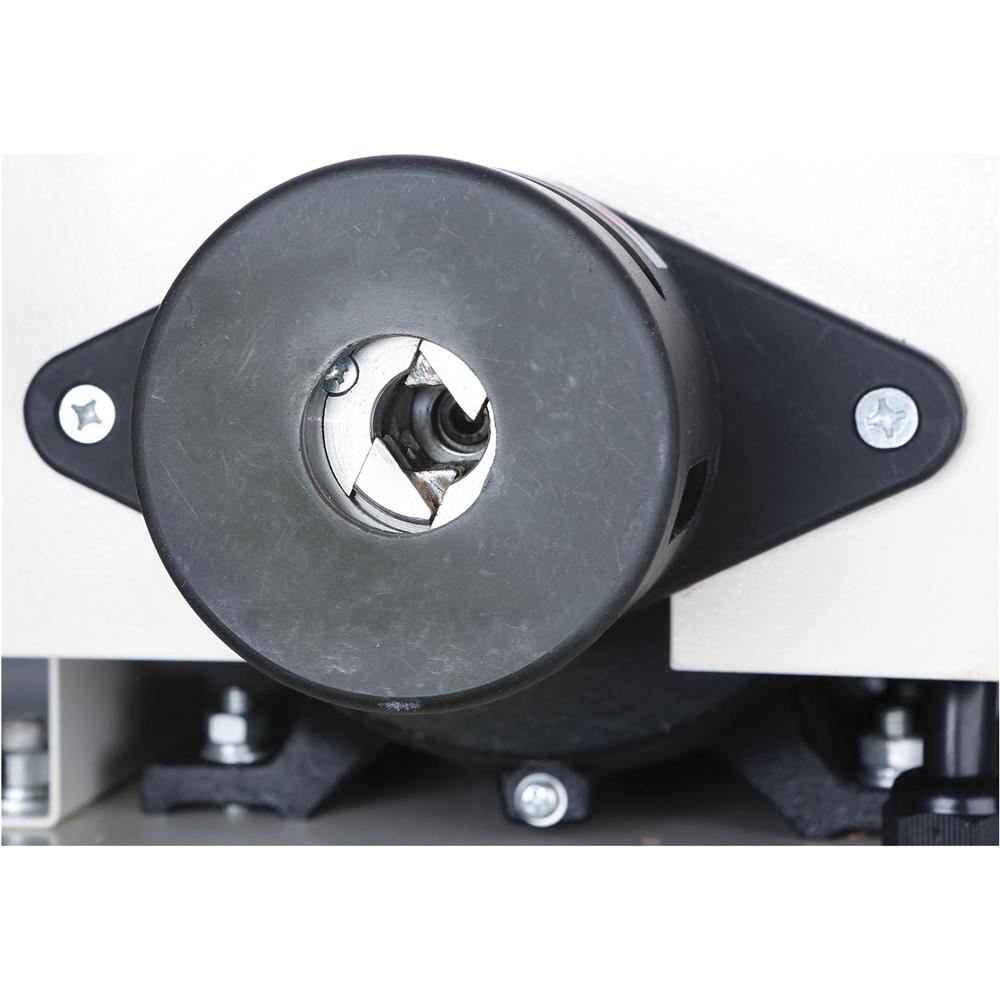

Westcott-style 2-jaw chuck

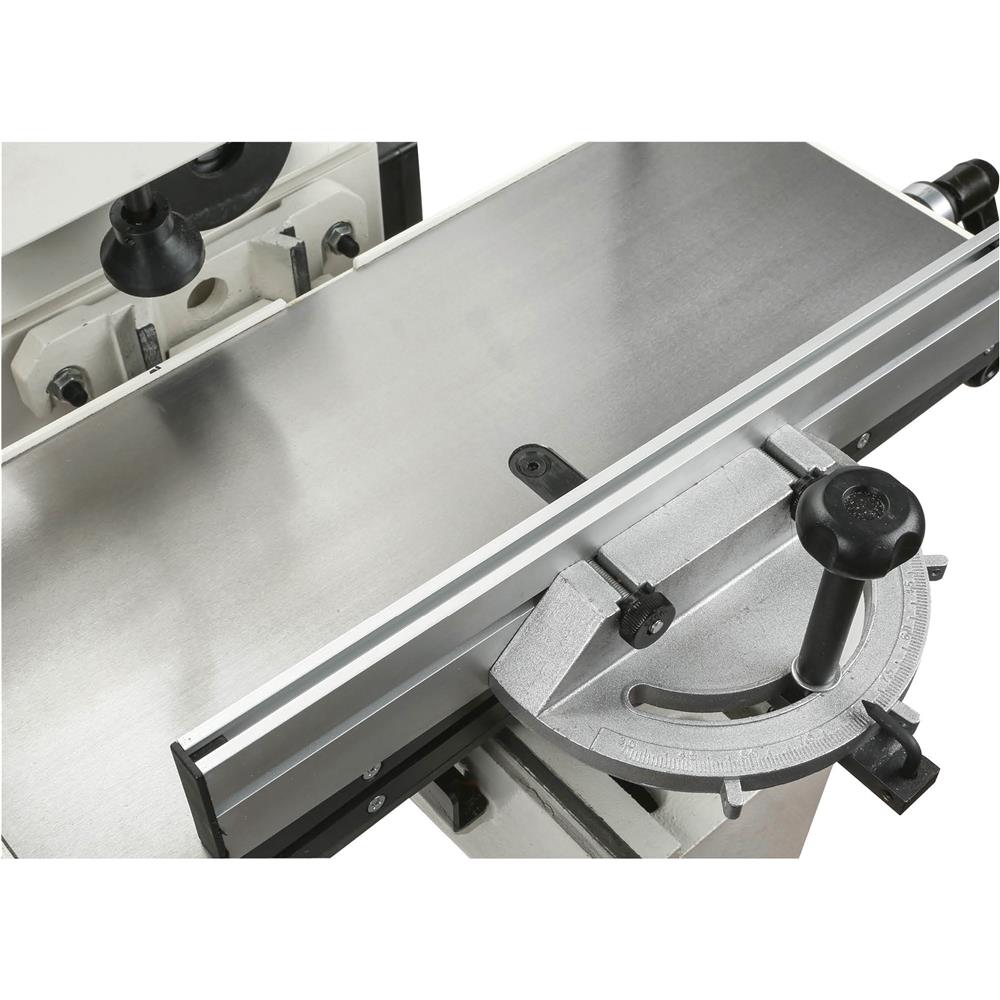

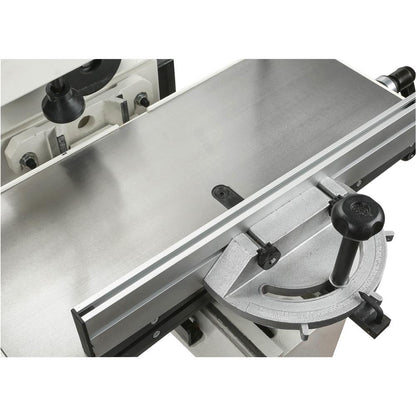

Precision-ground, cast-iron table

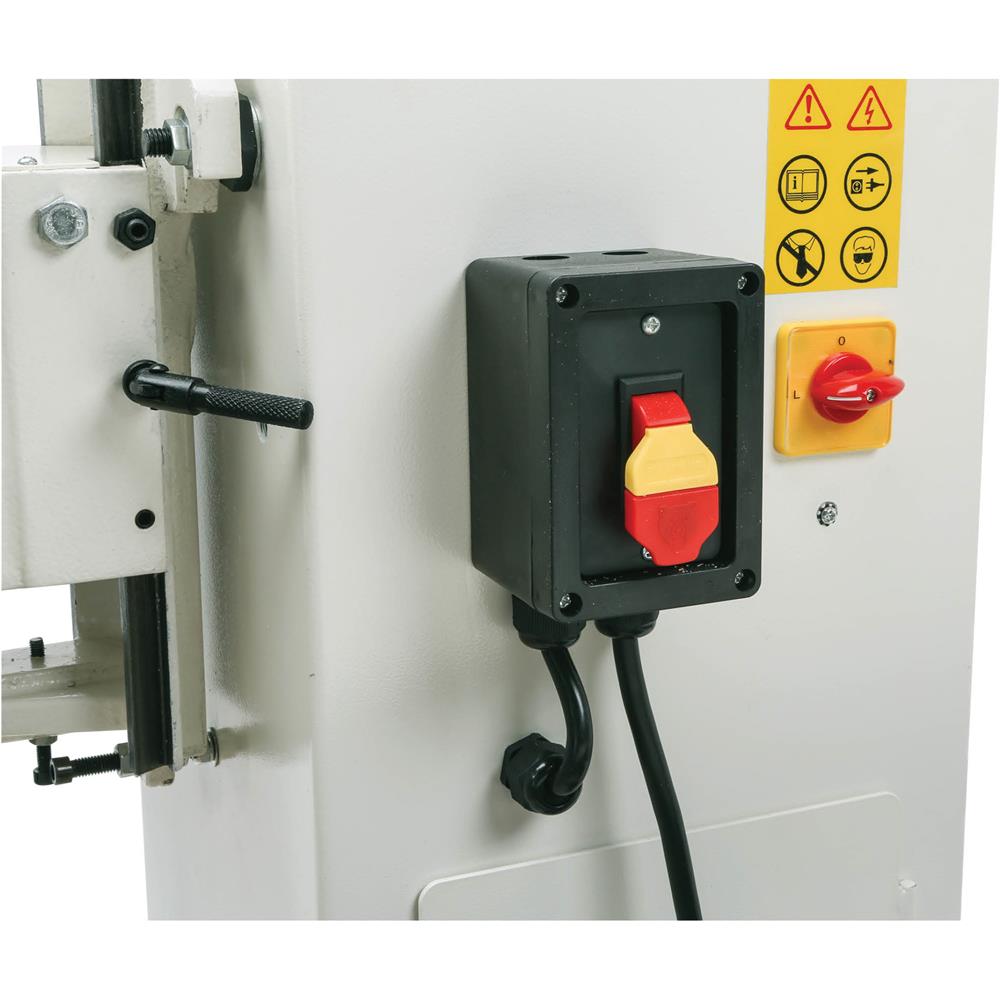

Forward and reverse spindle control
Longitudinal X- and Y-axis table stops (indexed at 5/8", 3/4", 7/8", 1)
