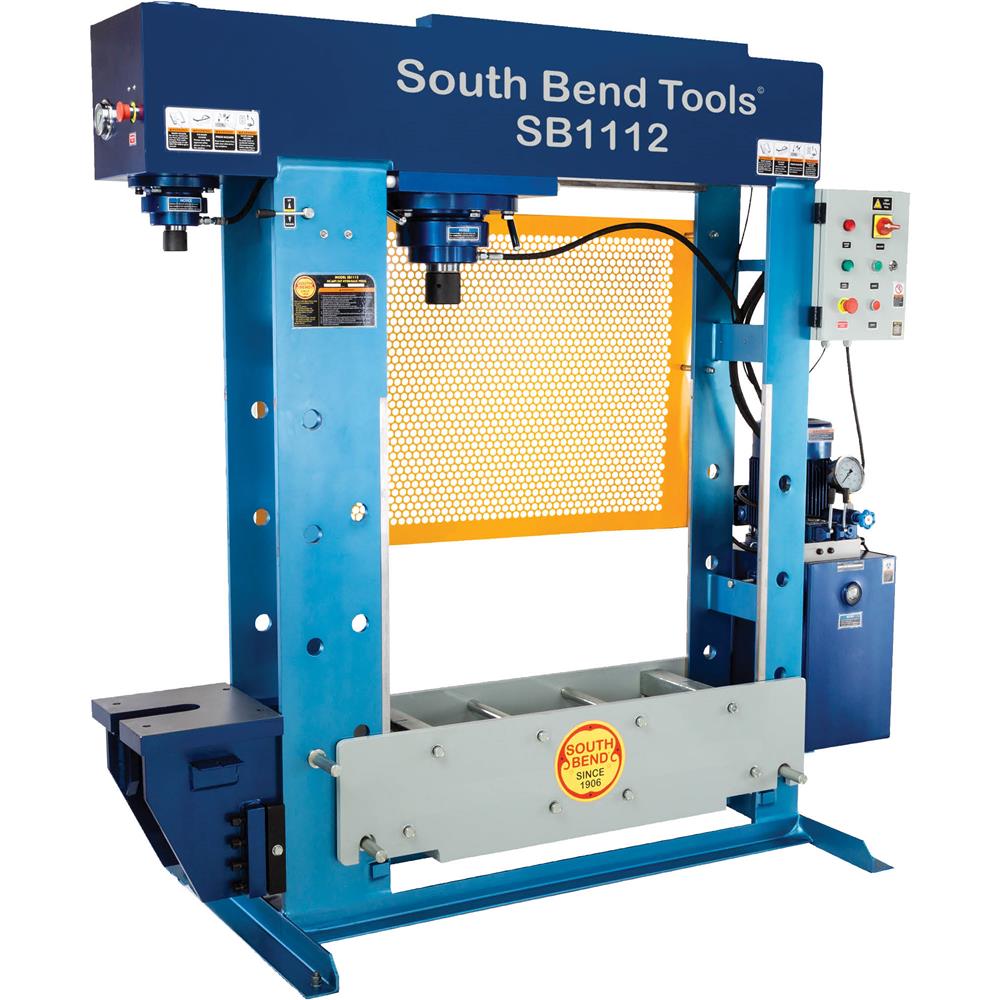

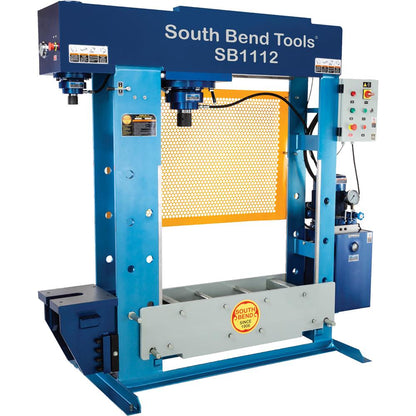

SB1112 Dual-Station HC-60T/24T Hydraulic Press

Industrial-size power and versatility for your pressing needs.

If you’re in industrial manufacturing, you know how important a high-quality, high-powered hydraulic press is for your operation.

The SB1112 Dual-Station Hydraulic Press delivers 60 tons of power at the H-frame main station and 24 tons at the C-frame side station.

This ability to have multiple setups can open new possibilities for your operation–with the dependability and precision craftsmanship of the South Bend name backing it up.

The Dual-Station HC-60T/24T Hydraulic Press is perfect for pressing gears on and off shafts, transfer molding, packing and compressing, straightening, punching, metal forming, and much more.

Your business is worth it–invest in the best!

GENERAL SPECIFICATIONS:

H-FRAME MAIN STATION RAM:

• Max. applied force: 60 tons
• Max. stroke: 11-13/16"
• Ram diameter: 3-1/8"
• Max. distance to table: 36"
• Min. distance to table: 6-7/8"
• Max. workpiece width: 39-3/8"
• Number of bed adjustment positions: 4
• Bed adjustment hole spacing: 9-13/16"

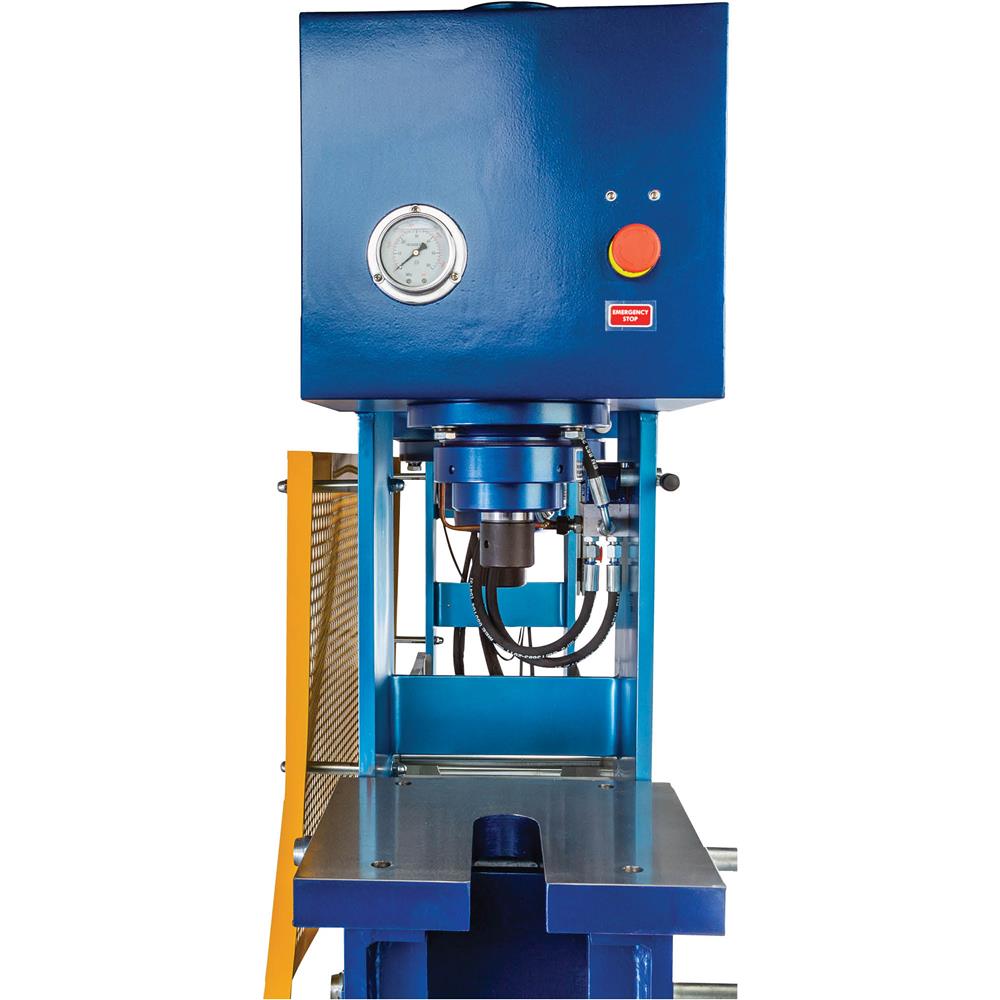

C-FRAME SIDE STATION RAM:

• Max. applied force: 24 tons
• Max. stroke: 9-13/16"
• Ram diameter: 2"
• Max. distance to table: 39-9/16"
• Min. distance to table: 10-1/16"
• Number of bed adjustment positions: 4
• Bed adjustment hole spacing: 9-13/16"

FEATURES:

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
