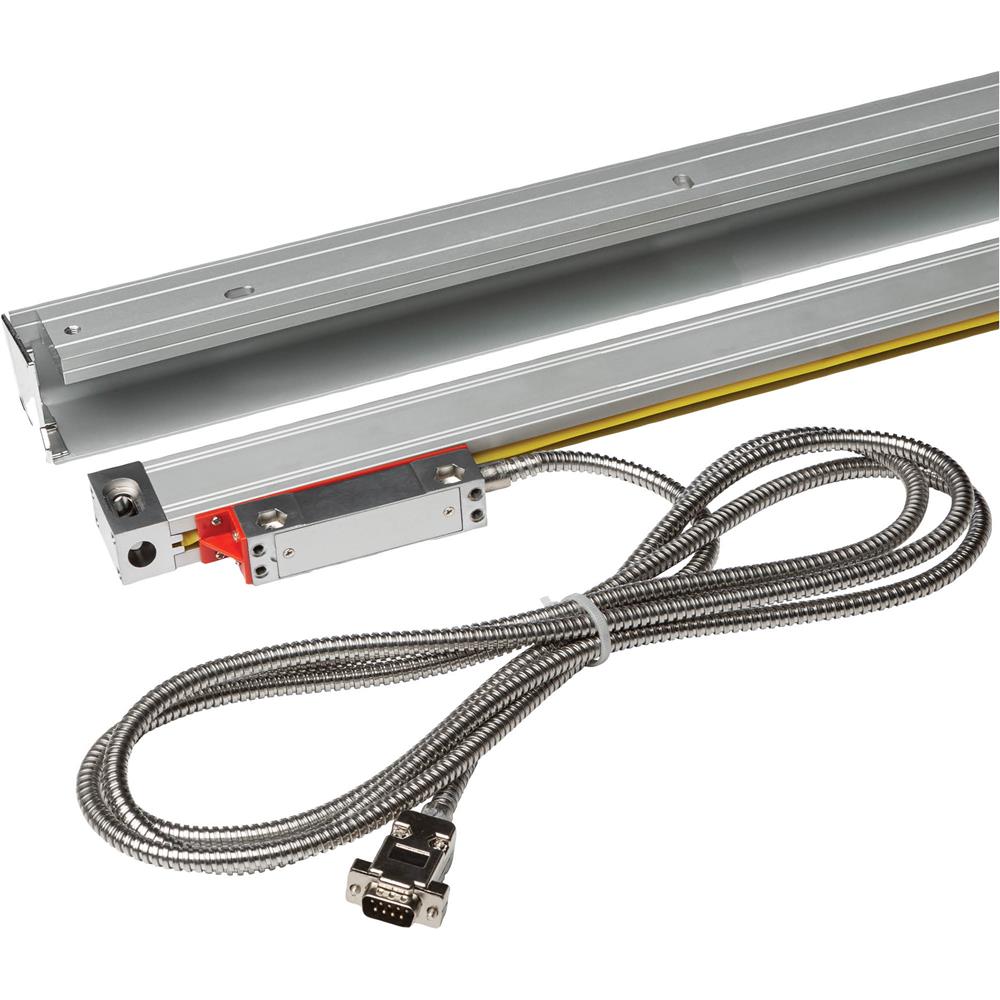

T32996 63" Linear Optical Scale

Make your own custom DRO starting with this scale.

The T32996 63" Linear Optical Scale boasts quality features that can’t be matched at this price.

The glass transducers are individually inspected and calibrated to ensure accuracy and compliance with the specifications.

The slide carrier uses five P5-grade bearings to achieve smooth and accurate movement.

The plastic seals offer superior oil resistance, durability, and high elastic recovery properties.

SPECIFICATIONS:

• Supply voltage: DC 5V
• Resolution: 5μm
• Travel length: 63"
• Accuracy: ±25μm
• Optical period: 20μm
• Optical measurement: Transmissive infrared
• Repeatability: 2μm
• Seal protection: IP53
• Scanning head sliding system: Vertical five-bearing sliding system
