G0955 60-Gallon 5 HP Extreme Series Air Compressor
Extreme Series means high-output performance for maximum air requirements.
The Grizzly G0955 60-Gallon 5 HP Extreme Series Compressor operates at low RPMs for extended life and low maintenance. The 5 HP 230V motor operates with a maximum pressure of 150 PSI. This compressor delivers 18 CFM at 90 PSI and 20 CFM at 40 PSI.
Providing more complete motor overload protection than a magnetic starter that only senses current, the motor senses both temperature and current. A wired-formed belt guard provides more efficient cooling to keep the unit from overheating.

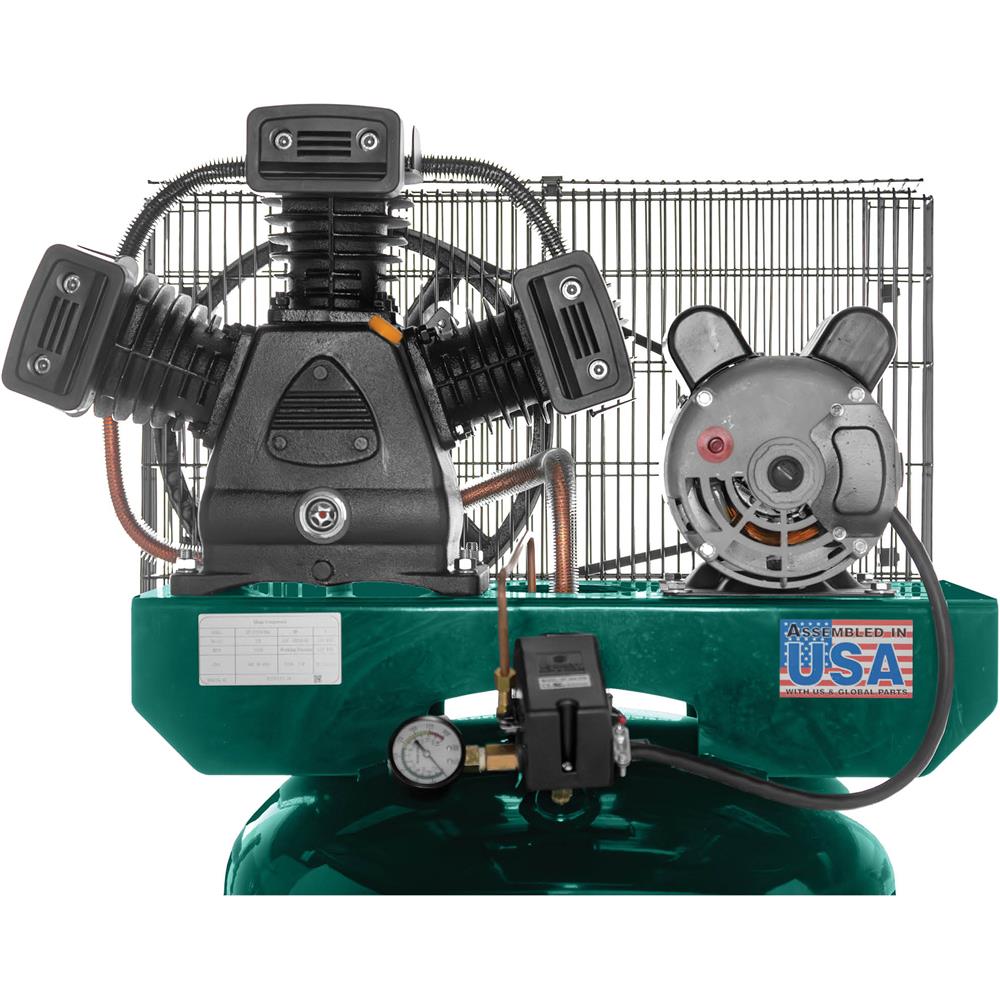

The 60-gallon vertical air tank has been ASME certified to meet safety and quality standards. The one-stage cast-iron oil-lubricated pump operates at high pressure providing increased volume when you need it.

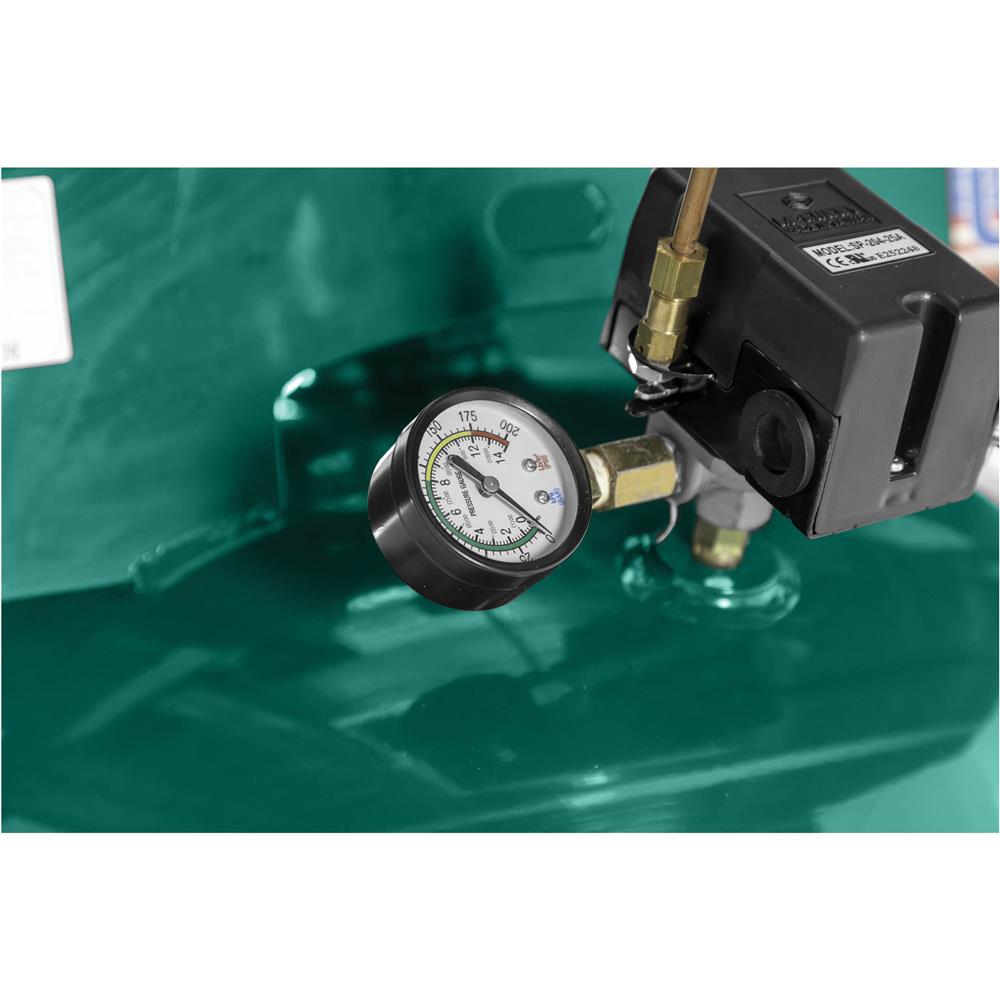

Additional features include a tank pressure gauge, on/off switch, 1/2" NPT threaded fitting, and an easily accessible oil level sight glass.
SPECIFICATIONS:
FEATURES:
Large oil level sight glass

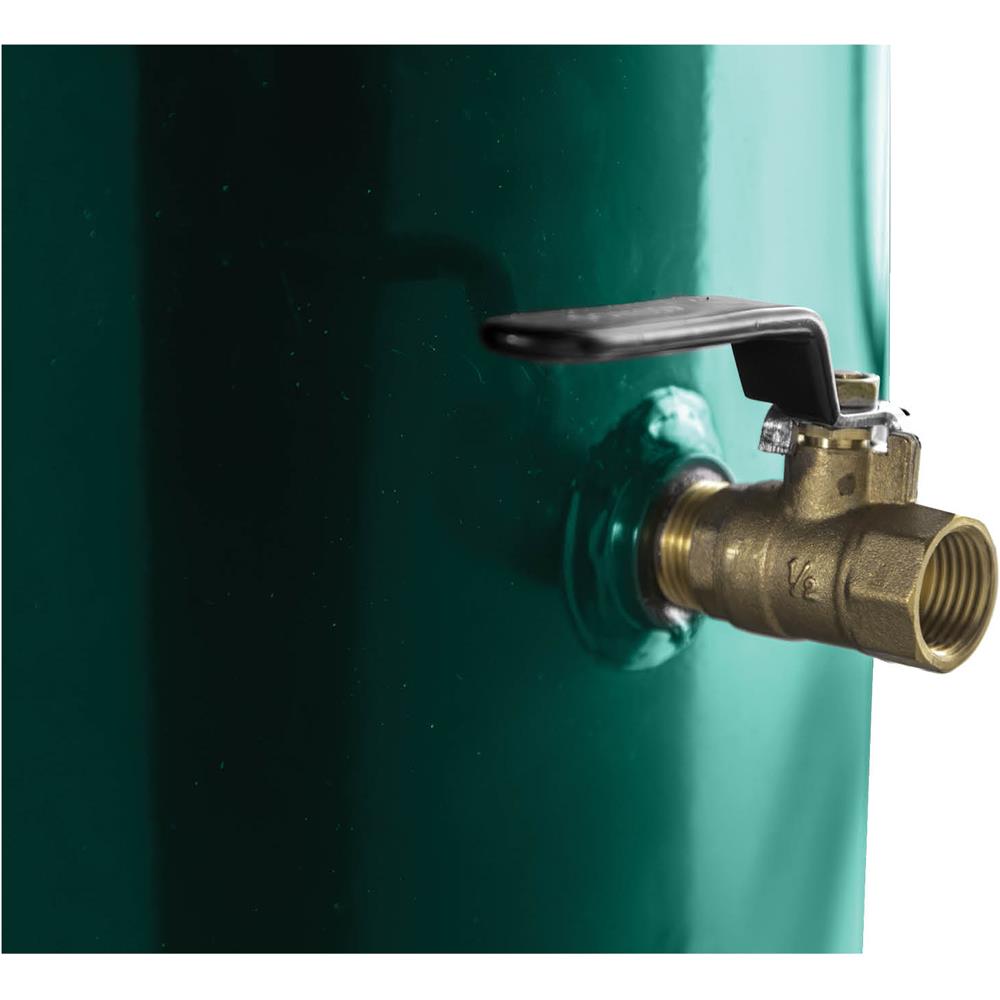

Ball-valve drain and output control

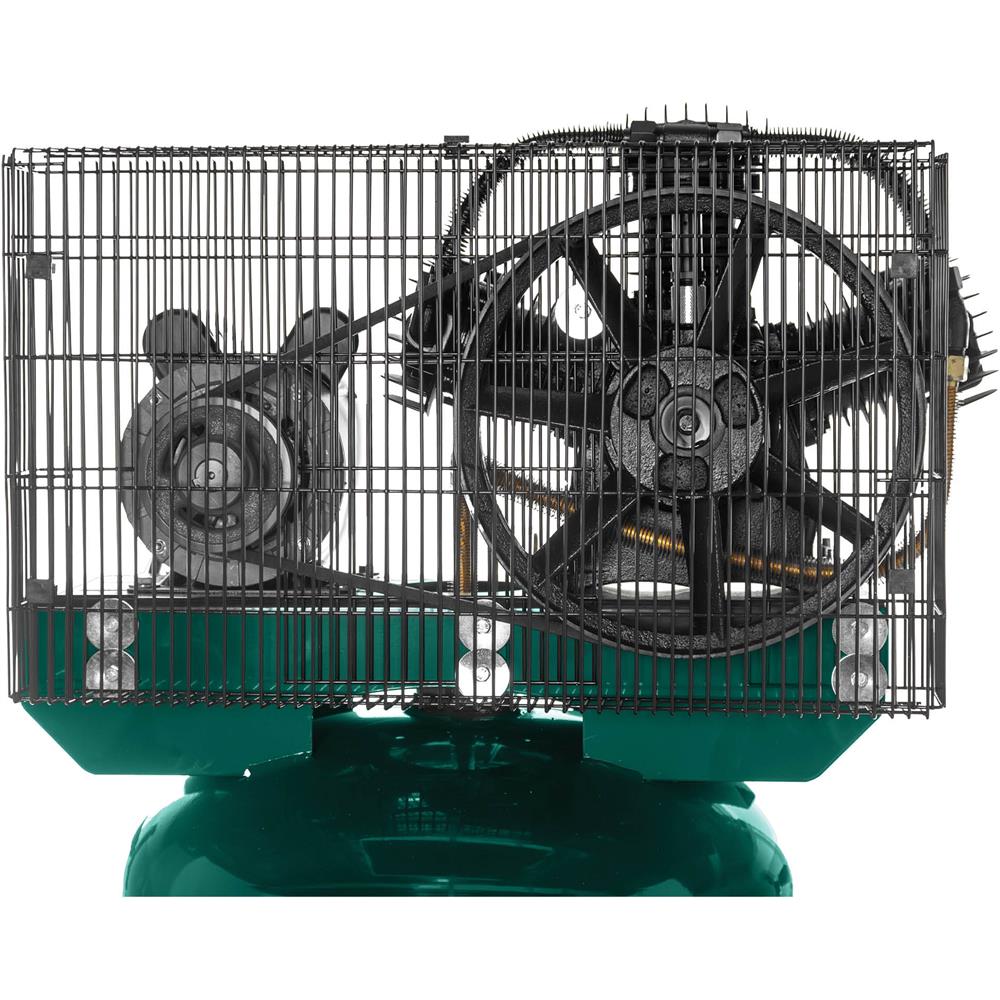

Wired-formed belt guard for more efficient cooling
Fan pulley and cooling fin design to keep compressor cool
