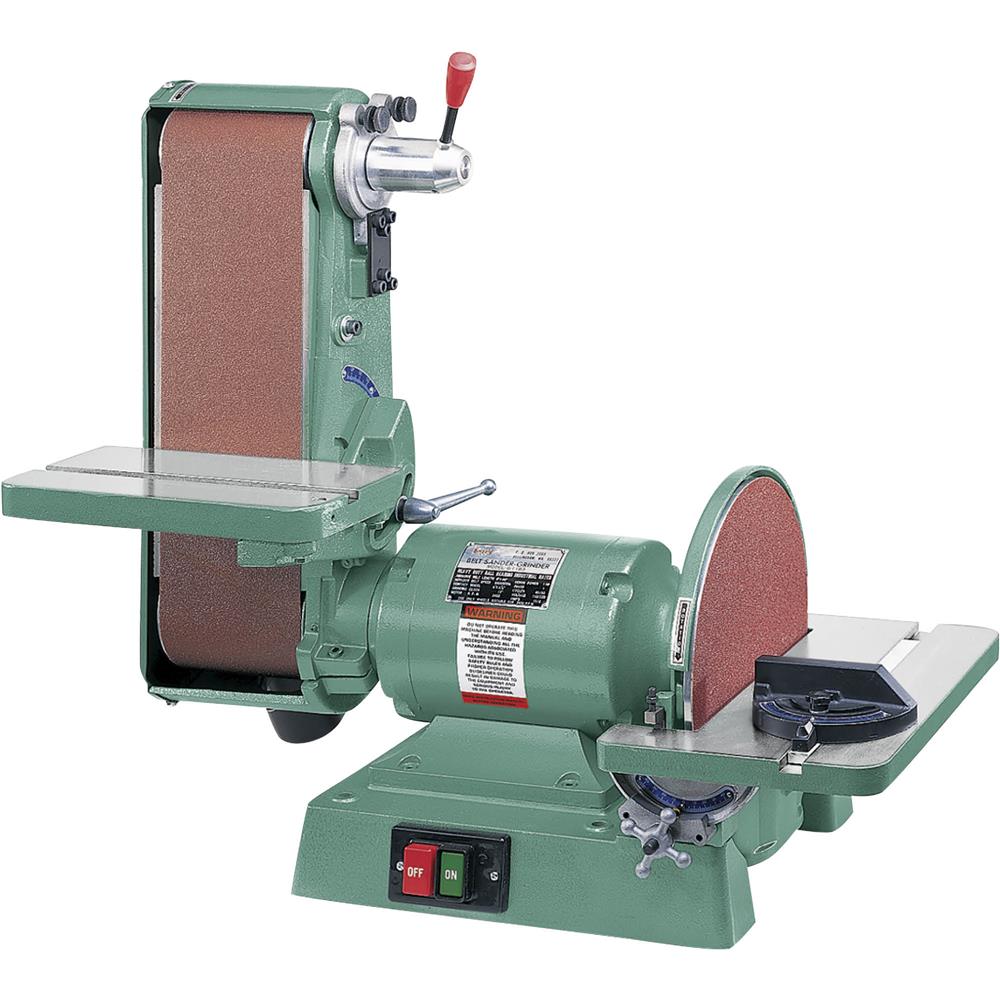

G1276 6" x 48" Belt/12" Disc Combination Sander

A sander built to the scale and level of quality professional woodworkers demand.

The heavy-duty G1276 Combination Sander features a 6" x 48" sanding belt that operates horizontally, vertically, or at any angle in between and a 12" disc.

The sanding belt speed is a low 2500 FPM, while the disc speed is 1725 RPM.

The 7" wide, 16-1/2" long work table supports workpieces when using the 12" sanding disc. It tilts from 30° to the left and 45° to the right.

The convenient, quick-release lever makes belt changes and tension adjustment a snap.

Belt rollers have shielded ball bearings and the top roller has a fine-tuning knob for precision tracking.

Base accepts 5/8" fasteners for mounting to workbench.

Additional features include a built-in an adjustable miter gauge, 2-1/2"and 3"dust ports, plus T-slots in the cast-iron work tables.

There is a full range of replacement and for the G1276.

SPECIFICATIONS:

FEATURES:

• Quick belt release
• Top roller has fine tracking knob
• Disc table positive stops at 90°
• Belt table positive stops at 45° and 90°
• Two cast-iron tables
• Miter gauge
