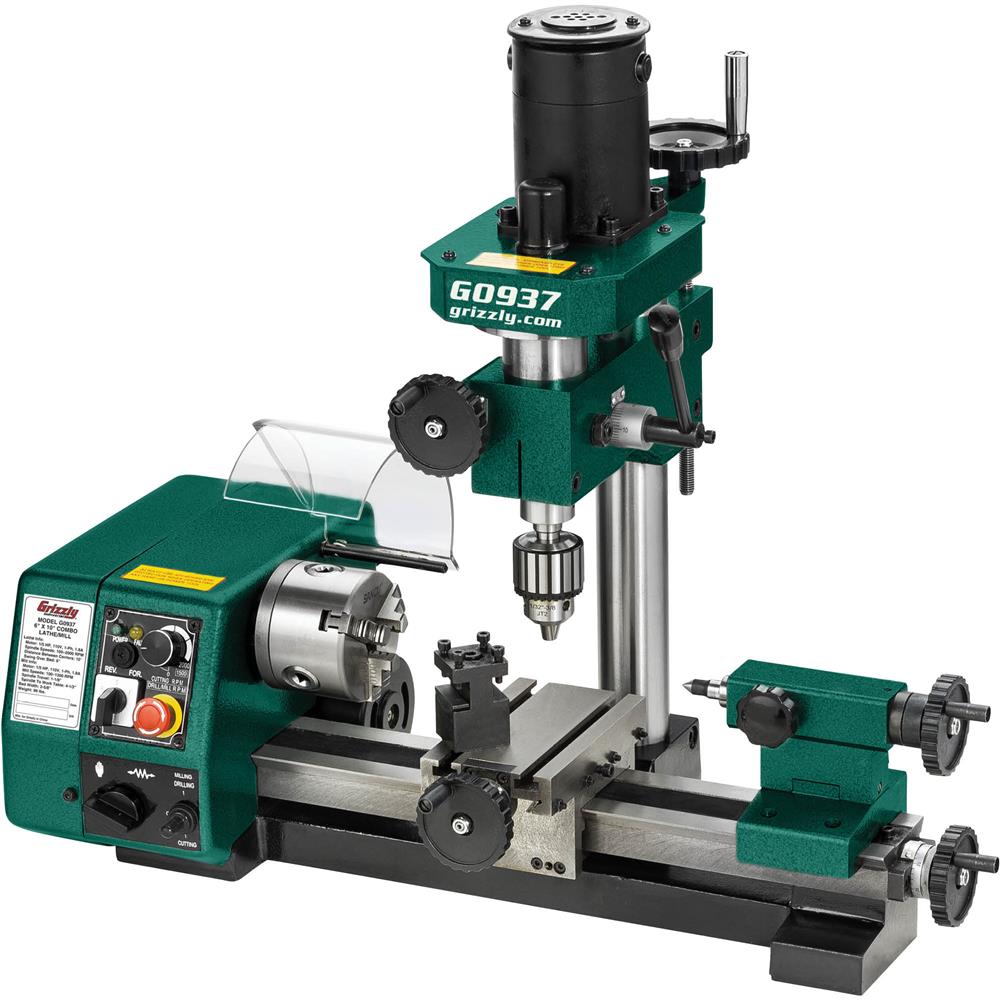

G0937 6" x 10" Combo Lathe/Mill

Turn, mill, and drill precise little parts.

The stout and multi-purpose G0937 Combo Lathe/Mill is a small, yet robust lathe and mill combination that is great for creating small projects.

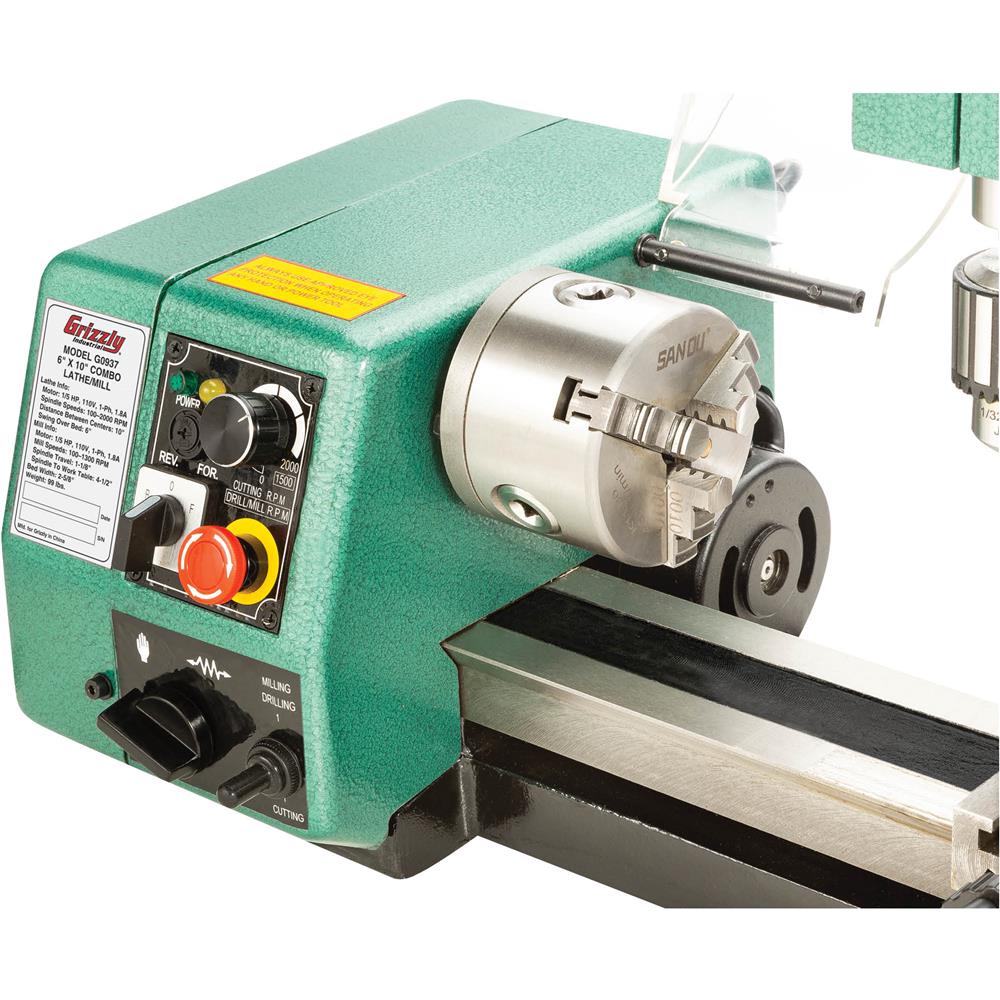

The lathe cuts inch threads and comes with a 3" three-jaw scroll chuck.

The compound rest features a 2-way turret tool post and the cross slide conveniently acts as a mill table with two 5/16" T-slots for work-holding.

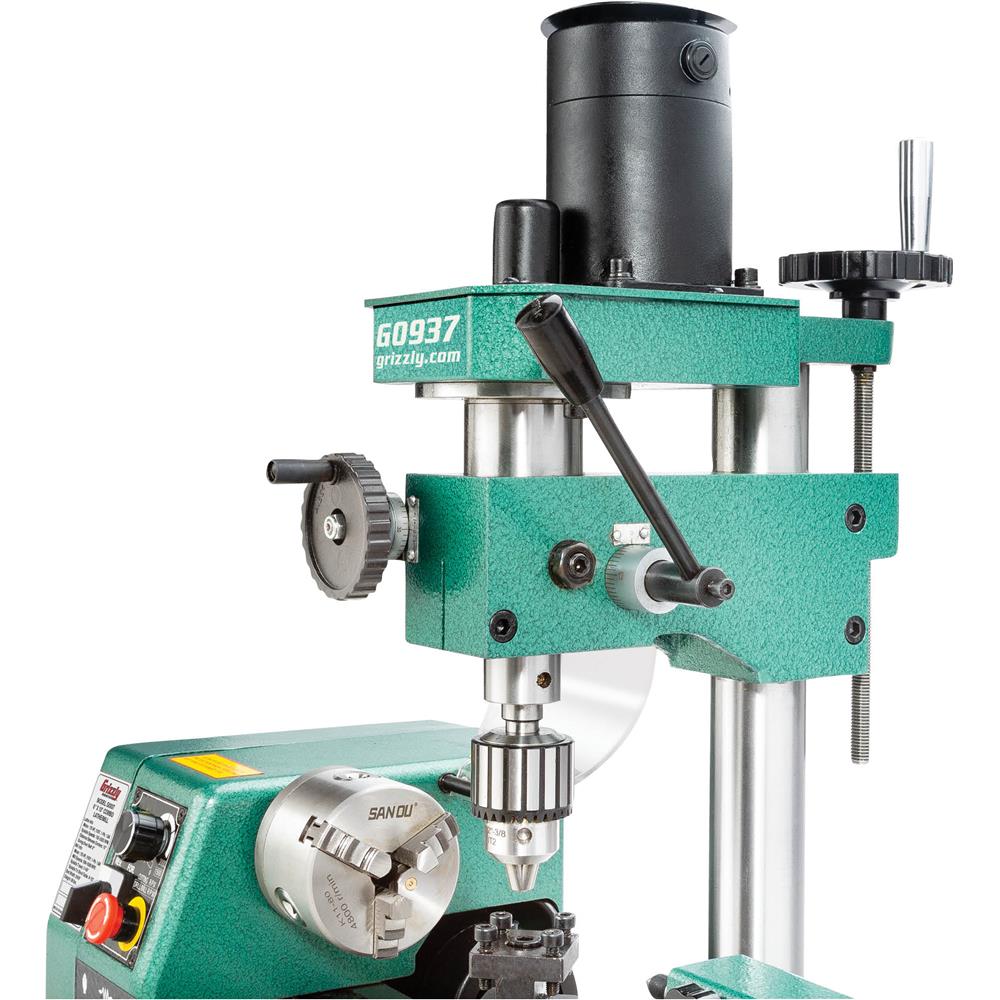

Accurate and repeatable, the mill has an adjustable head, a fine down feed clutch, comes with a JT#2 drill chuck taper, MT#2 spindle taper, and an MT#1 tailstock taper.

LATHE SPECIFICATIONS:

• Swing over bed: 6"
• Swing over cross slide: 3"
• Distance between centers: 10"
• Spindle speed: Variable, 100–2000
• Spindle bore: 11/32"
• Spindle taper: MT#2
• Tailstock taper: MT1
• Tailstock quill travel: 1"
• Carriage travel: 7"
• Cross slide travel: 2-7/8"
• Inch thread range: 5, 16–24 TPI

MILL SPECIFICATIONS:

• Swing: 4"
• Distance from spindle to table: 4-1/2"
• Spindle speed: Variable, 100–1300
• Spindle taper: MT#2
• Spindle travel: 1-1/8"
• T-slots: two 5/16", 2" on center
• Maximum tool bit size: 3/8"
• Drilling Capacity: 8mm (steel)

MAIN SPECIFICATIONS:

FEATURES:

• Dual cross slide mill table
• Dual universal motors
• Variable-speed spindles
• Precision-ground cast-iron bed
• Push/pull fine-feed clutch with handwheel
• MT#2 spindle taper
• MT#1 tailstock taper
• JT2 drill chuck 1/32"–3/8"

INCLUDES:

• MT#1 dead center
• 3" 3-Jaw scroll chuck with internal and external jaws
• Thread-cutting gear change set
• (2) Chuck keys
• (2) T-slot nuts
• Service tools
