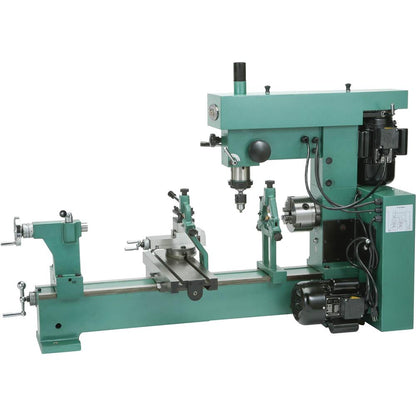

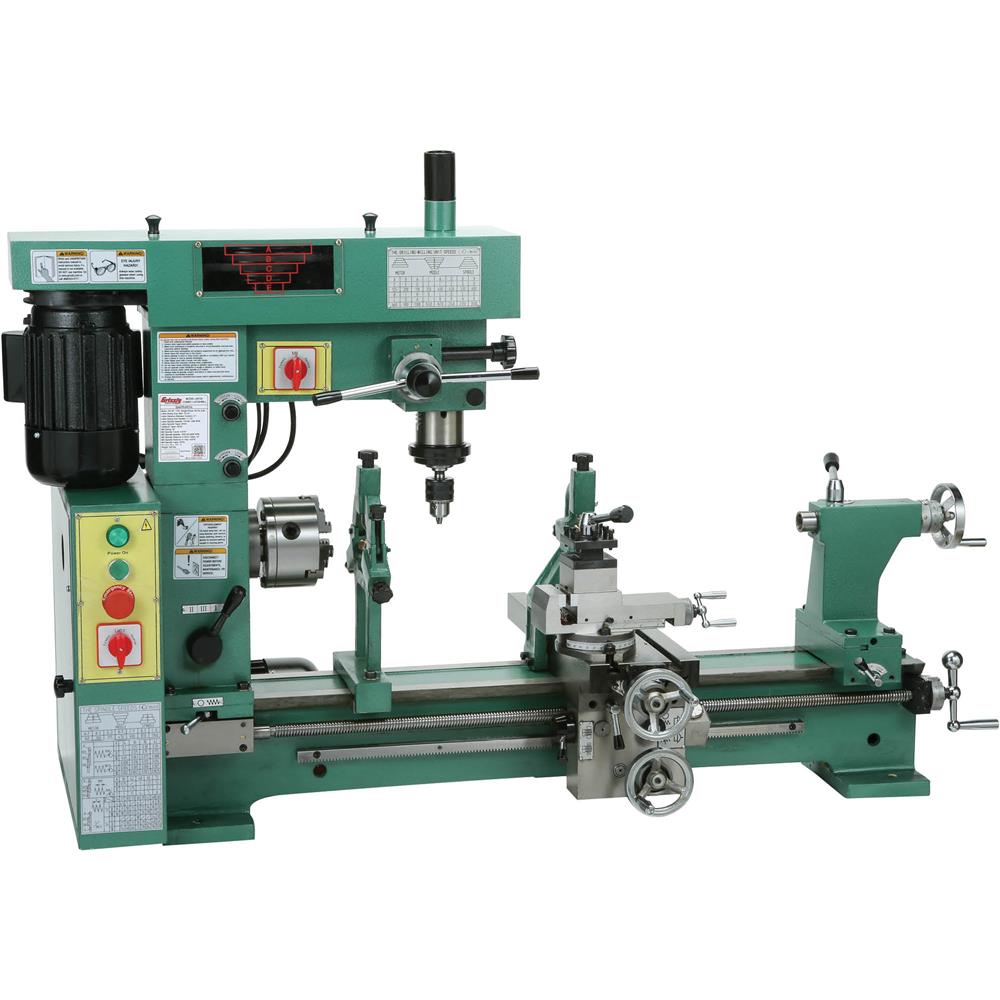

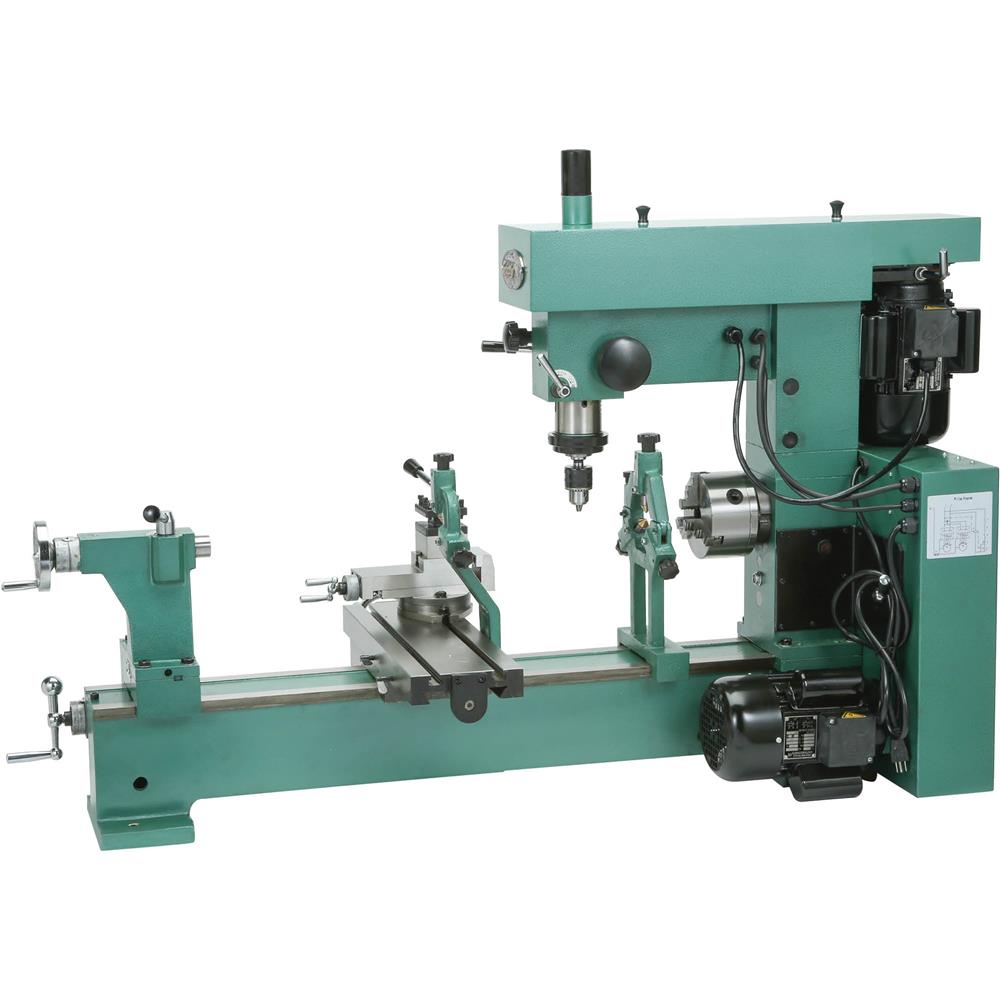

G9729 31" 3/4 HP Combo Lathe/Mill

Need a larger combo machine?

One with an awesome 31" between centers and 16-1/2" swing? The G9729 31" 3/4 HP Combo Lathe/Mill is the answer.

The lathe cuts inch and metric threads with ease and features a steady rest and a follow rest.

With great features like a magnetic controller and a forward/reverse switch, hardened and ground bedways, two motors for extra power, a built-in milling table with T-slots, and a 4-way turret tool post makes this a real do-it-all machine.

Convenient window allows easy verification of drill spindle speeds.

An incredible machine at an unbeatable price!

LATHE SPECIFICATIONS:

• Motor: 3/4 HP, 110V, single-phase, 8.8A
• Swing over bed: 16-1/2"
• Swing over cross slide: 11-1/2"
• Distance between centers: 31"
• Spindle speeds: 7, 175–1425 RPM
• Spindle bore: 1.107"
• Spindle taper: MT #4
• Tailstock barrel taper: MT #3
• Tailstock travel: 2-1/2"
• Cross slide travel: 7-1/2"
• Compound travel: 3"
• Longitudinal feeds: 24, 0.002–0.014 in/rev
• Inch thread range: 44, 4–120 TPI
• Metric thread range: 14, 0.75–6.0mm

MILL SPECIFICATIONS:

• Motor: 3/4 HP, 110V, single-phase, 8.8A
• Swing: 22"
• Distance from spindle to table: 12"
• Distance from spindle to bed: 14-1/2"
• Spindle speeds: 16, 120–3000 RPM
• Spindle travel: 4-5/16"
• Spindle taper: MT #3
• Table dimensions: 6-1/4" W x 18-3/4" L x 1-1/4" H
• T-slots: two at 7/16", 3.54" (90mm) on center
• Maximum tool bit size: 1/2"
• Drilling capacity: 1/2" (steel)

MAIN SPECIFICATIONS:

FEATURES:

• T-slots in cross slide
• Carriage lock
• Power cross feed
• Power longitudinal feed
• Fine downfeed
• Hardened and ground bedways
• Two separate motors
• Built-in vise
• Adjustable mill/drill head

STANDARD EQUIPMENT:

• 1/2" Drill chuck with arbor
• 2 Dead centers

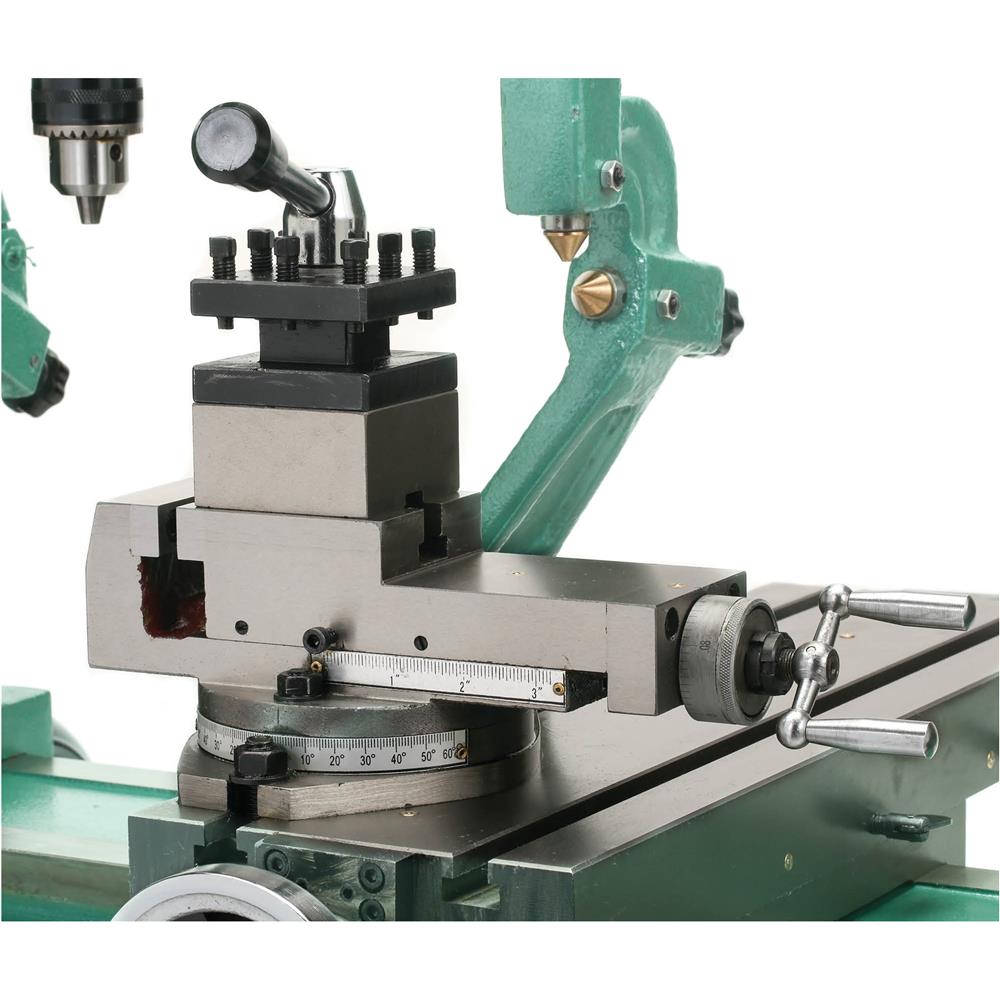

• 4-Way tool post
• 5" 3-Jaw chuck
• 9" Faceplate
• Change gears
• Follow rest
• MT #3 chuck arbor 3/8" x 16 TPI
• Steady rest
• Threading dial
