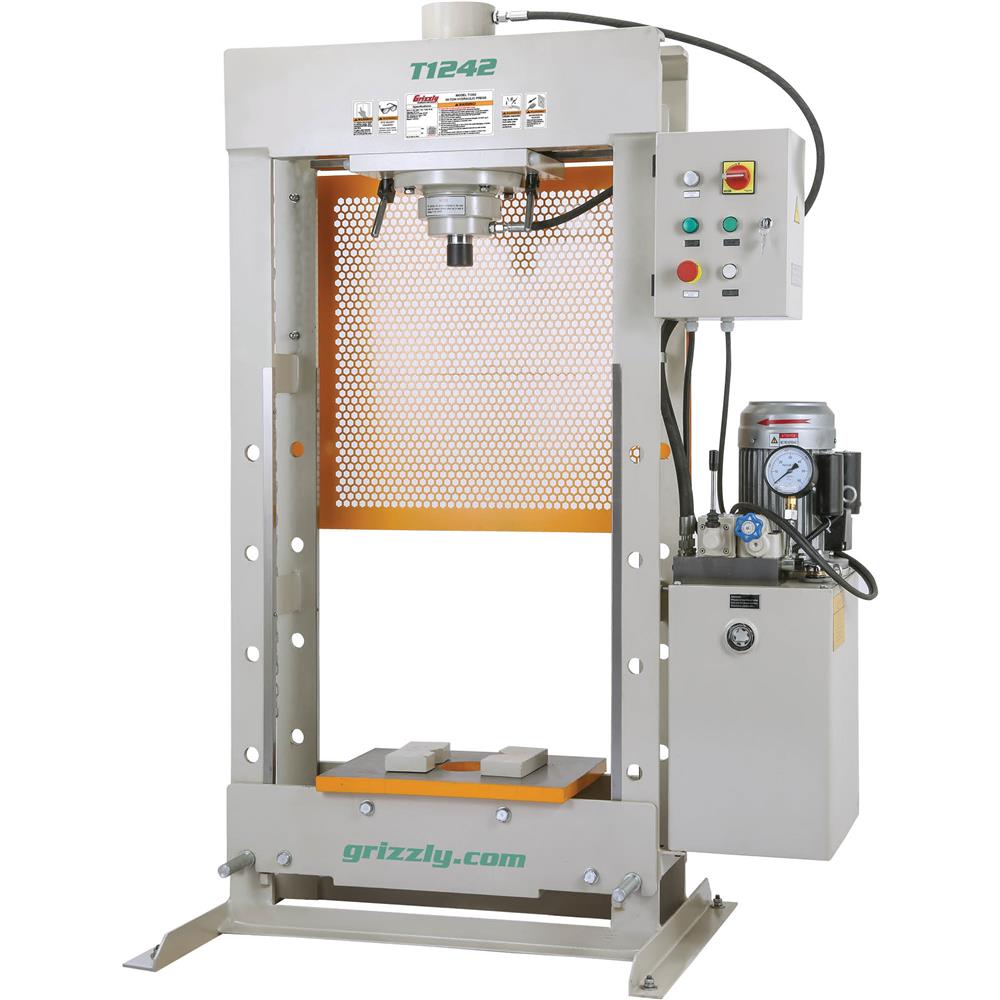

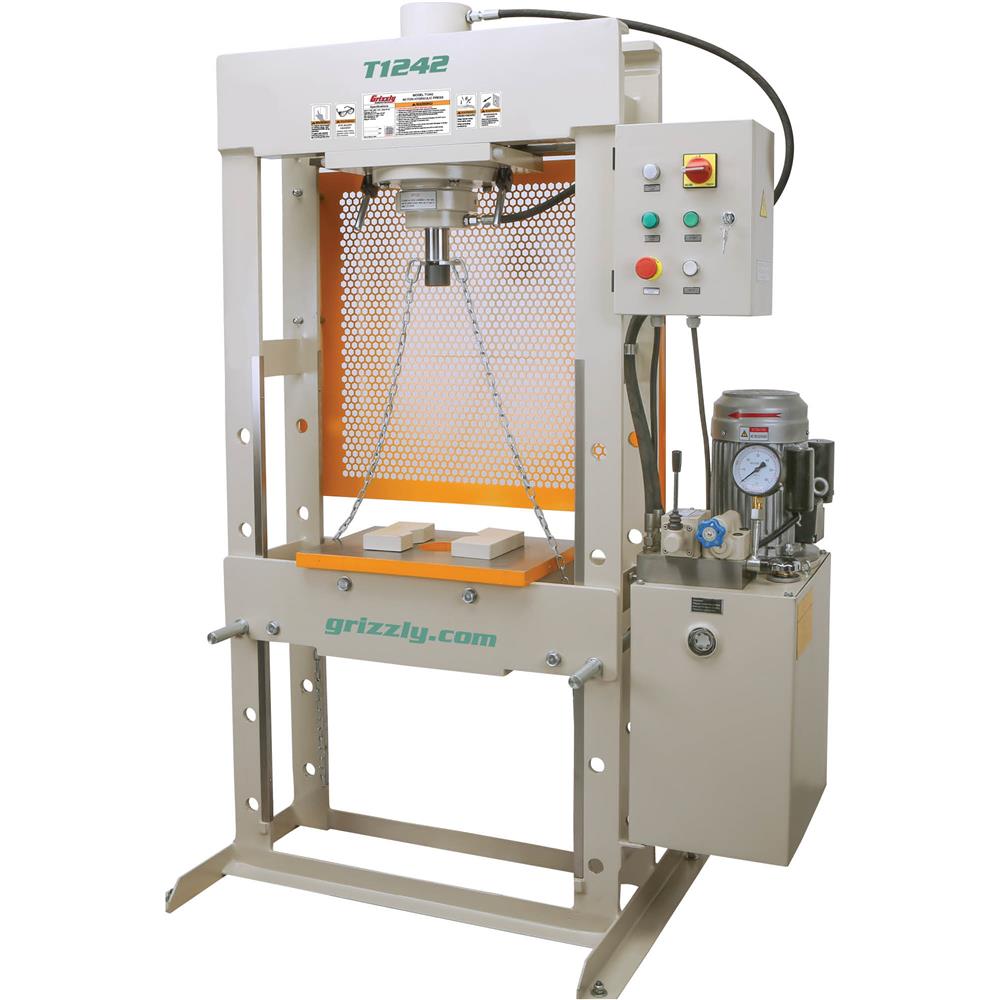

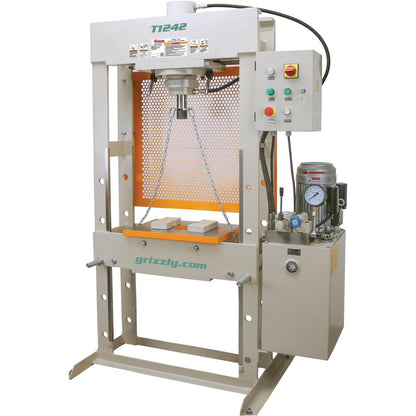

Grizzly T1242 30 Ton Electric Hydraulic Shop Press

A heavy-duty press for all your pressing needs.

Shop presses are commonly used to press tight-fitting parts together. The T1242 30-Ton Electric/Hydraulic Shop Press offers the maximum pressure for typical shop presses performing manufacturing, automotive or general mechanical work.

It is important that the press bed be set to keep the workpiece as close to the ram as possible to ensure optimum operation. With that in mind, the T1242 has five table height positions.

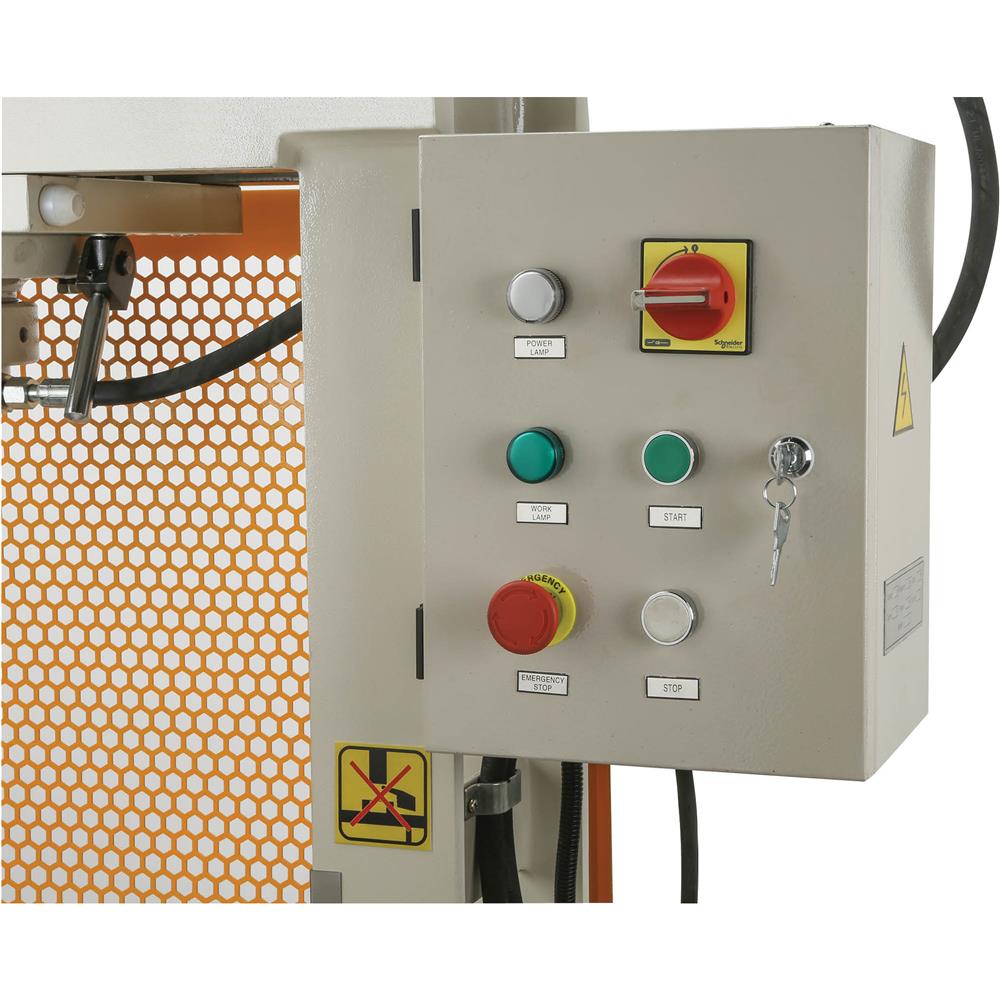

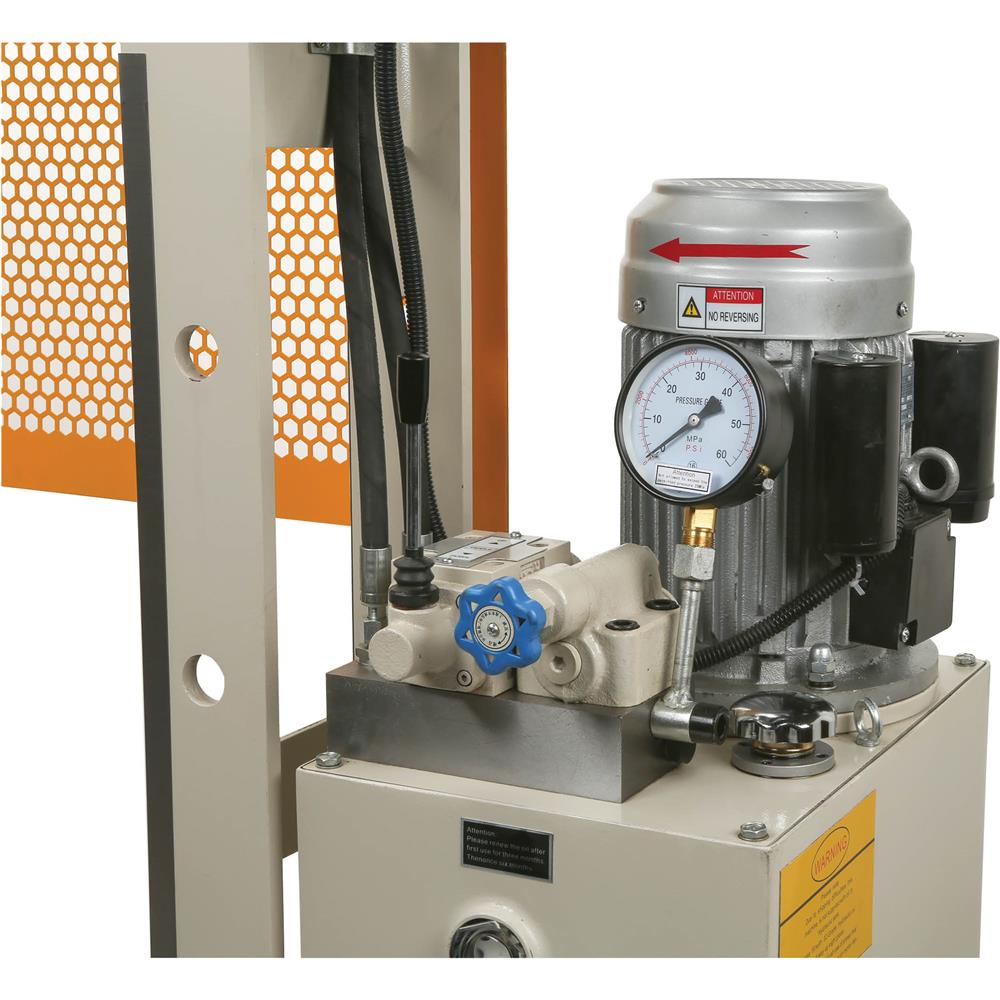

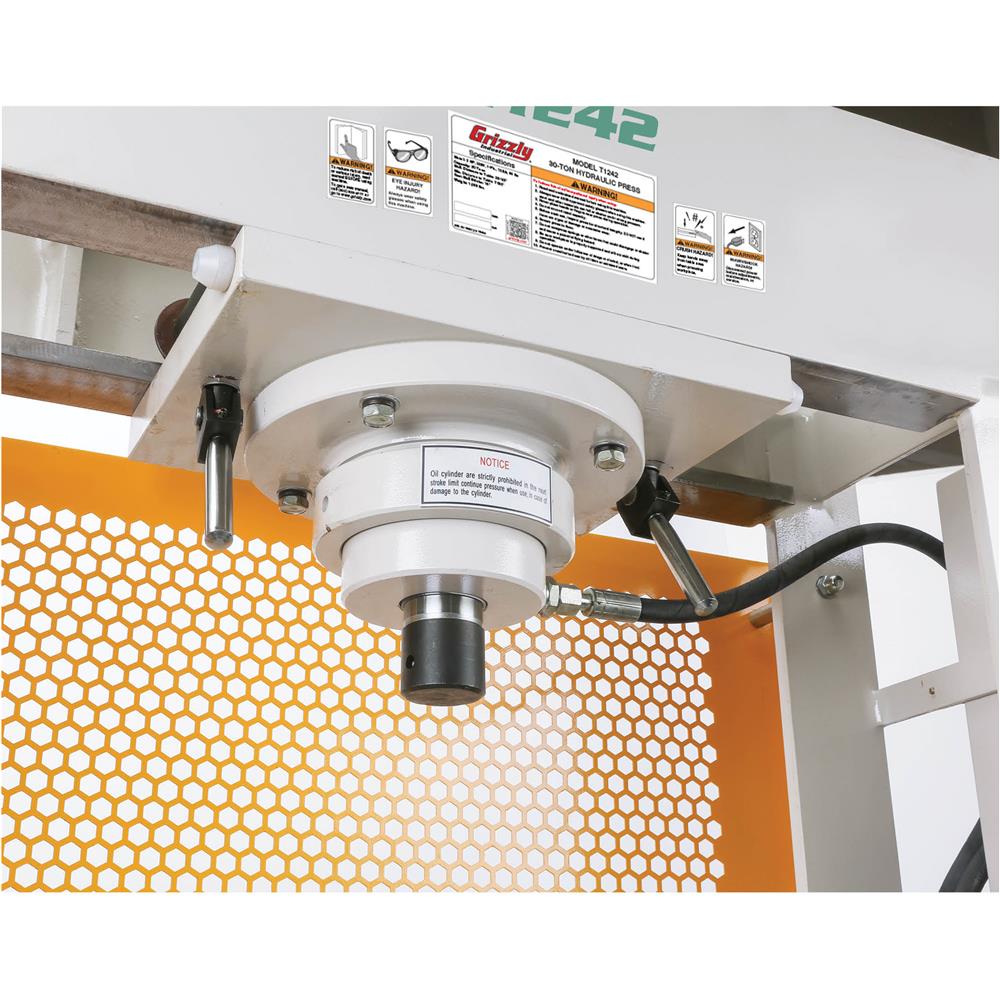

The 3 HP, 220V, single-phase hydraulic pump motor is powered by easy-access push-button controls. The 2" sliding piston head is horizontally adjustable for off-center parts and has a maximum 10" stroke.

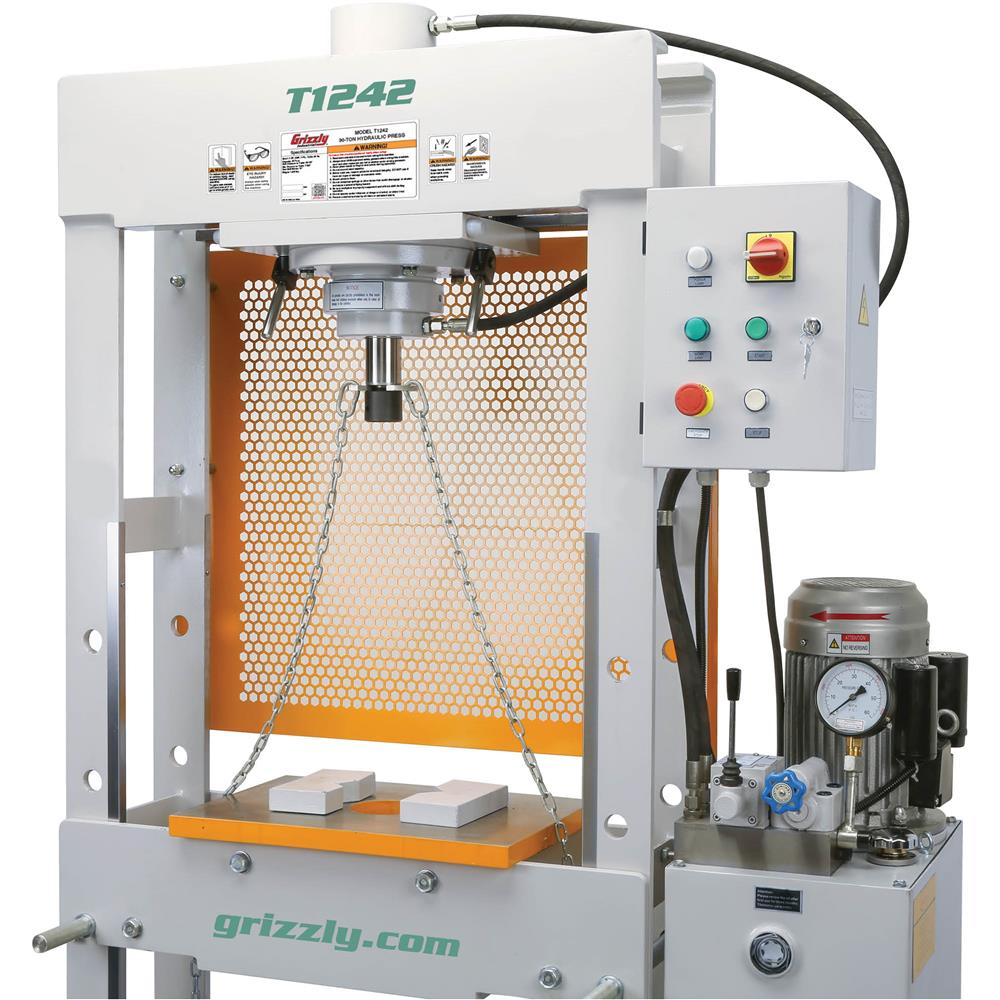

The 30-Ton Shop Press includes a carriage/table lifting chain, two steel table plates, and a full-size rear-guard plate.

SPECIFICATIONS:

FEATURES:

• Motor-driven hydraulic operation
• Built-in pressure gauge
• Welded steel frame for maximum rigidity
• Sliding head for off-center parts

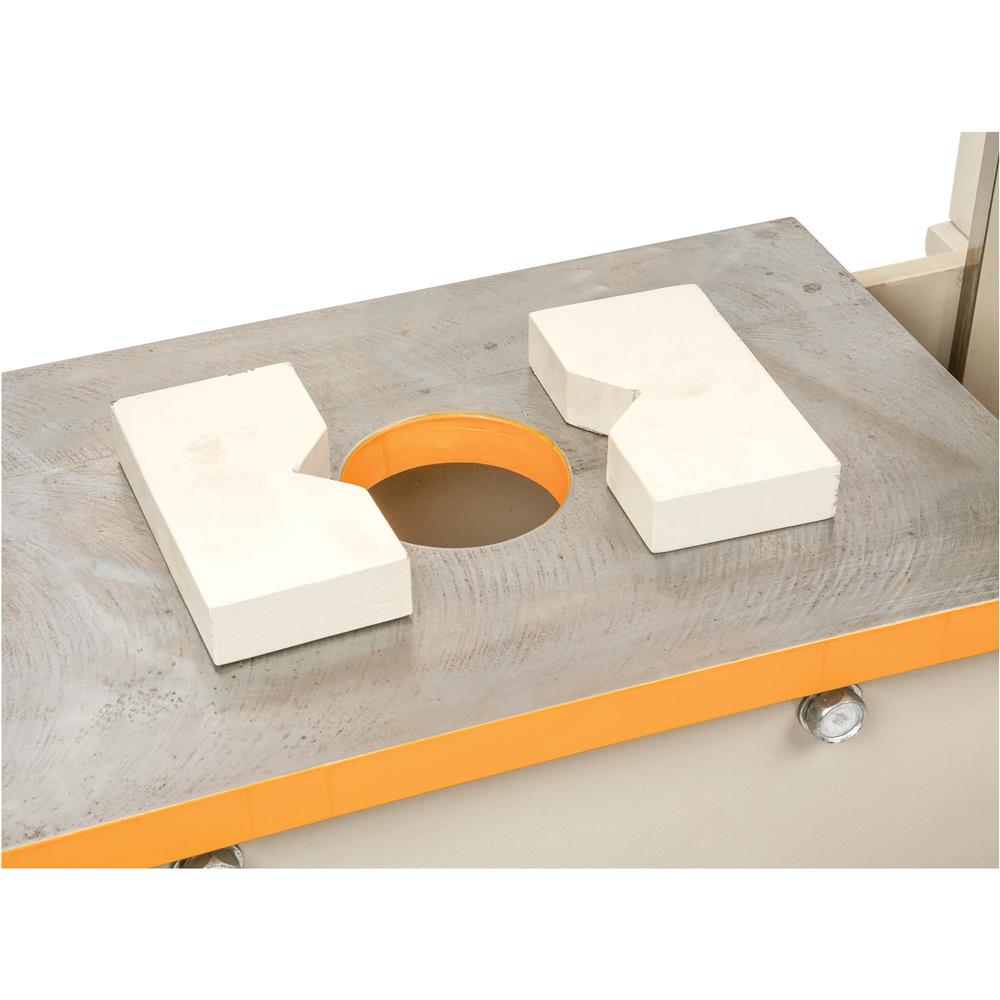

• Two table plates
• Precision-ground cast-iron table
• Five table height positions

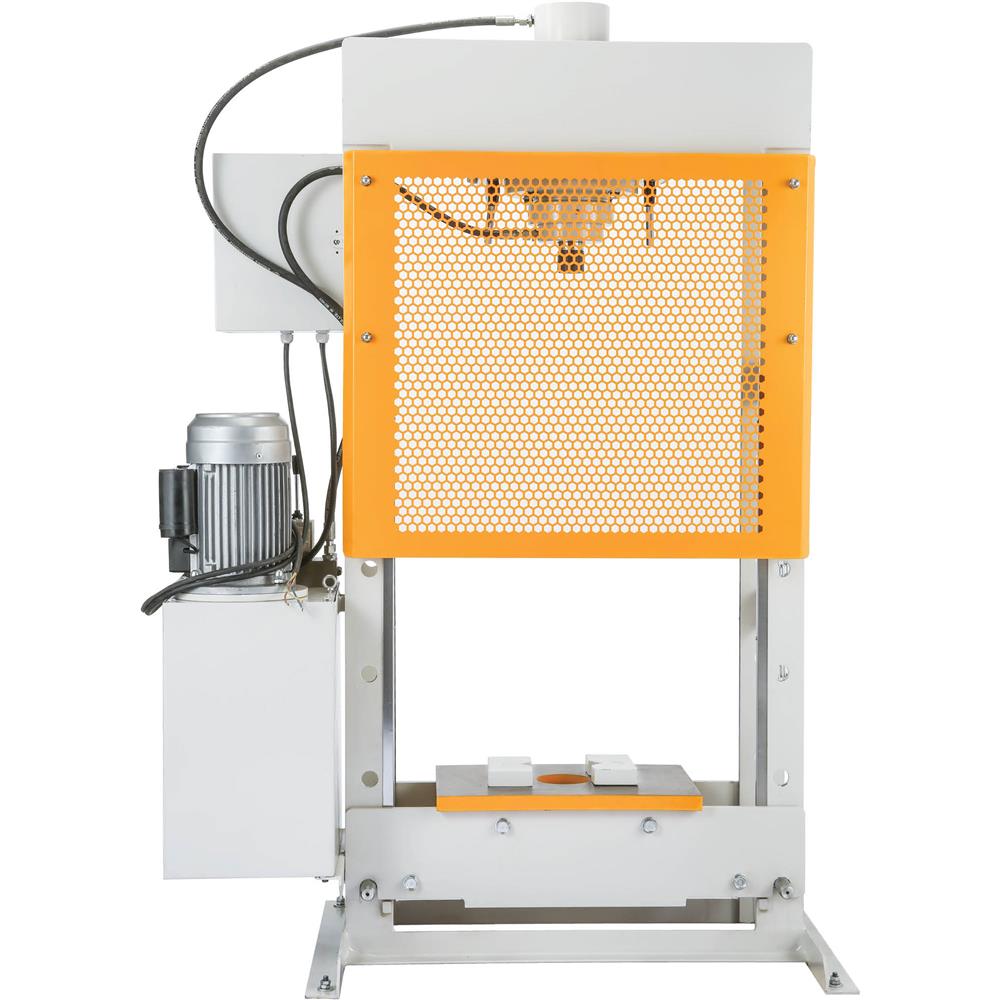

• Protective rear shielding

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate service is not available.
