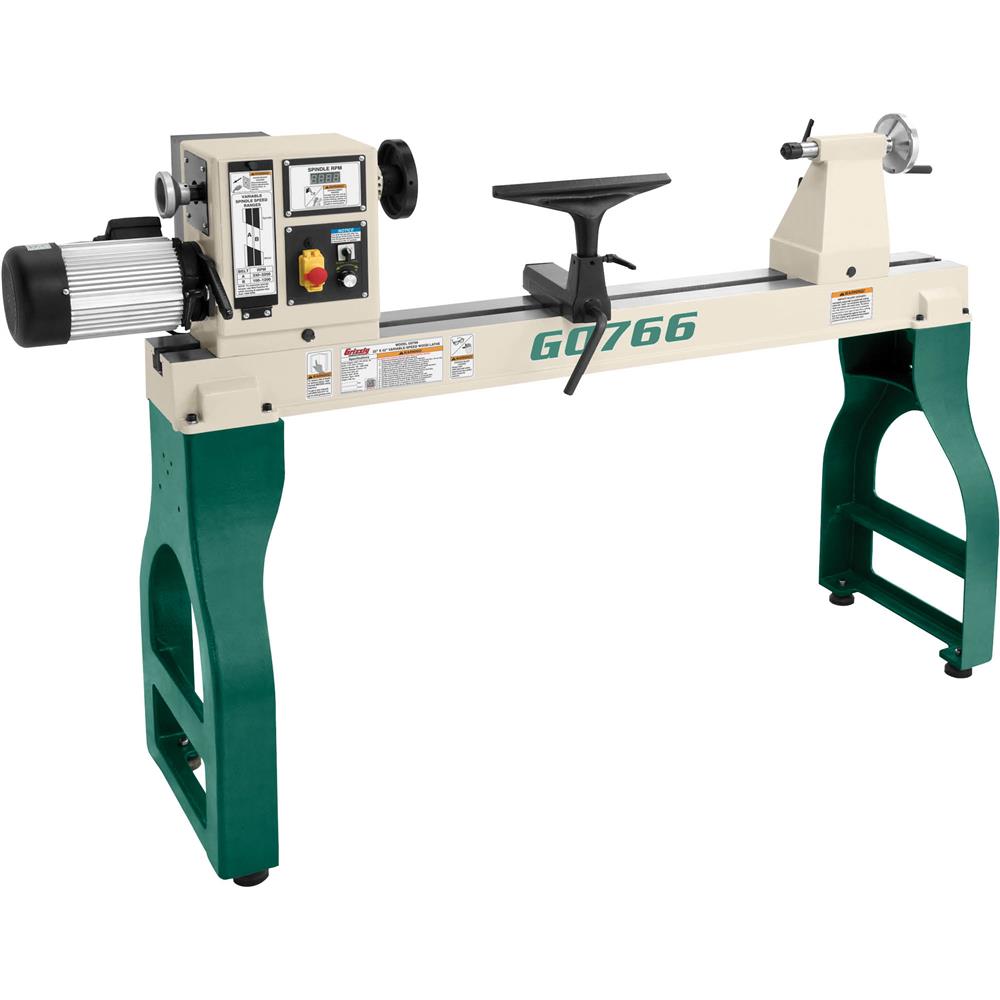

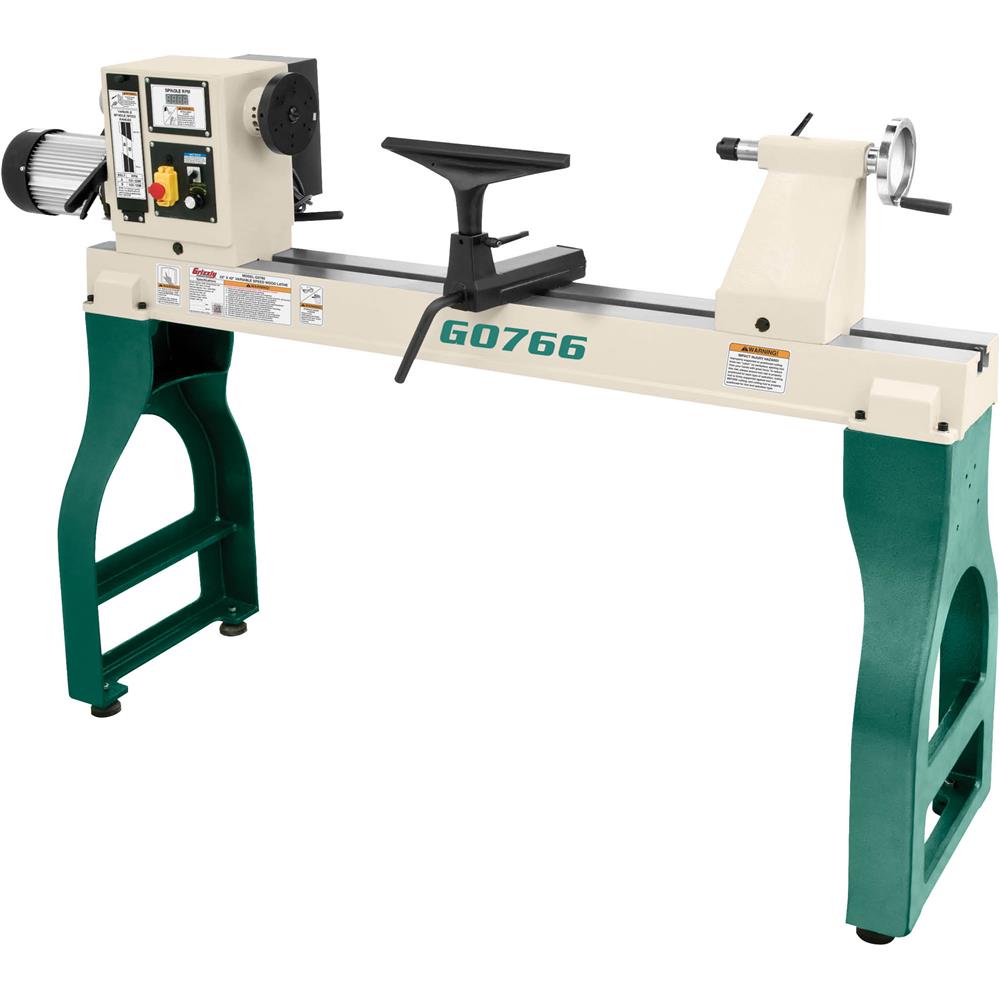

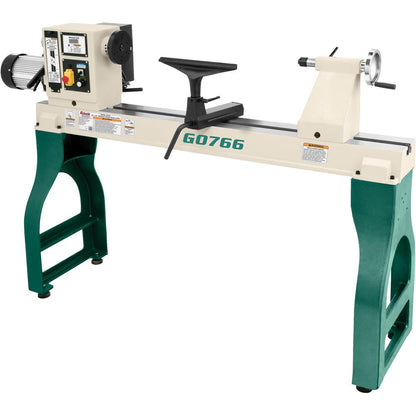

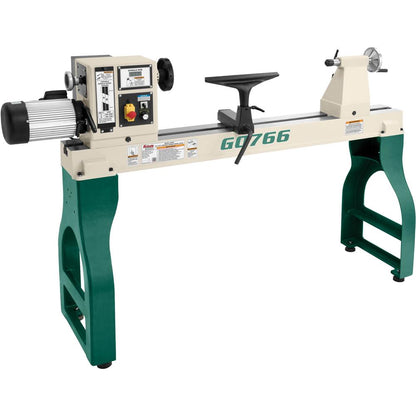

The G0766 22" x 42" Variable-Speed Wood Lathe is for serious those who want to turn large bowls, furniture pieces, and other large-diameter projects.
With 22" of swing, a heavy-duty 1-1/4" x 8 TPI RH spindle, electronic variable speed control and a 3 HP, 3-phase motor that runs off single-phase power using a variable-frequency drive, this lathe has plenty of clearance and torque to easily rough out big projects at low speeds.
The heavy-duty cast-iron bed and stand make this lathe extremely stable and the headstock can be positioned anywhere along the bed, giving you a wide range of control and flexibility with your projects.
ETL certified
SPECIFICATIONS:
FEATURES:
Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
100–1200 RPM low-speed range
330–3200 RPM high-speed range

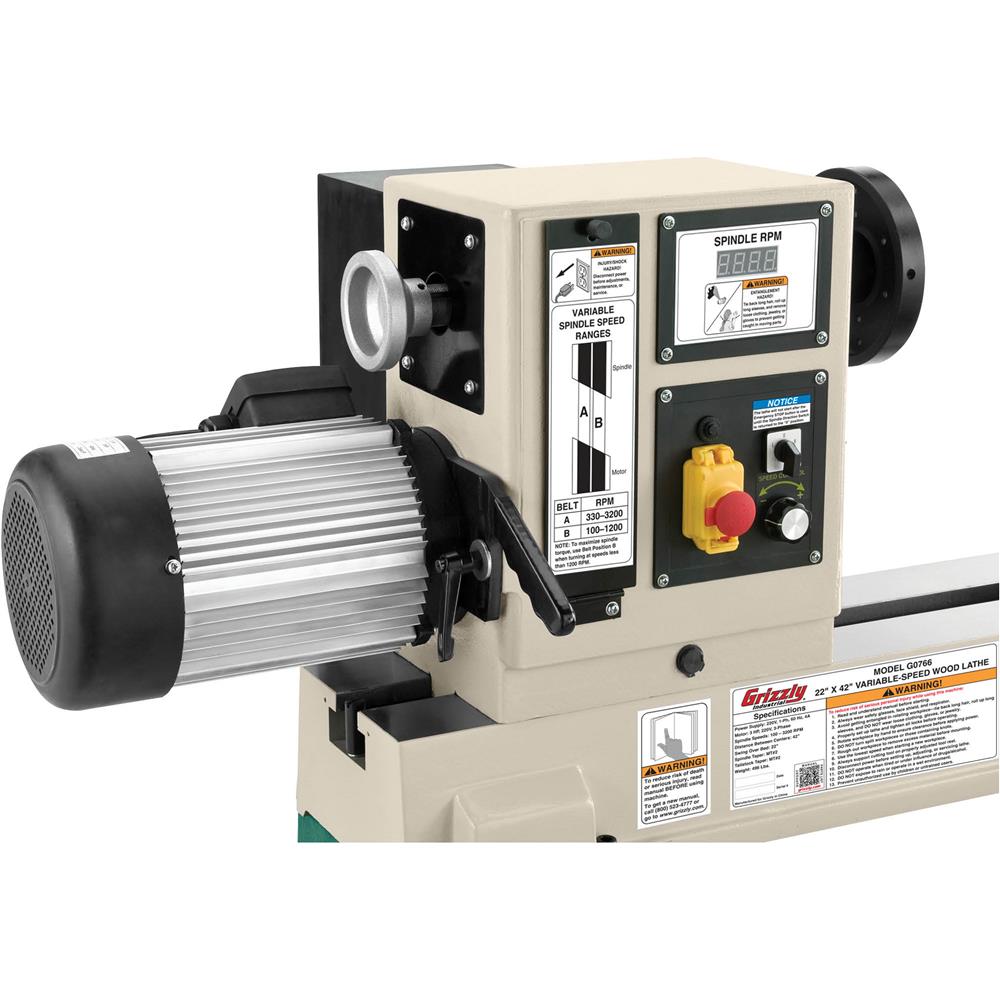

Digital readout for spindle RPM
Headstock positions anywhere along the bed
10° spindle indexing

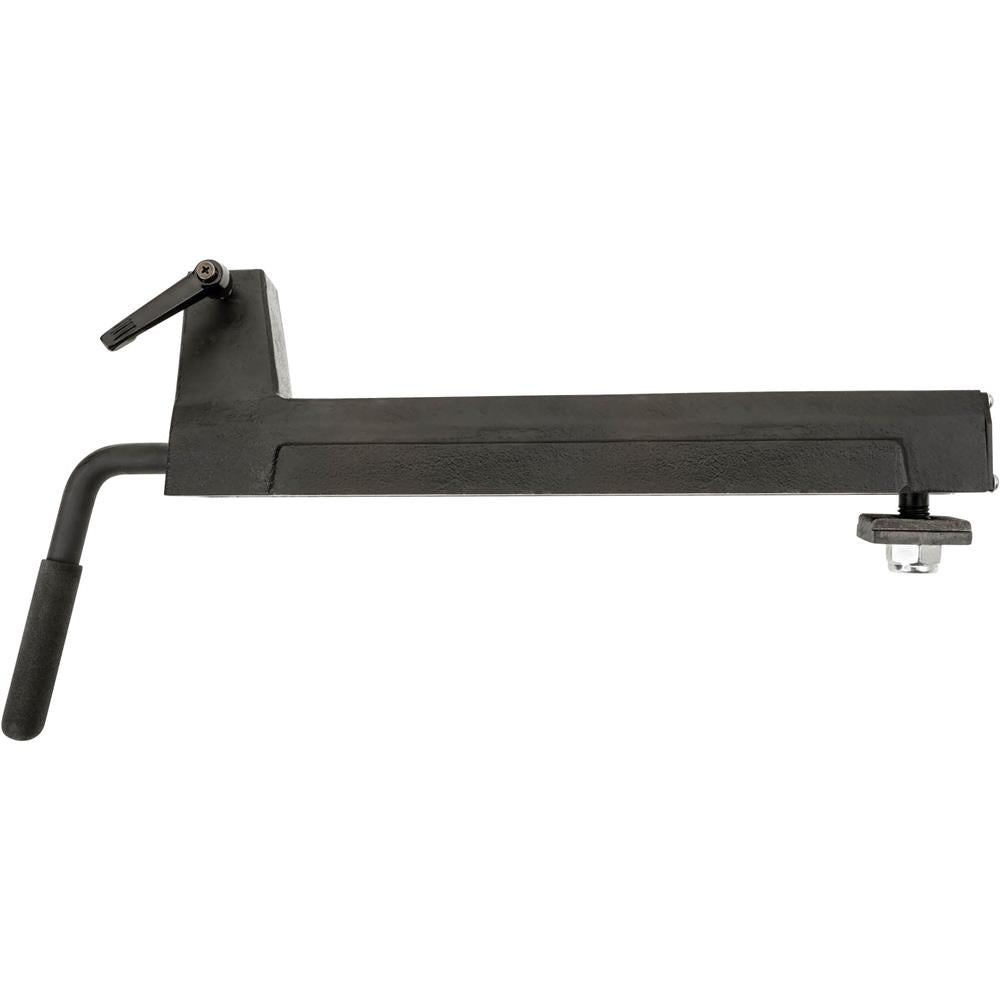

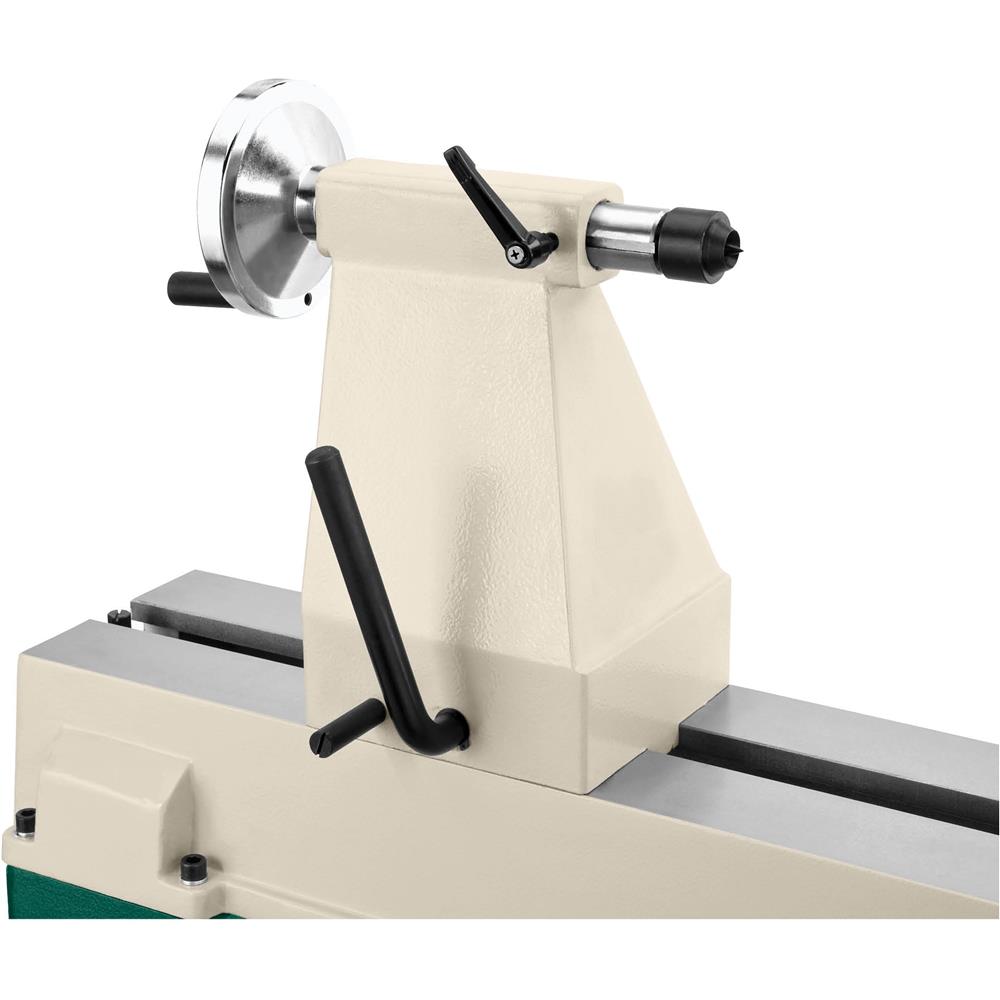

Tailstock, headstock, and tool rest support have lever-action cam locks for quick positioning
Forward/reverse spindle control
4-1/4" tailstock barrel travel

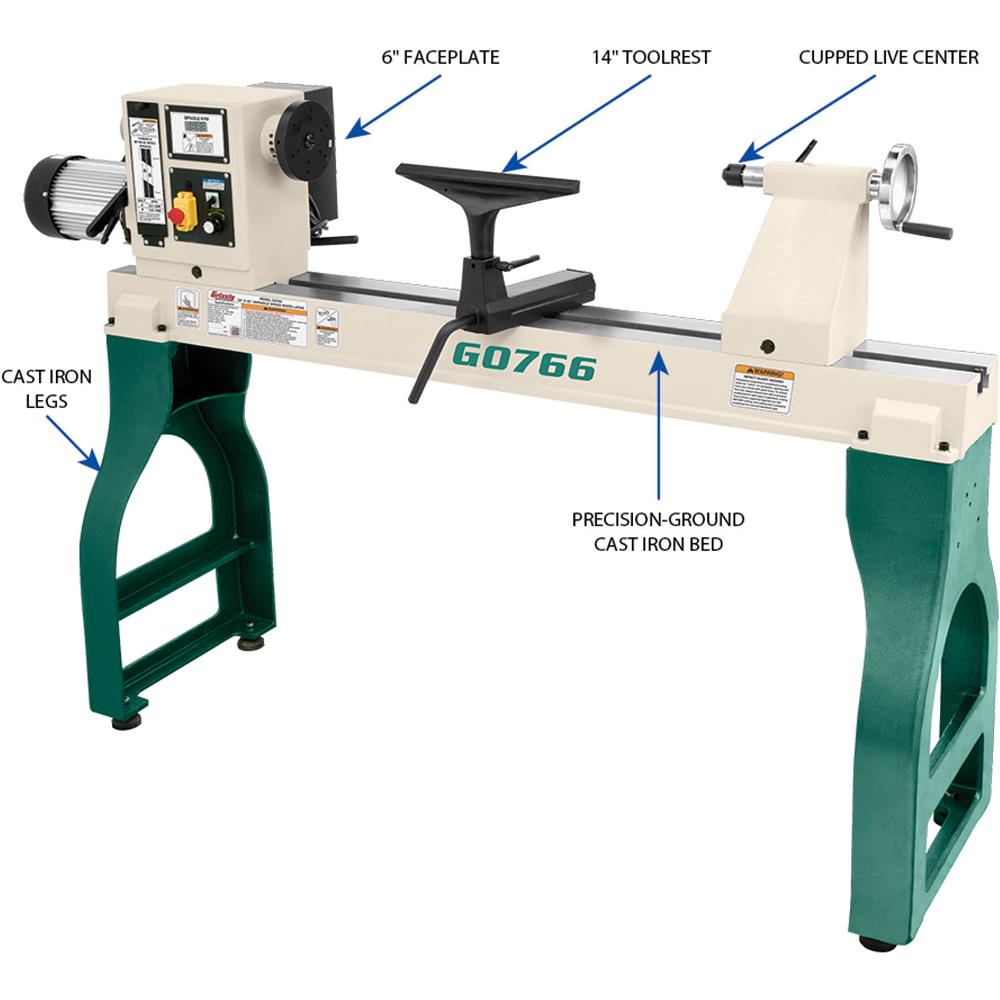

Includes spur center, cupped live center, knock-out tool, tool rest, 6" faceplate and indexing pin
