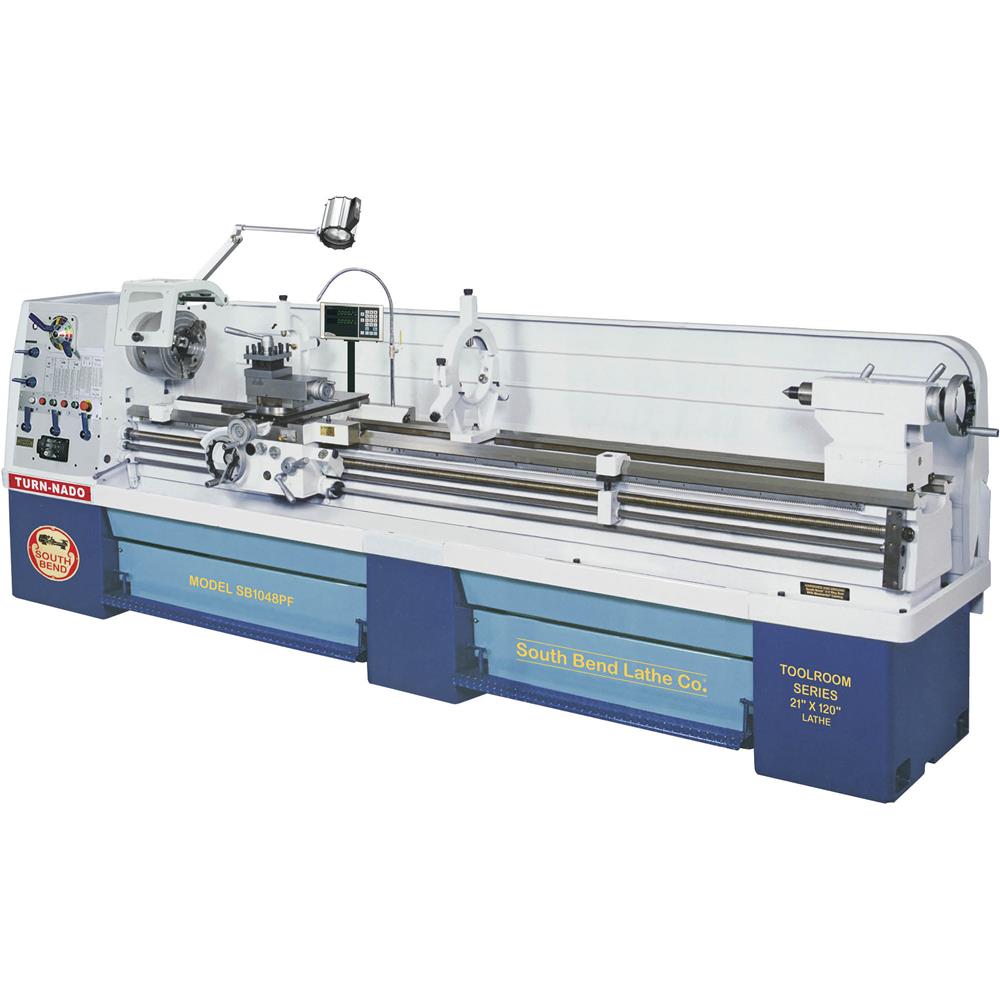

SB1048PF 21" x 120" Turn-Nado Gearhead Lathe with DRO

Quality construction providing the necessary brawn for demanding production and manufacturing tasks.

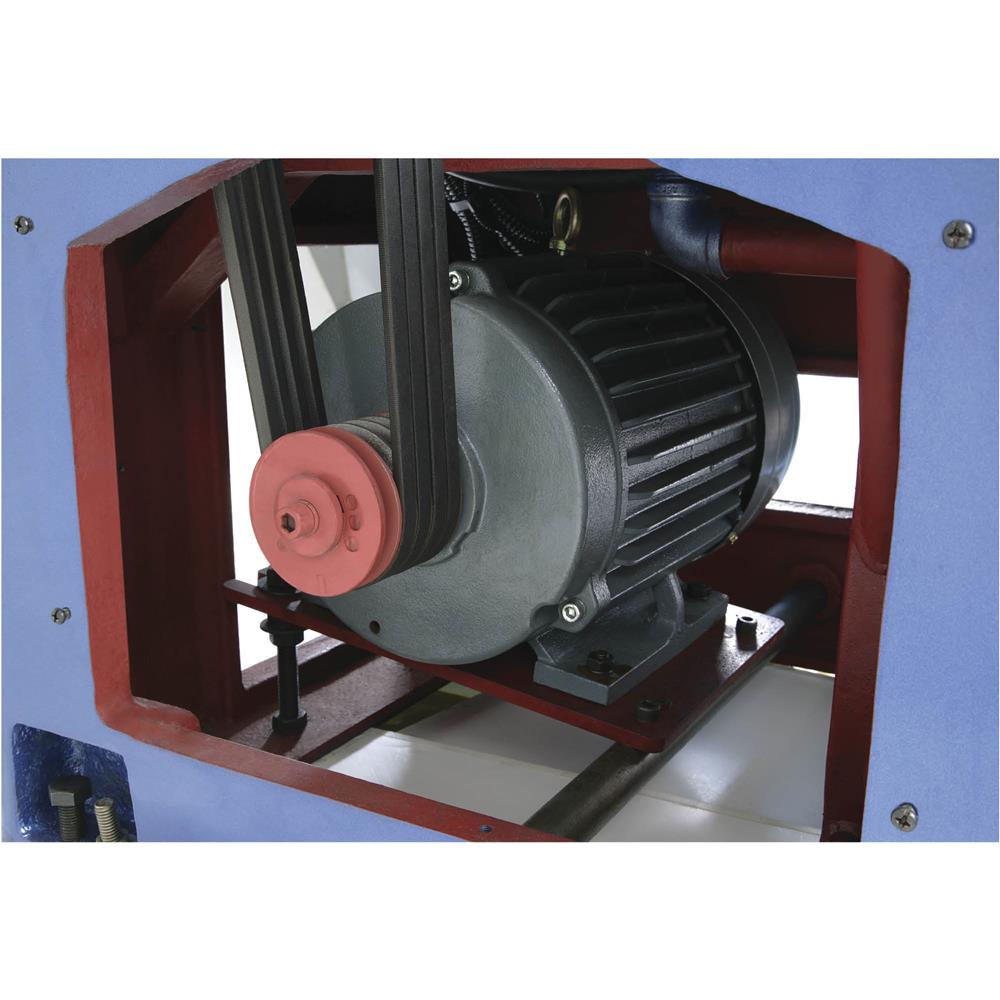

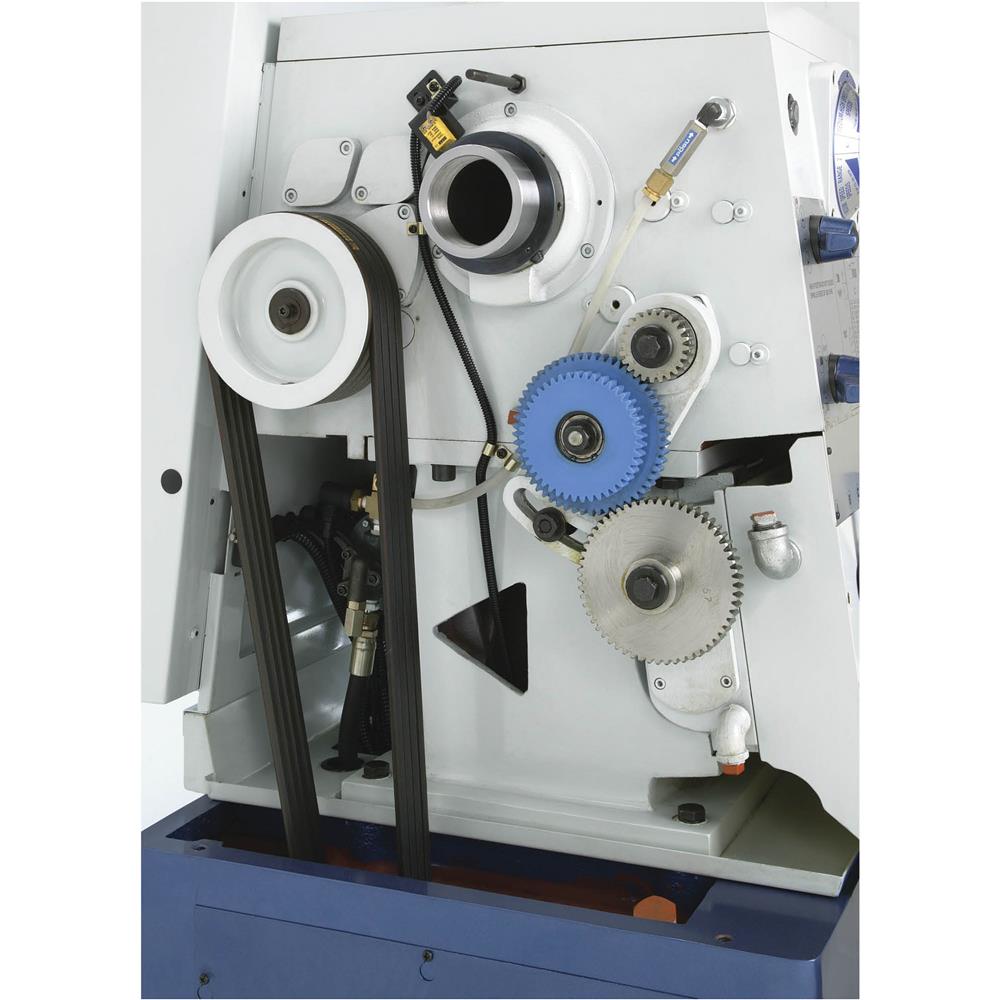

The SB1048PF 21" x 120" Turn-Nado Gearhead Lathe is driven by a fixed speed 15 HP motor with quick-change gear levers to control the 16 spindle speeds between 20–1600 RPM.

These lathes feature a spindle clutch that allows the operator to switch between forward and reverse without shutting down the motor—a great time saver.

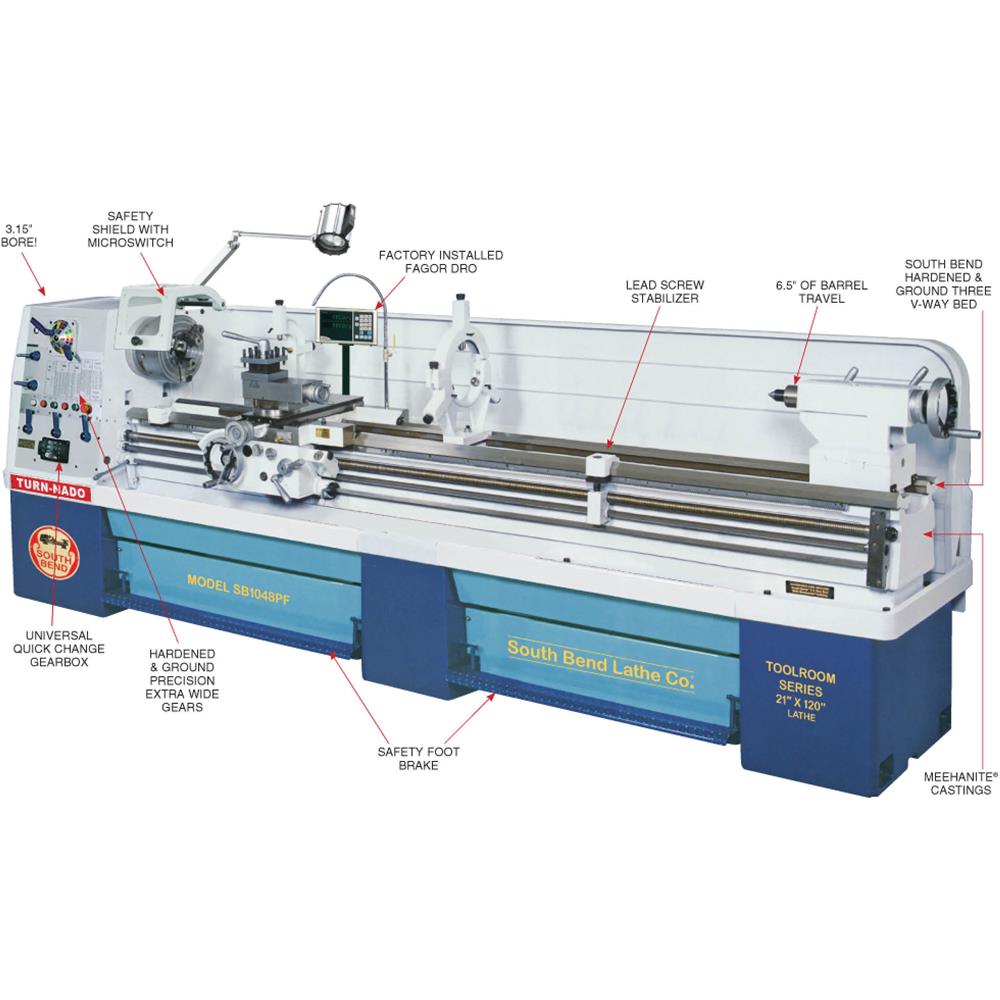

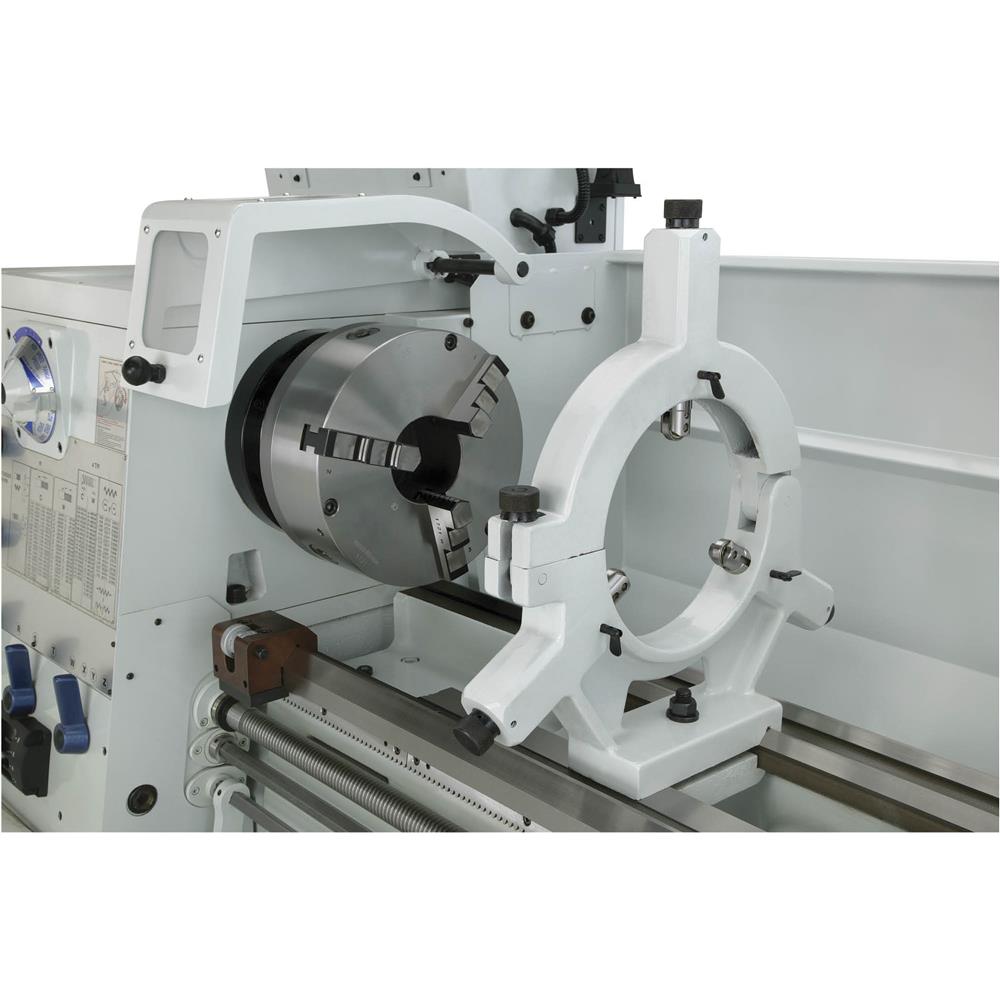

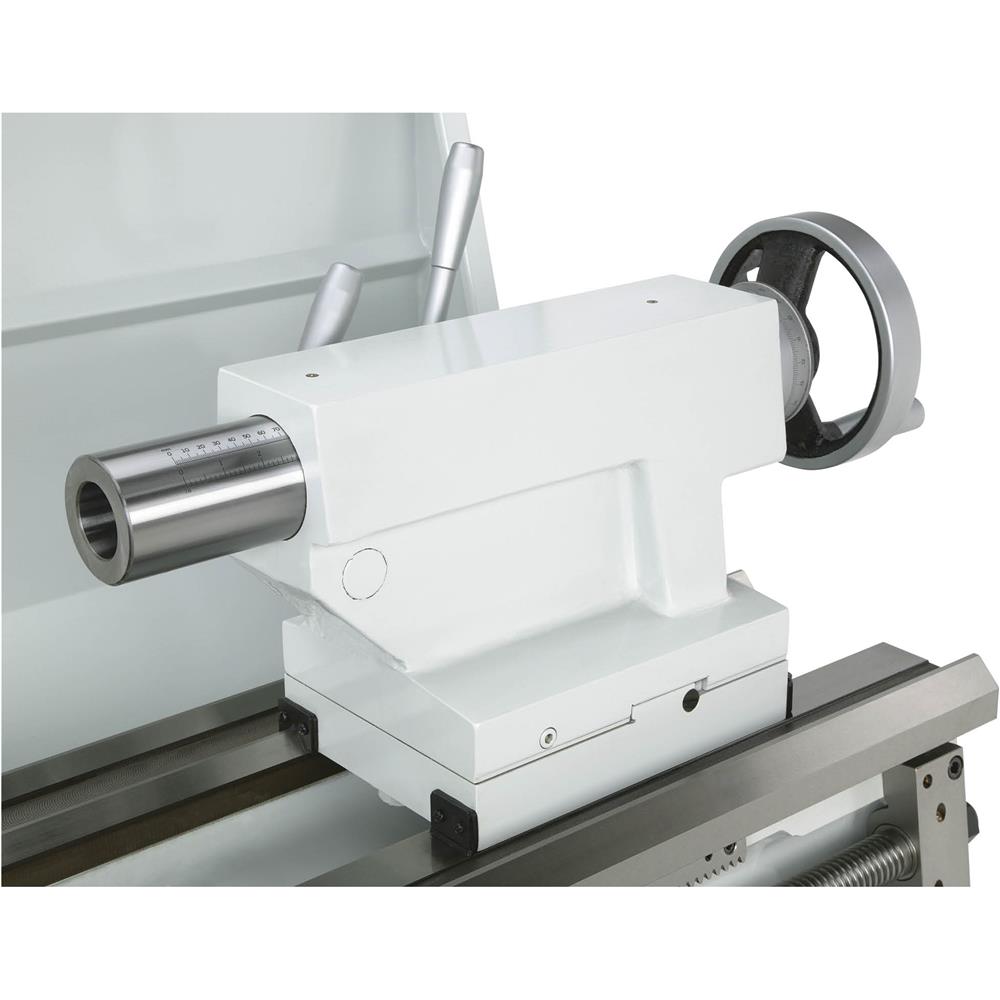

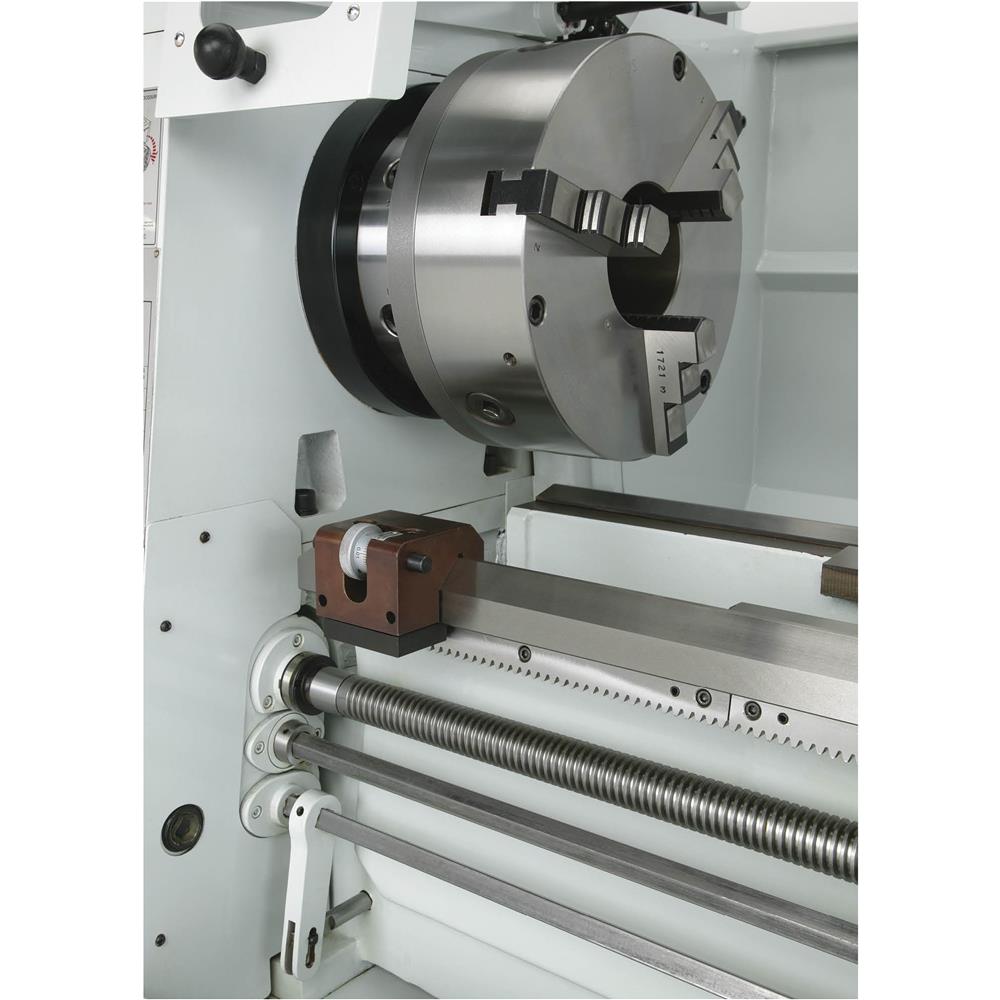

To further ensure a high degree of accuracy, these lathes are equipped with high-quality spindle bearings. The spindles are D1-8 camlock with an MT#7 taper and 3.15" bore. The tailstocks have an MT#5 taper and 6-1/2" of quill travel.

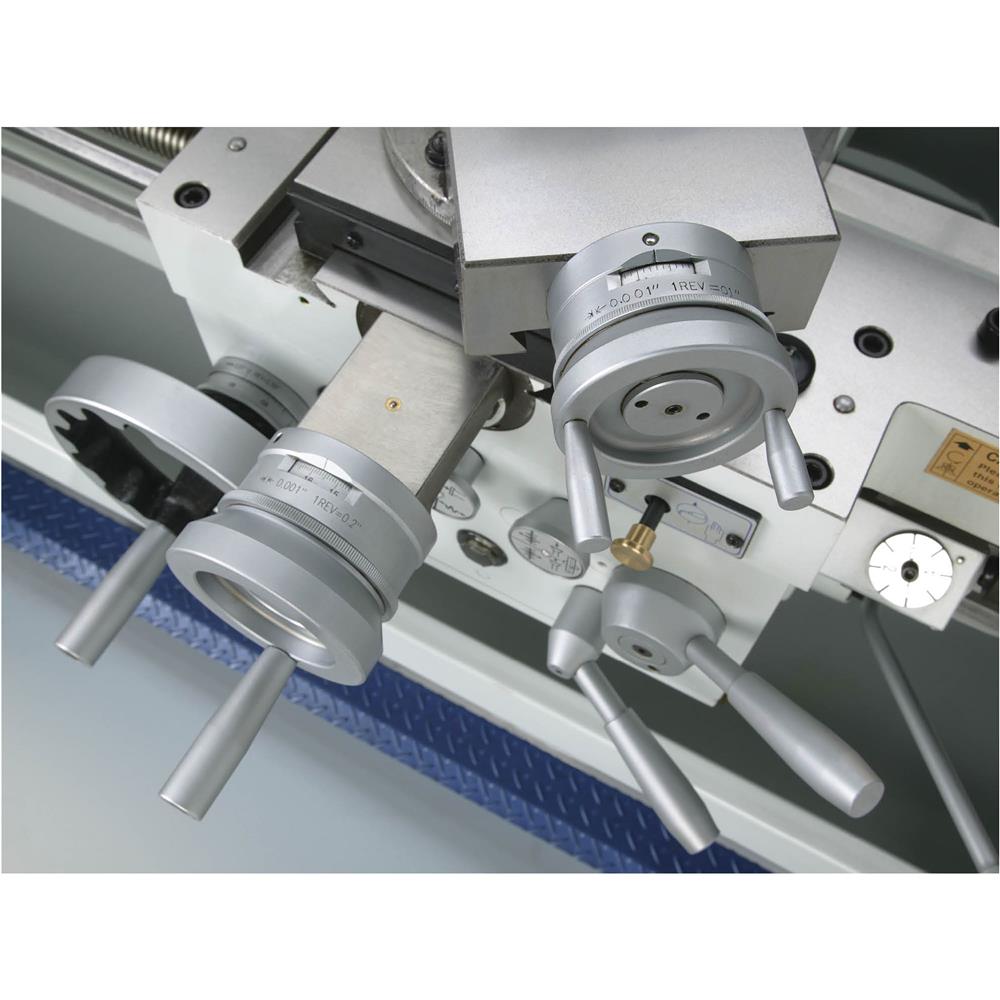

A factory-installed Fagor digital readout displays the positioning of the carriage and cross slide.

The headstocks are equipped with a pressurized oiling system that pre-lubricates the bearings and gears before the spindle starts.

The bed of the lathe is constructed with Meehanite® castings that are hardened and precision-ground in the traditional three V-way prismatic design.

Quality Allen-Bradley® electrical components and attention to detail provide dependable electrical control of the powered movements.

The SB1048PF manual was written by our U.S. based Technical Documentation Department. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your lathe.

All South Bend lathes come with a 2-year warranty which covers parts and assures the unit is free from factory defects.

Parts for the lathe may be available online and shipped from the South Bend parts warehouse in Springfield, MO.

SPECIFICATIONS:

FEATURES:

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
