Hi/Low Anodized Aluminum Fence: 22-¾″ x 7-¼″ x 11/16″
Table Height: 38″
Dust Ports: 4″ x 2
Overall Height: 77-¾″
Dimensions (Base): 27″ x 20″
Dimensions (Overall): 38″ x 36″
Dimensions (Box): 82″ x 34″ x 36″
Weight (Net/Ship): 480/545 lbs
Shipping Dimensions (L x W x H): 55″ x 22″ x 25″

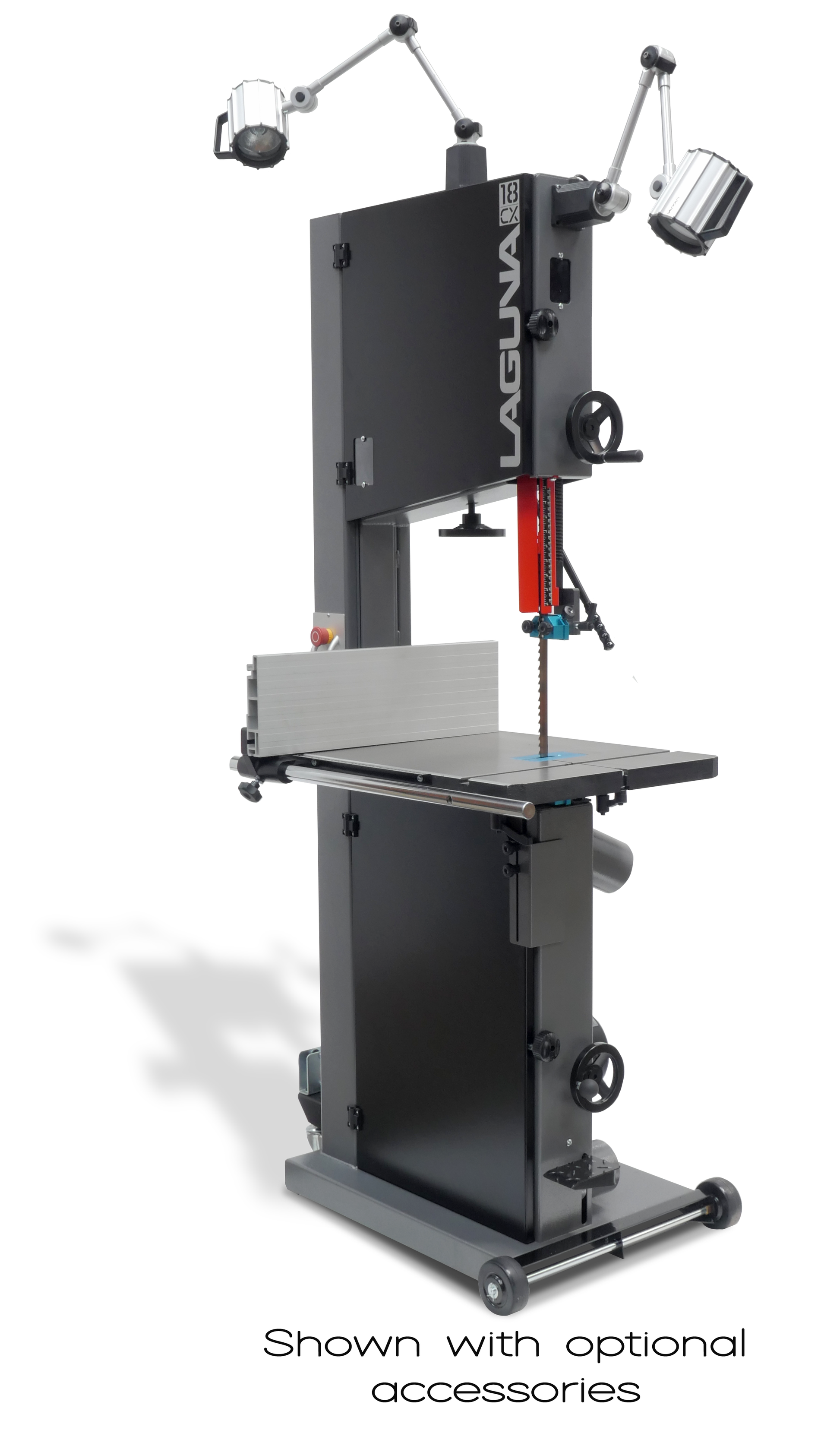

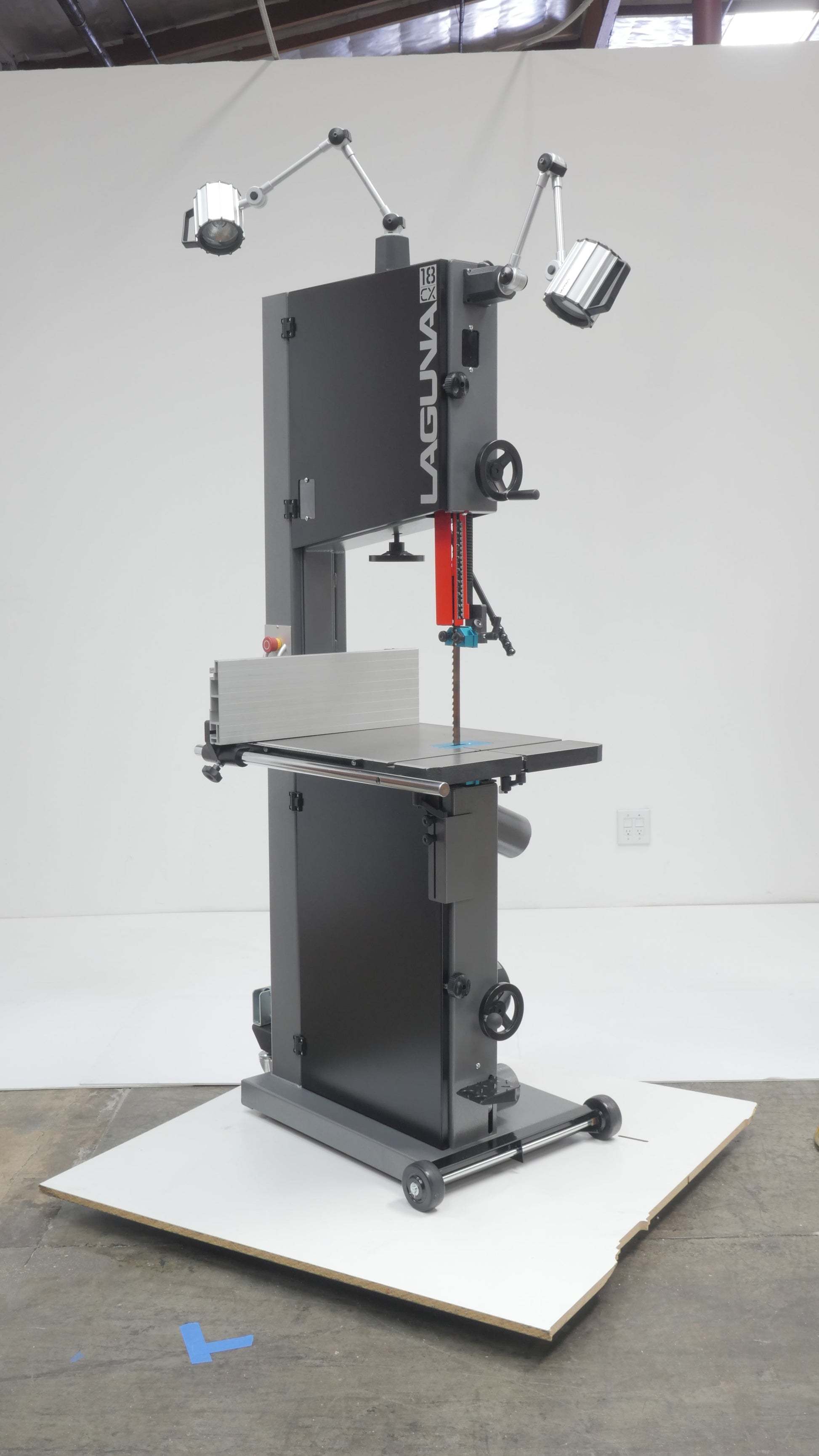

Optional 18BX & 18CX Wheel System
Foot Operated
360° Omni-Directional
Rubber-Coated Wheels
Adjustable Rubber Pads
Oilite Bronze Bushing Allows For Less Friction & Longer Life
Easy Install With No Drilling Required
Pedal Raises & Lowers Front Wheel
Wheels Mounted Outside Frame To Maximize Stability

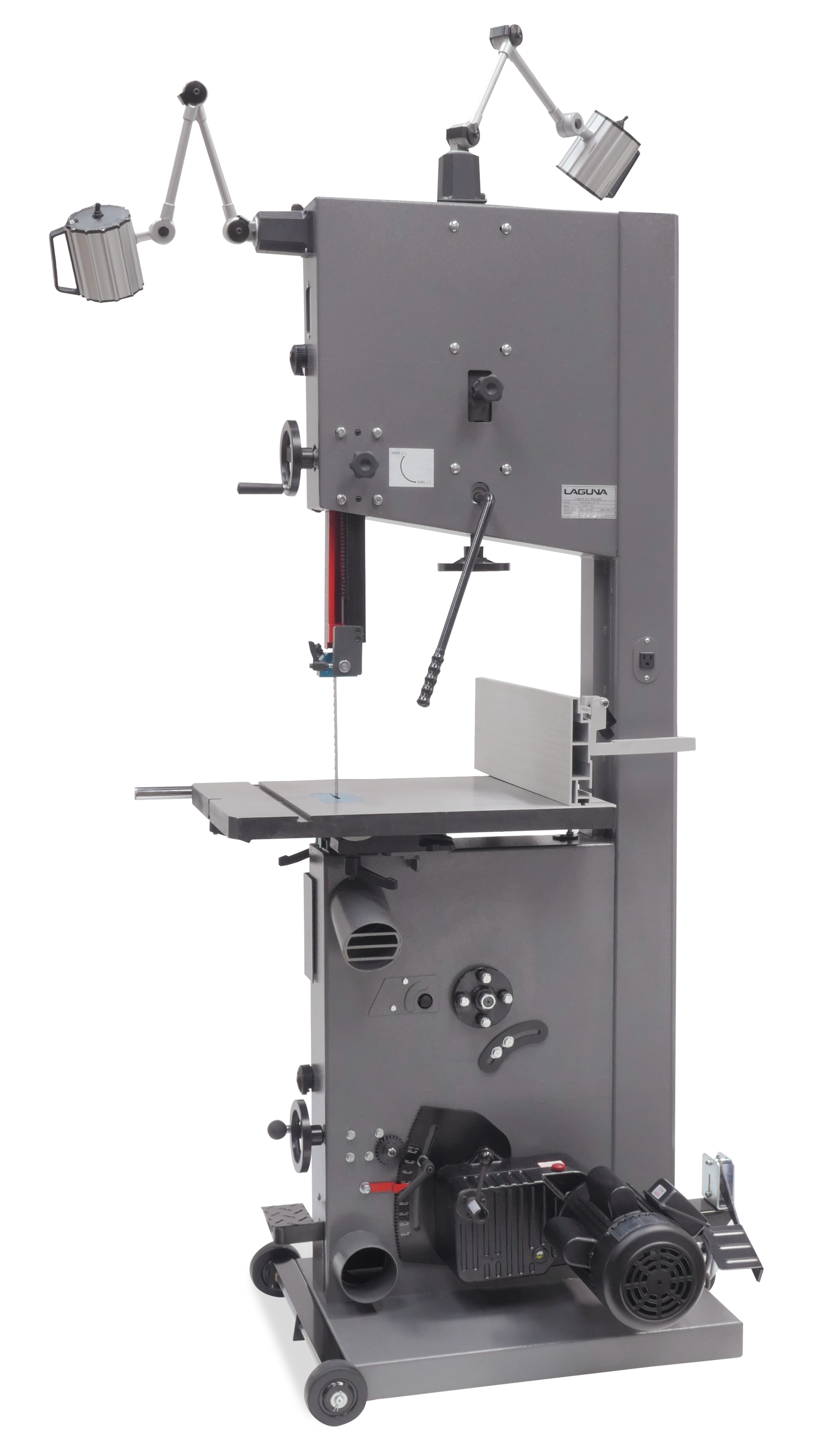

Optional 18BX & 18CX Pro Light
Swivels 220°
12 Volt/50 Watt
Tilts Vertically 320°
Built-In Transformer
Independent On/Off
Ribbed Aluminum Case
Halogen Hi-Intensity Light
Bright, Glare-Free Flood Light
Designed For Even Light Distribution
Reinforced Glass, Dust-proof Design
Top & Side Cabinet Mounting

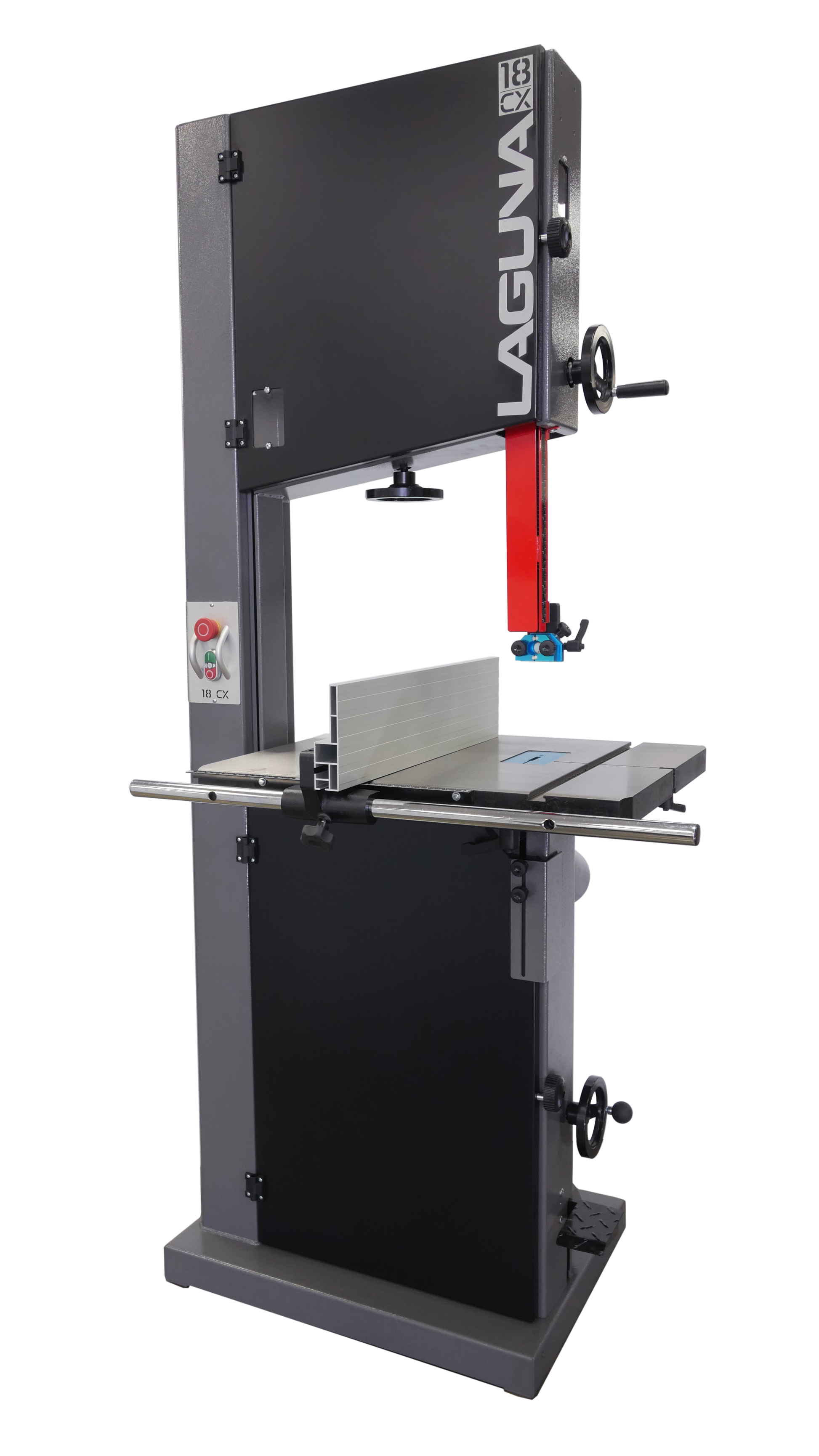

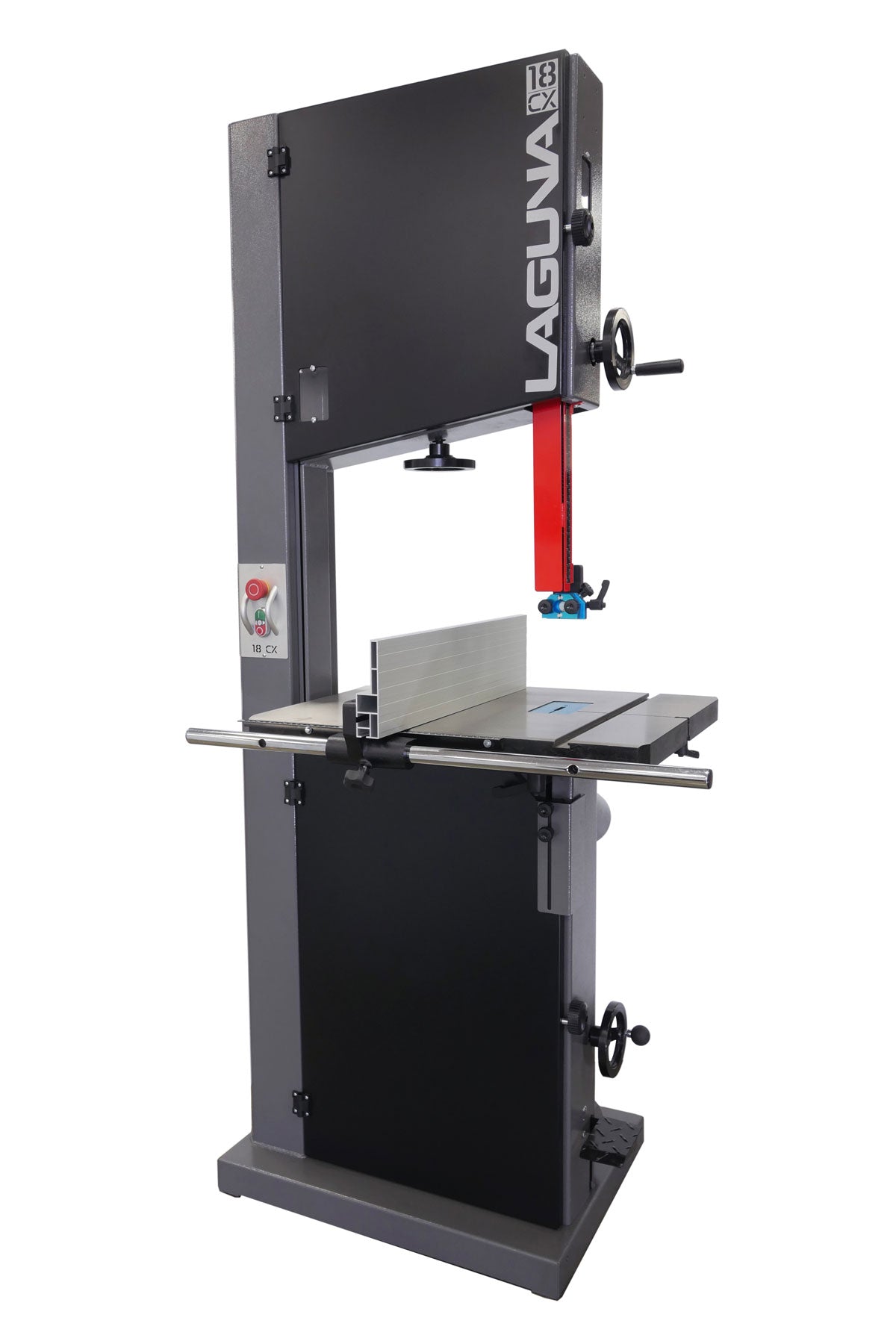

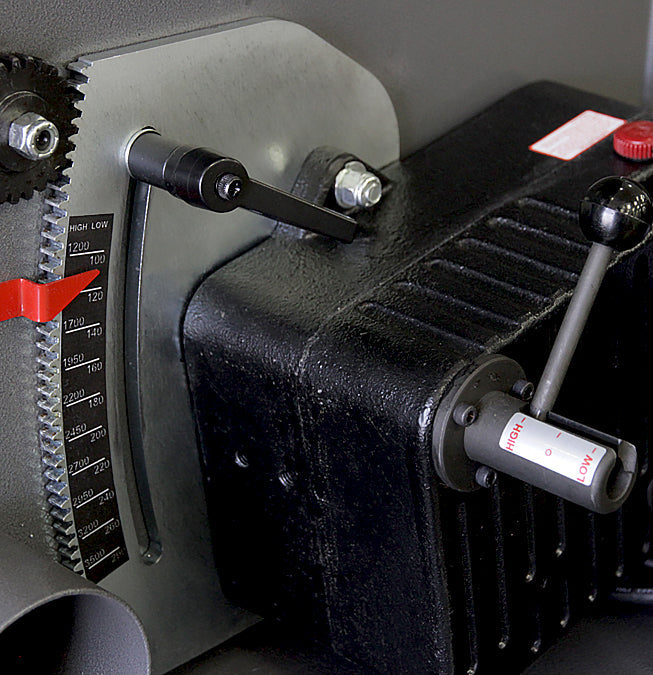

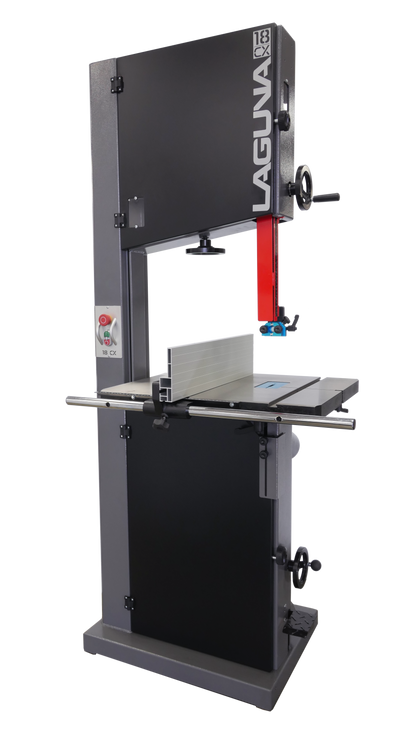

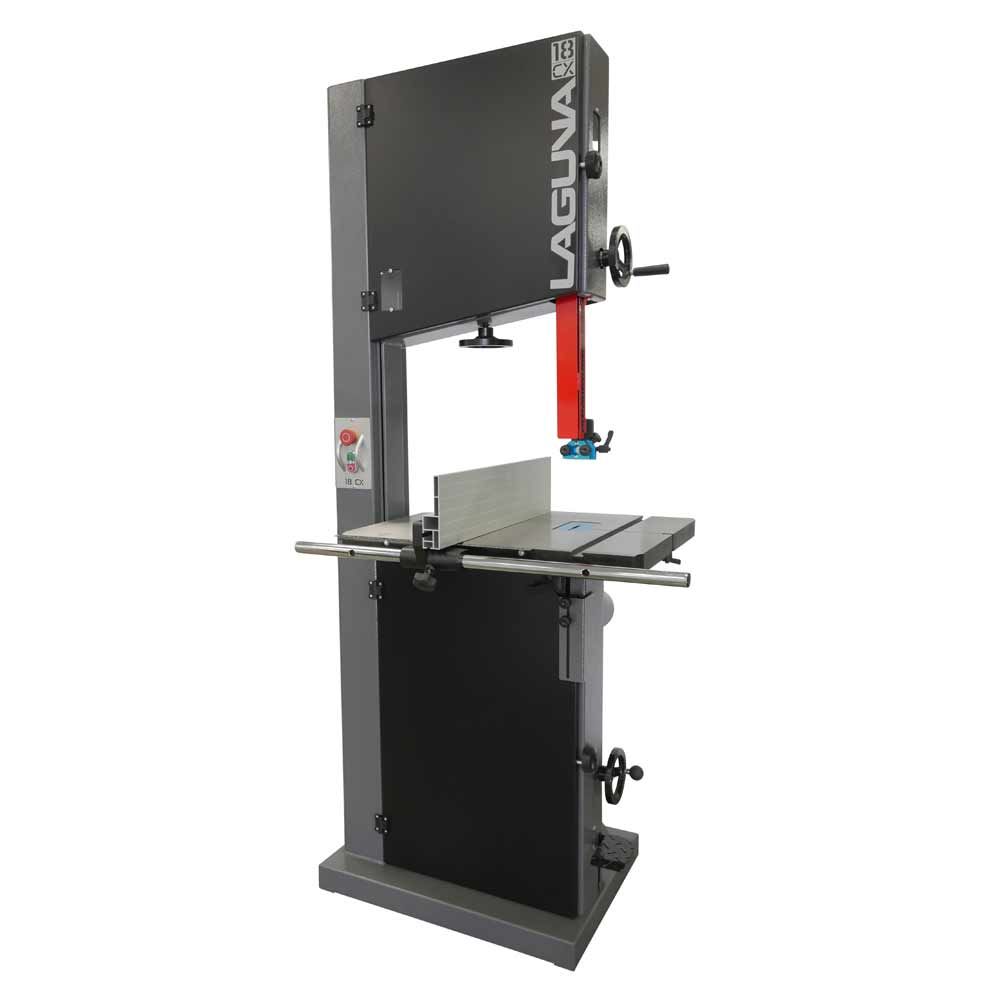

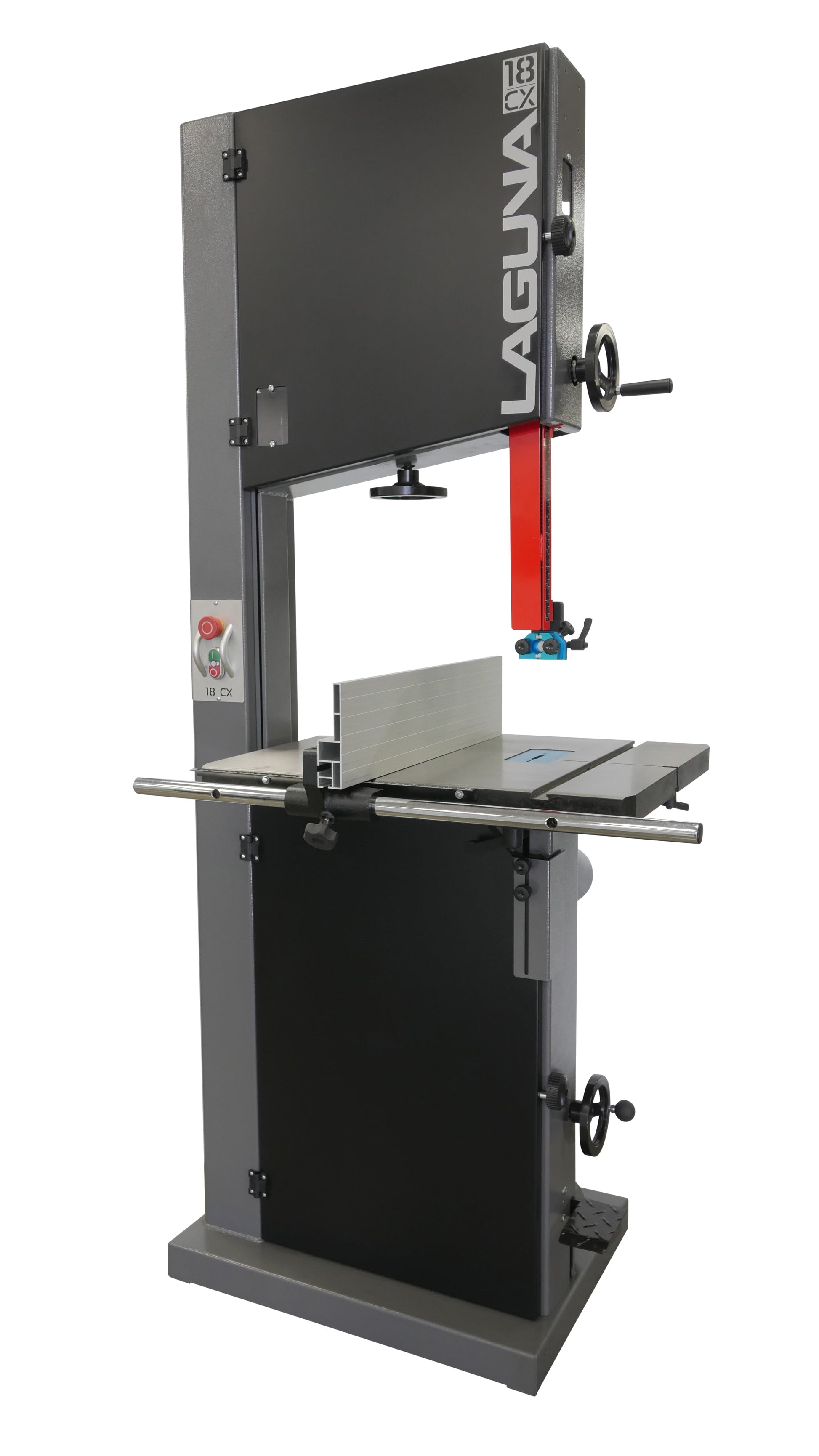

The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut with ease.
Motor: 1.75HP, 110V, 14/7 Amp.
Recommended Breaker: 20 Amp.

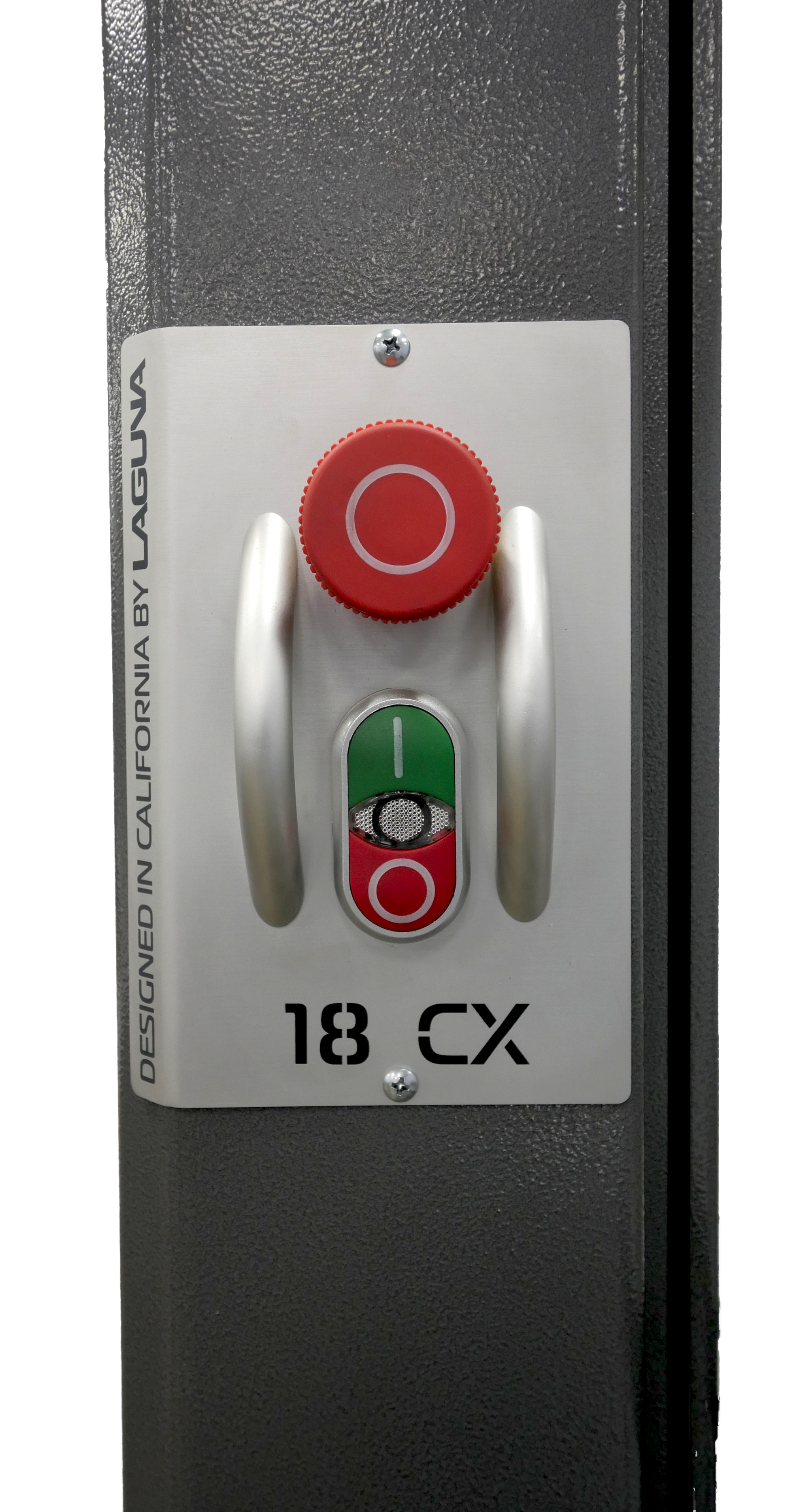

Magnetic Starter
Min-Max Blade Width: 1/8″ – 1-1/4″
Resaw Capacity: 16″
Throat: 18-7/32″
Blade Length: 145″
Foot Operated
360° Omni-Directional
Rubber-Coated Wheels
Adjustable Rubber Pads
Oilite Bronze Bushing Allows For Less Friction & Longer Life
Easy Install With No Drilling Required
Pedal Raises & Lowers Front Wheel
Wheels Mounted Outside Frame To Maximize Stability
