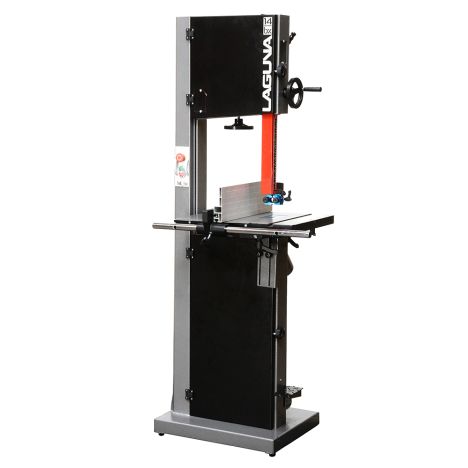

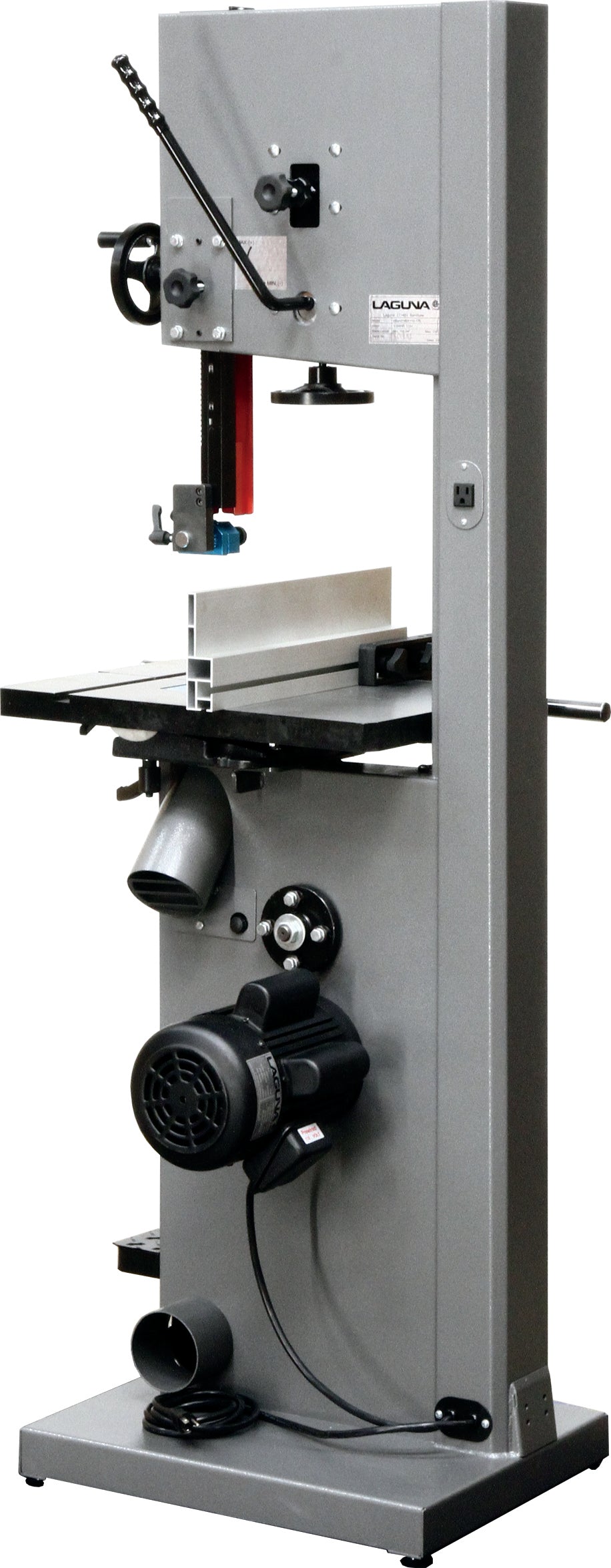

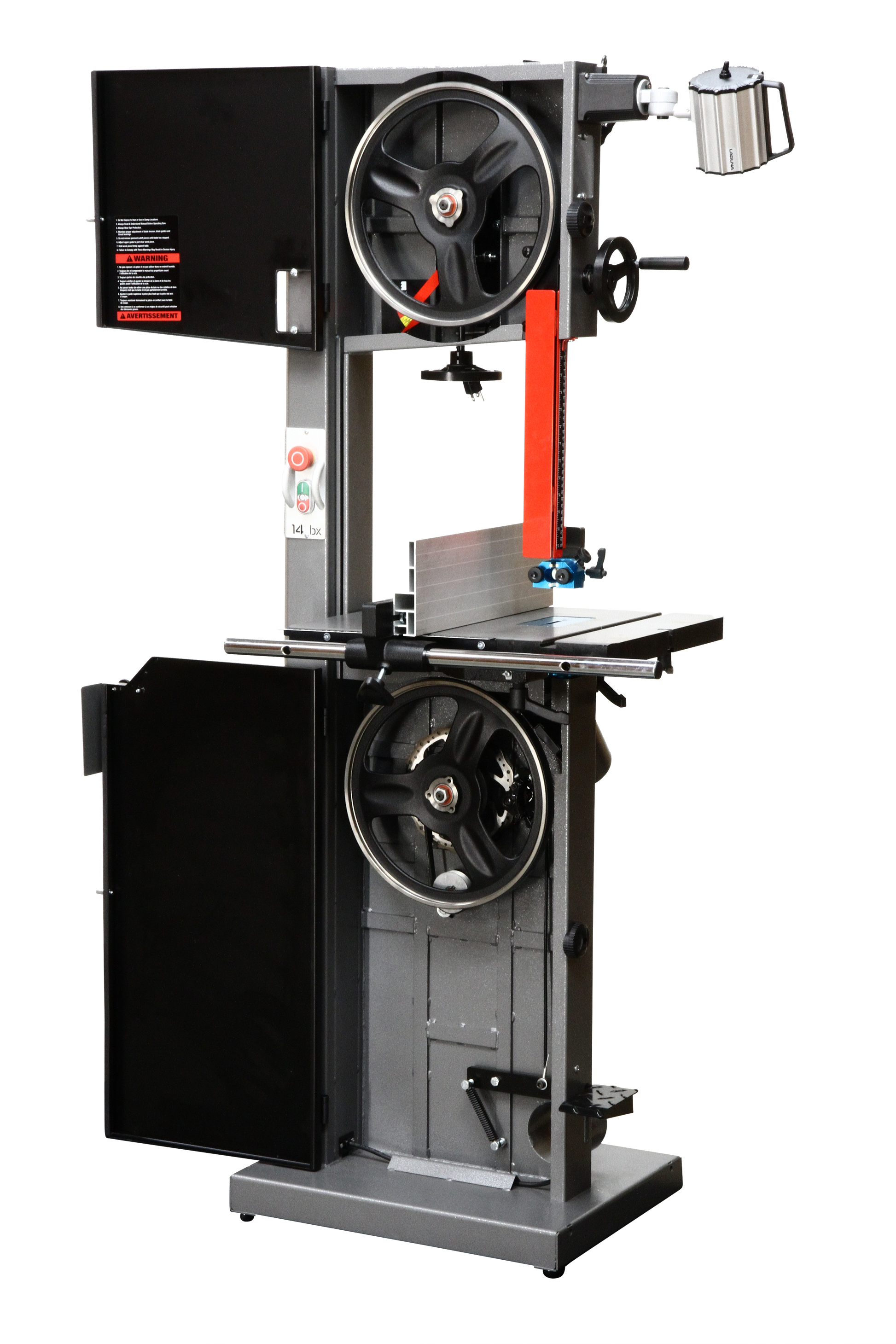

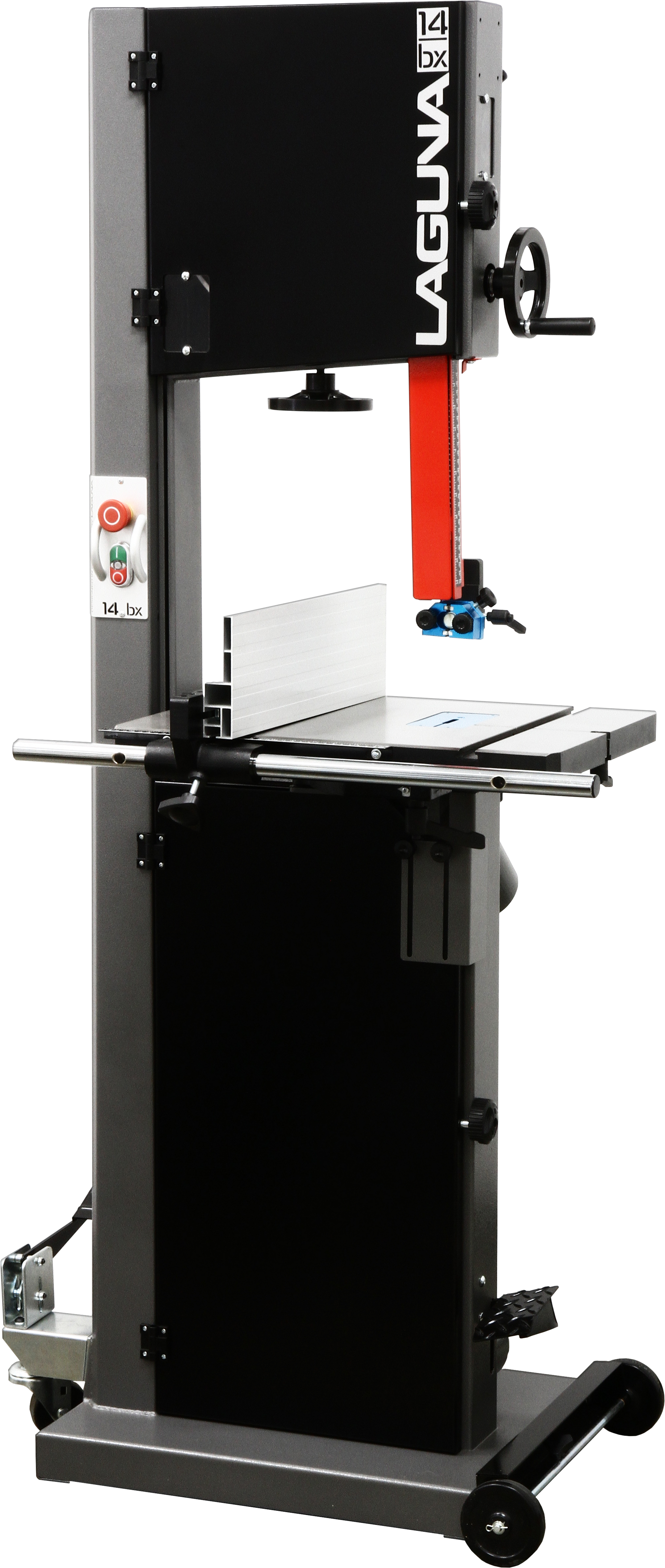

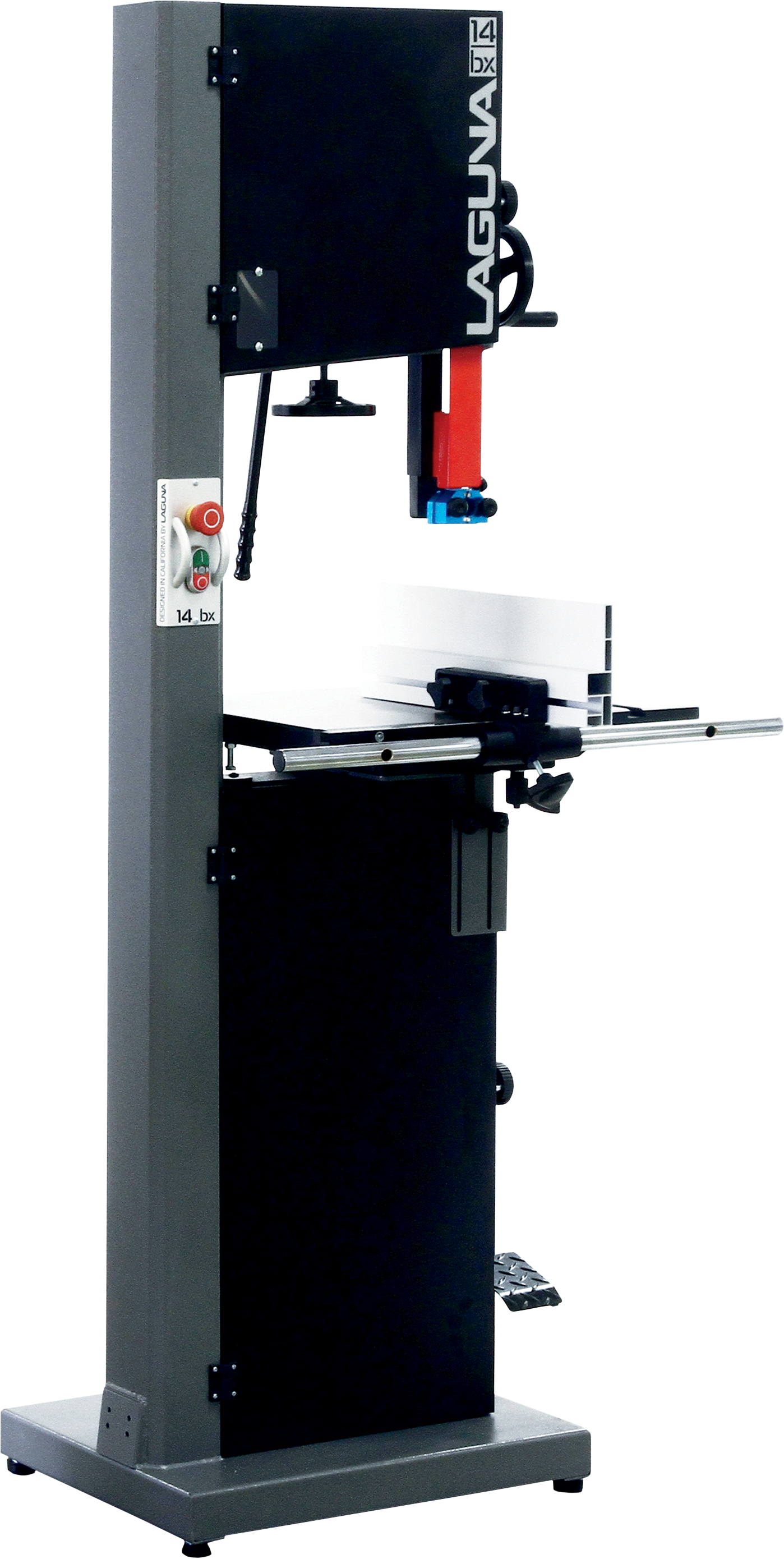

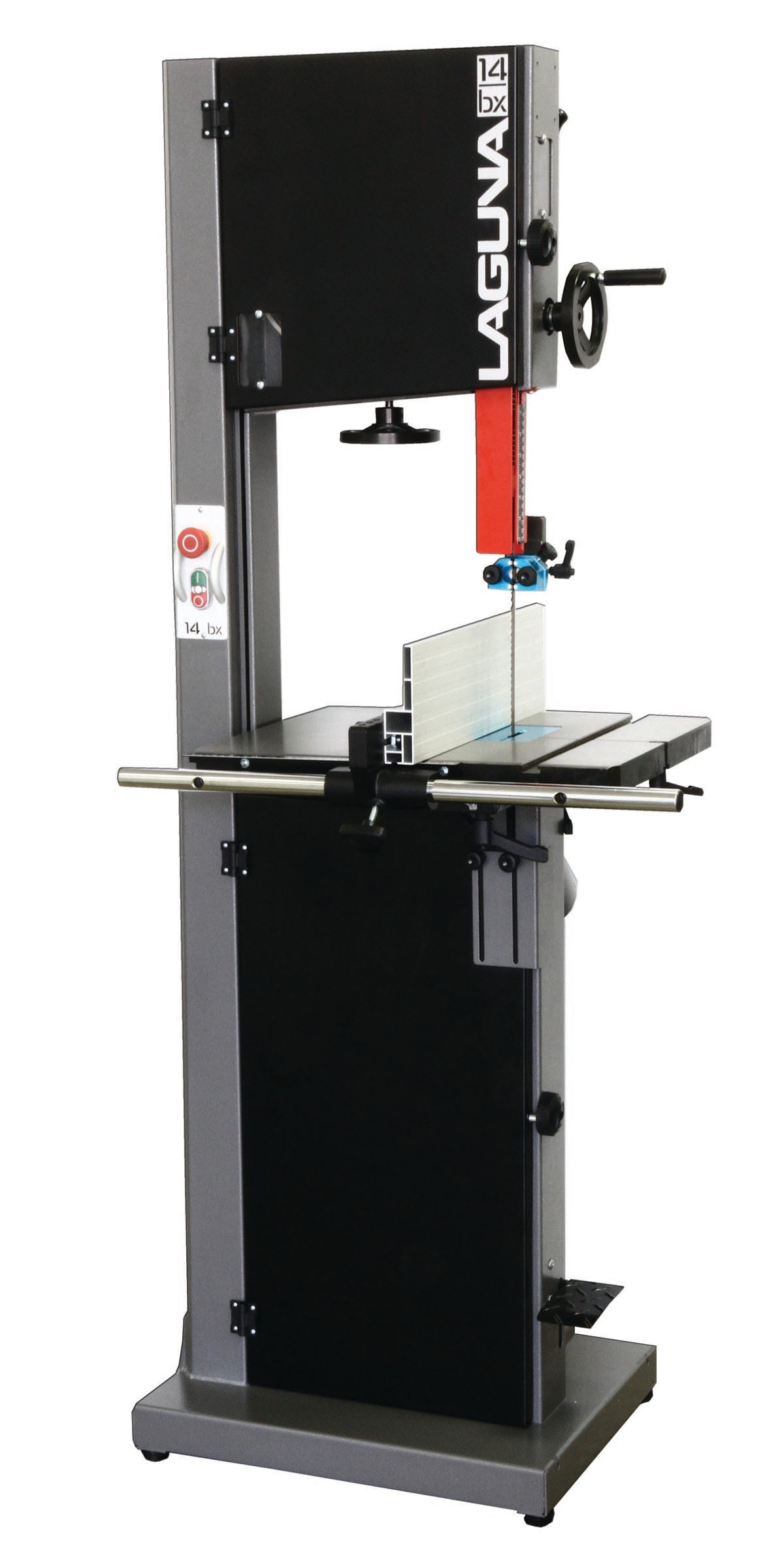

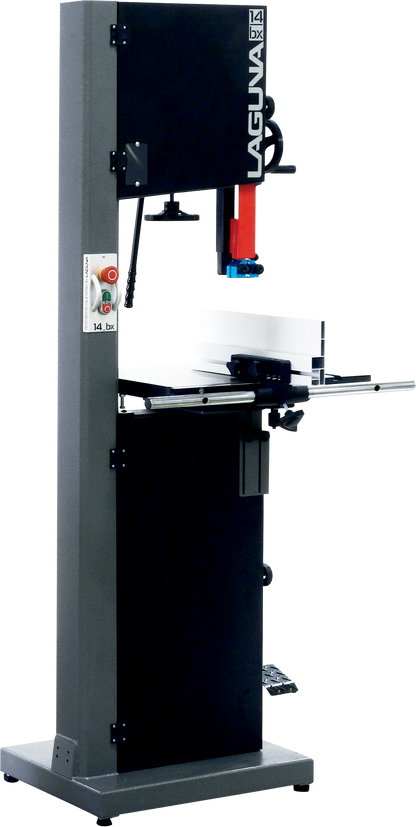

Laguna 14|BX Bandsaw

110 Volt

• 1.75HP, 14 Amp, TEFC
• 110 Volt Outlet for Light
• 6′ Cord with Nema Plug: 5-15P
• Weight (Net/Ship): 260/320 lbs

220 Volt

• 1 Phase, 2.5HP, 9.8 Amp, TEFC
• 220 Volt Outlet for Light
• 6′ Cord with Nema Plug: 6-15P
• Weight (Net/Ship): 270/330 lbs

Height: 70-¼″

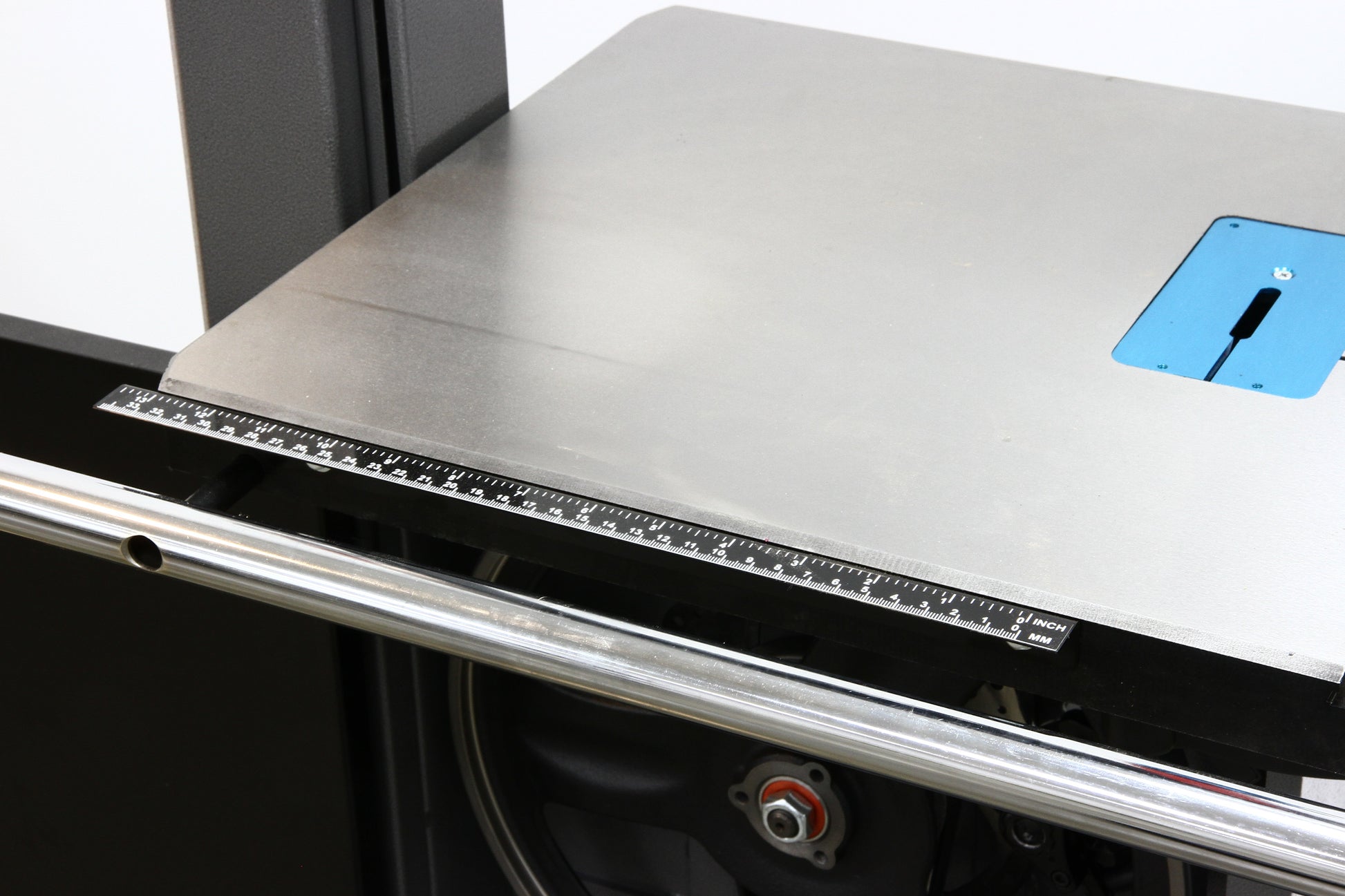

Table Size: 21-½″ x 16″

Table Height: 38″

Table Tilt Left: 7°

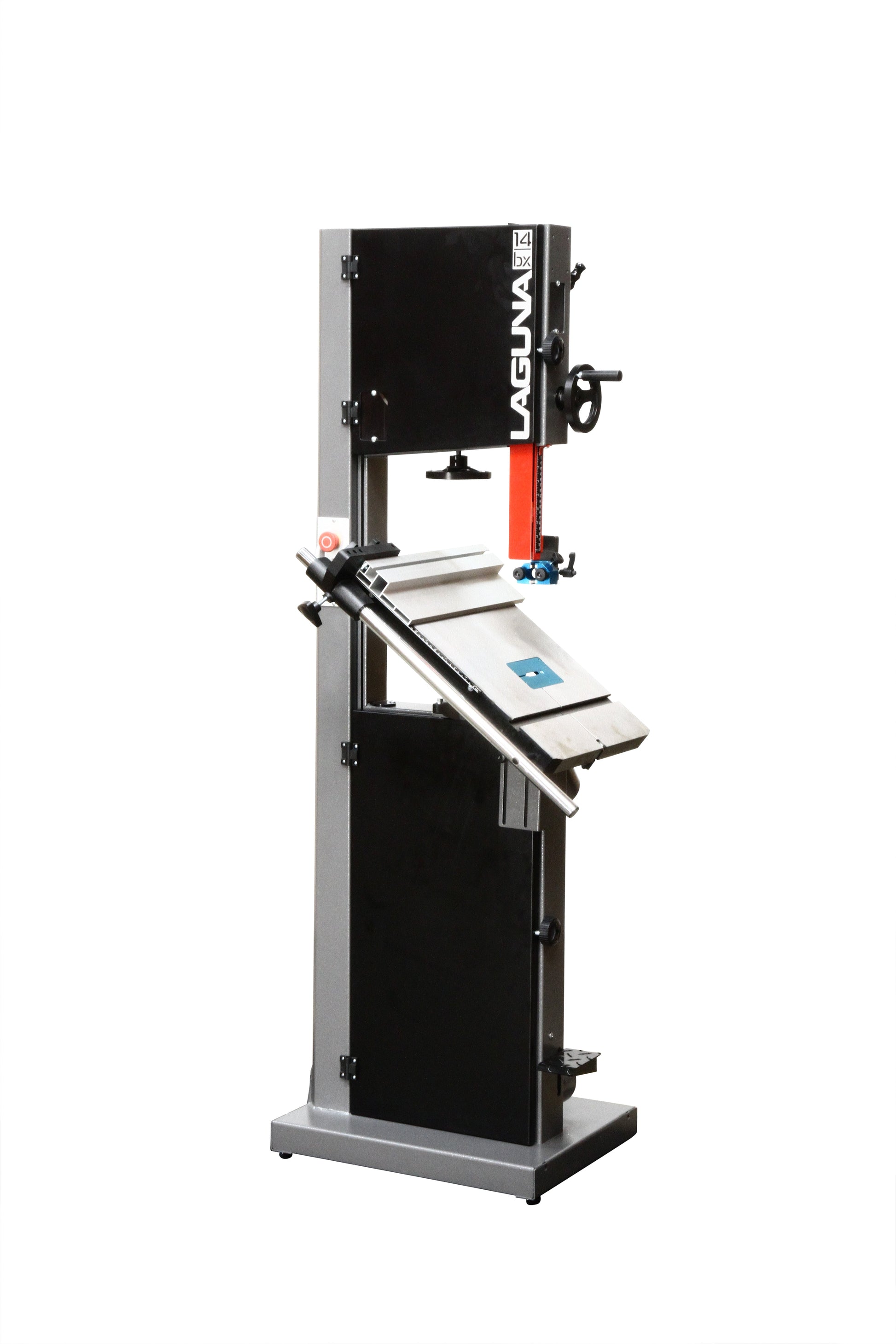

Table Tilt Right: 45°

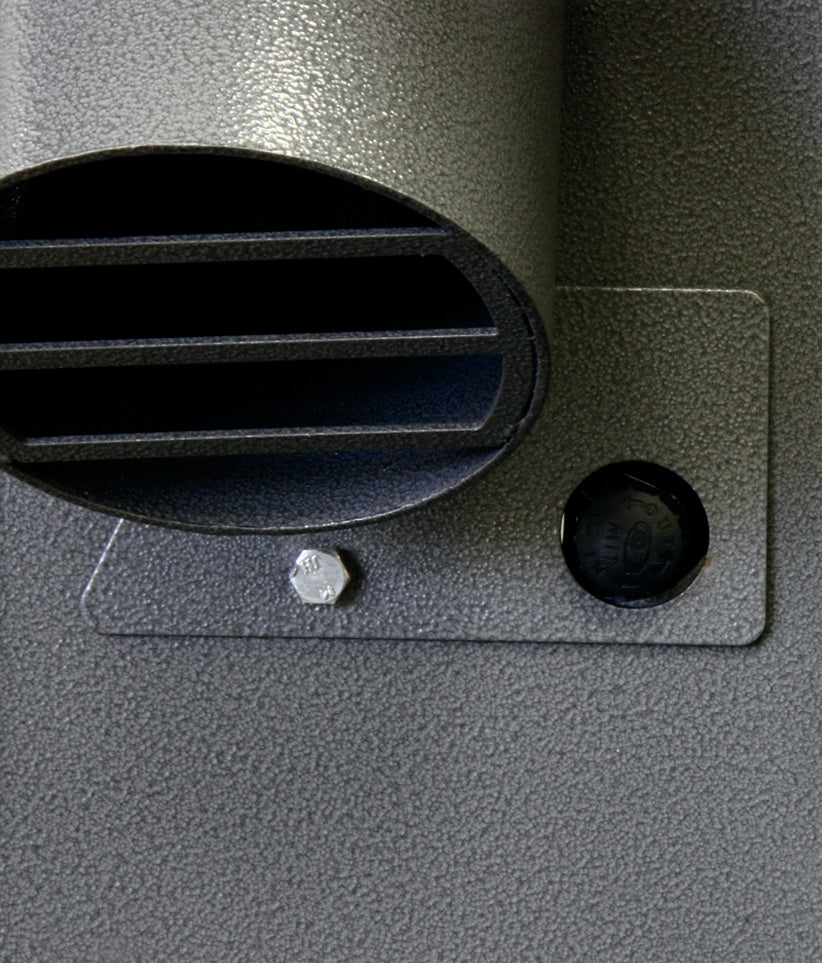

Dust Ports: 4″ x 2

Blade Length: 115″

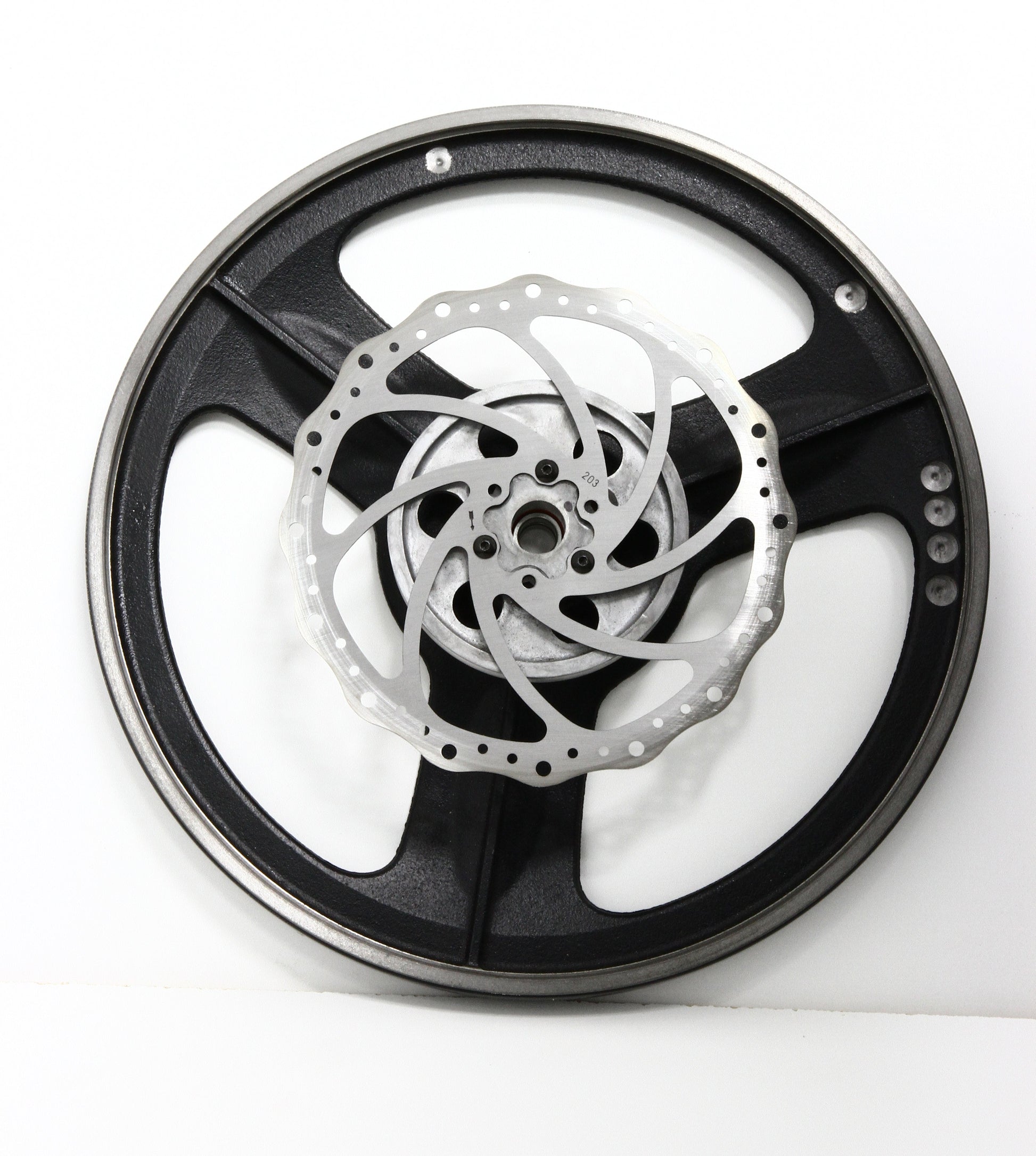

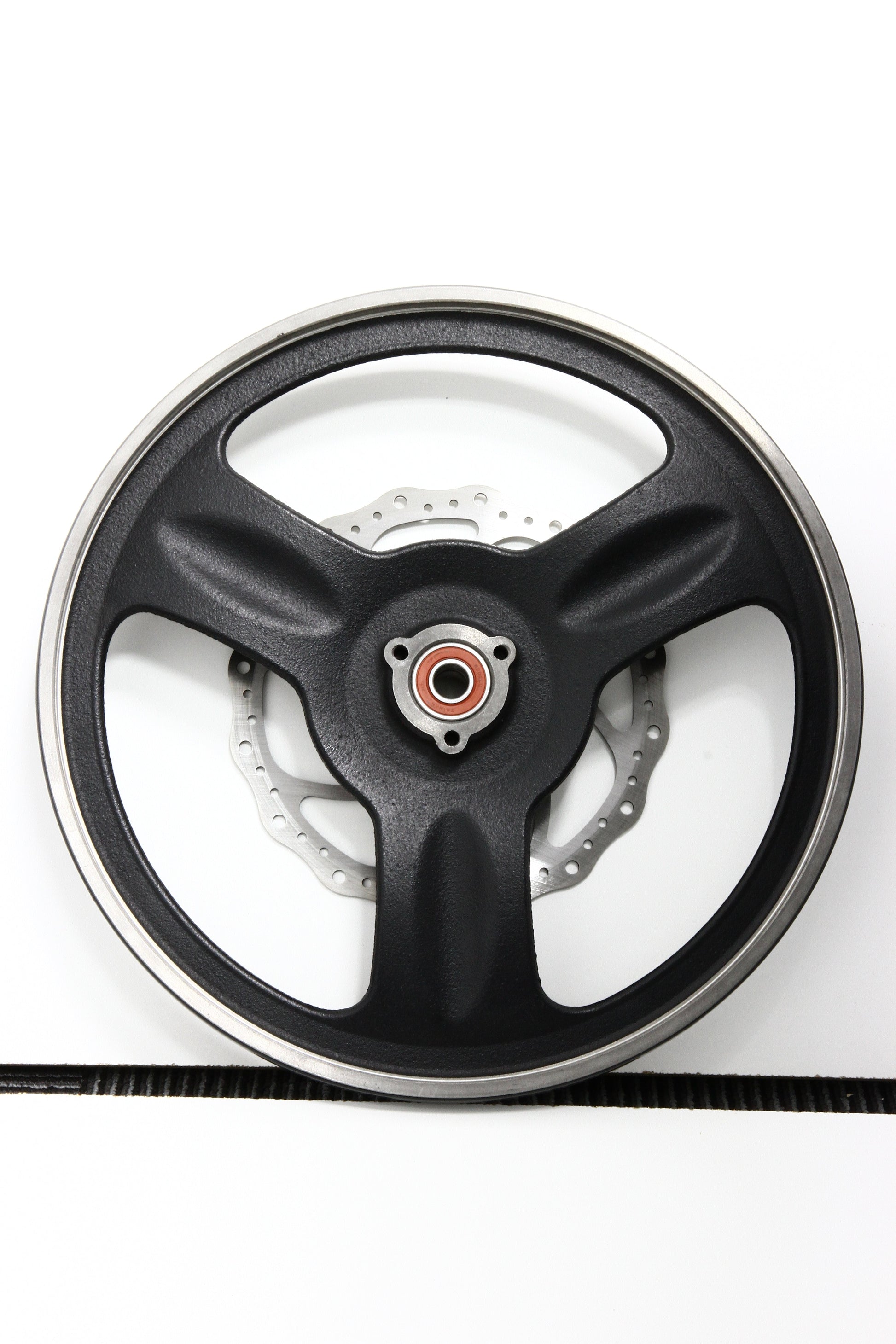

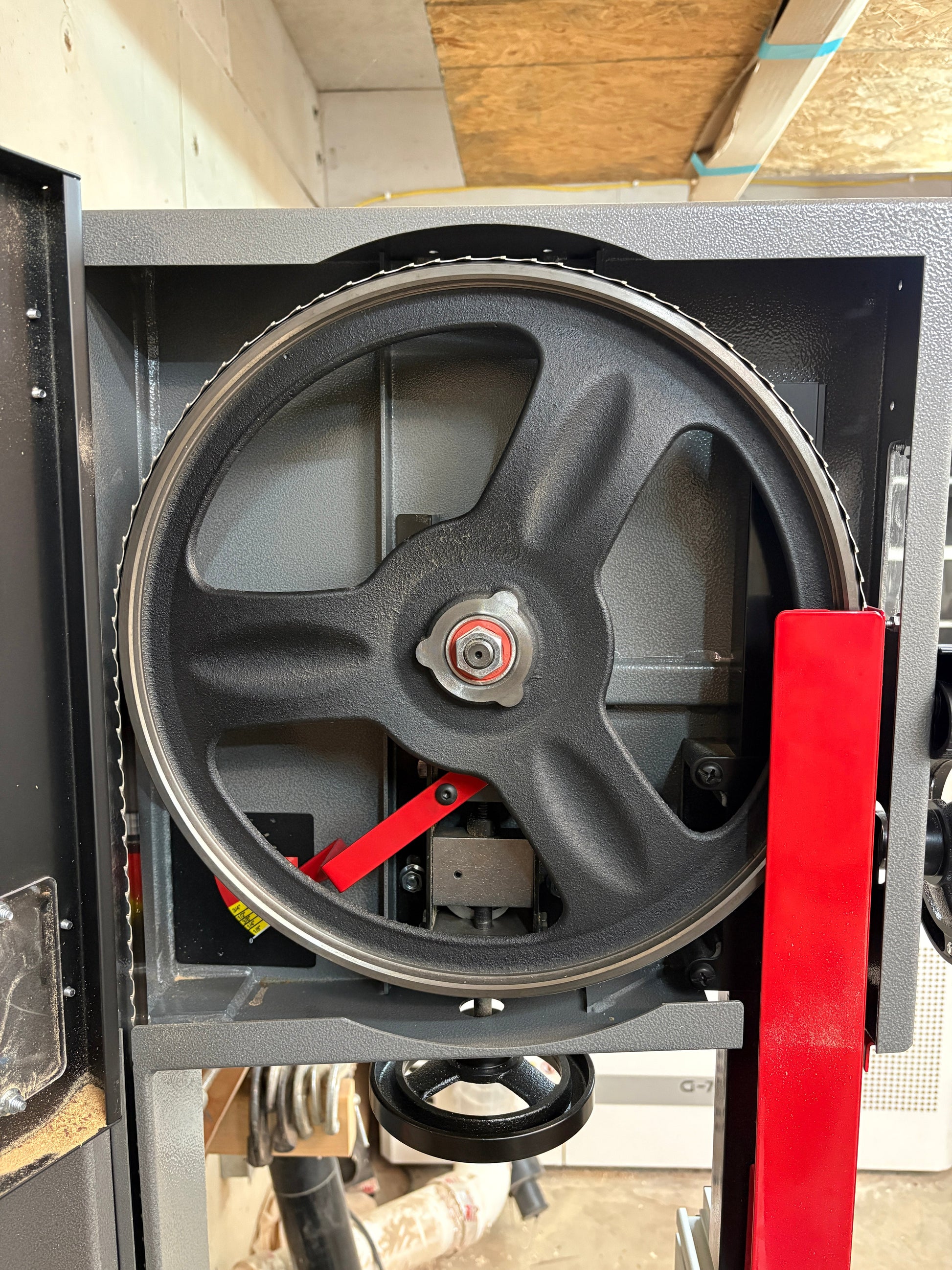

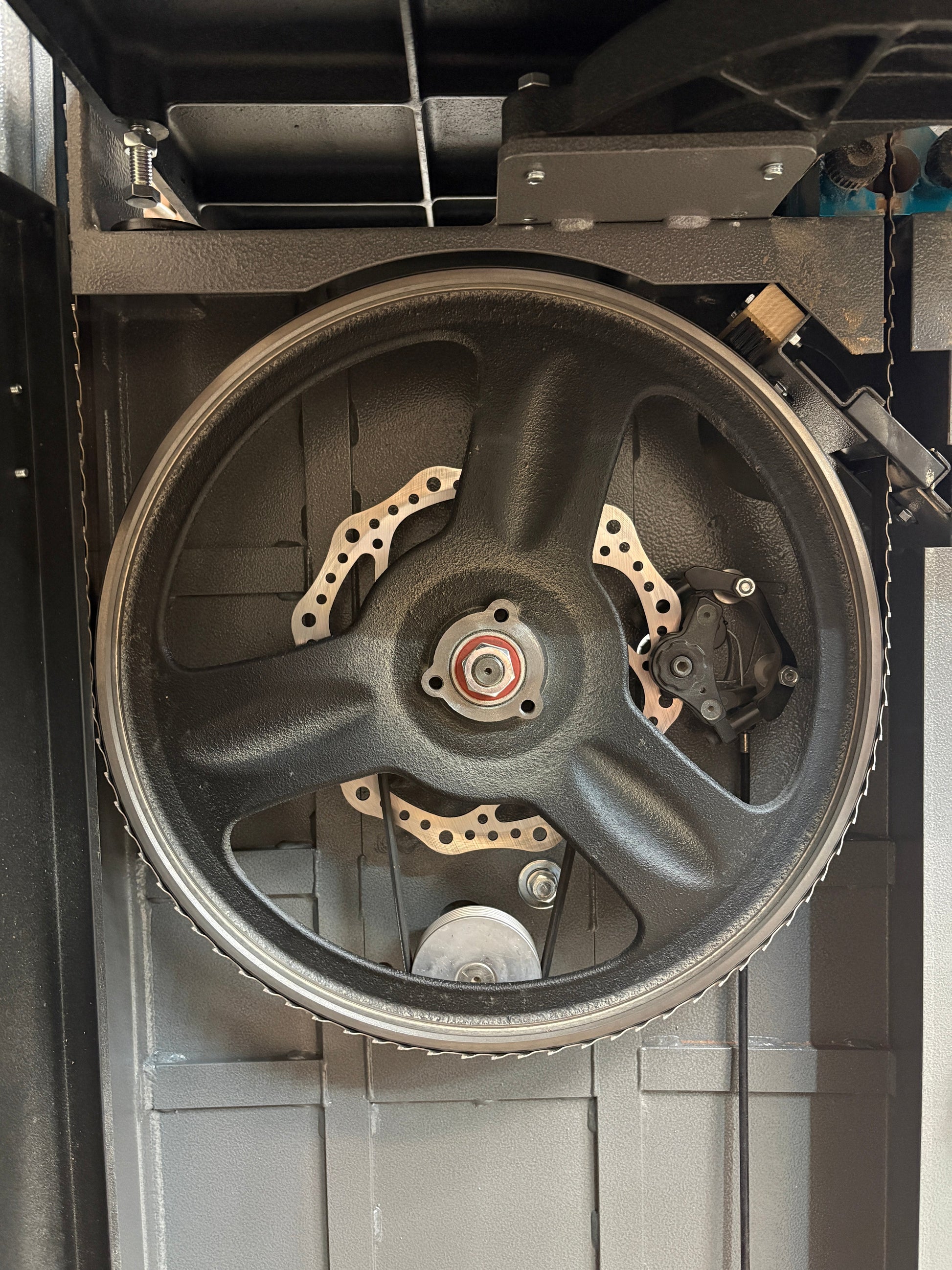

Cast Iron Wheels

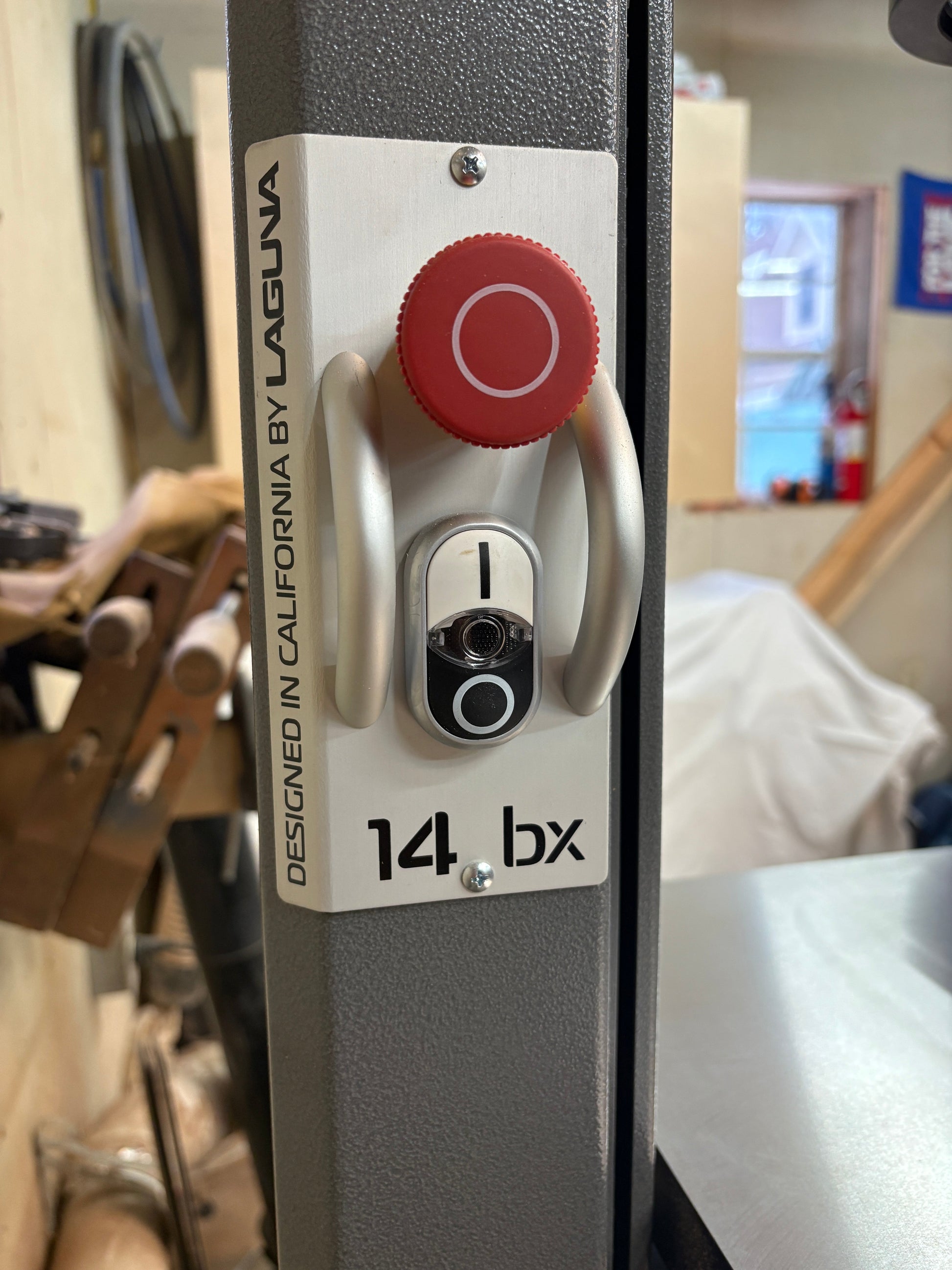

Magnetic Starter

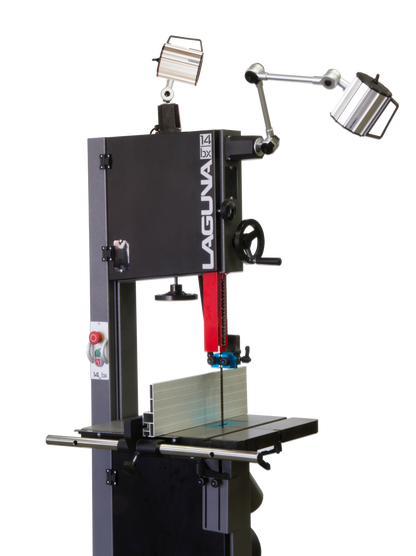

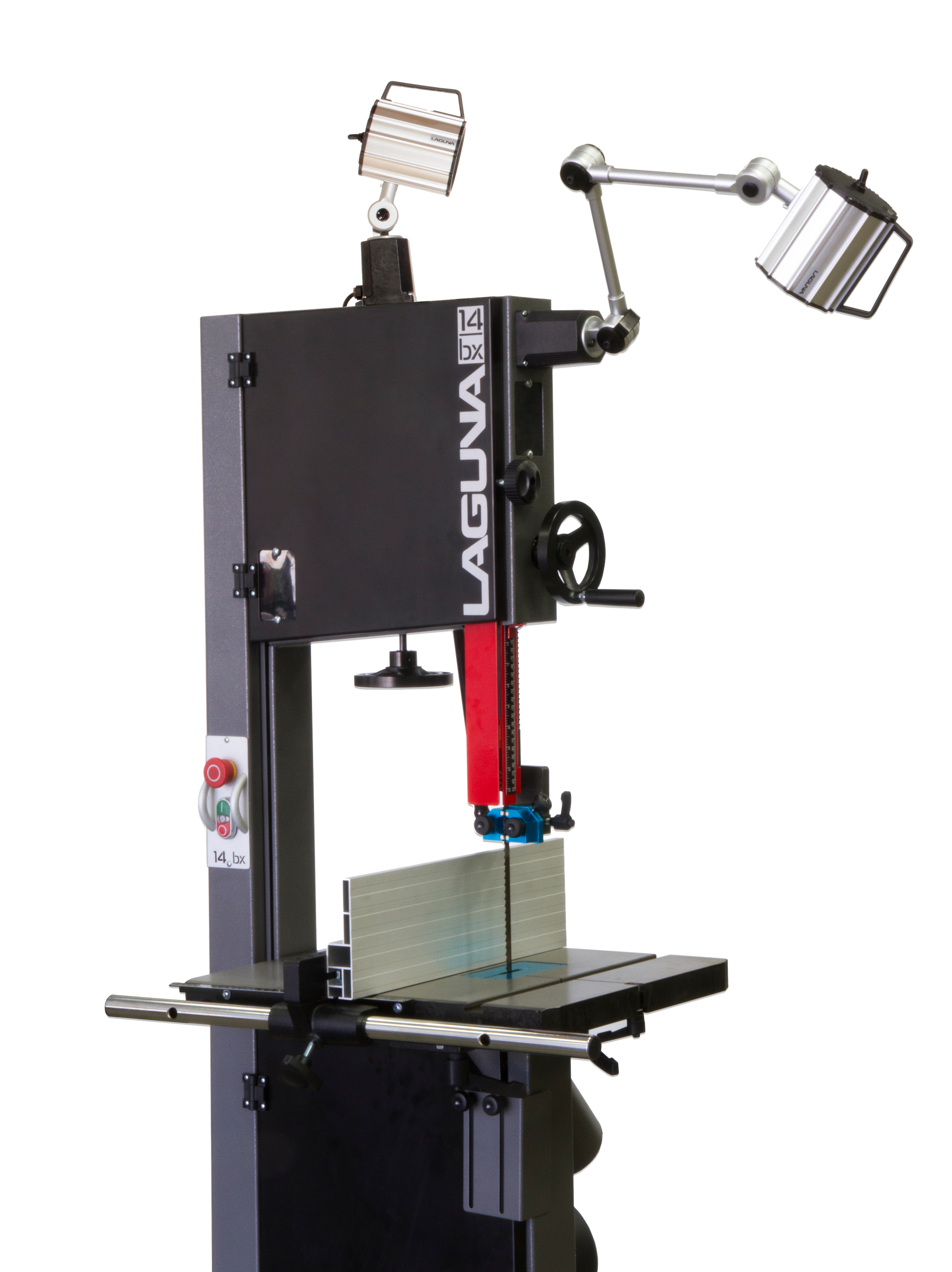

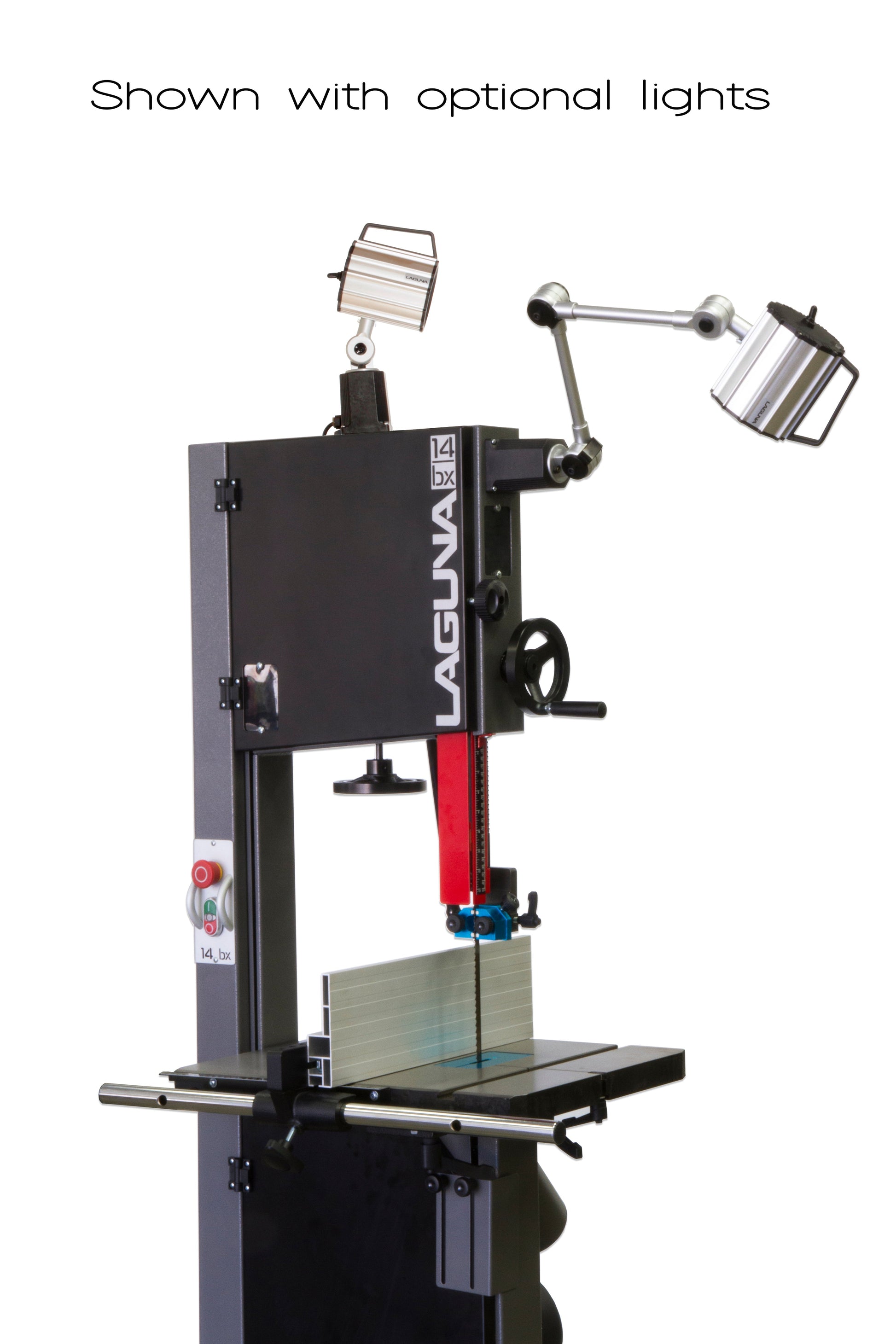

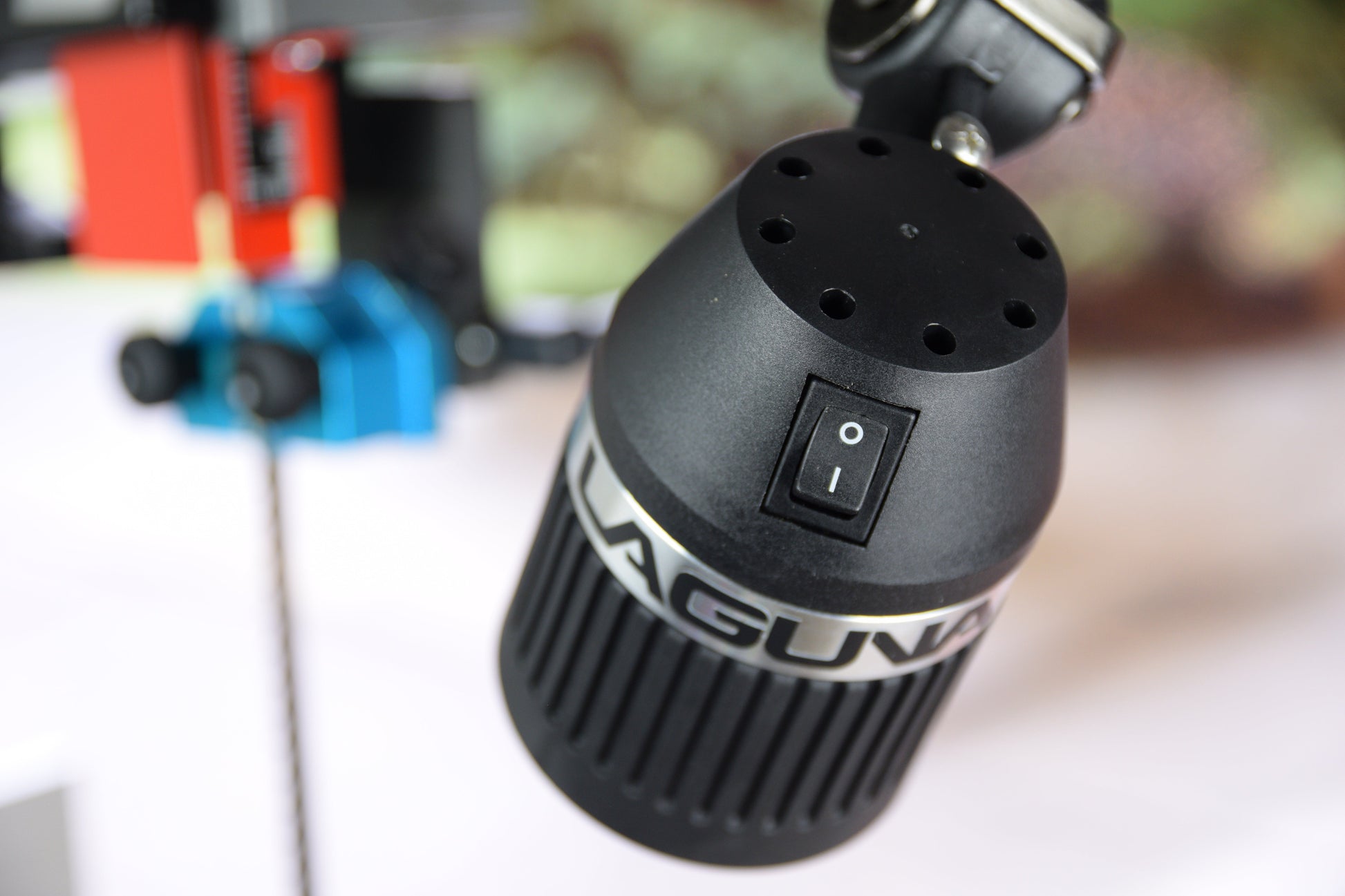

Dual Light Mount

Max. Blade Width: ¾″

Pyramid-Shaped Spine

Min. Blade Width: ⅛″

Footprint: 17-½″ x 22-½″

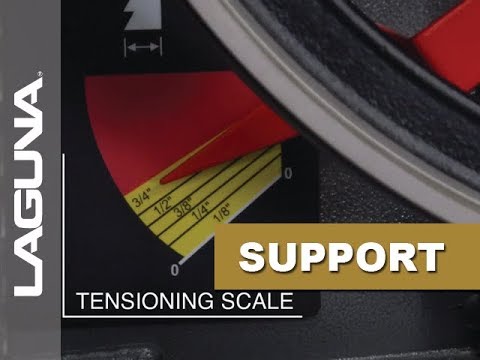

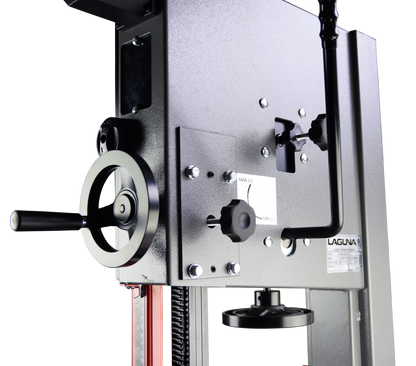

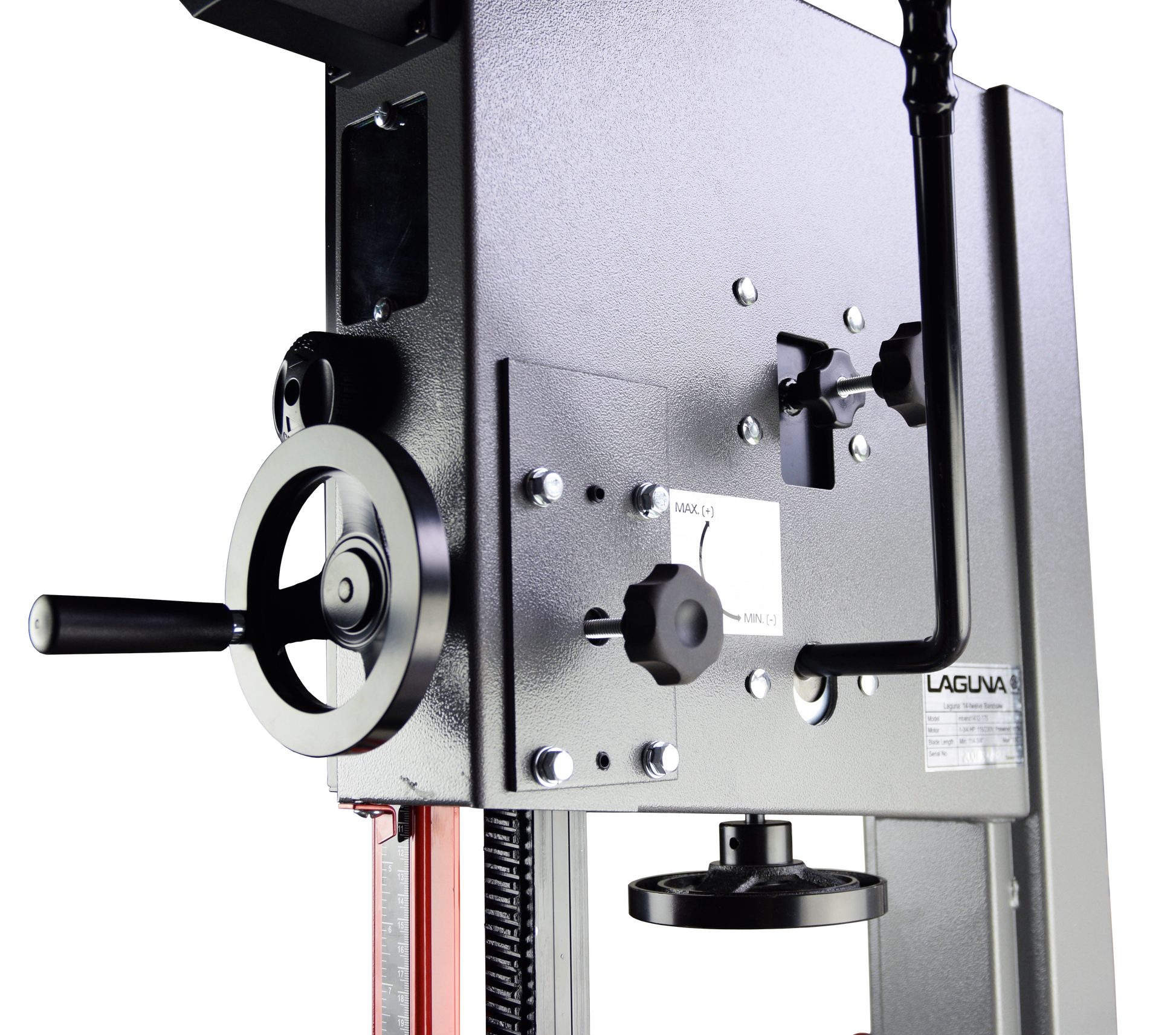

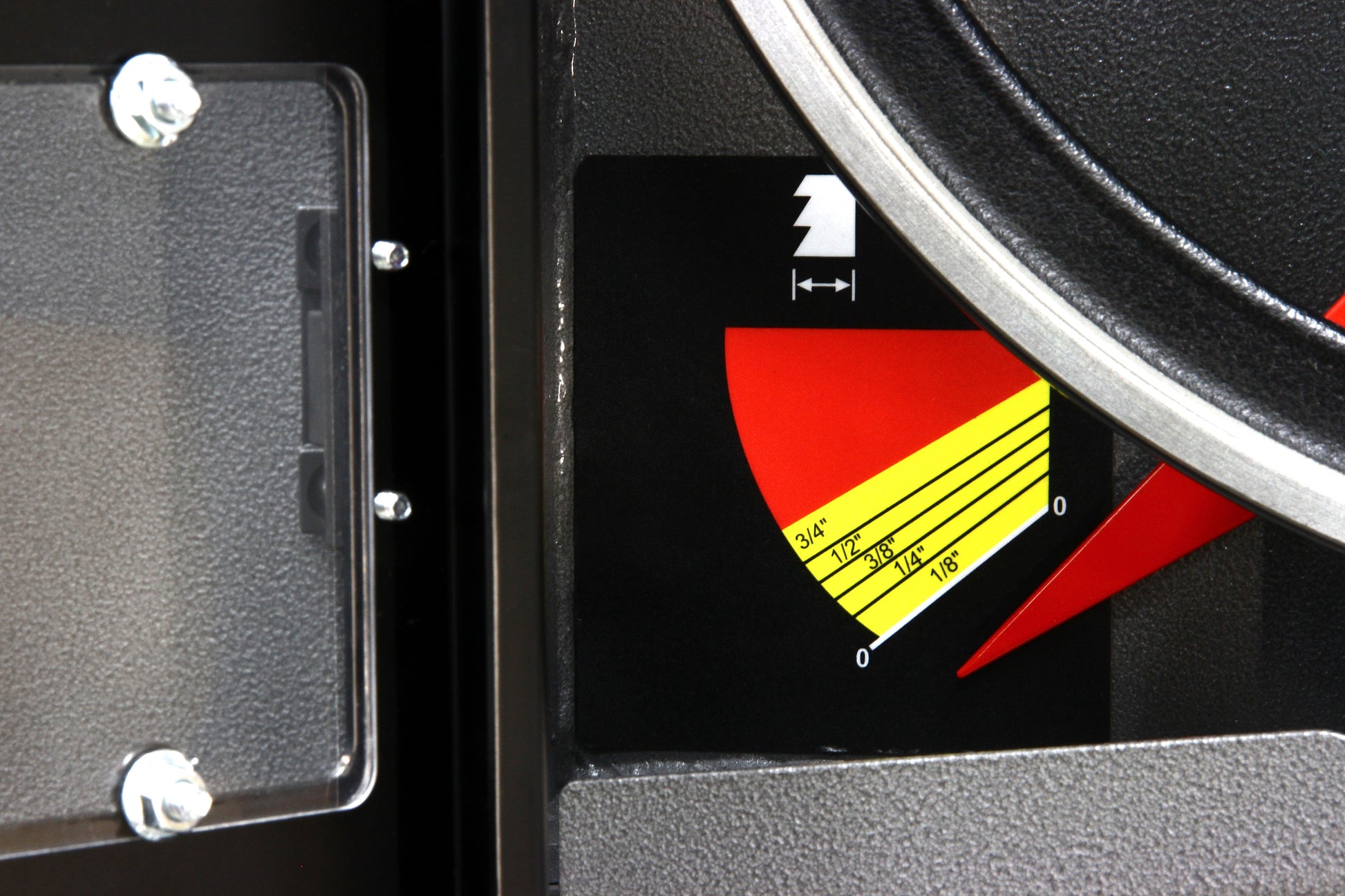

Quick Release Tension

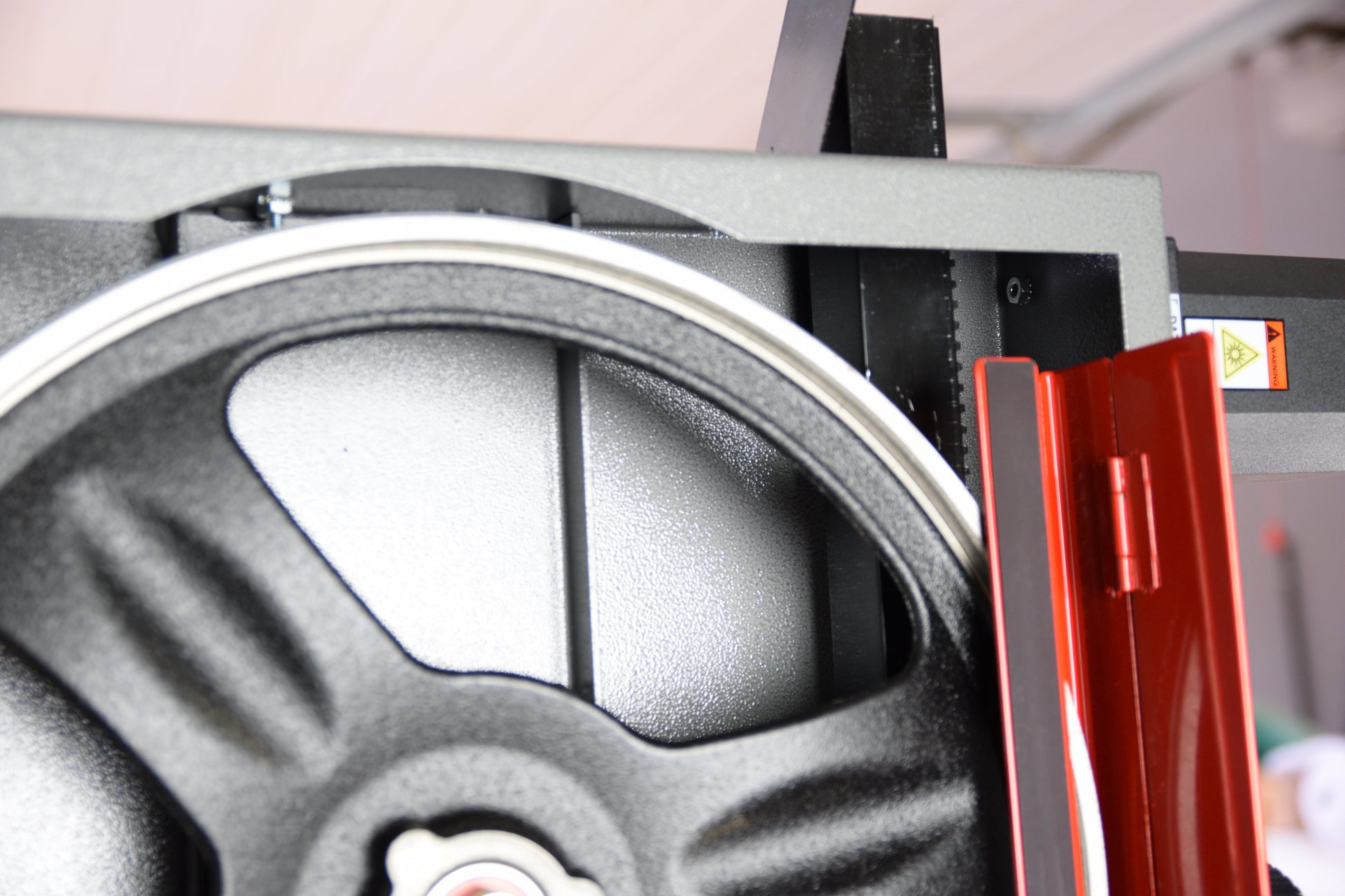

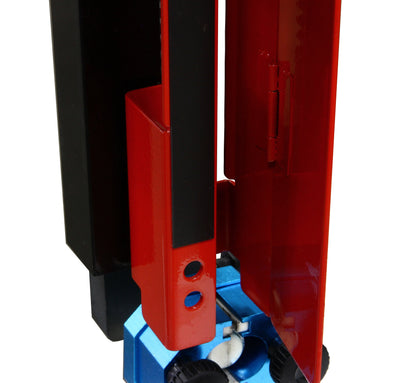

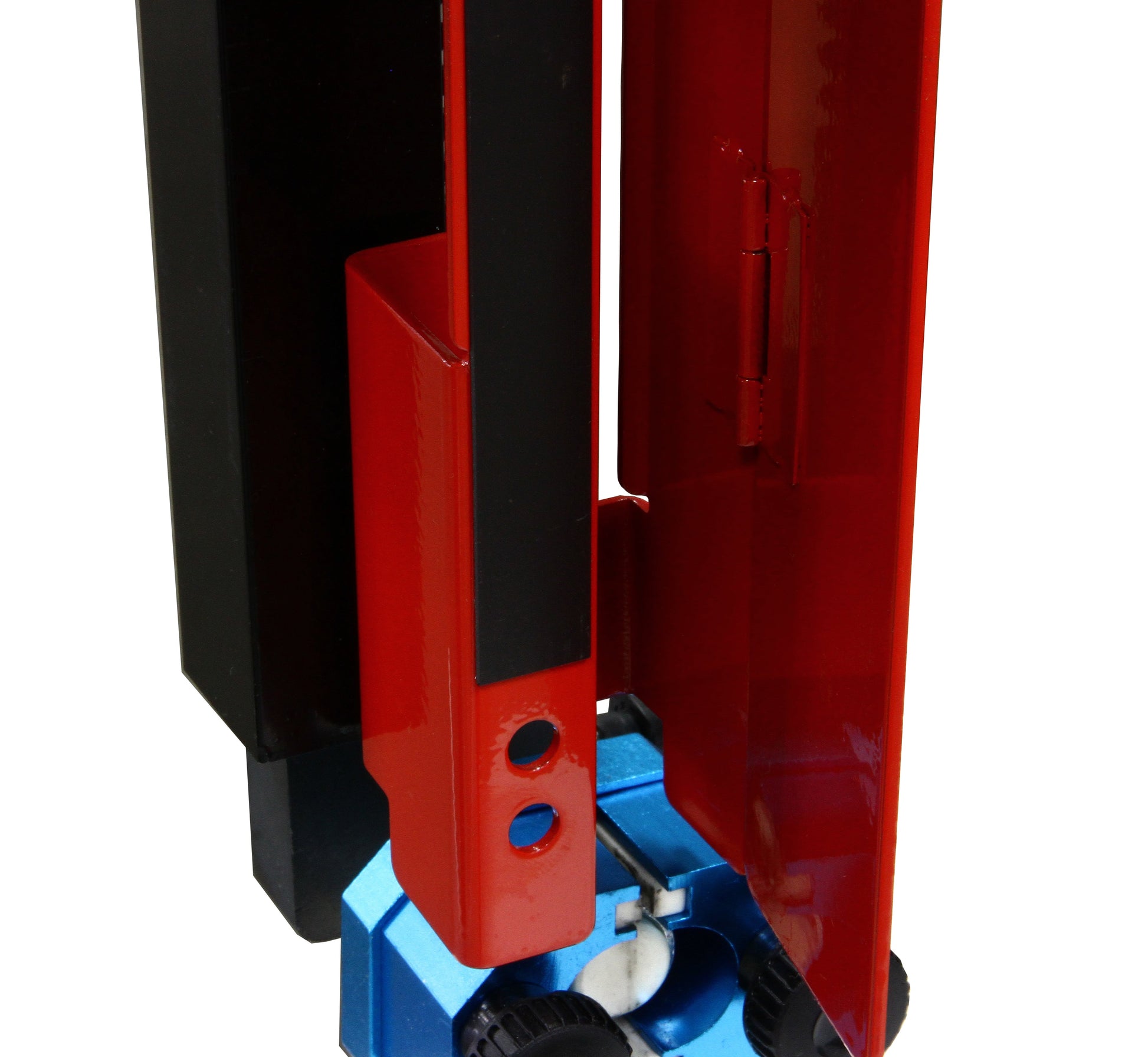

Magnetic Blade Guard

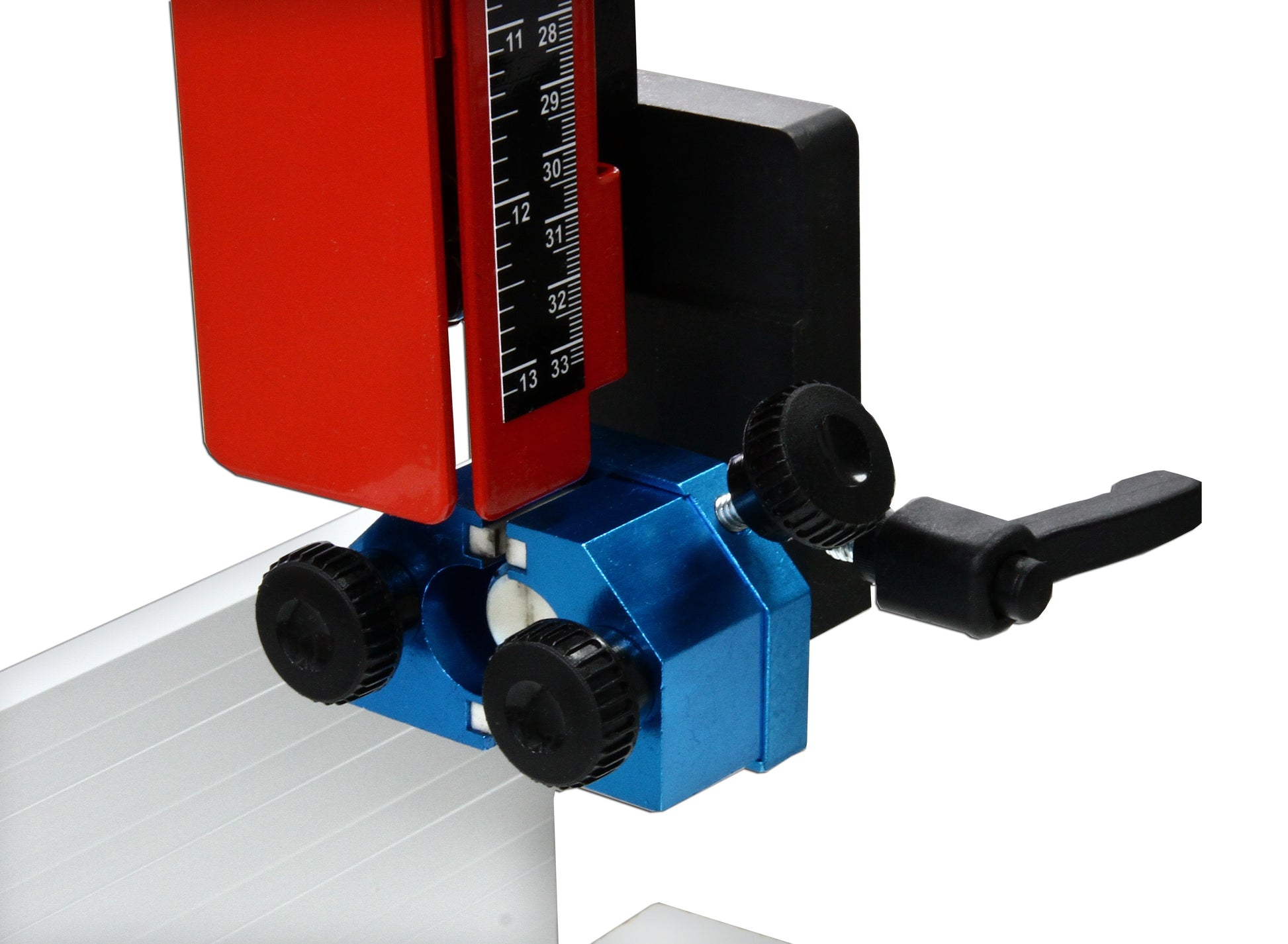

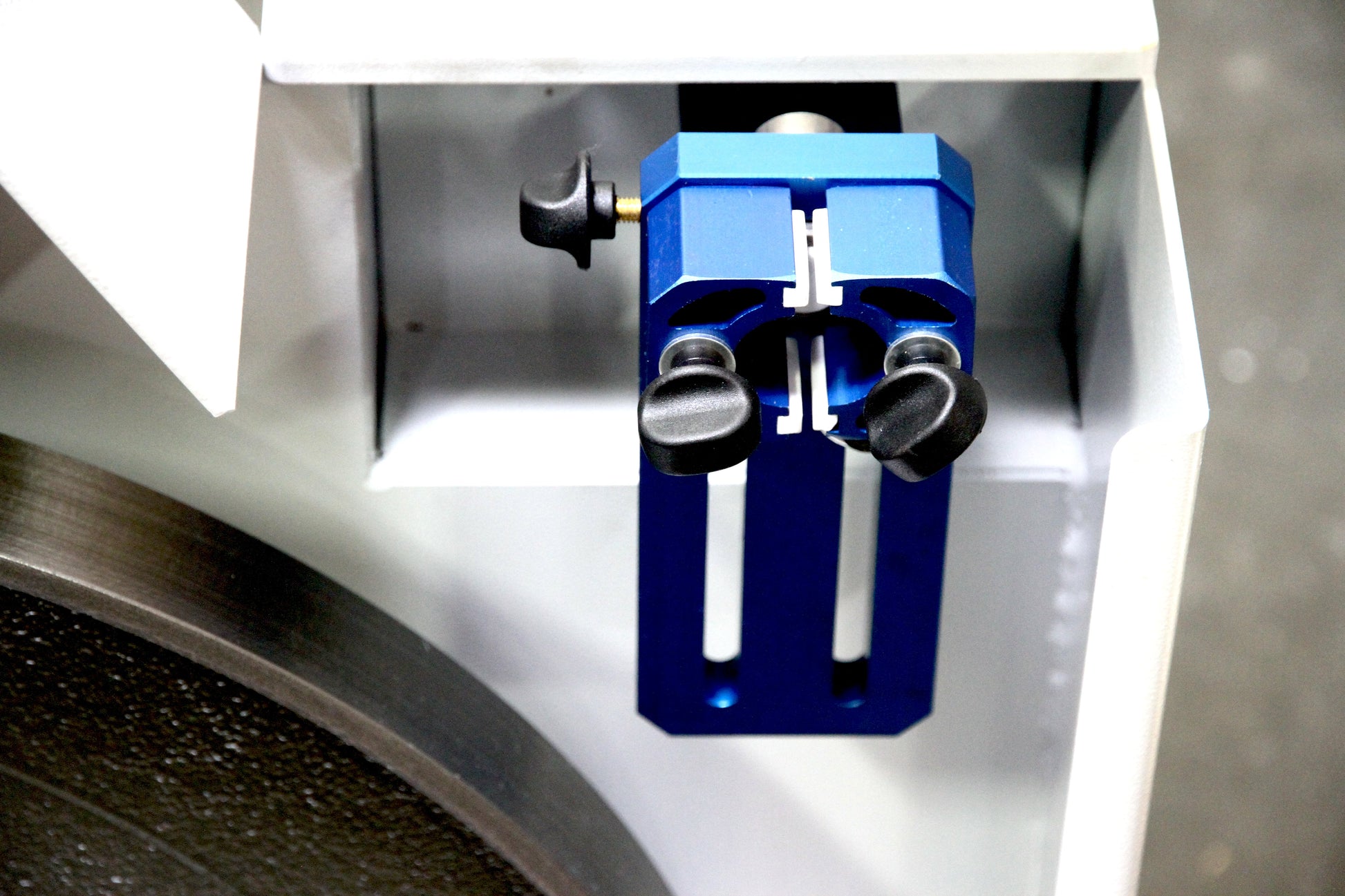

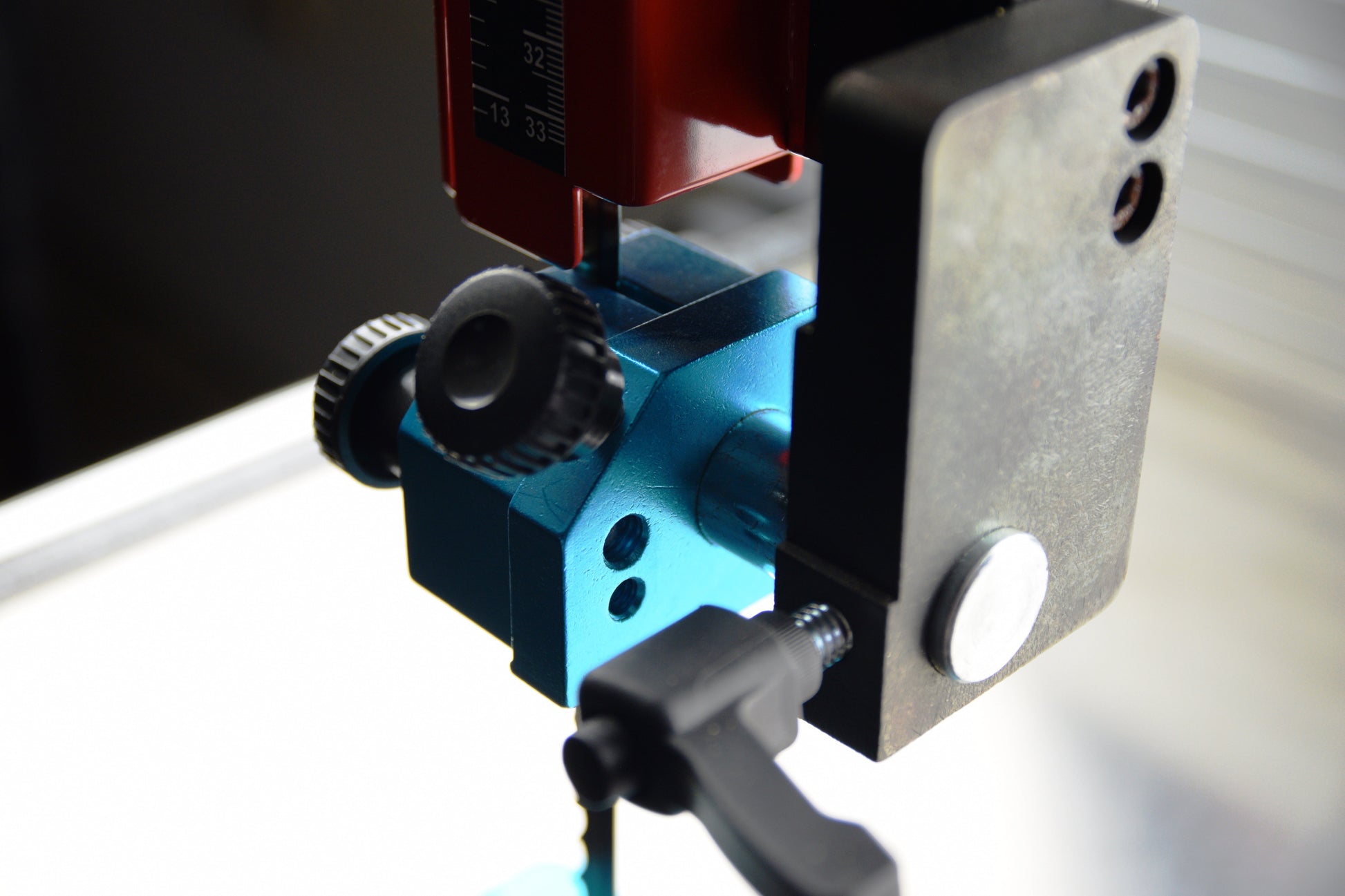

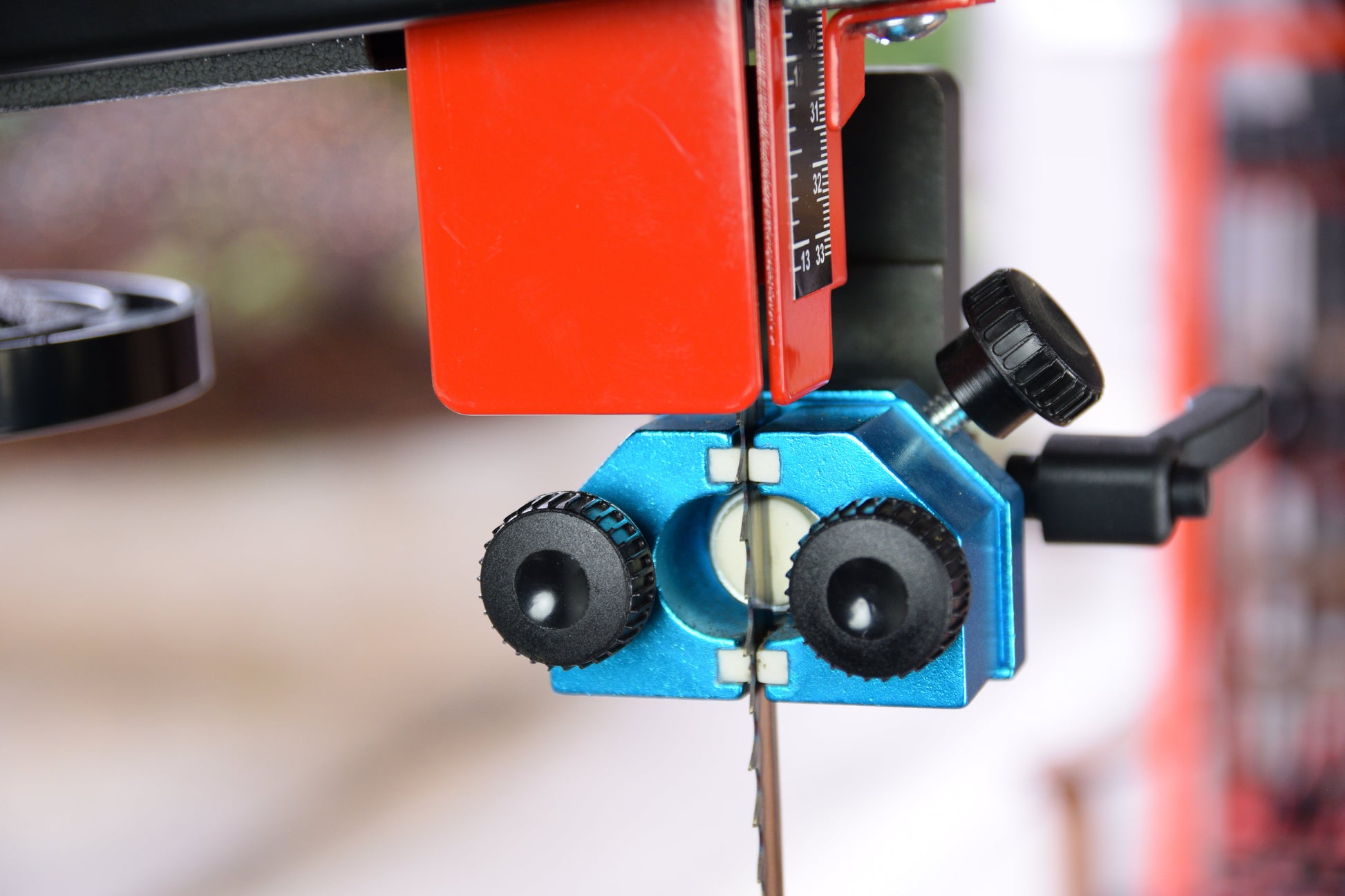

Laguna Ceramic Guides

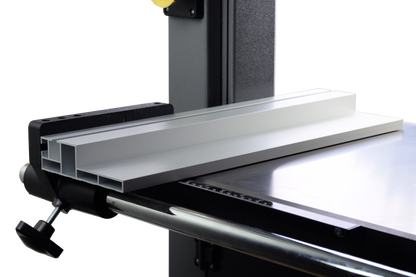

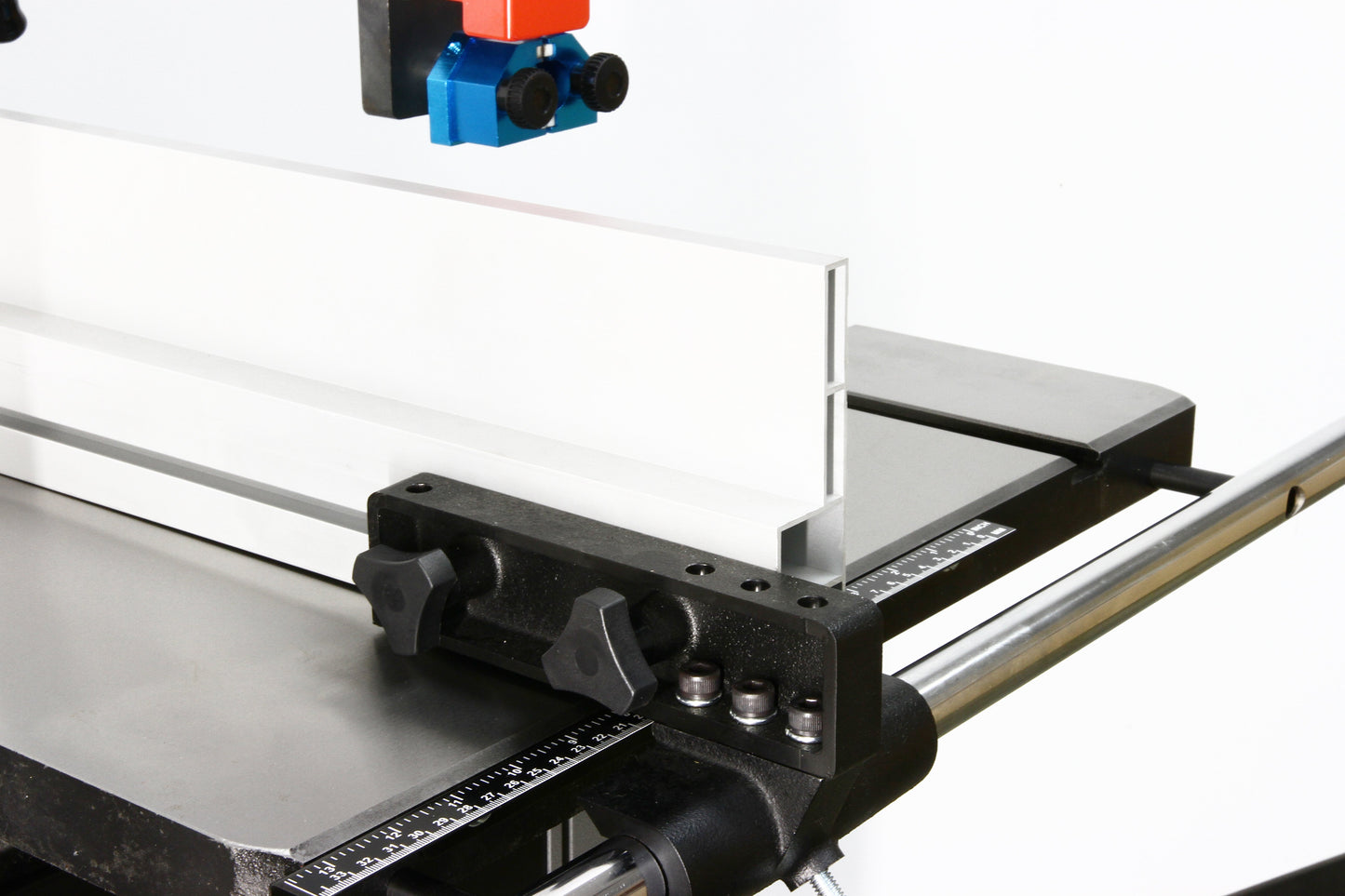

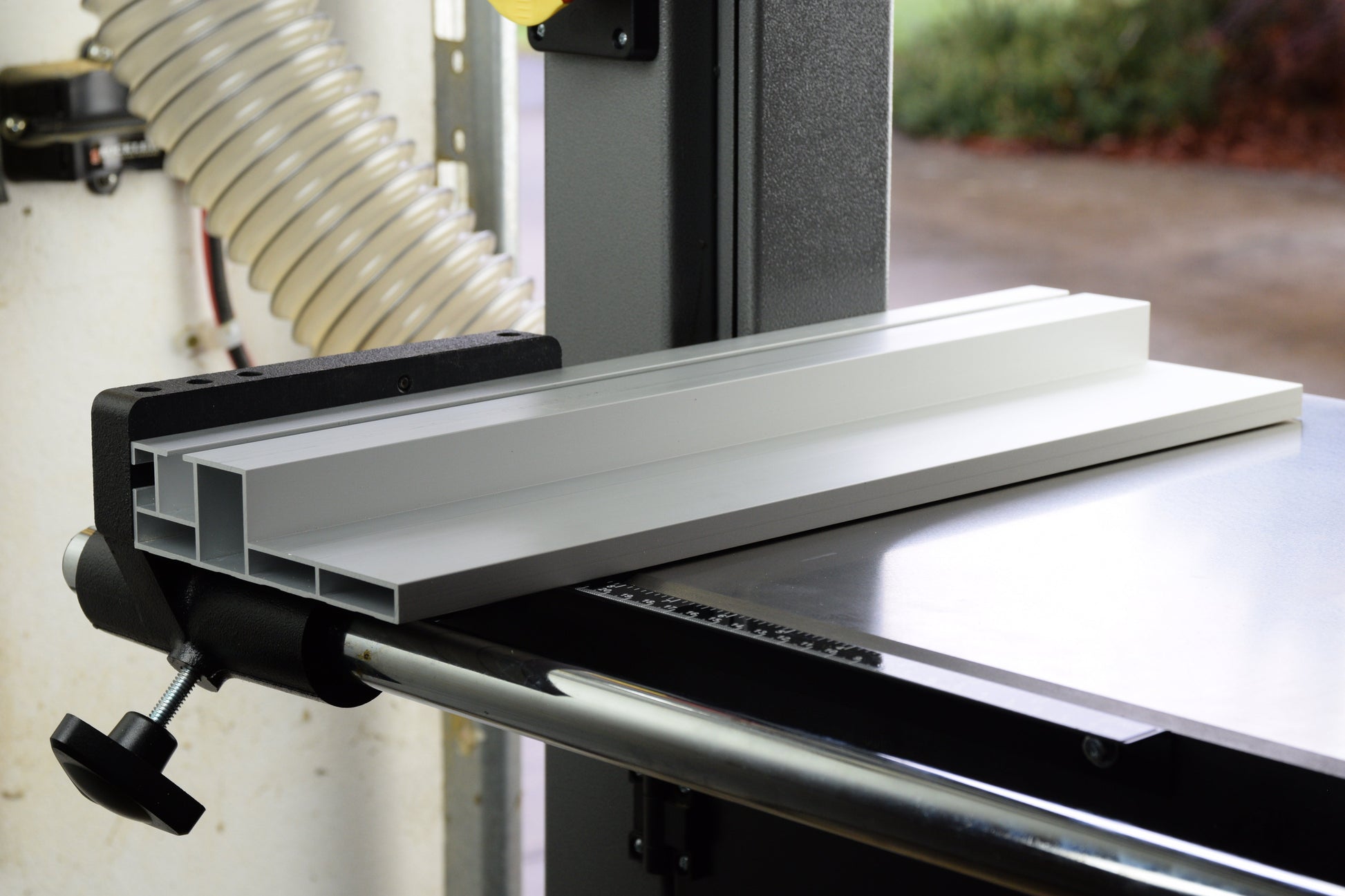

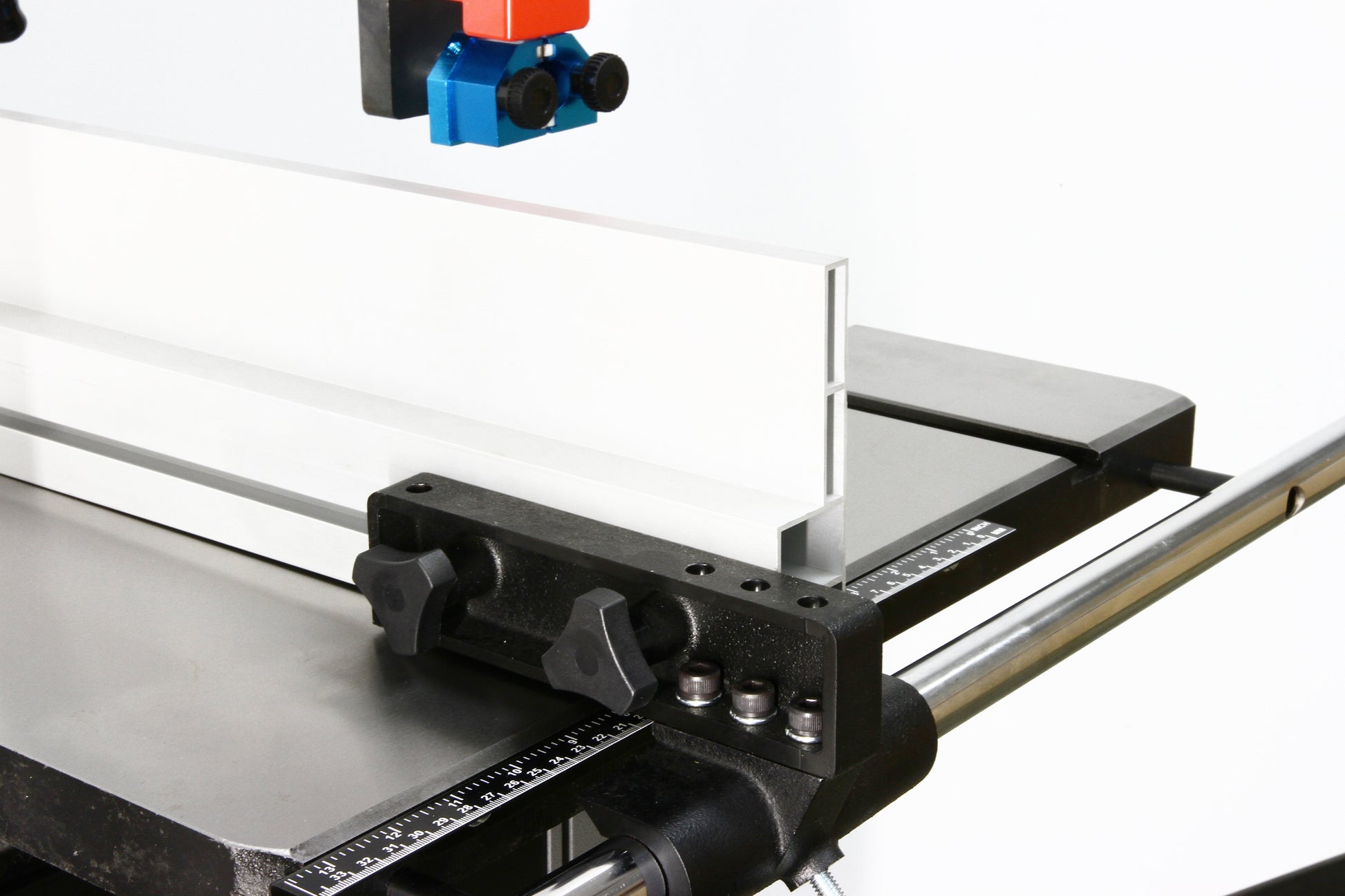

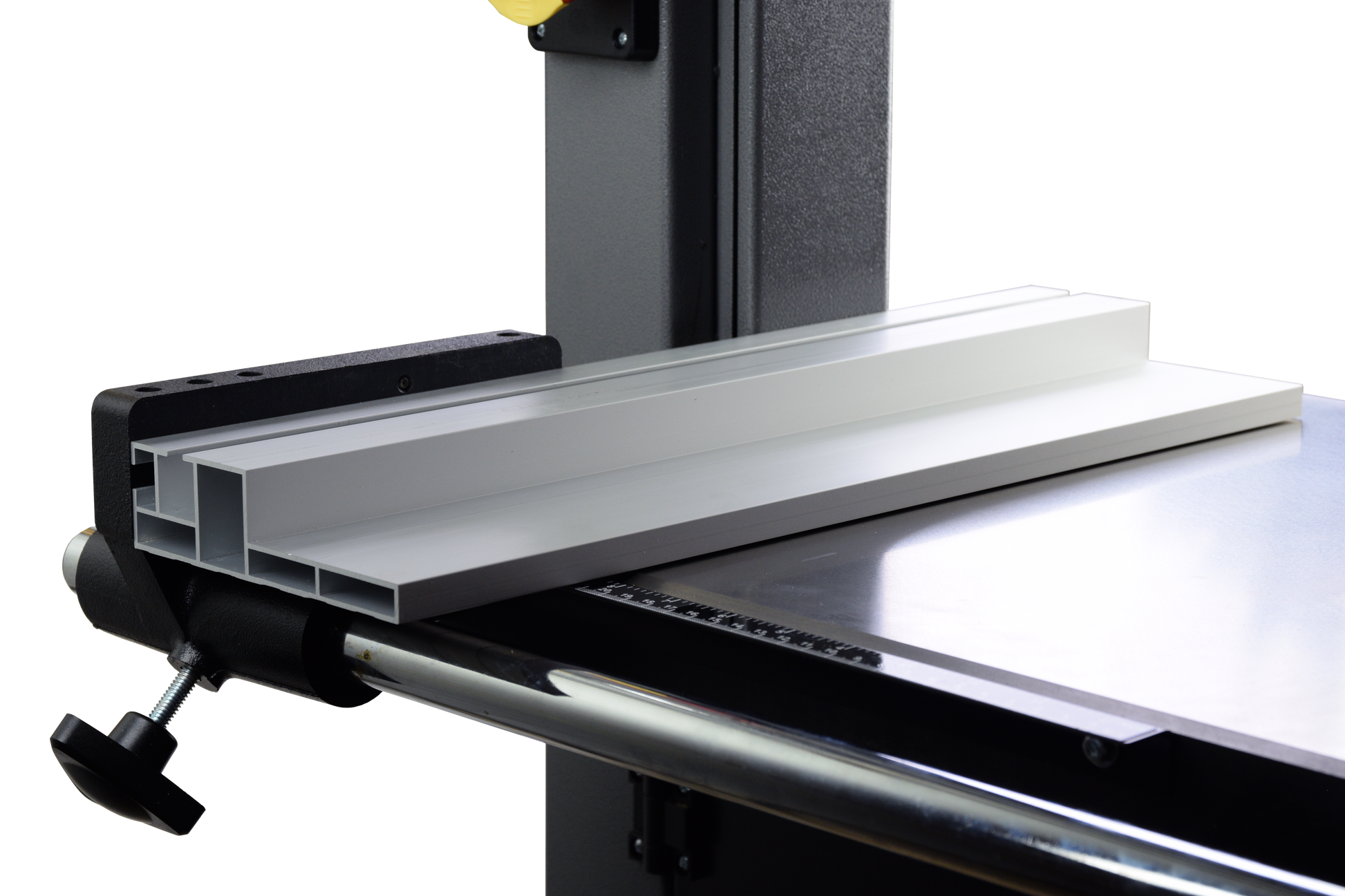

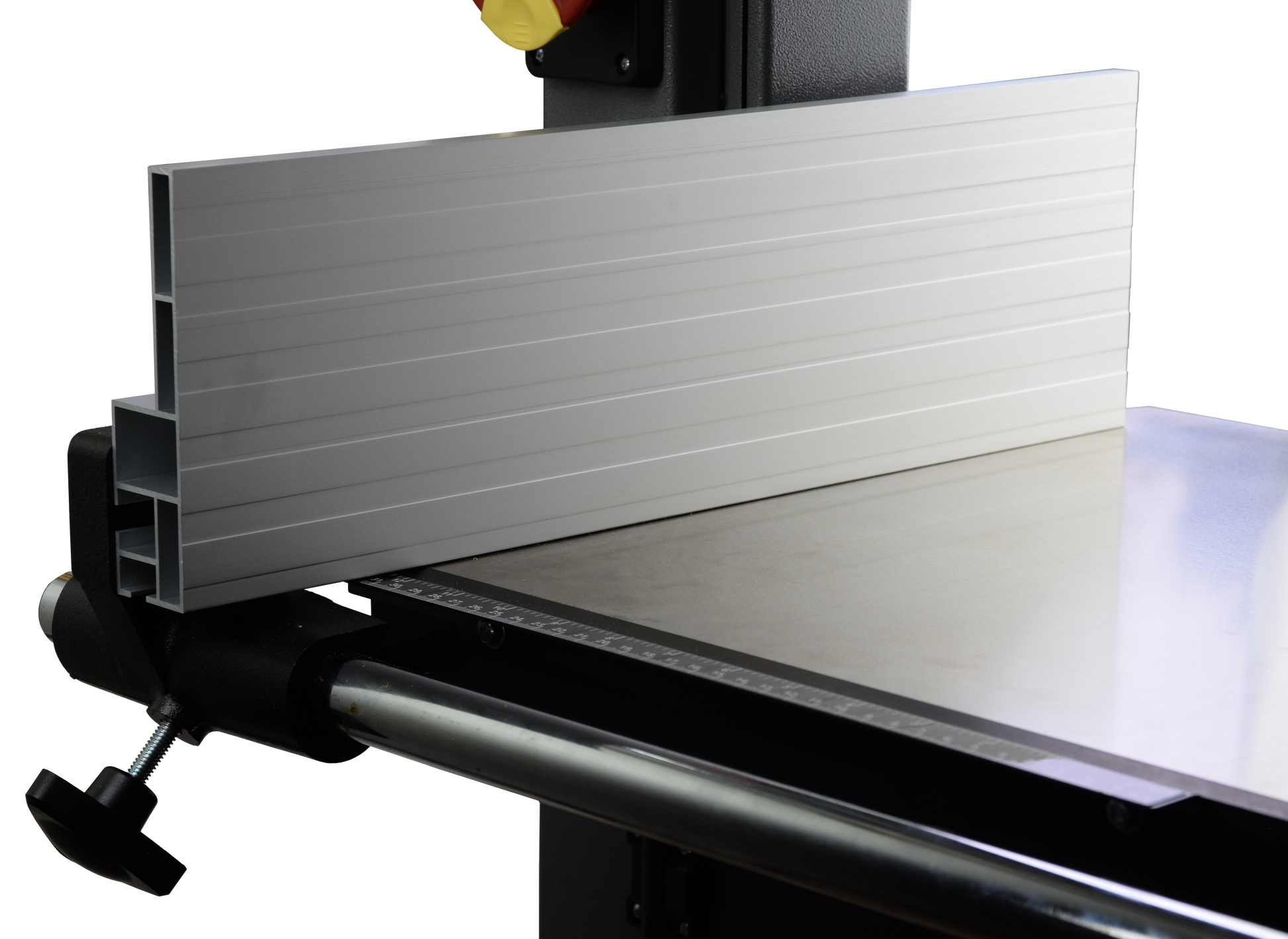

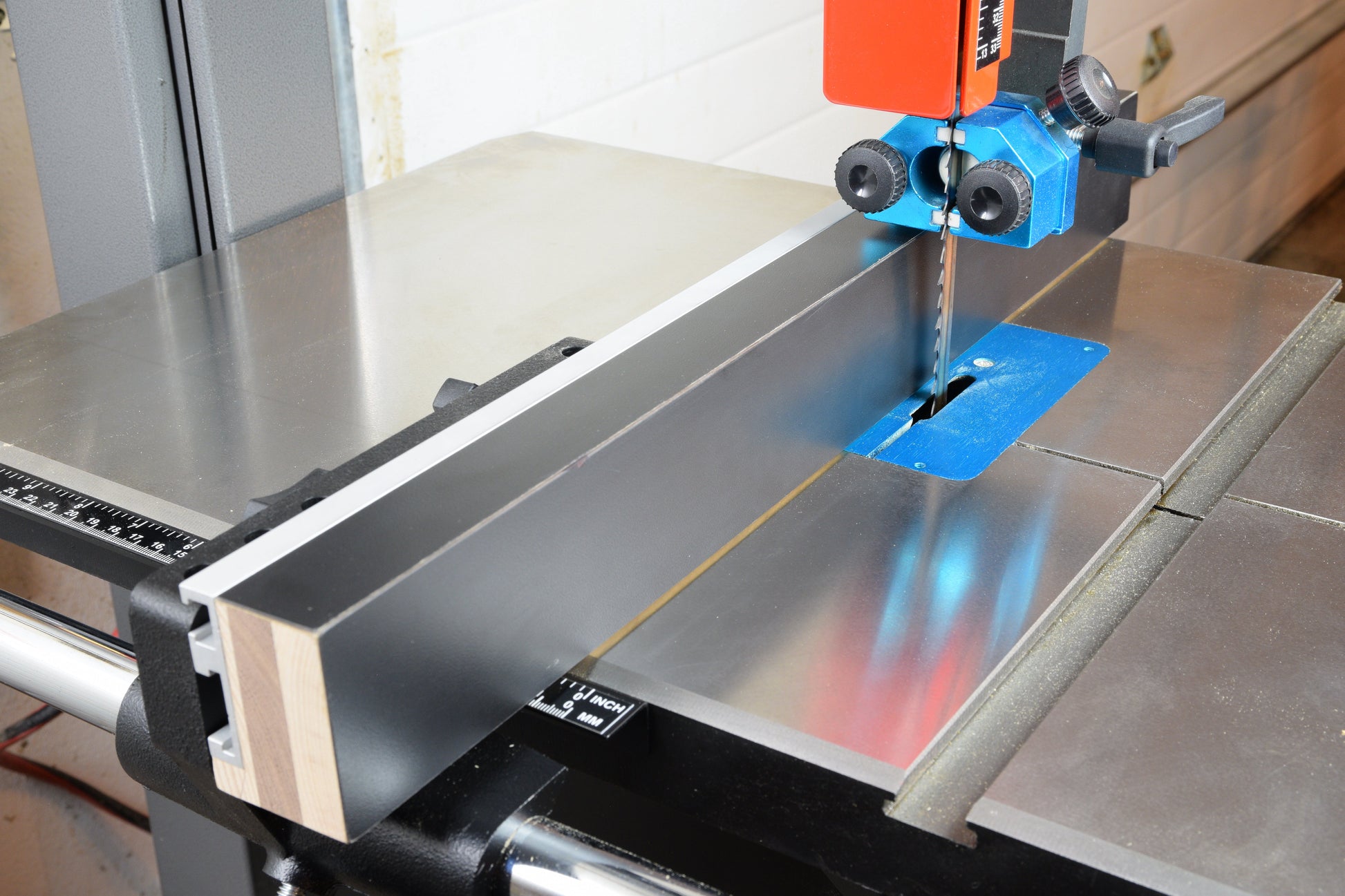

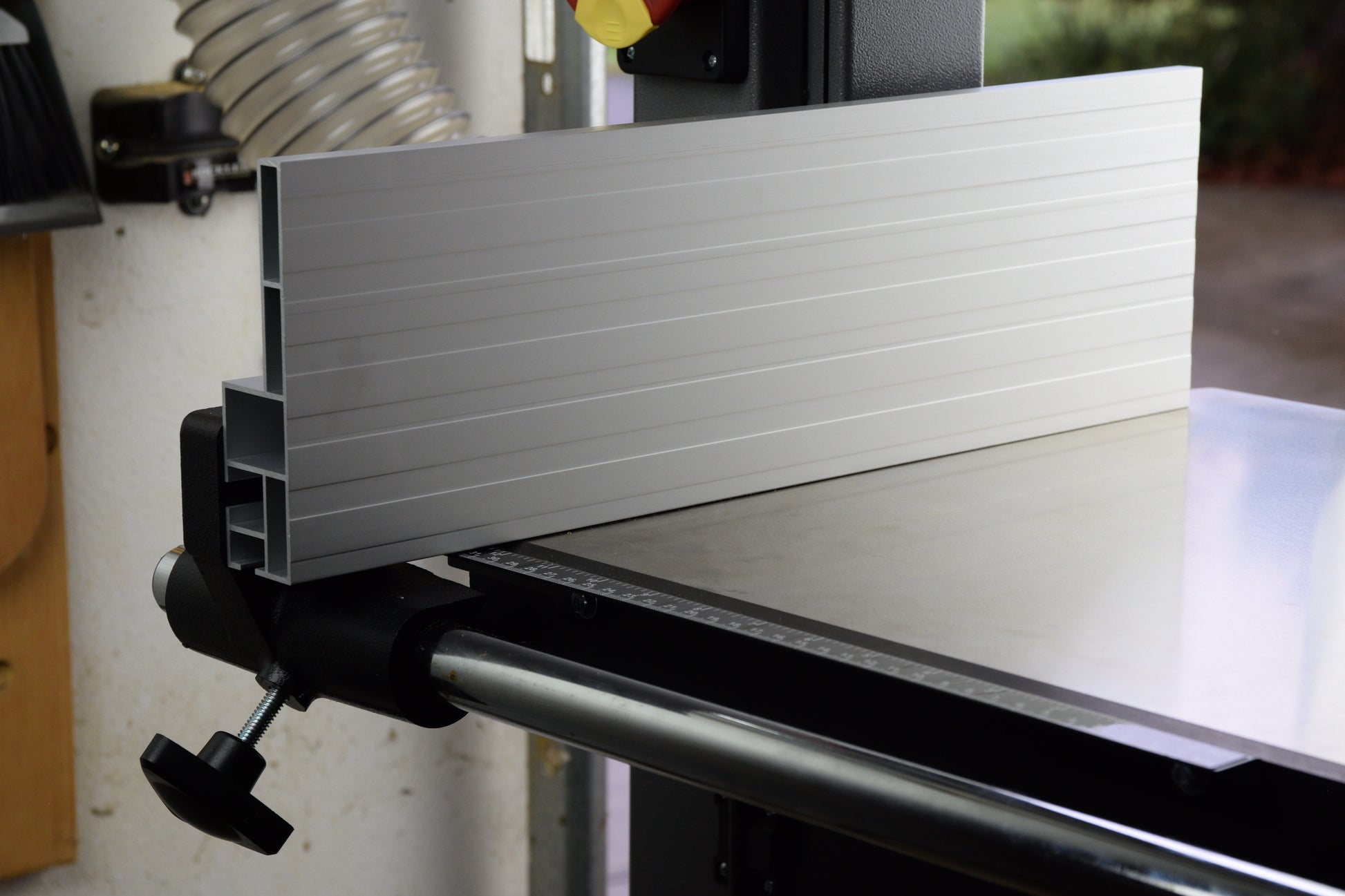

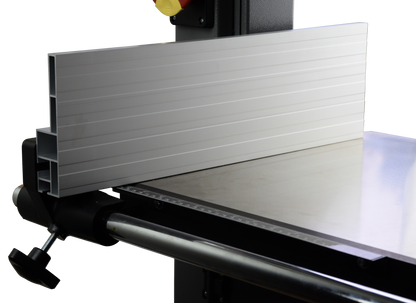

Hi/Low Aluminum Fence

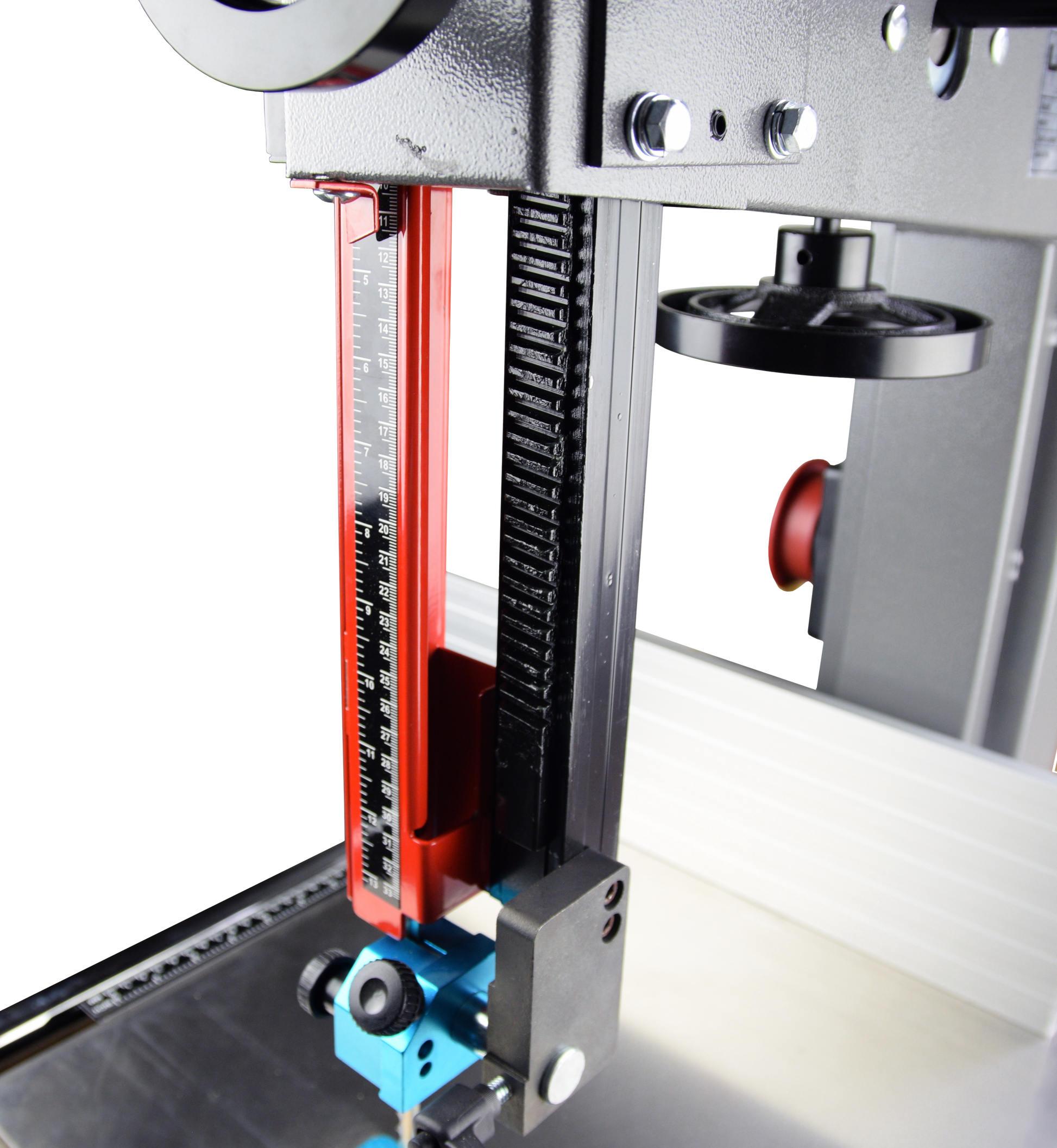

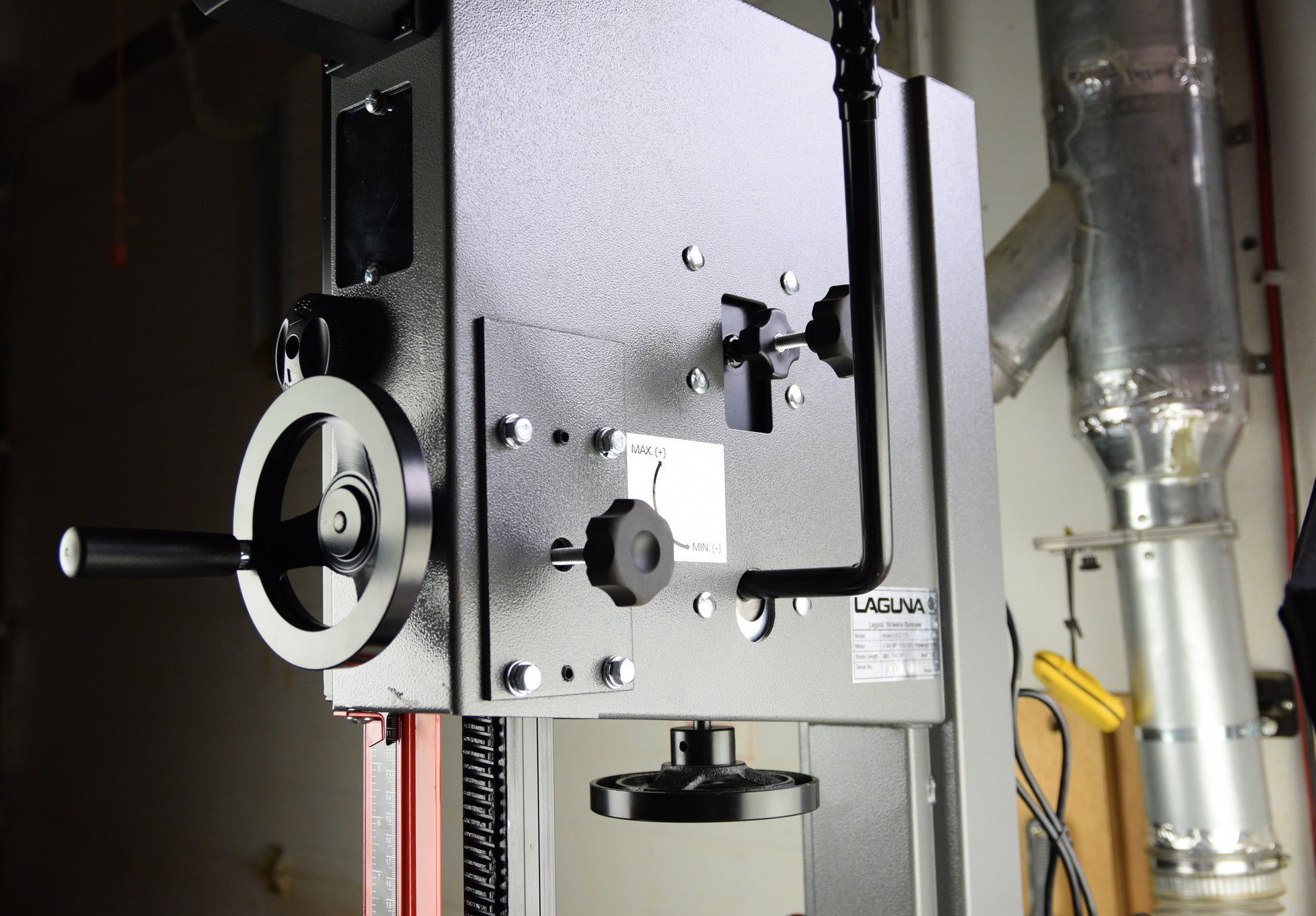

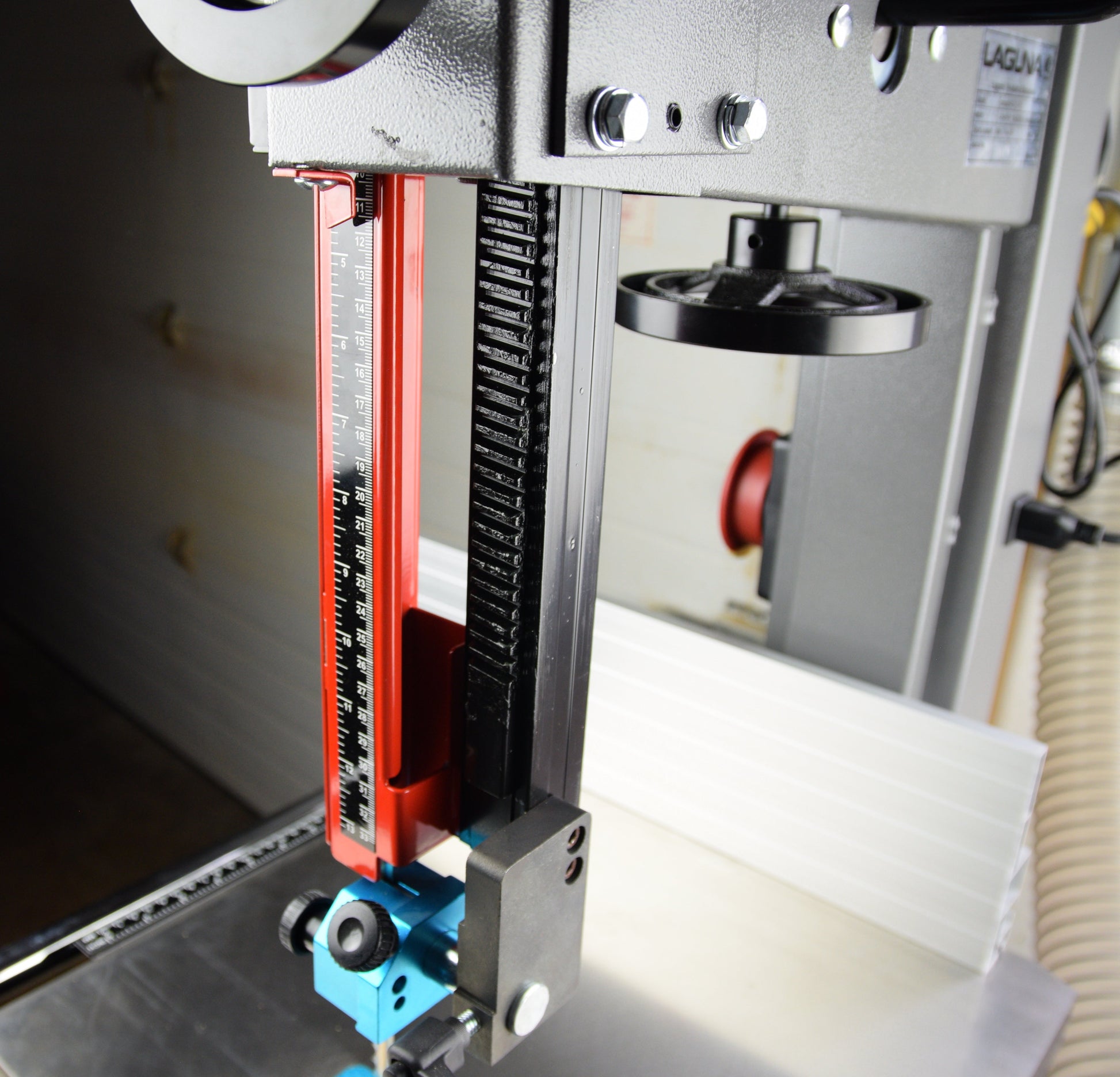

Worm Gear Rack & Pinion

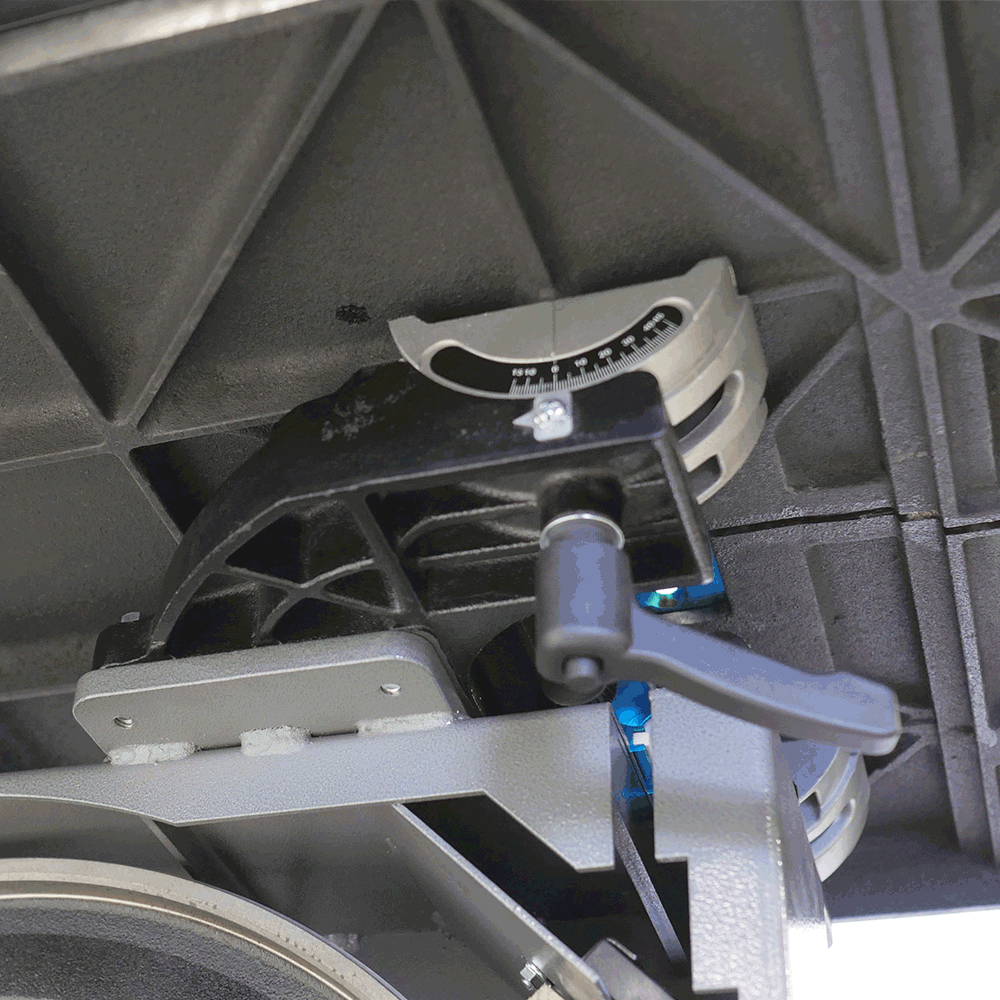

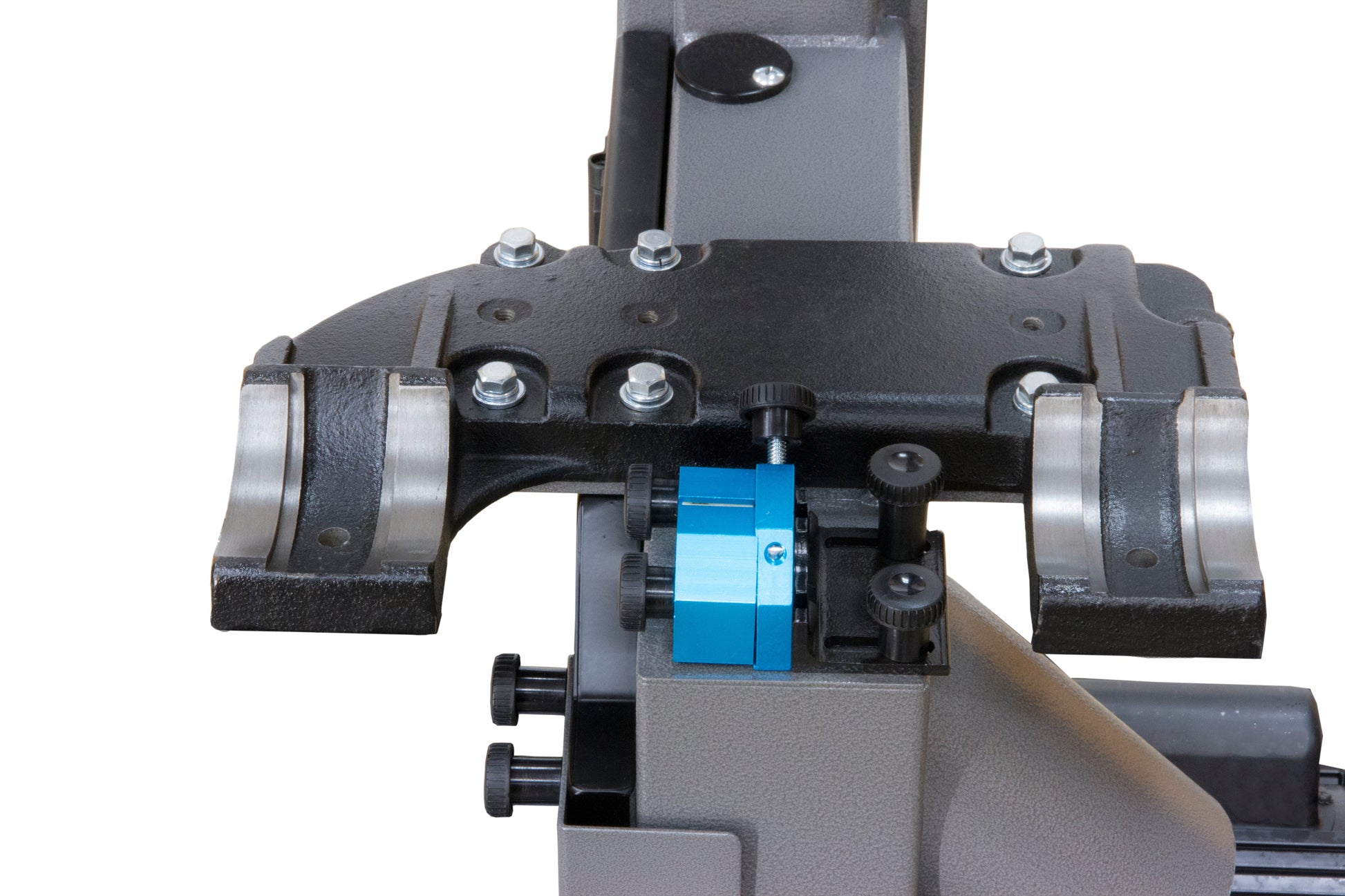

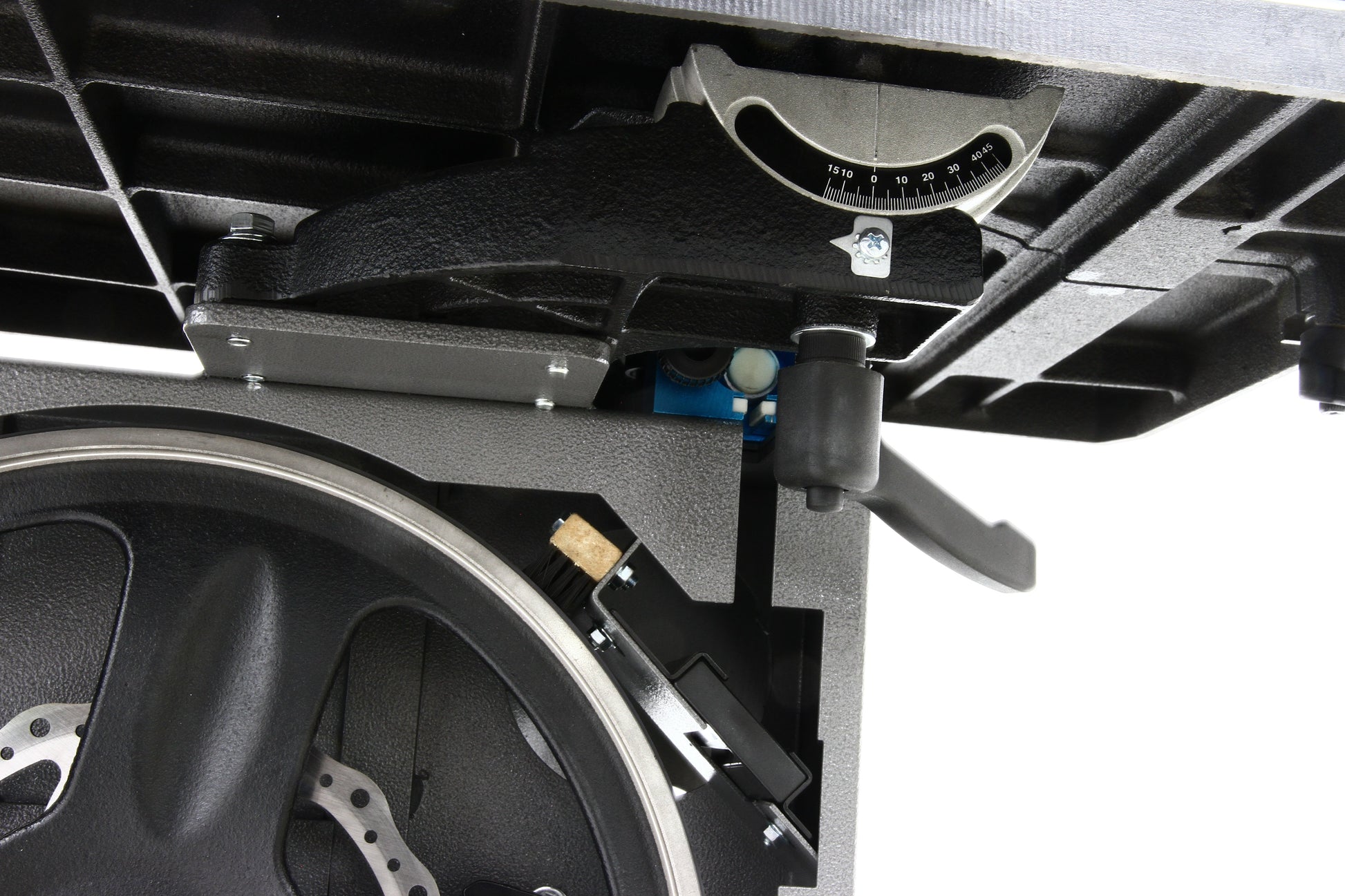

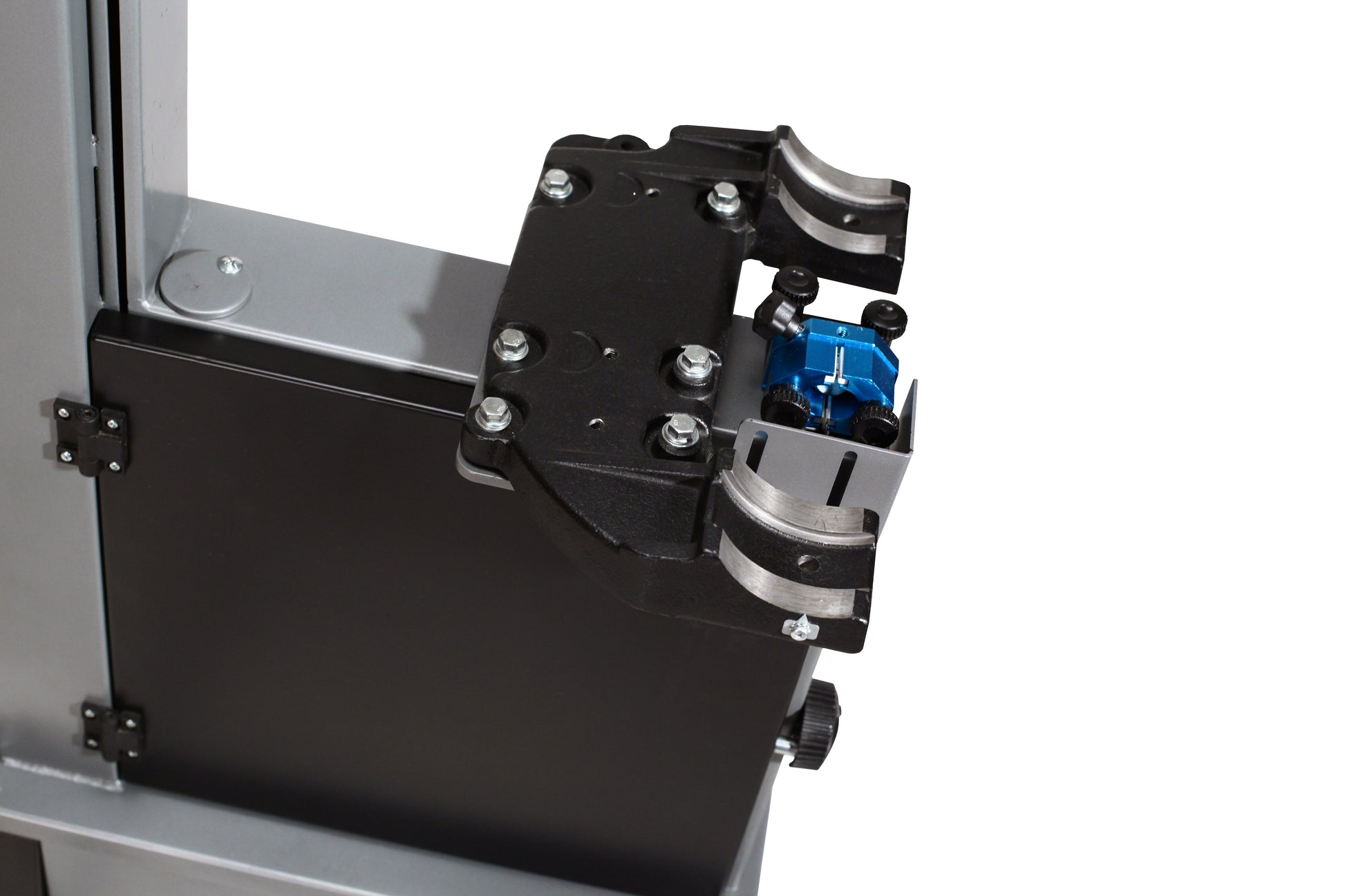

Massive Cast Trunion: 8″ x 13″

Shipping Weight: 350lbs

Shipping Dimensions (L x W x H): 73″ x 27″ x 29″

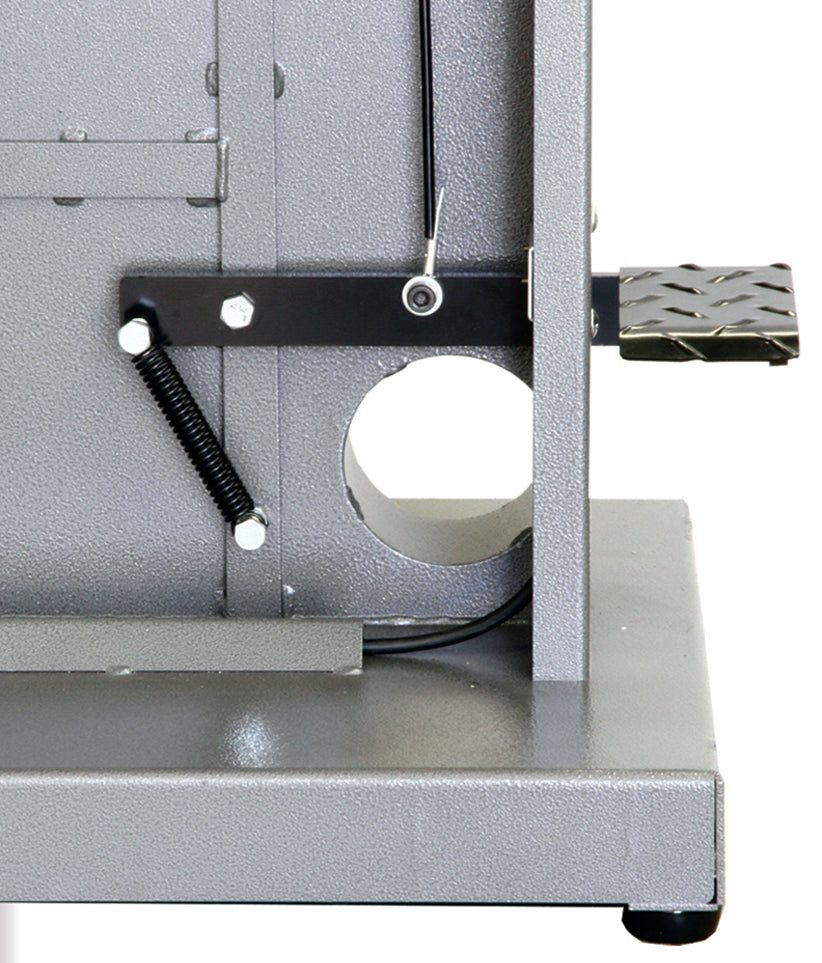

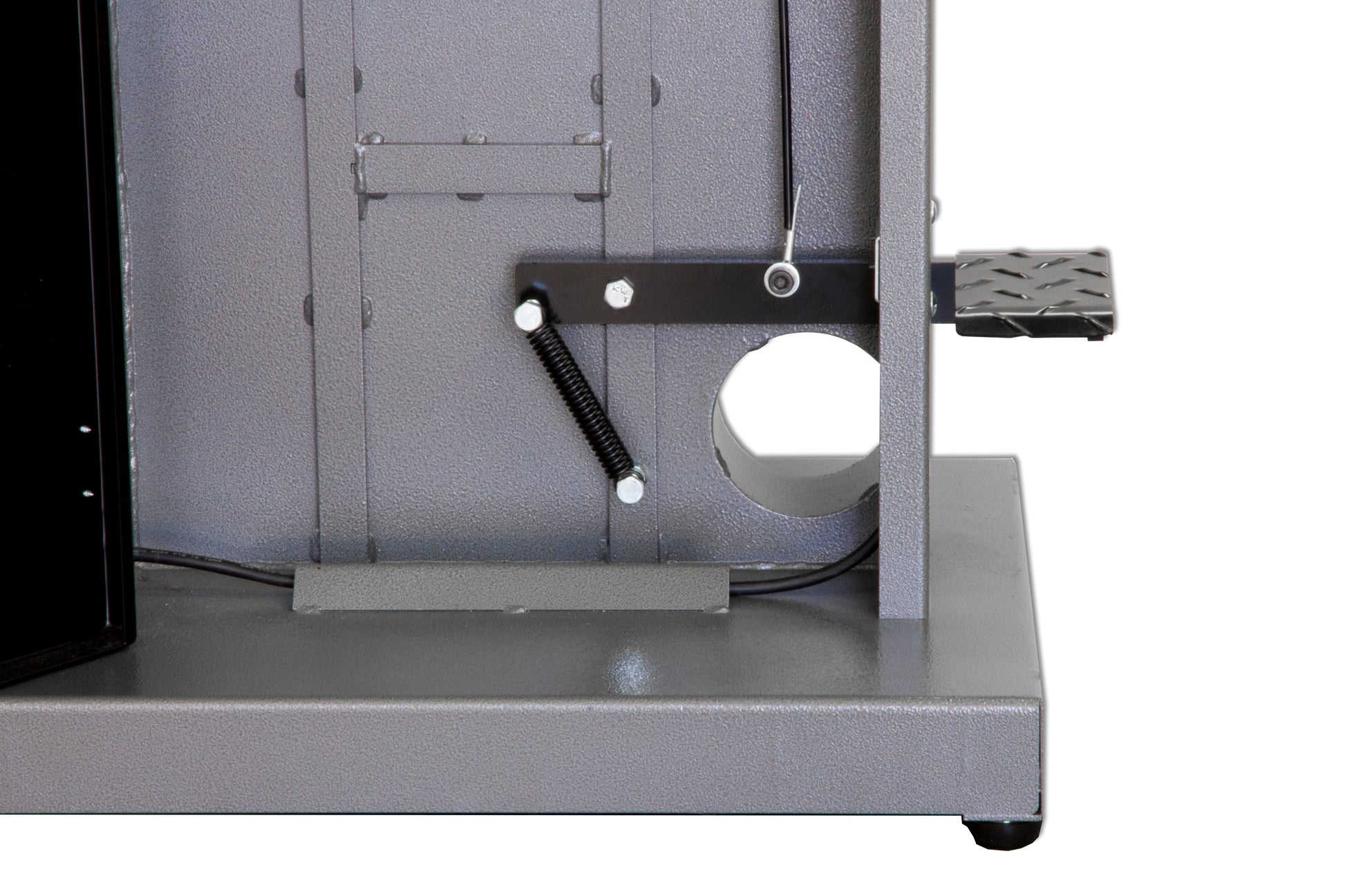

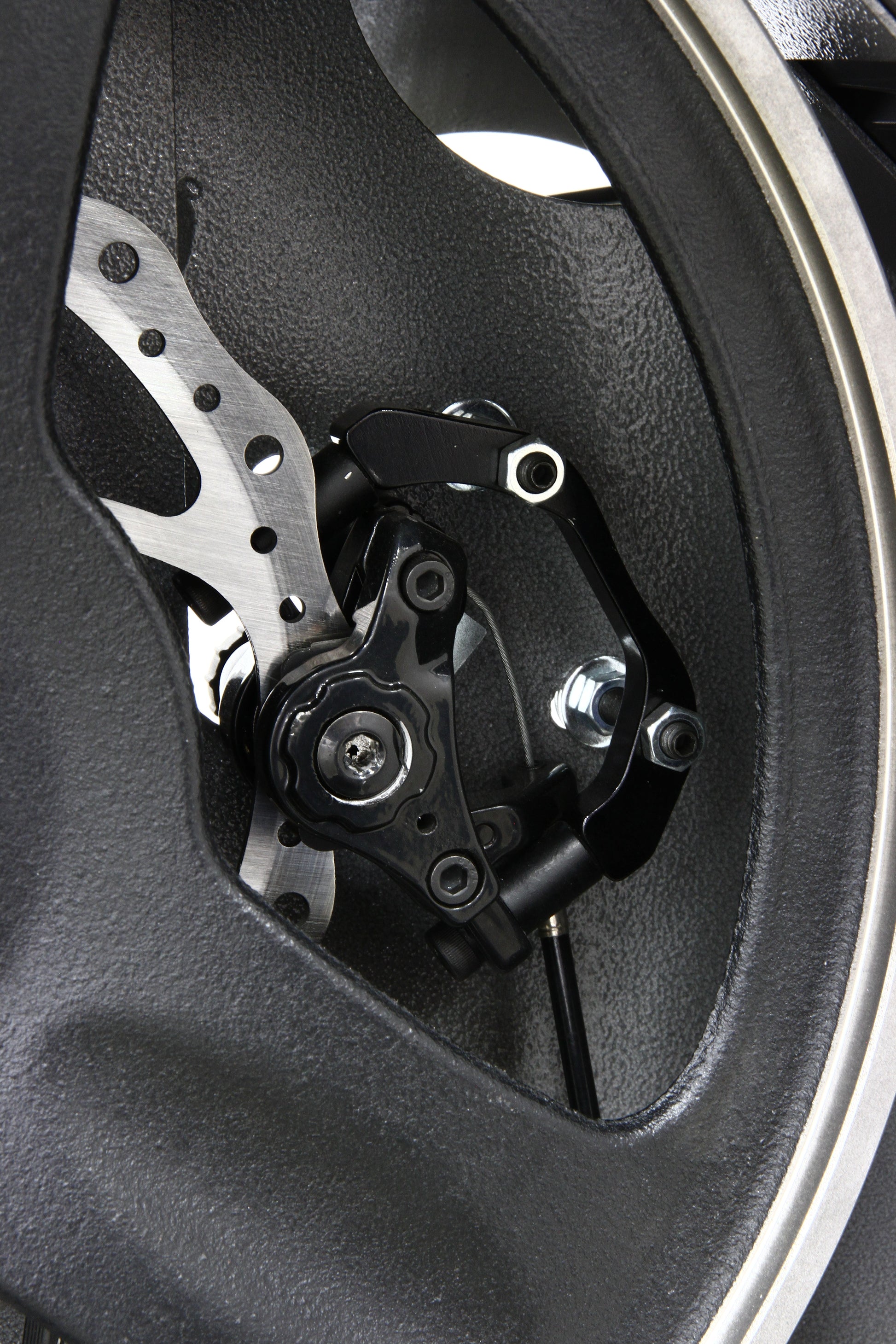

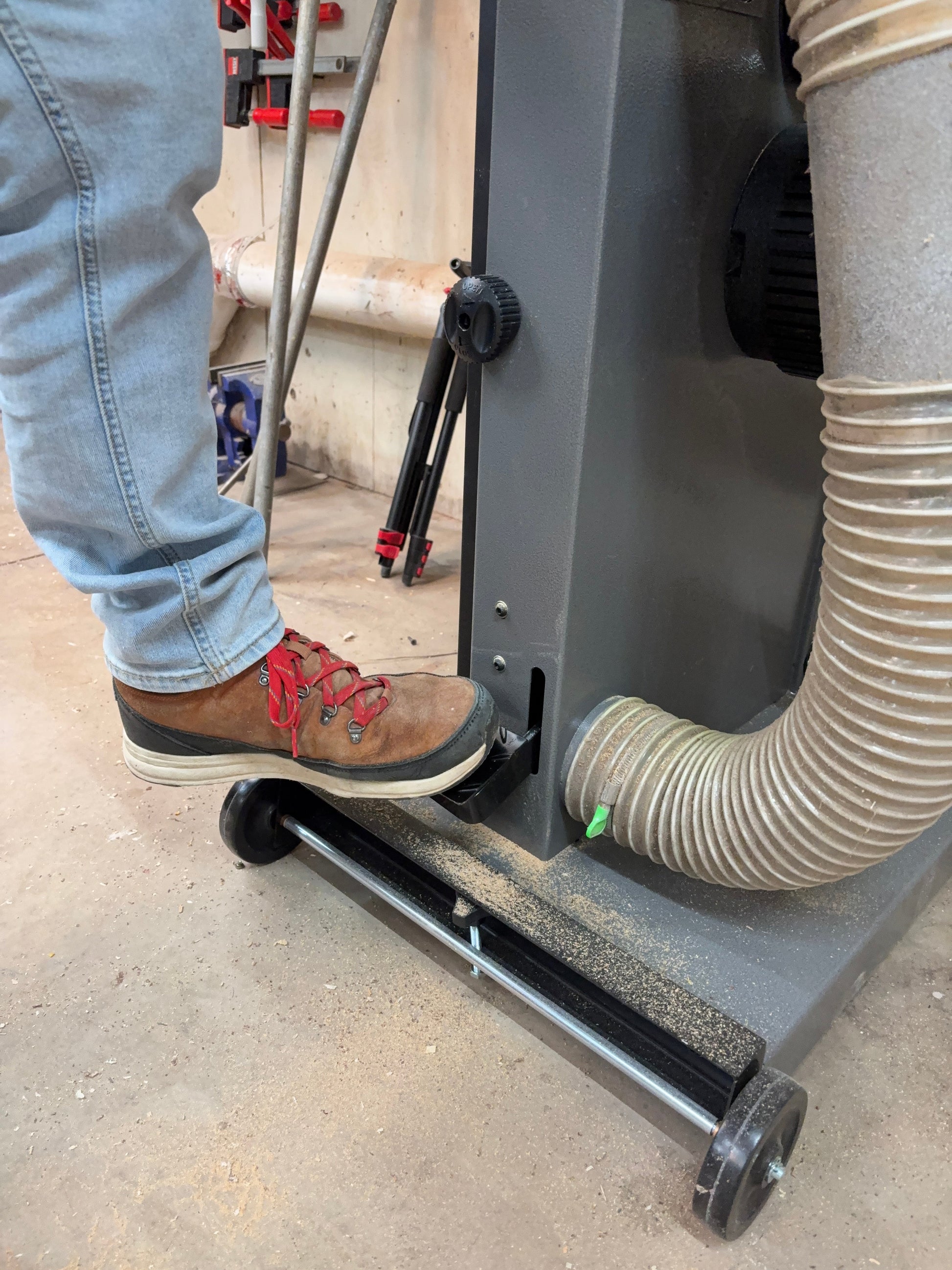

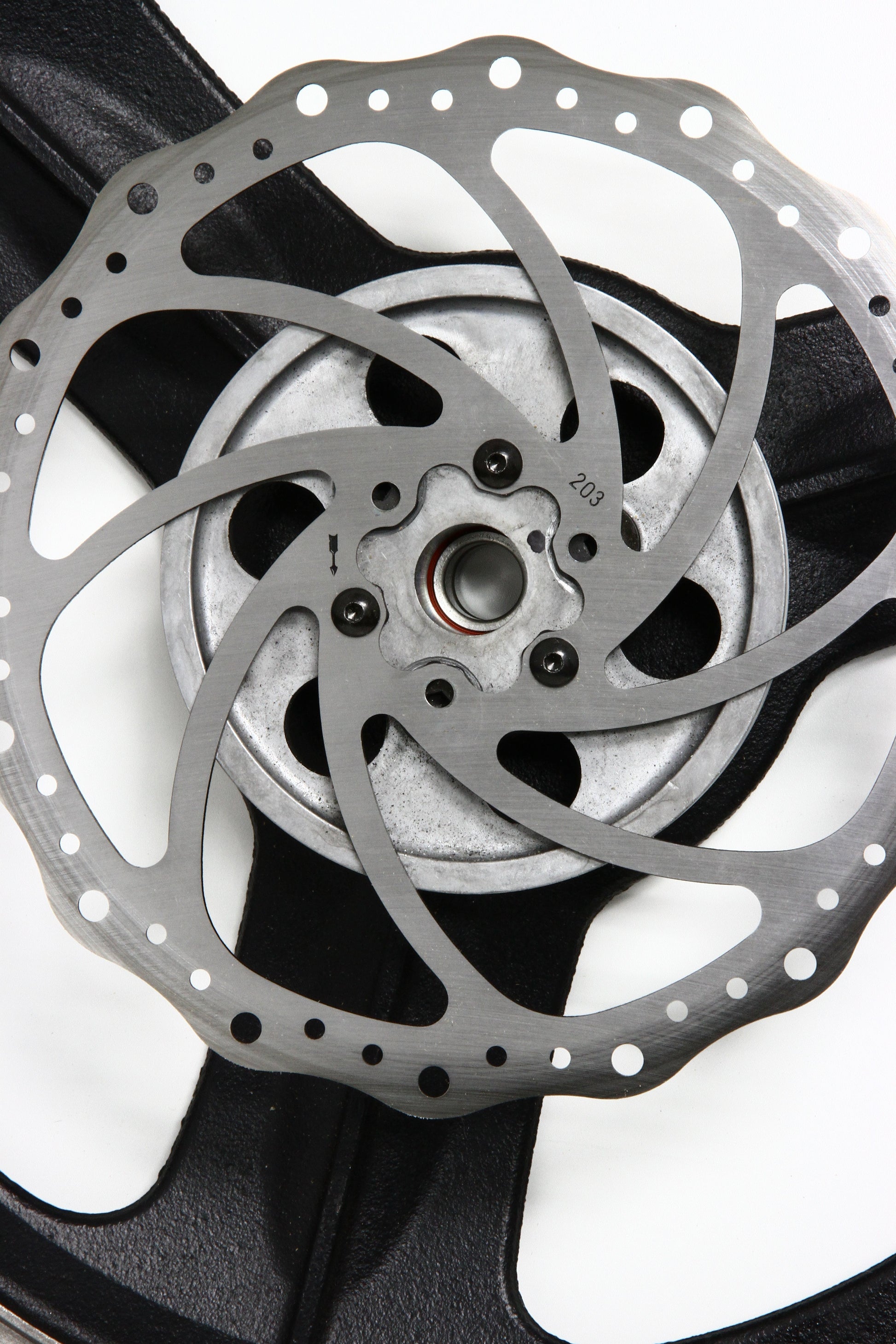

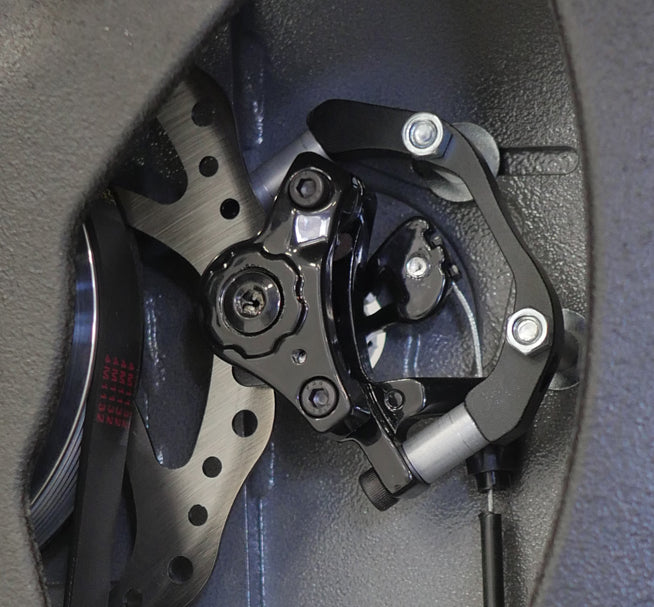

Main differences from 14|12: – Weight increased – Solid one-piece Frame – Frame is heavier Gauge – Magnetic On/Off Switch – Disc-Brake w/ Micro-Switch – Dual light mounting positions

Shown with optional Blade

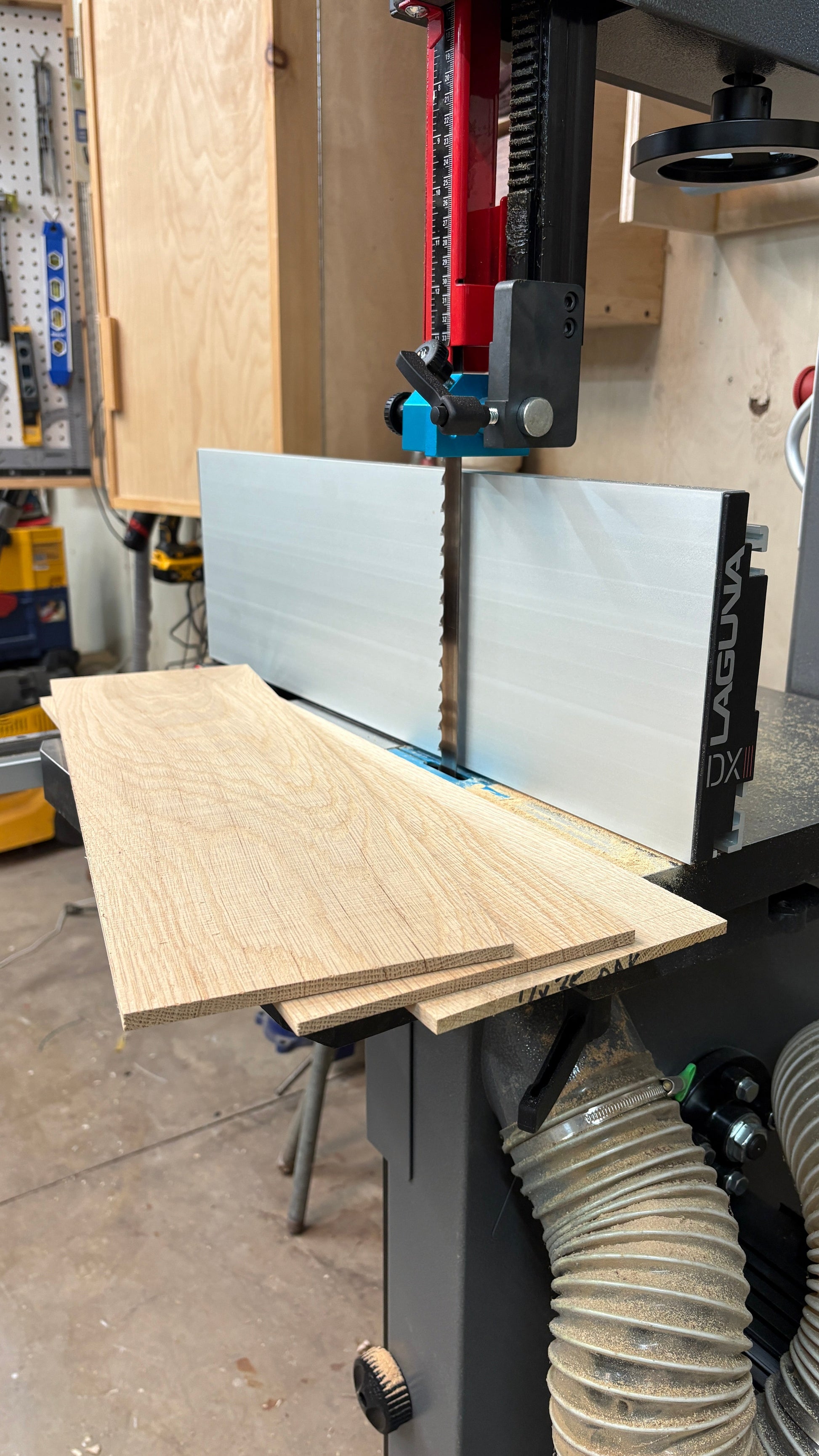

• 13″ Resaw Capacity
• Height: 70-1/4″
• 21-1/2″ X 16″ Table
• Table Height: 38″
• 7° Table Tilt Left
• 2 X 4″ Dust Ports

• 1.75HP, 14 Amp, TEFC
• 110 Volt Outlet for Light
• 6′ Cord with Nema Plug: 5-15P
• Weight (Net/Ship): 260/320 lbs

• 1 Phase, 2.5HP, 9.8 Amp, TEFC
• 220 Volt Outlet for Light
• 6′ Cord with Nema Plug: 6-15P
• Weight (Net/Ship): 270/330 lbs
