G0943 120-Gallon 10 HP Extreme Series Air Compressor

A high-power, two-stage 120-gallon compressor for optimal output.

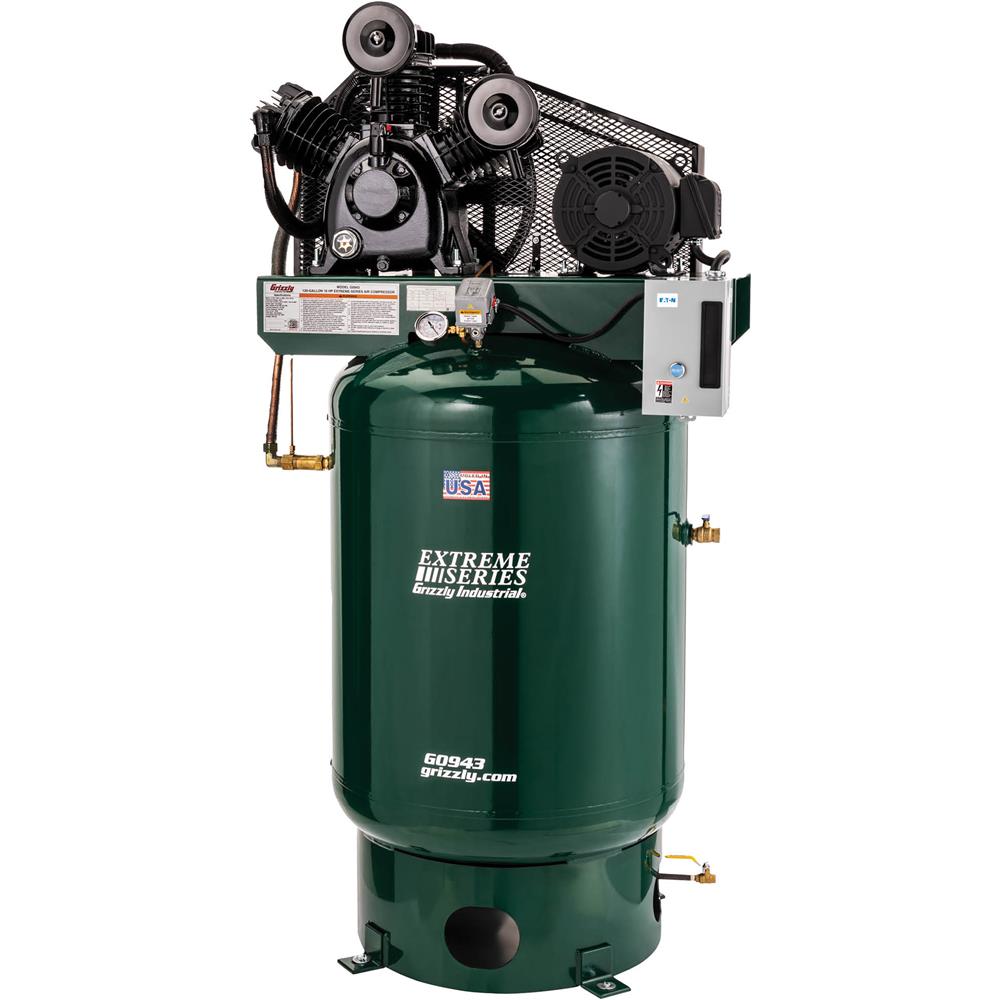

The Grizzly PRO G0943 120-Gallon 10 HP Extreme Series Air Compressor designed for commercial shops where large air volume is needed with a maximum pressure of 175 PSI.

This high output compressor delivers 45 CFM at 40 PSI and 40 CFM at 90 PSI; perfect for tire shops, finishing shops and most factories.

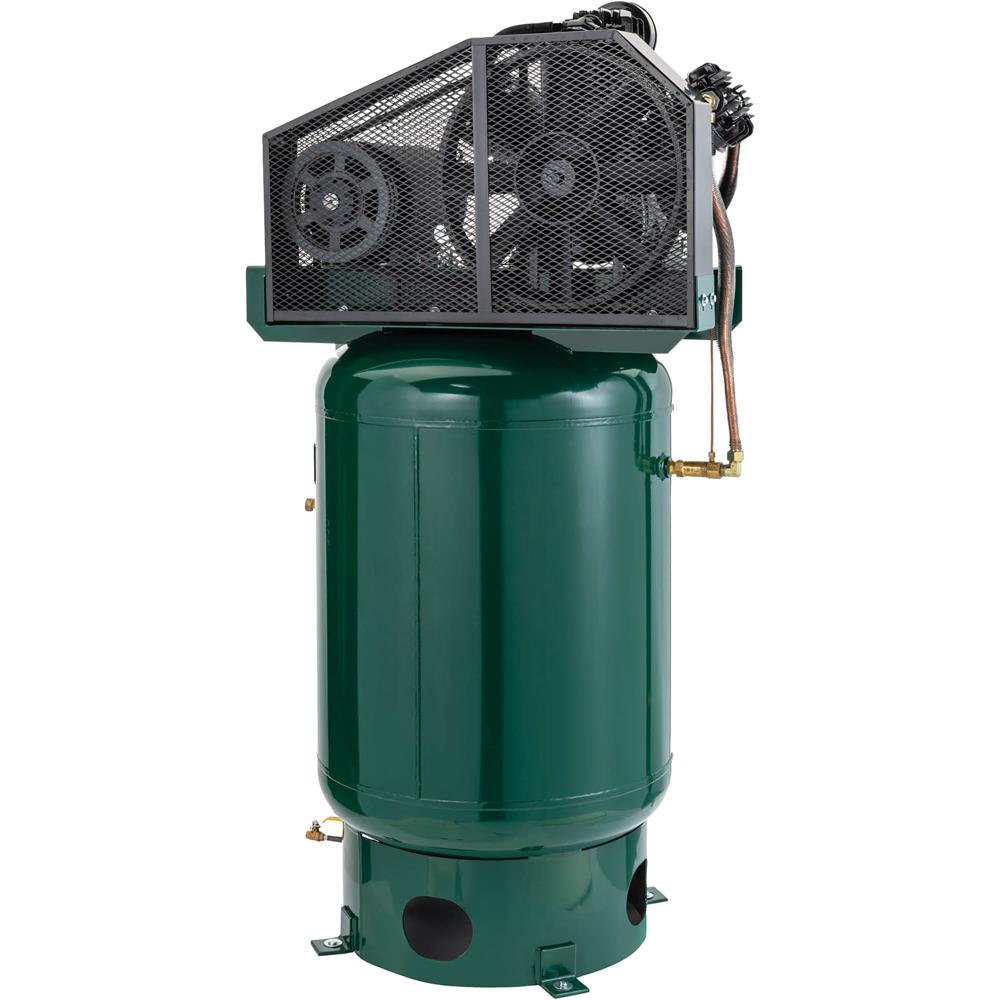

The 120-gallon vertical air tank has been ASME certified to meet safety and quality standards and delivers continuous air volume when needed.

The vertical layout of the tank was intentional and allow you to save space over having a horizontal tank taking up precious floor space.

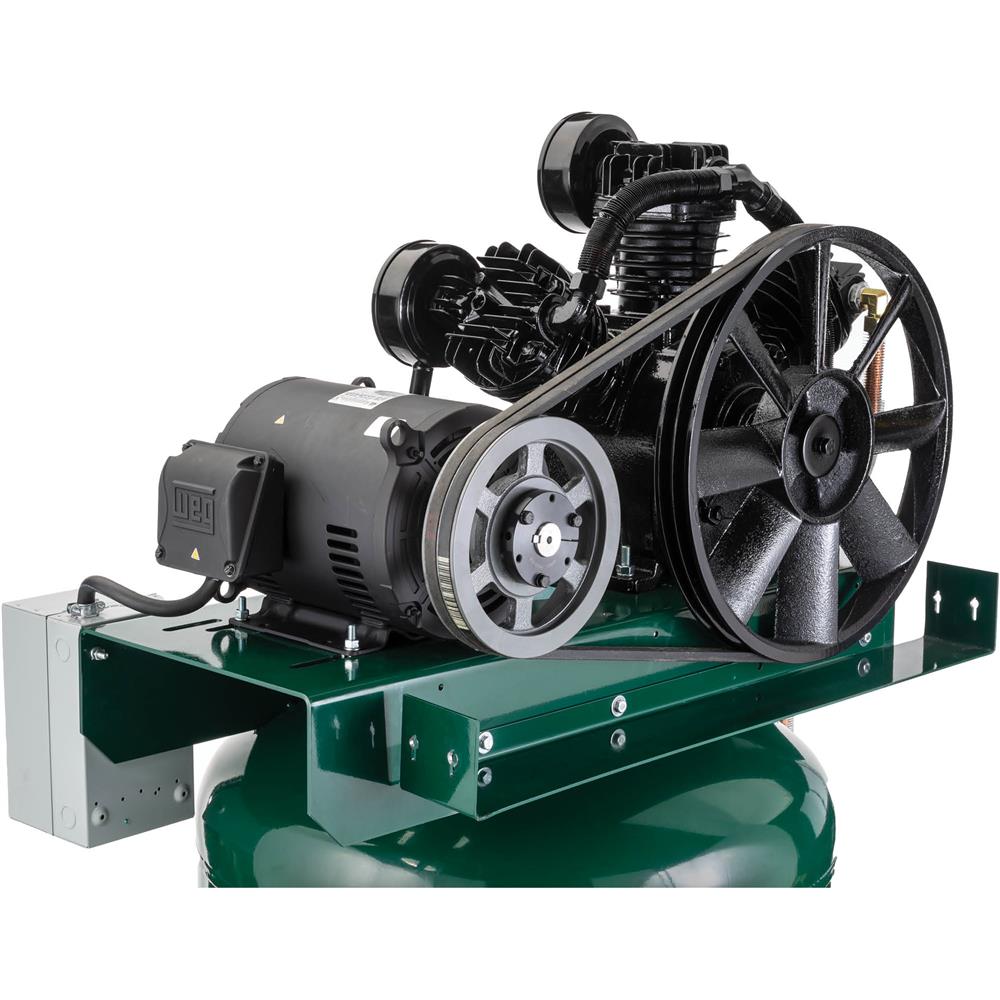

The two-stage, three-cylinder cast-iron oil-lubricated pump operates for optimal output.

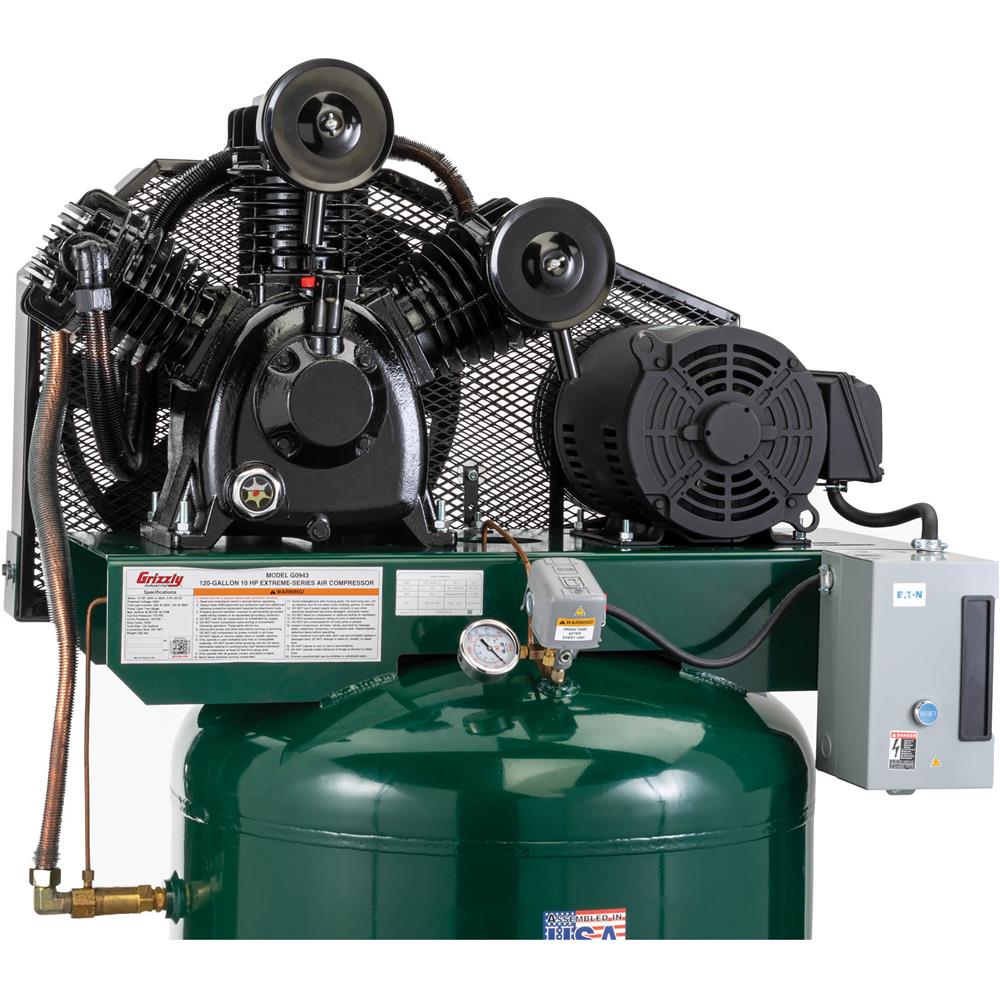

The Eaton magnetic starter provides a safe method for starting an electric motor with a large load.

It also provides under-voltage and overload protection as well as an automatic cutoff in the event of a power failure.

A petcock on the bottom of the tank allows moisture to drain when opened.

SPECIFICATIONS:

FEATURES:

• Two-stage, three-cylinder cast-iron oil-lubricated pump
• Uses synthetic air compressor oil for reduced maintenance
• Wired-formed belt guard for more efficient cooling
• Made and assembled in the USA with global parts
• ASME-certified 80-gallon tank

For 460V conversion, a mag switch must be purchased from Mega Compressor and a certified electrician is required for installation.
