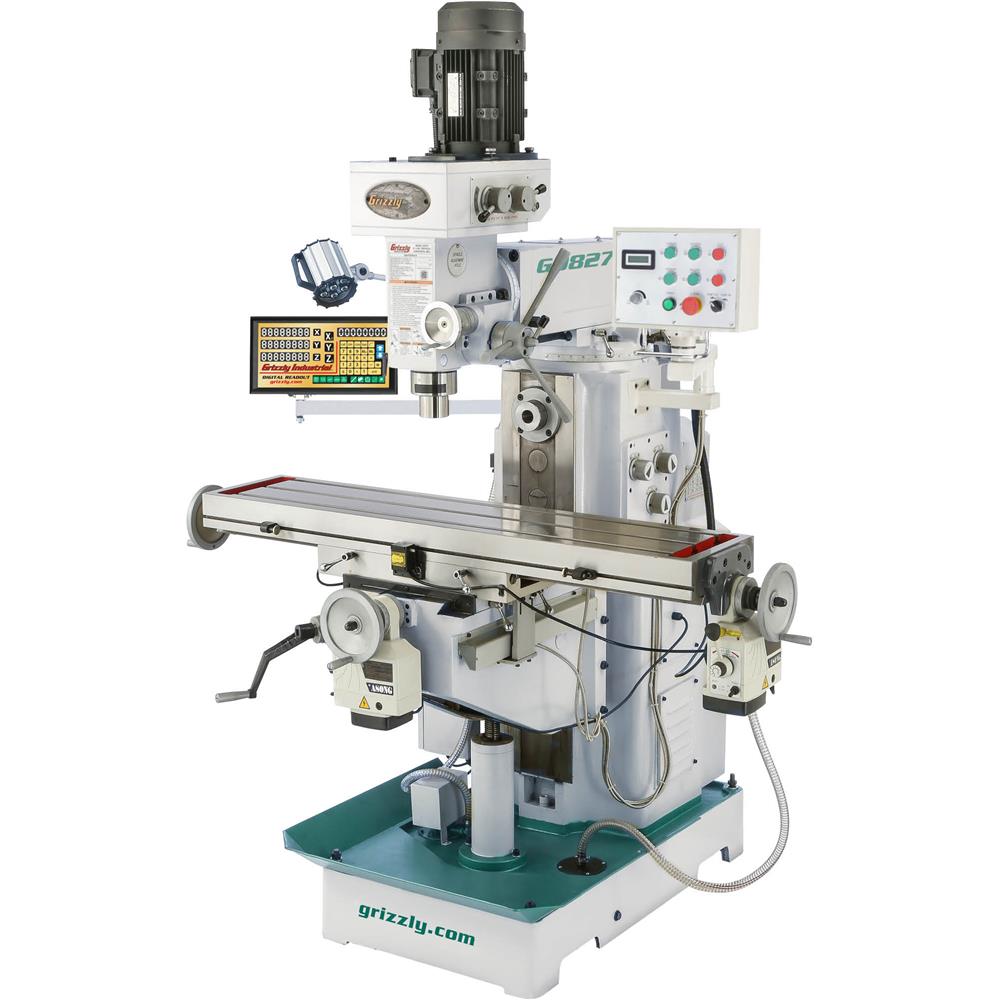

G0827 11" x 50" 2 HP Horizontal/Vertical Mill with DRO

Looking for unwavering torque and consistency in a solid gearhead mill?

This is it as it combines all the range of speeds you need with the size and features that any metalworking shop would want.

A milling machine with horizontal and vertical spindles performs a wide range of machining tasks without the need for extensive setup changes.

It features 8 vertical spindle speeds from 140–2100 RPM and 12 horizontal spindle speeds from 48–1560 RPM.

The head is mounted on a wide-dovetail movable ram with 18" of travel and can tilt 45° left to right. The turret has 180° rotating capability. The turret has 180° of swivel.

A Fagor 3-axis digital readout (DRO) reads down to a 0.0002" resolution for repeatable, accurate milling operations.

The G0827 features 3-axis table movement with independent longitudinal and horizontal power feeds. With the 11" x 50" table, you can set up a rotary table or another fixture on one side without having to remove your vise on the other!

And finally, this milling machine comes with a circulating coolant system with the pump and reservoir in the column base.

SPECIFICATIONS:

FEATURES:

• 3-Axis DRO
• Horizontal and vertical R-8 spindles
• High-precision P5 spindle bearings
• Independent X- and Y-axis power feed
• Coolant recycling system
• LED work light

INCLUDES:

• 1–13mm drill chuck with key and arbor
• R-8 to MT#3 spindle sleeve
• MT#3 to MT#2 spindle sleeve
• 1" and 1-1/4" horizontal spindles
• Service tools and toolbox

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
