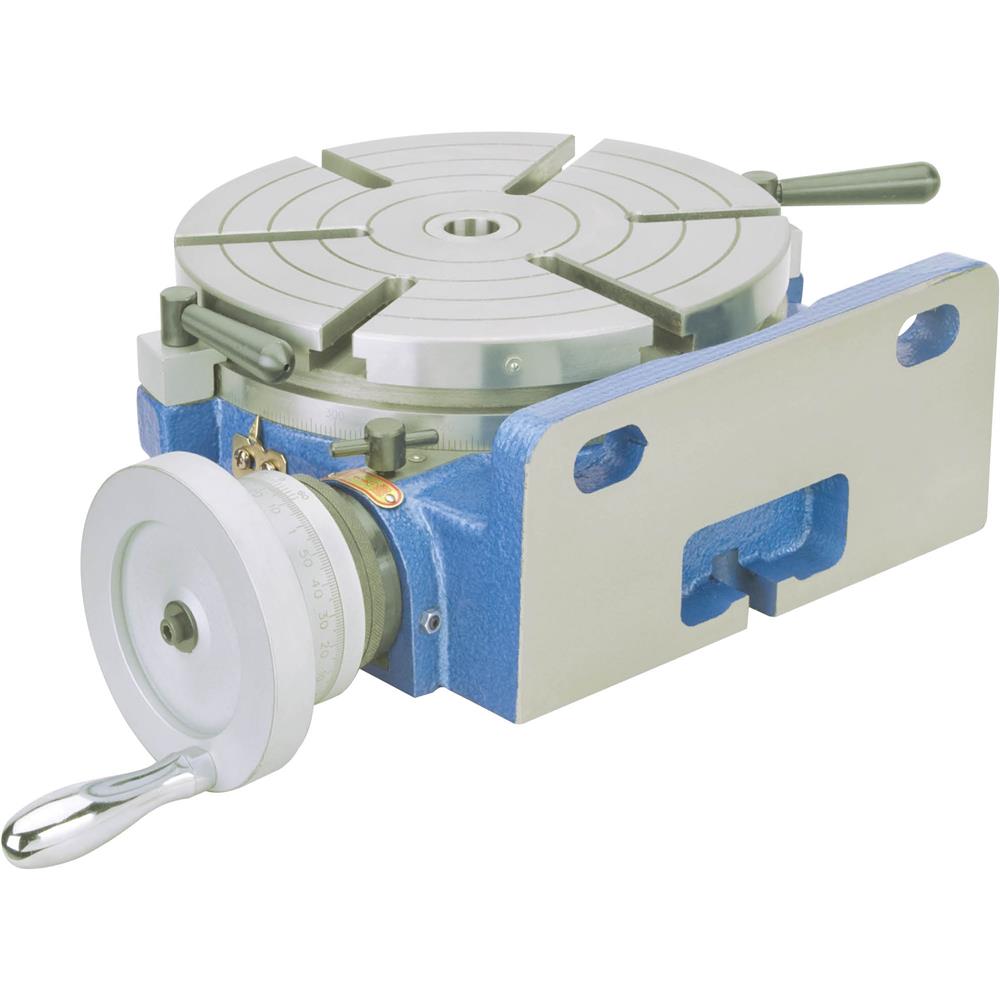

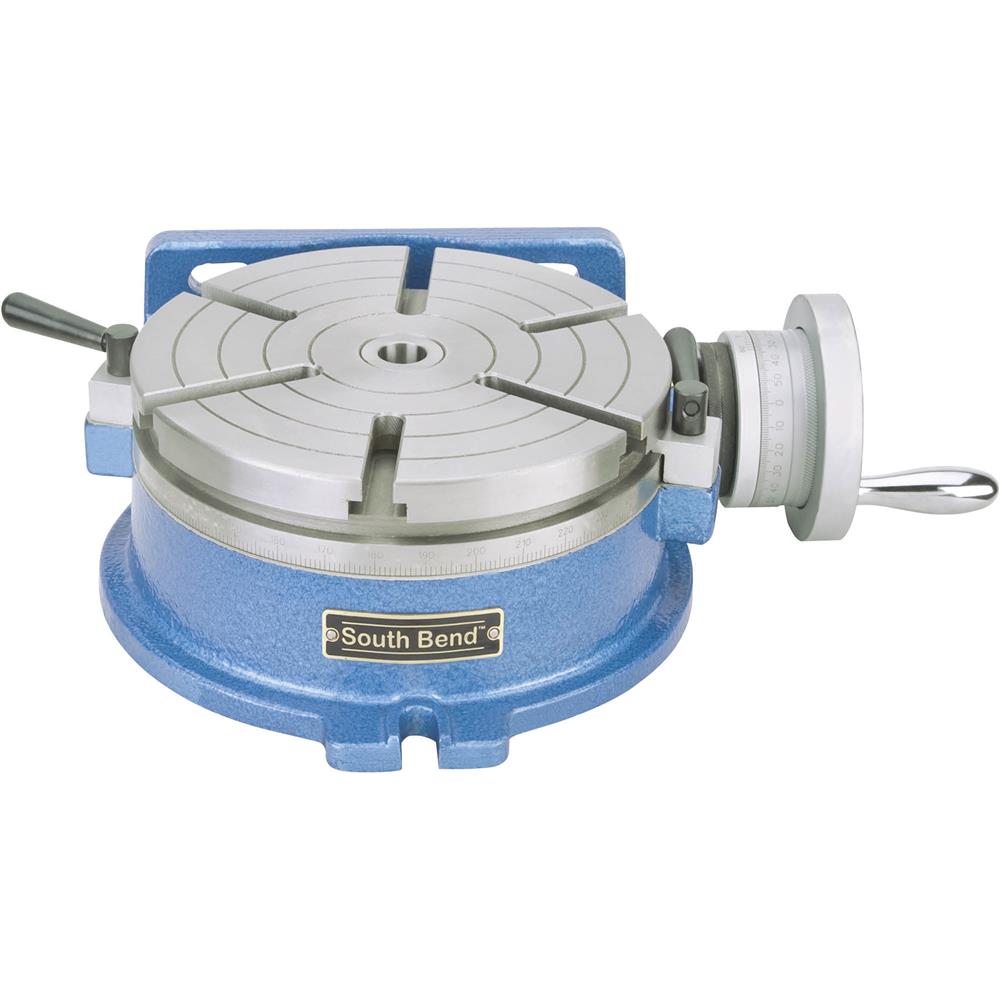

South Bend 10" Rotary Tables designed and constructed for extremely accurate machining and production work.
The possibilities are endless with the SB1368 10" Rotary Table as you repeatedly cut circular slots, radius corners and drill any pattern of holes

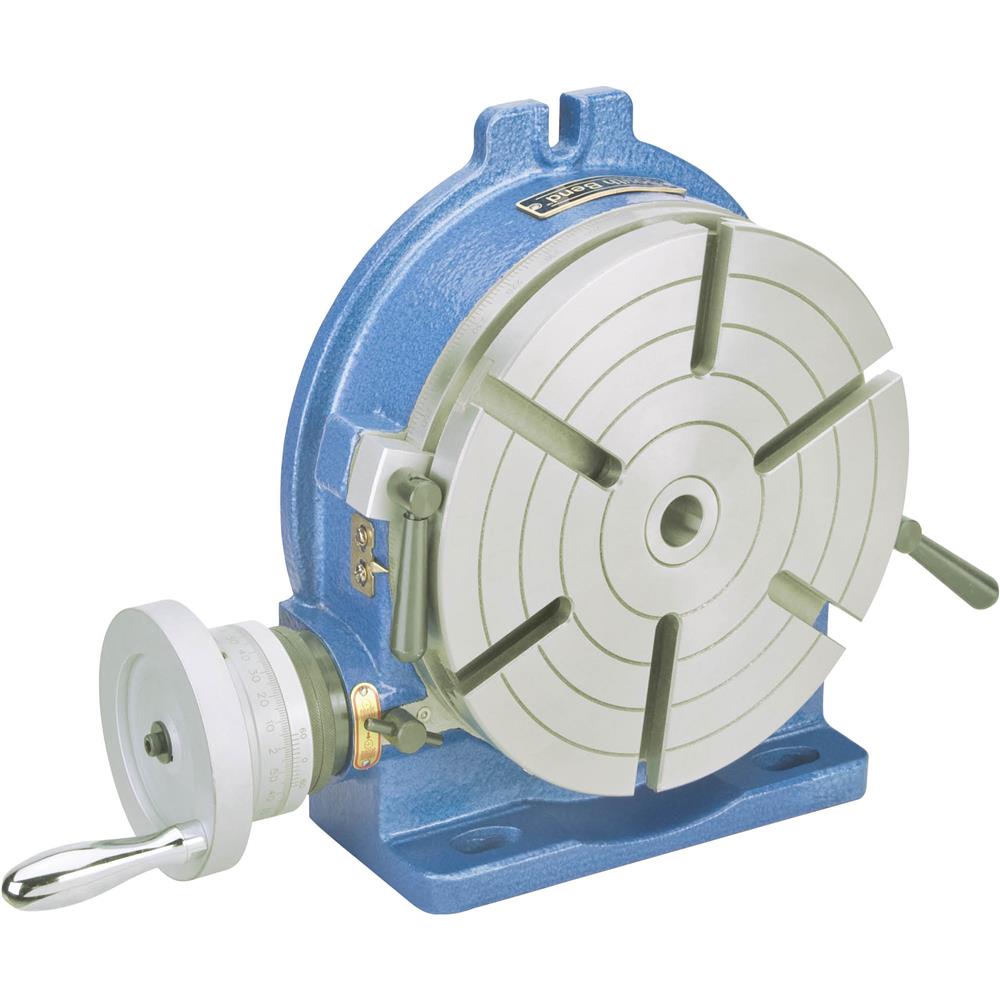

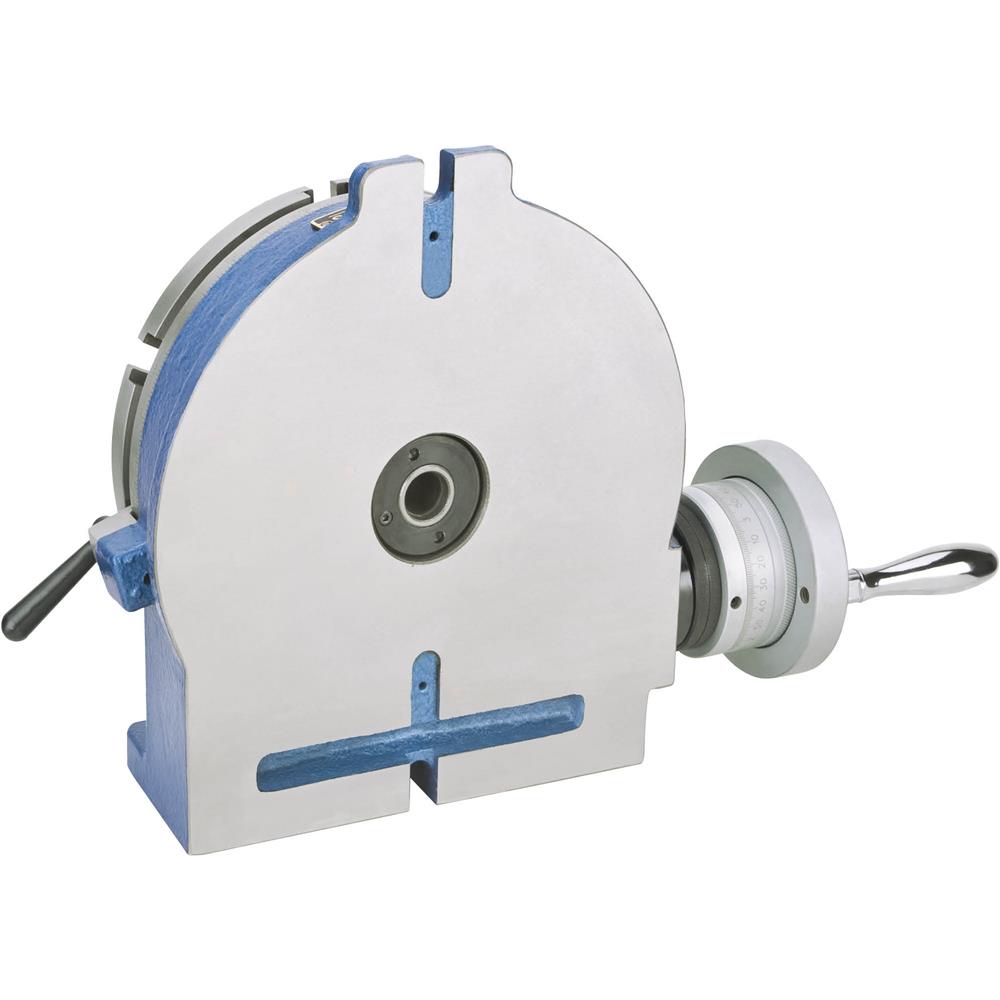

It was designed with a MT#3 Morse taper and can be mounted vertically or horizontally depending on your needs.
The handwheel scales, degree and vernier, can be easily aligned with each other and adjusted for easy viewing. The vernier scale is used to measure table rotation by ten arc seconds at a time.
When fully tightened, the table locks keep the table from rotating to reduce the strain on the gears during operation. The backlash adjustment lock secures the backlash adjustment ring in place. The backlash adjustment ring lever controls the backlash adjustment ring for adjusting the backlash between the gears.
