Stop Building Melamine Epoxy Molds: The Adjustable HDPE Solution

If you have been doing epoxy resin pours for more than a week, you already know the single most frustrating part of the process: building the mold. Cutting melamine, taping every square inch with Tyvek tape, praying the corners don’t leak, and then ultimately smashing the whole thing to pieces when the resin cures. It is a massive waste of time, materials, and money.

There is a better way. Reusable HDPE (High-Density Polyethylene) forms have been changing the game for a while, but we wanted to highlight a specific solution that solves the sizing issue: the Universal Epoxy Form Kit by Epoxy Forms Co, available right here at Bad Owl Tool.

The Problem with Traditional Melamine Molds

Let’s be honest, building a custom mold for every single charcuterie board or small river table is a chore. Here is what a standard melamine mold costs you on every pour:

• Time: Measuring, cutting, assembling, and taping takes away from actual woodworking.
• Materials: Melamine isn't free, and a roll of high-quality sheathing tape isn't exactly cheap either.
• Risk: One tiny crease in your tape or a poorly sealed screw hole, and you have a catastrophic, expensive epoxy leak all over your workbench.

Why HDPE is the Undisputed King of Epoxy Forms

HDPE is a thermoplastic polymer with a surface so slick that cured epoxy resin simply cannot bond to it. When your pour is cured, a few taps with a mallet separate the form from your workpiece. No tape. No mold release spray. No crowbars. No splinters of melamine permanently fused to your expensive burl.

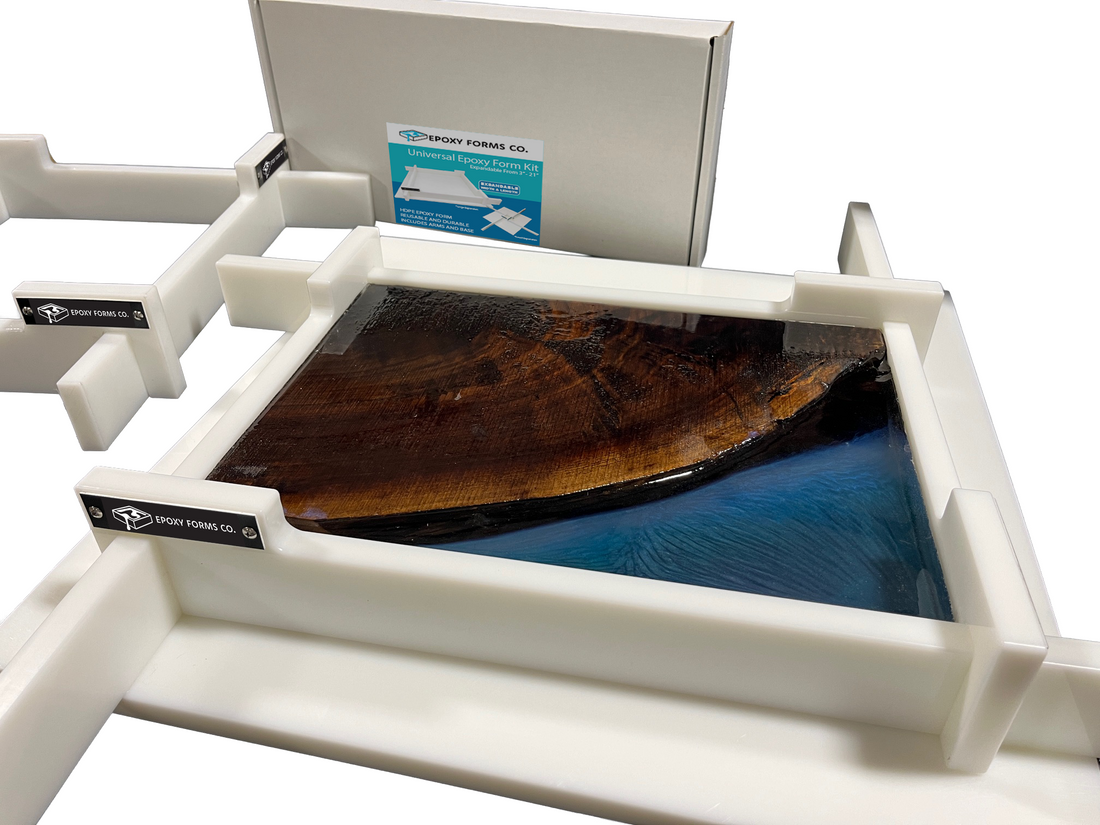

The Universal Adjustable Form Kit

The main drawback of buying a pre-made HDPE mold used to be that you were locked into one specific size. If you bought an 18x24 form, you had to pour 18x24 boards. The Universal Epoxy Form Kit fixes this entirely.

This kit features interlocking 2.5-inch tall HDPE side walls that can slide and adjust to accommodate any interior dimension from a tiny 3-inch square all the way up to a 21-inch square. Your mold now adapts to your offcuts, rather than forcing you to cut your wood to fit the mold.

Here is how you set it up:

1. Slide the interlocking walls together to your desired interior dimension.
2. Place the walls on the included 1/2-inch HDPE base (or your own flat, taped substrate if you bought the arms-only kit).
3. Seal the inside corners and the base seam with a reliable, 100% silicone. We highly recommend XFasten White Silicone Caulk for this exact purpose. It is completely odorless, waterproof, and purpose-built for resin pours.
4. Smooth the silicone out with a press tool or your finger. Let it cure, and you are ready to pour.

Pro Tip: Do not skip the 100% silicone. Cheaper acrylic caulks or silicone-blends will fail under the exothermic heat of curing epoxy, causing leaks. A dedicated epoxy sealant like the XFasten silicone is cheap insurance against a $200 resin disaster.

Bonus Feature: The Ultimate Juice Groove Jig

Here is where this kit goes from "great shop upgrade" to "absolute necessity." Because the HDPE walls are perfectly straight, incredibly rigid, and fully adjustable, they double as a custom routing frame.

Once your board is finished and sanded, lock the Universal Form walls around the perimeter of your cutting board. Chuck a high-quality core box bit—like this Carbide Tipped 1/4-inch Radius Round Nose Bit from Southeast Tool—into your plunge router. Set up a template guide bushing to ride against the inside of the HDPE walls, and route a perfectly uniform juice groove every single time. It entirely eliminates the need to build a separate custom jig for every uniquely sized cutting board you make.

A Quick Note on Surface Finish

Because these forms are machined from raw HDPE, you might notice some minor manufacturing scuff marks on the surface of the walls or base. Do not panic. These micro-imperfections might transfer slightly to the cured resin, but since you will be planing, drumming, or sanding your blank down to its final thickness anyway, those surface marks disappear in the first pass.

Final Thoughts

If you are a serious hobbyist or a professional woodworker trying to scale your production, you need to ruthlessly eliminate inefficiencies in your shop. Stop throwing money in the trash by building disposable molds. Invest in a reusable, adjustable form, use the right silicone sealant, and get back to the fun part of woodworking.

Disclaimer: Always ensure your work table is completely flat, level, and structurally sound before setting up any epoxy form. We have a free mobile app with a built in level: Bad Owl Tool Mobile Woodworking App. A heavy resin pour on an uneven or sagging table will result in a warped casting that no amount of planing can easily fix. When using the form as a router jig, ensure your router base is fully supported and plunge in shallow, incremental passes to avoid bit grab and kickback.
