Why the Laguna LX3 Router Lift is the Best Thing Since Sliced Bread

We woodworkers are a skeptical bunch. Tell us something is "the best thing since sliced bread," and we’ll immediately ask for the tolerances of the slicing knife. But when it comes to the router table, precision and workflow are everything. If you’ve ever ruined a perfectly routed edge because your workpiece caught on a tiny leveling screw hole, or if you’ve busted your knuckles trying to micro-adjust a bit under the table, you know the true value of a premium router lift.

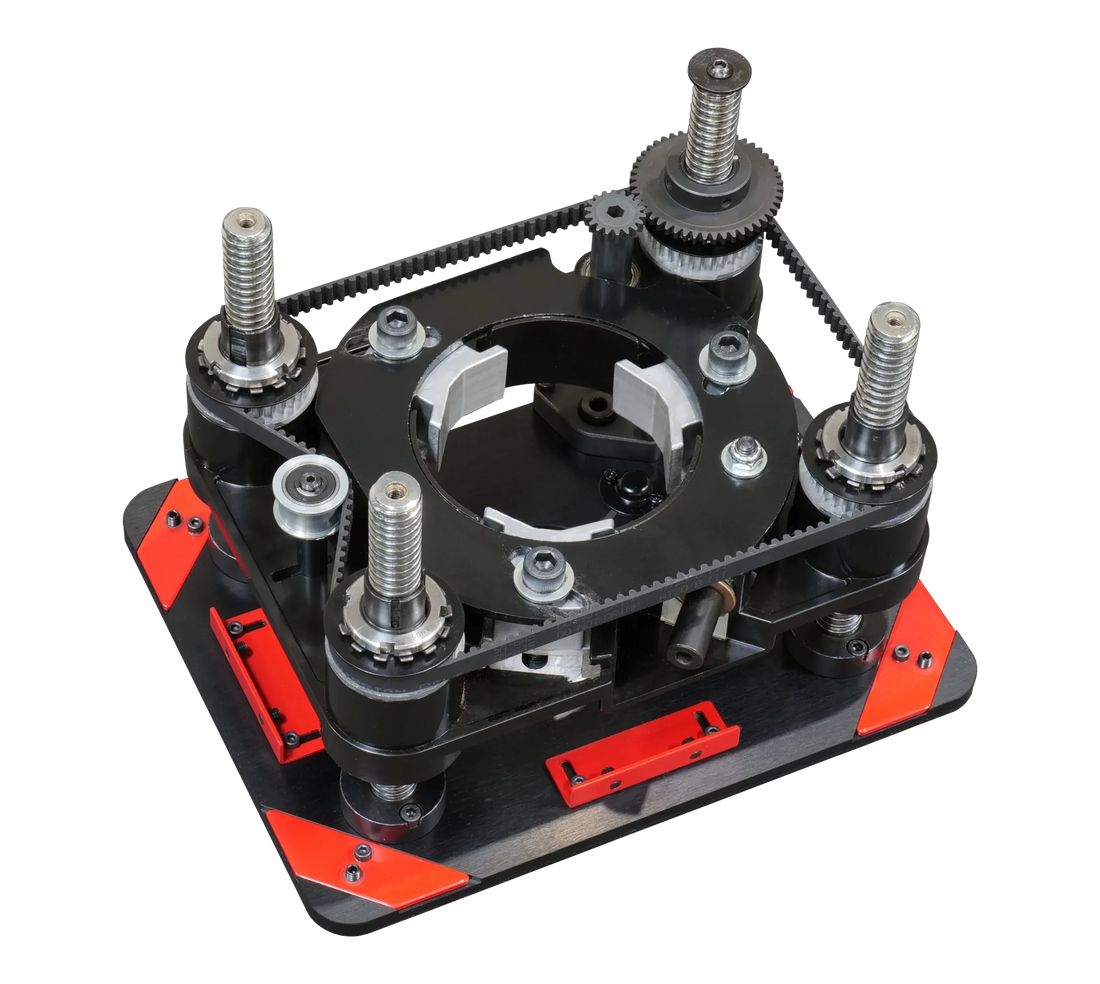

Enter the Laguna LX3 Router Lift (MRL300)—often stylized as the LXIII.

Let’s bust a quick myth right out of the gate: you don’t need a router lift to build great furniture. Craftsmen built masterpieces for centuries without routers at all. But if you value your time, your accuracy, and your sanity, a high-end lift is a massive game-changer. Here is exactly why the Laguna LX3 is earning its permanent spot in professional and serious hobbyist shops alike.

The "No-Catch" Clean Top Plate

This is arguably the LX3’s most brilliant design feature. Most router plates look like Swiss cheese. They are riddled with countersunk holes for leveling screws, mounting bolts, and inserts. What happens when you pass a piece of premium cherry over those holes? Sawdust packs into them, or worse, the corner of your workpiece dips in and catches, leaving a nasty burn mark or gouge.

Laguna solved this by engineering the 3/8-inch thick anodized aluminum top plate to be drilled and tapped from the bottom. The surface is completely slick. Your material glides effortlessly across the 9-1/4" x 11-3/4" plate, letting you focus on an even, safe feed rate rather than fighting friction.

A Universal 3-Jaw Clamp (Say Goodbye to Motor Pads)

If you've owned other router lifts, you’ve probably played the "where did I put that adapter collar?" game. Different router motors have different diameters, meaning you usually have to buy specific aluminum pads to make your motor fit the lift's carriage.

The LX3 features an adjustable 3-jaw clamping system. It securely grips almost any round-body router motor from 3 inches to 4.3 inches in diameter (spanning most standard 3.25 HP down to 1.5 HP motors). No spacers, no inserts, no proprietary collars. Just drop your motor in, tighten the jaws, and get to work.

Four Posts, One Belt, Zero Racking

Here is where the engineering nerds get excited. A router lift is only as good as its rigidity. If the carriage deflects under the lateral pressure of a heavy edge-routing operation, your joint won't be square. Period.

Instead of relying on a single central post or standard threaded rods, the LX3 utilizes a 4-post system. Four heavy-duty 3/4-inch Acme-threaded posts sit at the corners of the carriage. They are driven simultaneously by a maintenance-free timing belt. This means when you adjust the height, all four corners move exactly the same amount. There is no racking, no binding, and remarkably, no need for a dedicated locking lever. The friction and absolute stability of the 4-post Acme thread system hold the height dead-on.

Micro-Adjustments Without the Tiny Crank

Forget the tiny, knuckle-busting crank handles you’ll lose in a pile of shavings. The LX3 comes with a precision 5-inch handwheel that gives you incredible mechanical advantage and tactile feedback.

• One full revolution: Exactly 1/16" of vertical movement.
• One scale increment: 1/512" (approximately 0.002").
• Total travel: 4.9 inches, bringing the collet well above the table for easy, one-handed bit changes.

Dialing in a perfect lock-miter joint or a precision dado has never been easier. Two thousandths of an inch is roughly half the thickness of a piece of copy paper. If you need more precision than that, you might be in the wrong trade.

Magnetic Insert Rings

Tool-free operation is the name of the game here. The LX3 includes three insert rings to accommodate various bit diameters. Instead of fiddling with proprietary spanner wrenches or tiny screws that inevitably strip out, the LX3 rings drop in magnetically. A simple push-button mechanism pops them out. There are adjustable leveling screws beneath the rings to ensure they sit perfectly flush with the main plate.

Pro Tip: Always size your insert ring to be just slightly larger than your router bit. Too much gap can allow small offcuts to drop in and jam the bit, creating a dangerous kickback scenario.

Common Mistakes and Safety Considerations

As robust as this lift is, you still have to set it up properly to get the most out of it. Here are a few things to keep in mind:

• Level It Perfectly: The LX3 features built-in 4-corner adjustable leveling plates and edge tension guides. Take the time with a reliable straightedge and feeler gauges to dial this in absolutely flush with your table surface. "Close enough" isn't good enough in woodworking.
• Unplug for Bit Changes: Yes, the lift brings the collet above the table, making changes phenomenally fast. But do not get lazy. Unplug the router before getting your hands near that cutter.
• Use the Starter Pin: If you are doing freehand template routing (without a fence) using bearing-guided cutters—like a massive 2+2 compression flush trim bit—always use the starter pin to pivot your workpiece into the bit safely. Pushing straight into a spinning bit is asking for the tool to grab the wood and violently throw it.

Heads Up Template Routers: Speaking of template routing, if you're batching out charcuterie boards or looking for fresh designs, check out our Statedwoods Supply router templates. We offer $10 flat-rate shipping no matter how many templates you buy, so you can load up your cart without getting crushed on shipping costs.

The Bottom Line

At the end of the day, a high-quality router lift is a long-term investment for your shop. The Laguna LX3 doesn’t rely on gimmicks; it relies on solid physics, clean machining, and a deep understanding of what actually frustrates woodworkers on a daily basis. From the perfectly slick top plate to the ultra-rigid 4-post carriage, it is designed to get out of your way and let you focus on the craft. And honestly? That really is the best thing since sliced bread.
